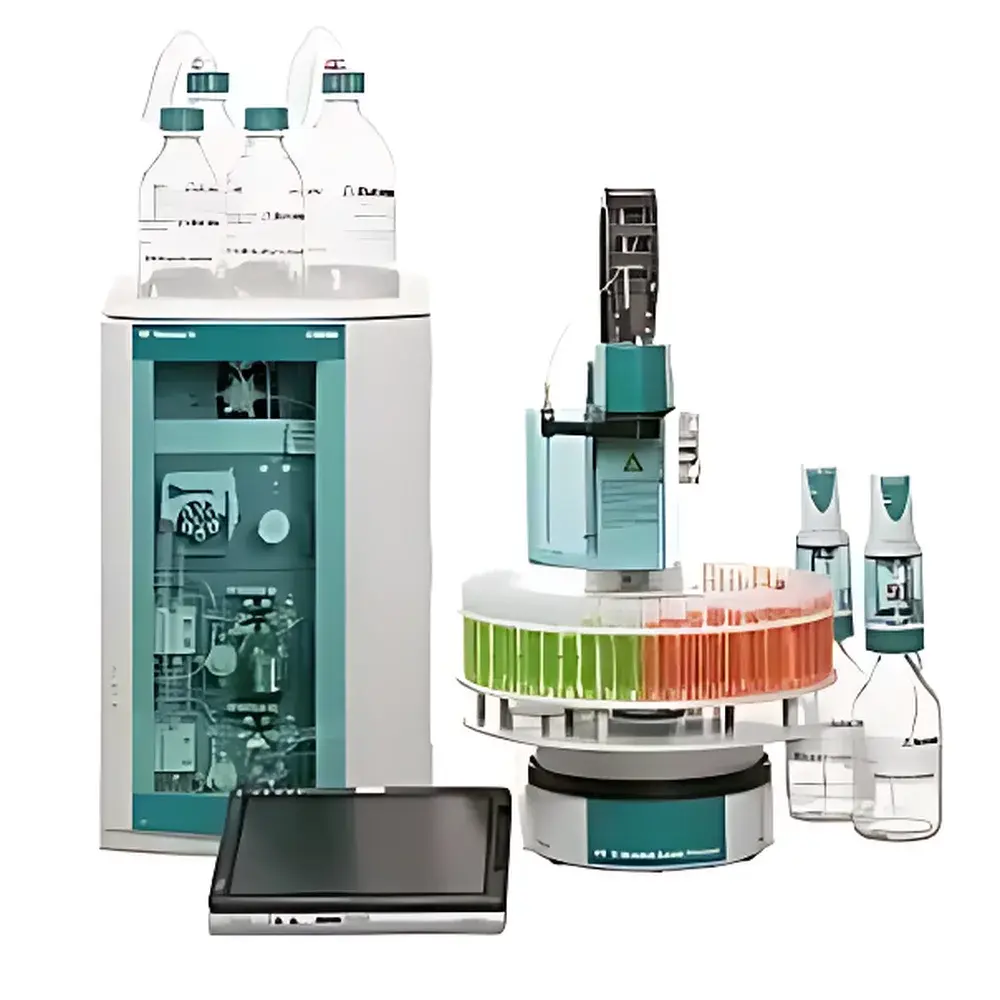

Metrohm 850 Professional IC Peak Thinking Series Ion Chromatograph

Overview

The Metrohm 850 Professional IC is a fully integrated, intelligent ion chromatography system engineered for high-precision anion and cation analysis in regulated and research-intensive laboratories. Built upon the Peak Thinking™ platform, it implements a distributed intelligence architecture where each core module — including the iPump, iColumn, iDetector, MSM II chemical suppressor, and 858 Sample Processor — contains embedded microprocessors and non-volatile memory to autonomously monitor performance, store calibration history, enforce operational limits, and communicate real-time status to MagIC Net™ software. The system operates on the principle of suppressed conductivity detection following ion-exchange separation, enabling sub-ppb quantification of inorganic and low-molecular-weight organic ions in complex matrices. Its all-polyetheretherketone (PEEK) and PTFE fluidic path ensures full chemical inertness across pH 0–14, eliminating metal contamination risks and supporting aggressive eluents such as potassium hydroxide, methanesulfonic acid, and organic modifiers. Designed for compliance-critical environments, the 850 Professional IC supports full 21 CFR Part 11 implementation — including electronic signatures, audit trails, role-based access control, and secure data archiving — making it suitable for pharmaceutical QC, environmental monitoring (EPA Methods 300.0/300.1), and food safety testing under ISO/IEC 17025.

Key Features

• Modular, transparent chassis design with tool-free component access and pre-routed fluidic pathways for seamless expansion
• Dual-channel parallel operation supporting simultaneous anion and cation analysis without hardware reconfiguration
• MSM II chemical suppressor delivering 0.2 nS/cm baseline noise, <5 s standby activation, 100% organic solvent tolerance, and 10-year warranty
• iColumn smart cartridges with RFID-enabled chips storing column-specific parameters: optimal eluent composition, flow rate, pressure limits, and cumulative usage history
• iDetector with precision thermoregulation (±0.05 °C), Faraday-shielded electronics, and onboard storage for up to ten reference chromatograms for rapid system verification
• iPump with adaptive flow optimization algorithms and EEPROM-stored pump head calibration data, automatically adjusting for viscosity and backpressure changes
• Full non-metallic fluid path from eluent reservoir to detector cell, including integrated online degassing for both eluent and sample streams
• USB-native 858 Professional Sample Processor with automatic rack recognition (30+ configurations), 148-position capacity, and programmable wash cycles

Sample Compatibility & Compliance

The 850 Professional IC accommodates highly heterogeneous samples through its MISP (Metrohm Inline Sample Preparation) framework. Direct injection of undiluted, particulate-laden, or high-viscosity matrices — including dairy products, fruit/vegetable juices, caustic soda solutions, biodiesel, and industrial wastewater — is enabled via automated ultrafiltration, dialysis, matrix elimination, pH neutralization, and analyte preconcentration modules. All MISP functions are executed inline under software-defined method sequences, eliminating manual pretreatment and reducing carryover risk. System validation follows ASTM D4327 and ISO 14911 protocols, while software operation complies with FDA 21 CFR Part 11 requirements for electronic records and signatures. Instrument qualification documentation (DQ/IQ/OQ/PQ) templates are provided, and the entire system supports GLP and GMP audit readiness with timestamped event logs, user action tracking, and immutable result archives.

Software & Data Management

MagIC Net™ software serves as the central orchestration engine for the 850 Professional IC. It provides a unified interface for method development, sequence definition, real-time system diagnostics, and report generation. The software implements hierarchical user roles with configurable permissions, full electronic signature workflows, and tamper-evident audit trails compliant with ALCOA+ principles. Chromatogram processing includes automatic peak integration using dynamic baseline algorithms, multi-point calibration curve fitting with weighting options, and uncertainty estimation per ICH Q2(R2). Data export supports CSV, PDF/A-2, and LIMS-compatible formats (ASTM E1384, HL7). Raw data files are cryptographically hashed and stored with metadata linking instrument state, consumable history, and environmental conditions at acquisition time.

Applications

This system is routinely deployed in environmental laboratories for trace-level monitoring of nitrate, nitrite, sulfate, fluoride, chloride, bromide, phosphate, and perchlorate in drinking water and surface runoff. In pharmaceutical manufacturing, it validates counterion profiles in APIs and excipients per USP and EP 2.2.37. Food and beverage labs use it to quantify preservatives (sorbate, benzoate), sweeteners (acesulfame-K, saccharin), and nutritional anions (iodide, citrate) in compliance with EU Regulation 1169/2011. Industrial applications include quality control of semiconductor-grade chemicals (SEMI C12), electroplating baths, and lithium-ion battery electrolytes. The dual-channel configuration allows concurrent monitoring of corrosion inhibitors (e.g., molybdate) and aggressive anions (e.g., chloride) in cooling water systems.

FAQ

Does the 850 Professional IC support gradient elution?
Yes — it supports both isocratic and high-pressure gradient elution via dual-gradient pumps, enabling method development for complex multi-analyte separations.
Is the MSM II suppressor compatible with organic solvents such as acetonitrile or methanol?
Yes — the MSM II suppressor is fully resistant to common organic modifiers up to 100% concentration, with no degradation in suppression efficiency or noise performance.
Can the system be validated for GMP environments?
Yes — MagIC Net™ includes built-in tools for IQ/OQ/PQ execution, electronic signatures, and audit-trail generation required for FDA and EMA inspections.
How does the iColumn chip ensure method transfer between instruments?
Each iColumn stores its complete operational history and optimal parameters; when installed on another 850 Professional IC, the system auto-reads this data and configures itself accordingly, ensuring retention time reproducibility across platforms.
What sample preparation techniques are supported by the 858 Sample Processor?
The 858 supports ultrafiltration (1–10 kDa MWCO), dialysis, matrix elimination (Ag/H cartridge), online neutralization, dilution, and preconcentration — all programmable within a single method sequence.
