Labconco Cell Logic Class II A2 Biological Safety Cabinet

Overview

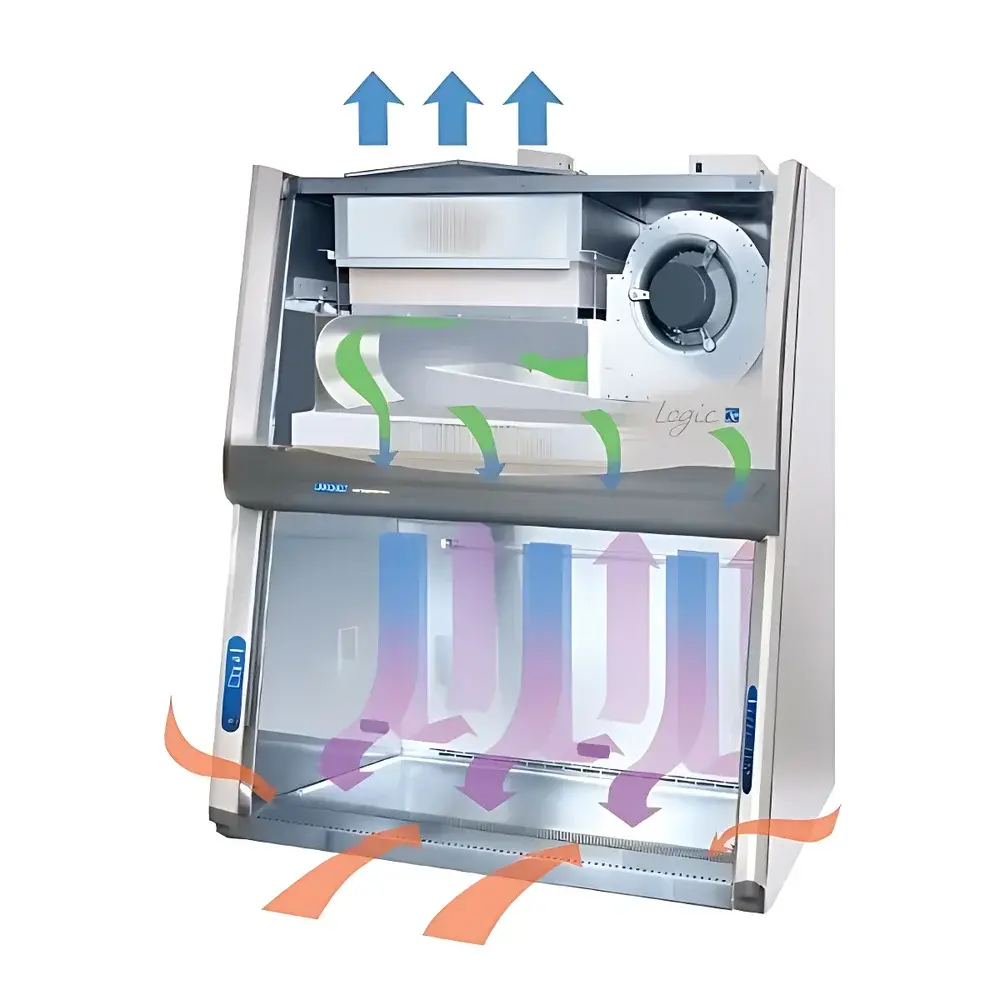

The Labconco Cell Logic Class II A2 Biological Safety Cabinet is an NSF/ANSI 49–certified, energy-efficient containment system engineered for cell culture, microbiological research, and handling of low-to-moderate risk biological agents (BSL-1, BSL-2, and select BSL-3 applications). Operating on the principle of inward airflow containment and recirculated laminar downflow, it provides simultaneous protection of personnel, product, and environment through a precisely balanced dual-HEPA filtration system. Approximately 70% of the total air volume is recirculated after passing through the supply HEPA filter, while 30% is exhausted externally via dedicated ducting or thimble connection. The cabinet’s aerodynamic architecture—featuring negative-pressure contaminated plenums, Contain-Air™ perimeter channels, and fully sealed stainless-steel interior—ensures consistent ISO Class 5 (formerly Class 100) cleanroom conditions within the work area. Its design prioritizes operational integrity under variable filter loading, enabled by an electronically commutated motor (ECM) that maintains constant airflow without reliance on physical air velocity sensors.

Key Features

• Electronically commutated motor (ECM) delivering 60% lower energy consumption versus conventional AC motors, with programmable speed control to sustain nominal inflow (105 fpm) and downflow (55 fpm) across full filter life.
• Contain-Air™ negative-pressure channel integrated into the sash perimeter prevents loss of containment at the upper sash edge, enhancing operator safety during extended use.
• 21.7-inch (54 cm) vertical sash opening and 27.0-inch (69 cm) viewing height—combined with a 10° tilt-angle tempered glass window—optimize ergonomics and visual access without compromising laminar flow stability.
• LCD status display mounted on the right interior wall provides real-time monitoring of airflow performance, filter status, and system diagnostics within direct line of sight.
• Seamless 304 stainless-steel interior with integral, removable, dish-shaped work surface; all surfaces are non-porous, chemical-resistant, and designed for rapid decontamination.
• Scope-Ready™ package includes Pure-Vu Seal™ flexible optical seal, Stand-Still™ vibration-damping microscope platform (reducing transmitted vibrations by up to 300%), and pre-engineered mounting interfaces for seamless integration of upright or inverted microscopes.
• Temp-Zone™ optional thermal management system enables localized temperature control (±0.5°C uniformity) across a laser-etched zone on the work surface, compatible with external recirculating chillers (e.g., Cole-Parmer Polystat® models 12123-50 or -55).

Sample Compatibility & Compliance

The Cell Logic A2 cabinet supports a broad range of biosafety-critical workflows—including stem cell expansion, primary cell isolation, transfection assays, and recombinant protein expression—without compromising sterility or operator exposure limits. It complies fully with NSF/ANSI 49–2022, the U.S. standard governing design, construction, and performance of biological safety cabinets. Additional conformance includes CE marking per EN 12464-1 (lighting), ADA-compliant sash operation, and electrical safety certification to IEC 61010-1. All internal airflow patterns undergo third-party verification per Annex D of NSF/ANSI 49, ensuring reproducible containment integrity under both static and dynamic operating conditions. The cabinet’s negative-pressure ductwork and double HEPA exhaust configuration meet requirements for safe handling of aerosol-generating procedures involving Risk Group 2 agents and select Risk Group 3 pathogens when used in conjunction with appropriate PPE and facility engineering controls.

Software & Data Management

While the Cell Logic A2 does not incorporate embedded software or network connectivity, its ECM-driven control architecture enables traceable, audit-ready performance documentation via analog output signals (0–10 VDC) for integration into laboratory building management systems (BMS) or centralized HVAC monitoring platforms. The LCD interface logs runtime hours, filter usage estimates, and alarm events—including high-resistance alerts triggered by >25% pressure drop across either HEPA filter. These parameters satisfy GLP/GMP documentation prerequisites for routine maintenance scheduling and regulatory inspection readiness. Optional data logging modules (sold separately) support CSV export of airflow metrics over time, facilitating trend analysis for preventive maintenance planning and ISO 14644-2 compliance reporting.

Applications

• Cell culture operations requiring ISO Class 5 environmental control and personnel protection during passaging, cryopreservation, and media preparation.
• Transfection and viral vector production workflows where aerosol containment and cross-contamination prevention are critical.
• Microscopy-integrated live-cell imaging, enabled by Scope-Ready™ hardware and vibration-isolated optical pathways.
• Thermally sensitive assay setup—including organoid culture and metabolic profiling—using Temp-Zone™ for precise sample temperature stabilization prior to incubation.
• Pharmaceutical QC testing involving microbial enumeration, sterility testing, and environmental monitoring sample processing.
• Academic and industrial research labs conducting NIH-funded or FDA-regulated studies requiring NSF 49–validated containment infrastructure.

FAQ

What safety certifications does the Labconco Cell Logic A2 cabinet hold?
It is certified to NSF/ANSI 49–2022, CE, and ADA standards, and meets ISO 14644-1 Class 5 (100) cleanroom requirements for particulate control.
Can this cabinet be installed without external ducting?
Yes—it operates in recirculating mode with optional thimble exhaust, though hard-ducted exhaust is recommended for optimal containment when working with volatile chemicals or higher-risk agents.
Is the Scope-Ready™ package compatible with all microscope models?
It supports standard upright and inverted microscopes with defined mounting footprints; custom bracketing may be required for specialized configurations.
How often must the HEPA filters be replaced?
Filter service intervals depend on usage intensity and ambient particulate load; typical replacement occurs every 3–5 years, guided by ECM pressure-drop diagnostics and annual NSF 49–compliant certification testing.
Does the Temp-Zone™ option require a dedicated chiller?
Yes—a user-supplied recirculating chiller (e.g., Polystat® 12123-50) connects via quick-disconnect fittings on the left side of the cabinet to deliver temperature-controlled fluid to the embedded thermal plate.
