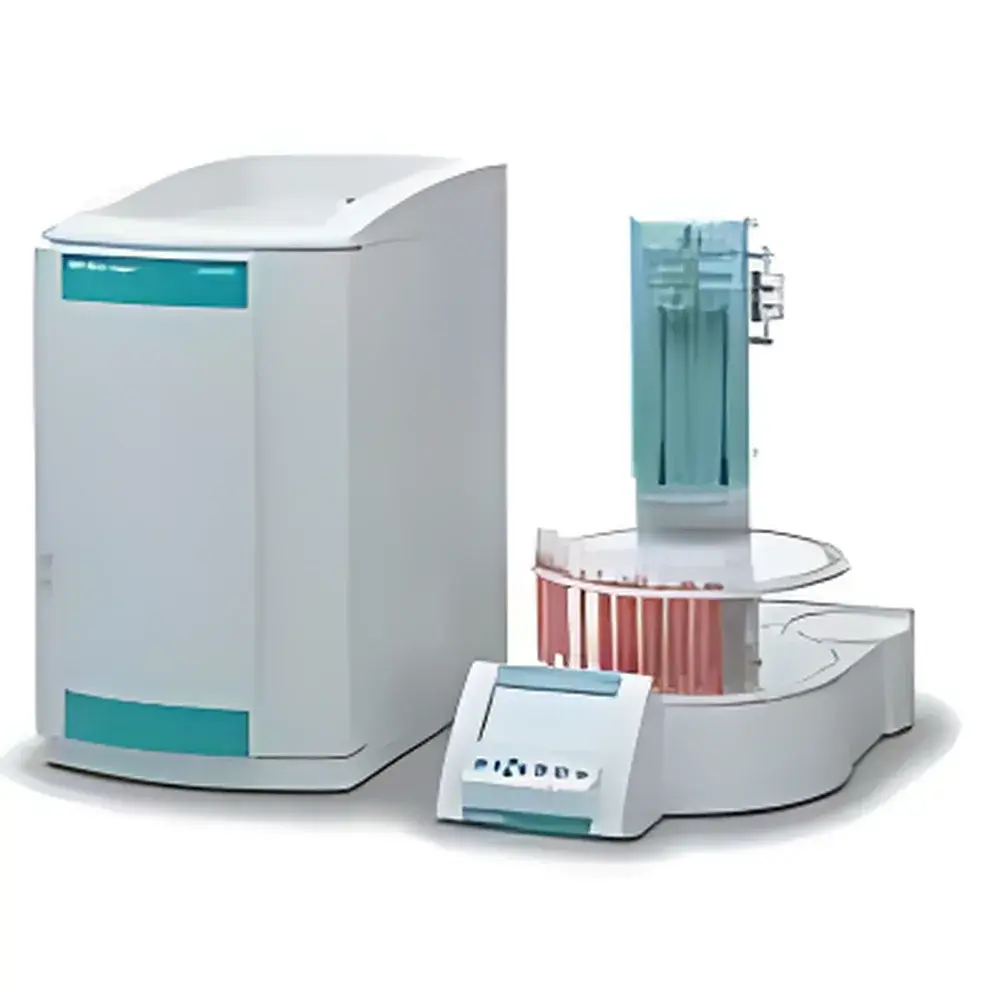

Metrohm 883 Ion Chromatograph

Overview

The Metrohm 883 Ion Chromatograph is a compact, fully automated benchtop ion chromatography system engineered for high-precision, routine quantitative analysis of inorganic anions, cations, and small polar molecules in diverse matrices. Based on suppressed conductivity detection and eluent generation technology, the 883 implements core principles of modern ion chromatography—including gradient elution, column switching, and inline sample preparation—within a space-efficient architecture. As the latest evolution of Metrohm’s ProfiChrom™ platform (succeeding the 850, 881, and 882 systems), the 883 maintains full functional parity with larger models while optimizing footprint, operational efficiency, and total cost of ownership. Its design targets laboratories requiring regulatory-compliant, unattended daily operation—particularly in environmental monitoring (drinking water, wastewater), food safety (nitrate/nitrite, sulfite, phosphate), chemical manufacturing (impurity profiling), and pharmaceutical excipient testing.

Key Features

• i-Intelligence™ Technology Integration: All major components—iColumn™, iDetector™, and iPump™—feature embedded microchips that enable automatic identification, parameter optimization, usage logging, and traceable configuration history. This architecture supports instrument qualification (IQ/OQ) and simplifies method transfer across multiple 883 systems.
• Inline Sample Preparation via Metrohm Inline Ultrafiltration (MILUF™): A proprietary spiral-flow ultrafiltration module integrated into the autosampler eliminates manual filtration. Sample and filtrate flow parallel to the membrane surface, minimizing fouling and extending membrane life. Simultaneous analysis and line flushing ensure carryover-free operation across high-throughput sequences.
• Eluent Generation (EG) Capability: Compatible with Metrohm’s EG modules for on-demand, high-purity eluent synthesis—reducing background conductivity drift, improving baseline stability, and eliminating batch-to-batch eluent variability.
• Compact Modular Design: Footprint under 50 cm × 40 cm; modular layout allows flexible configuration for anion-only, cation-only, or dual-channel operation without hardware modification.
• Thermostatically Controlled Detection Cell: Conductivity detector with active temperature stabilization (±0.01 °C) and Faraday cage shielding ensures long-term signal reproducibility and low noise (<0.1 nS/cm RMS).

Sample Compatibility & Compliance

The 883 accepts aqueous samples with total suspended solids <5 ppm and viscosity <2 cP. It routinely handles raw drinking water, digested food extracts, process brines, and pharmaceutical rinse solutions—with direct injection possible for clarified matrices. When paired with appropriate preconcentration columns or dialysis units, it supports trace-level analysis (sub-ppb Cl⁻, NO₃⁻) per ISO 10304-1, ASTM D4327, and USP . The system complies with GLP data integrity requirements: MagIC Net™ provides electronic signatures, full audit trails, user access levels, and secure data archiving—fully aligned with FDA 21 CFR Part 11 when configured with validated software settings and network authentication protocols.

Software & Data Management

MagIC Net™ v4.4+ serves as the unified control, acquisition, and reporting platform. It delivers sequence-based method scheduling, real-time chromatogram overlay, peak integration with customizable baselines, and automated calibration curve generation. Built-in validation tools include system suitability checks (resolution, tailing factor, RSD), forced degradation studies, and spectral library matching for detector verification. All raw data, method files, and audit logs are stored in encrypted .mnd format with SHA-256 hashing. Export options include PDF analytical reports, CSV/Excel quantitation tables, and LIMS-compatible ASTM E1384 or HL7 messages.

Applications

• Environmental: Quantification of F⁻, Cl⁻, NO₂⁻, NO₃⁻, PO₄³⁻, SO₄²⁻, Br⁻, and AsO₄³⁻ in surface water, groundwater, and wastewater per EPA Method 300.0 and ISO 10304-2.
• Food & Beverage: Determination of preservatives (benzoate, sorbate), acidity regulators (citrate, lactate), and contaminants (iodide, thiocyanate) in dairy, beverages, and infant formula.
• Chemical Industry: Monitoring of chloride, sulfate, and acetate impurities in caustic soda, ethylene glycol, and lithium battery electrolytes.
• Pharmaceuticals: Testing of counterions (Na⁺, K⁺, Ca²⁺, Mg²⁺) in APIs and excipients per ICH Q5C and USP /.

FAQ

Does the 883 support both anion and cation analysis in a single run?
Yes—using optional dual-channel configuration with independent pumps, detectors, and separation columns, the 883 can perform simultaneous anion and cation determination without valve switching delays.
Is method validation documentation available for the 883 system?
Metrohm provides IQ/OQ/PQ protocol templates, performance qualification checklists, and GxP implementation guides compliant with ISO/IEC 17025 and Annex 11.
Can the 883 be integrated into a laboratory information management system (LIMS)?
Yes—via standard ODBC drivers, RESTful API endpoints, or ASTM E1384-compliant file exchange, enabling bidirectional data flow with major LIMS platforms including LabWare, Thermo Fisher SampleManager, and STARLIMS.
What maintenance intervals are recommended for the iColumn™ and MILUF™ modules?
iColumn™ lifetime is tracked automatically; typical service life exceeds 2,000 injections under standard conditions. MILUF™ membranes require replacement every 3–6 months depending on sample load—system alerts trigger at 90% estimated capacity.
Is remote monitoring supported?
MagIC Net™ includes secure web-based dashboard access (HTTPS/TLS 1.2) for real-time status, alarm notification, and limited method editing—compatible with corporate firewall policies and zero-trust network architectures.
