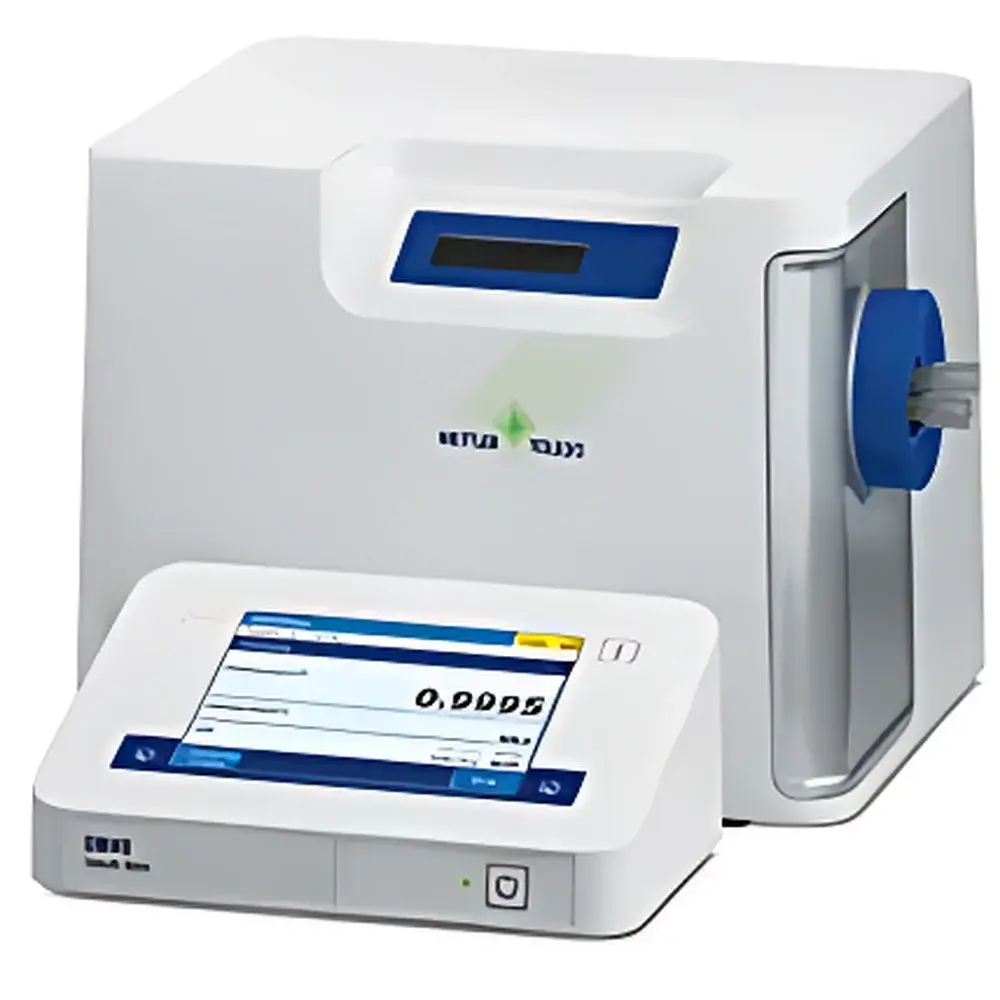

METTLER TOLEDO DM40 Desktop Density Meter
| Brand | METTLER TOLEDO |
|---|---|
| Origin | Switzerland |
| Model | DM40 |
| Density Measurement Range | 0.0000–3.0000 g/cm³ |
| Density Repeatability (SD, n=10) | 0.00005 g/cm³ |
| Density Accuracy | 0.0001 g/cm³ (typical) |
| Temperature Control Range | 0–91 °C |
| Minimum Sample Volume | 1 mL |
| Instrument Type | Laboratory Benchtop Digital Density Meter |
| Measurement Principle | Oscillating U-tube (vibrating tube) densitometry |
| Compliance | ASTM D4052, ISO 12185, USP <841>, IP 270, DIN 51757 |
Overview
The METTLER TOLEDO DM40 Desktop Density Meter is a high-precision laboratory instrument engineered for accurate, rapid, and fully automated determination of density, specific gravity, and related physical parameters of liquid samples. It operates on the oscillating U-tube principle—a well-established, internationally standardized method where the sample-filled glass tube vibrates at its natural frequency, which correlates directly with the sample’s density via calibrated mathematical models. This technique delivers exceptional reproducibility and long-term stability without requiring calibration with reference standards for every measurement. Designed for routine QC/QA labs, R&D facilities, and regulatory-compliant environments, the DM40 integrates seamlessly into modern analytical workflows while maintaining full traceability and audit readiness.
Key Features
- Oscillating U-tube technology compliant with ASTM D4052, ISO 12185, and USP —ensuring globally accepted measurement validity.
- Temperature-controlled Peltier system enabling precise thermal regulation from 0 °C to 91 °C, critical for viscosity-sensitive or thermally expansive samples.
- High-resolution density measurement range of 0.0000–3.0000 g/cm³ with repeatability ≤ 0.00005 g/cm³ (SD, n=10) and accuracy up to ±0.0001 g/cm³ under standard conditions.
- Minimal sample requirement of only 1 mL—reducing reagent consumption and enabling analysis of precious or hazardous materials.
- ErgoSens™ hands-free start function and LevelSens™ overflow protection enhance operator safety and prevent instrument misuse or waste container overfilling.
- SmartCodes™ barcode recognition and ScanStraight™ automatic scanning streamline method selection and sample identification—eliminating manual entry errors.
- OneClick™ method concept enables product-specific, pre-configured measurement protocols with built-in error detection, auto-validation, and real-time status feedback.
Sample Compatibility & Compliance
The DM40 supports a broad spectrum of liquid samples—including aqueous solutions, organic solvents, acids, bases, oils, polymers, pharmaceutical formulations, and food-grade liquids—provided they are non-solidifying and free of suspended particles or air bubbles at measurement temperature. Its robust U-tube design accommodates samples with viscosities up to 20,000 mPa·s (with optional capillary cleaning mode). All measurements adhere to international regulatory frameworks: data integrity complies with FDA 21 CFR Part 11 requirements when operated with LabX software; electronic records include full audit trails, user authentication, and time-stamped metadata. The instrument meets GLP/GMP documentation standards and supports IQ/OQ/PQ validation protocols.
Software & Data Management
Controlled exclusively via METTLER TOLEDO’s LabX laboratory software, the DM40 ensures centralized, secure, and scalable data handling. LabX provides full 21 CFR Part 11 compliance—including electronic signatures, role-based access control, and immutable audit logs. It enables seamless integration with LIMS, SAP, and ERP systems through standardized interfaces (ODBC, OPC UA, REST API). Method templates, calibration records, raw oscillation data, temperature profiles, and result reports are stored in a structured relational database. Batch reporting, statistical process control (SPC), and customizable PDF/Excel export support quality assurance and regulatory submissions.
Applications
The DM40 serves as a core analytical tool across industries requiring strict density control: in pharmaceutical manufacturing for excipient verification and formulation consistency checks; in petrochemical QA for hydrocarbon blend verification and API gravity assessment; in food & beverage for sugar content estimation (Brix), alcohol concentration, and syrup density grading; in academic research for polymer solution characterization and solvent purity screening; and in environmental labs for wastewater salinity and contaminant density profiling. Its modular architecture also permits future expansion with refractometry (via LiquiPhysics Excellence modules), pH, conductivity, or colorimetry—without hardware replacement.
FAQ
What density measurement principle does the DM40 use?
It employs oscillating U-tube densitometry, where the resonant frequency of a precisely manufactured borosilicate glass tube filled with sample is measured and converted to density using factory-calibrated algorithms.
Is temperature control integrated into the DM40?
Yes—the instrument features a built-in Peltier element with active cooling/heating, maintaining setpoint accuracy within ±0.02 °C across the full 0–91 °C operating range.
Can the DM40 be validated for GMP environments?
Absolutely—it supports full IQ/OQ/PQ documentation packages, and LabX provides 21 CFR Part 11–compliant electronic records required for FDA, EMA, and PMDA audits.
Does the DM40 require daily recalibration?
No—its drift-compensated oscillator design and reference-mode verification ensure stable performance between scheduled calibrations, typically performed weekly or per SOP.
How is sample introduction and cleaning managed?
Manual syringe loading is supported, but optional FillPal™ peristaltic pumps and SC1/SC30 automation modules enable unattended operation, multi-sample sequencing, and programmable rinse cycles with up to three cleaning solvents.
