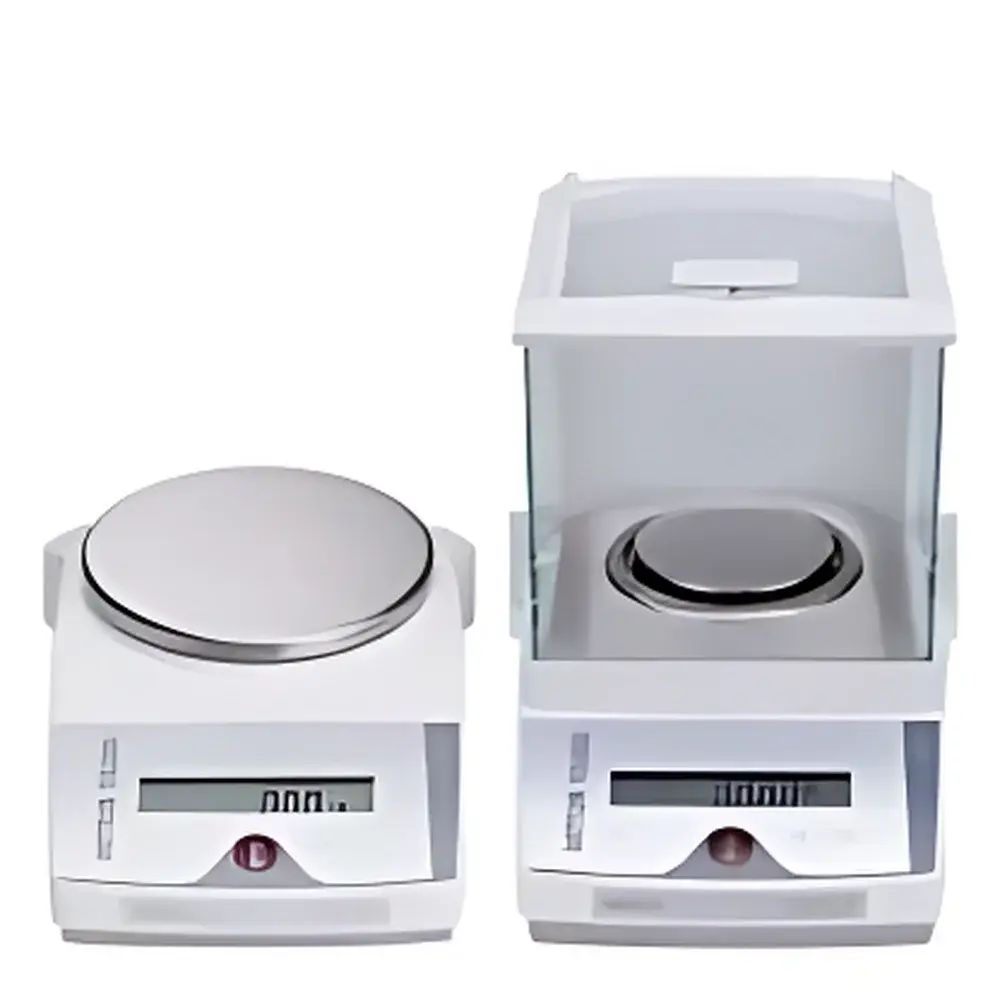

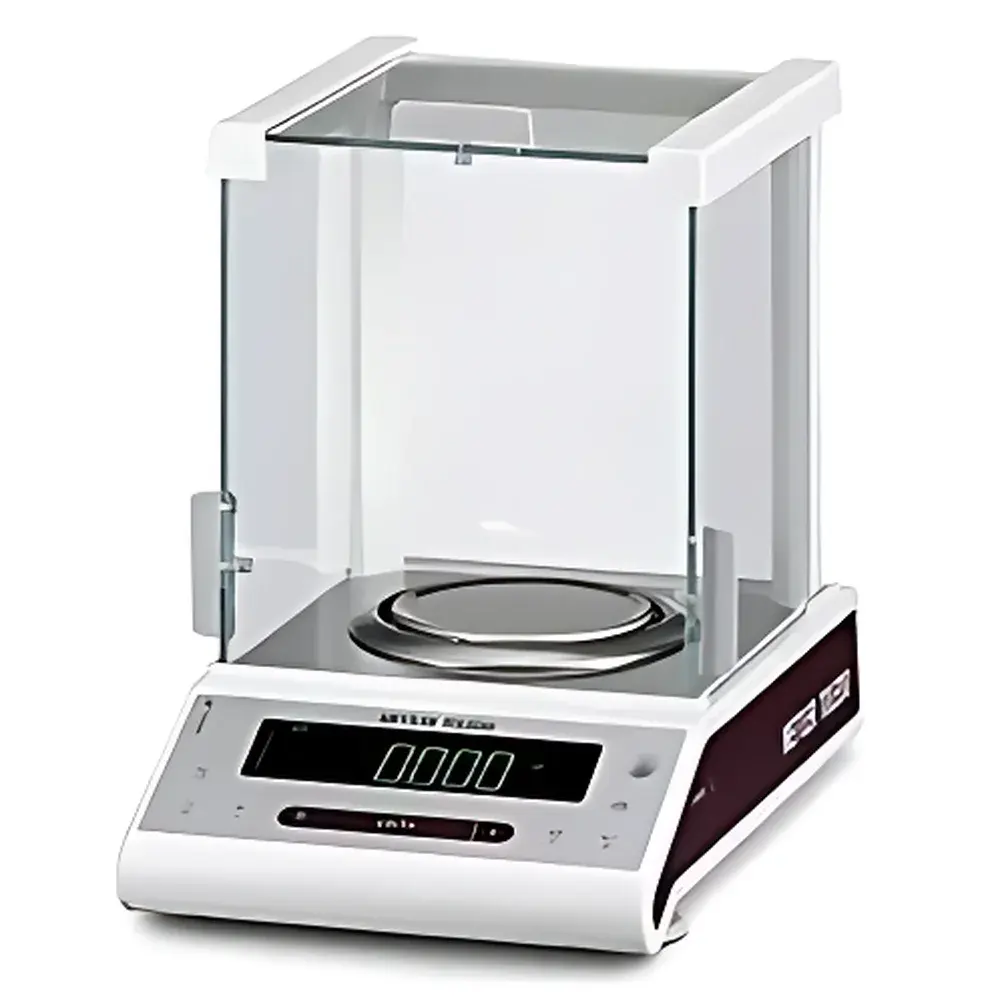

METTLER TOLEDO JE703/1203 Jewelry & Precious Metals Precision Balance
| Brand | METTLER TOLEDO |
|---|---|
| Origin | Switzerland |
| Model | JE703/1203 |
| Type | Precision Balance |
| Max Capacity | 6100 g |
| Readability | 0.1 mg (JE703), 0.01 g (JE1203) |
| Repeatability | < 0.2 mg (JE703), < 10 mg (JE1203) |
| Calibration | Automatic internal (JE703-IC/JE1203-IC) or external |
| Temperature Compensation | Dynamic real-time |
| Connectivity | RS232 standard |
| Weighing Units | ct, g, oz, dwt, gn, momme, tola, baht, tael (user-selectable) |
| Pan Size | 90 mm (JE703), 160 mm (JE1203) |
| Overload Protection | Integrated mechanical and software-based |
| Filtering | Adaptive digital filtering with multiple stability levels |
| Power | AC adapter or rechargeable battery (JE1203 portable variant) |
Overview
The METTLER TOLEDO JE703/1203 Jewelry & Precious Metals Precision Balance is an application-optimized weighing instrument engineered for trace-level accuracy in high-value material handling environments—including gold refining, diamond grading, gemstone valuation, and fine jewelry manufacturing. Built upon METTLER TOLEDO’s legacy of laboratory-grade metrology, the JE series integrates advanced load cell technology, real-time dynamic temperature compensation (DTC), and adaptive digital filtering to ensure measurement integrity under variable ambient conditions. Unlike general-purpose analytical balances, the JE703/1203 is purpose-built for the jewelry trade: its readabilities align precisely with international carat (ct) and troy ounce conventions, and its mechanical architecture prioritizes shock resistance, dust resilience, and long-term calibration stability—critical when handling materials valued at thousands of dollars per gram.
Key Features
- Automatic internal calibration (IC models) or one-touch external calibration—ensuring compliance with ISO 9001 and ASTM E899 traceability requirements.
- Dynamic Temperature Compensation (DTC): continuously monitors thermal drift and applies real-time correction to maintain ±0.1 mg repeatability across 15–30 °C operating range.
- Adaptive digital filtering: intelligently adjusts response time and stability thresholds based on sample mass, air currents, and vibration profile—optimized for production-floor deployment.
- Integrated overload protection: dual-stage mechanical stop + firmware-based over-range detection prevents damage from accidental overloading up to 150% of nominal capacity.
- Multi-unit display with dedicated jewelry units: carat (ct), gram (g), troy ounce (ozt), pennyweight (dwt), grain (gn), momme, tola, baht, and tael—all switchable via single-key press without menu navigation.
- RS232 interface as standard: supports bidirectional communication with PCs, label printers, and secondary displays; compatible with METTLER TOLEDO LabX™ Lite for basic data logging and export (CSV, TXT).
- Ergonomic design: low-profile pan geometry, anti-static glass draft shield (JE703), and optional black velvet-lined cradle (90 mm diameter) for secure diamond placement.
Sample Compatibility & Compliance
The JE703 (max 202 g / 0.1 mg readability) is certified for diamond and gemstone weighing per ISO 11252 (jewelry weighing instruments) and complies with USP and ASTM D1555 for precious stone mass determination. Its 90 mm stainless steel pan and optional black克拉 tray minimize optical reflection and static-induced drift during micro-carat measurements. The JE1203 (max 6100 g / 0.1 g readability) meets OIML R76 Class II requirements for commercial precious metal transactions and supports GLP-compliant audit trails when paired with optional METTLER TOLEDO EasyDirect™ software. Both models feature IP42-rated enclosures and conform to IEC 61326-1 for electromagnetic compatibility in mixed industrial/lab environments.
Software & Data Management
While standalone operation requires no software, the JE703/1203 supports seamless integration into regulated workflows. RS232 output enables direct import into LIMS, ERP, or custom inventory systems. Optional EasyDirect™ software provides user management, electronic signature support, and 21 CFR Part 11-compliant audit trail generation—including operator ID, timestamp, calibration event logs, and weight history. All data exports are timestamped and digitally signed to satisfy ISO/IEC 17025 documentation requirements for accredited calibration labs serving the jewelry sector.
Applications
- Diamond grading laboratories performing GIA- or HRD-aligned carat verification.
- Gold refineries conducting assay feedstock reconciliation prior to smelting.
- Jewelry manufacturers executing lot-controlled component weighing for casting and setting operations.
- Customs and valuation authorities verifying declared mass of imported gemstones and bullion.
- University gemology programs teaching precision mass metrology in mineralogical characterization courses.
FAQ
What is the difference between JE703 and JE1203 models?
The JE703 is a high-resolution balance (0.1 mg) for diamonds and small gemstones up to 202 g; the JE1203 is a robust portable scale (0.1 g) designed for larger gold bars, scrap batches, or retail counter use up to 6100 g.
Does the JE703 support internal calibration without manual weights?
Yes—JE703-IC and JE1203-IC variants include a motorized internal calibration mass; non-IC models require external Class E2 or better砝码 per ISO 9001 calibration protocols.
Can this balance be used in a non-air-conditioned workshop?
It operates reliably between 15–30 °C with DTC active; however, rapid temperature swings (>2 °C/hour) may temporarily affect stabilization time—recommended for stable environments per ISO 4787.
Is the RS232 interface compatible with modern Windows/macOS systems?
Yes—when used with a USB-to-RS232 adapter and standard terminal emulation (e.g., PuTTY), or via EasyDirect™ software with native driver support.
How often should recalibration be performed?
Daily zero-check and weekly full calibration are recommended for GLP/GMP environments; frequency must be risk-assessed per ISO/IEC 17025 clause 7.8.2 and documented in your lab’s SOPs.
