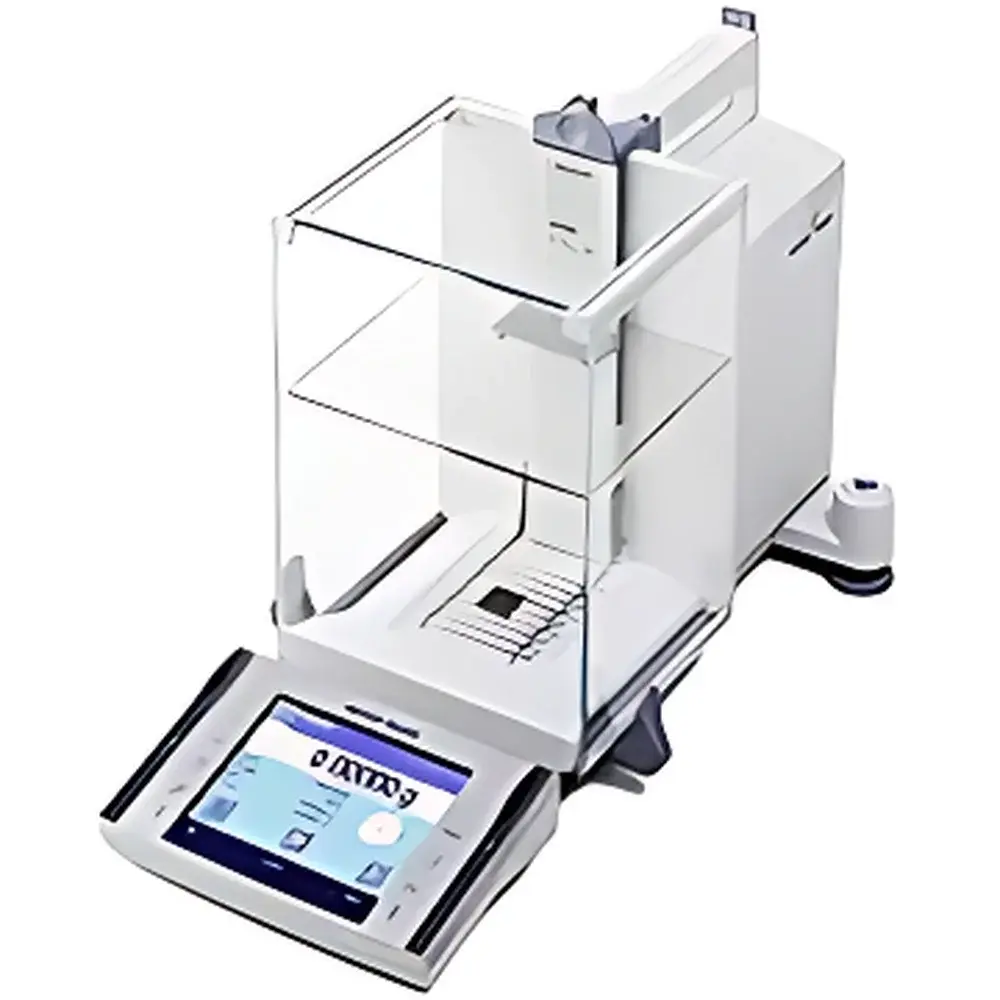

METTLER TOLEDO MX205DU/A Advanced Analytical Balance

Overview

The METTLER TOLEDO MX205DU/A is a high-performance analytical balance engineered for precision mass measurement in regulated laboratory environments. It operates on electromagnetic force compensation (EMFC) principle — the industry-standard method for analytical weighing — delivering traceable, stable, and thermally compensated results across dynamic ambient conditions. Designed for pharmaceutical R&D, QC laboratories, and contract testing organizations, the MX205DU/A supports dual-range operation (82 g / 220 g) with dual readability modes (0.01 mg and 0.1 mg), enabling seamless transition between ultra-micro applications and higher-capacity routine analysis. Its SmartPan™ weighing pan minimizes air current interference through aerodynamic geometry and integrated draft shield damping, reducing stabilization time to just 2 seconds — critical for high-throughput workflows requiring rapid, reproducible measurements under ISO 17025-controlled conditions.

Key Features

• SmartPan™ technology: Patented pan design reduces turbulence-induced drift, improving stability in non-ideal lab environments without compromising sensitivity.
• FACT (Fully Automatic Calibration Technology): Built-in motorized internal calibration weights trigger temperature-compensated recalibration automatically — eliminating manual intervention while maintaining traceability per ISO 9001 and ASTM E898.
• 7-inch full-color TFT touchscreen interface: Intuitive icon-driven navigation with multi-user support, role-based access control, and audit-trail-enabled operation logs.
• GxP-compliant data integrity architecture: All weight events, user actions, calibration records, and system diagnostics are timestamped, digitally signed, and stored locally with export capability via USB or network protocols.
• Energy-efficient design: Adaptive power management includes auto-dimming, sleep mode activation after idle periods, and low-power standby — compliant with EU ErP Directive 2019/2021.
• Modular connectivity: Native support for USB-A (printer/data export), USB-C (firmware updates), Ethernet (LIMS integration), and optional Bluetooth for wireless peripheral pairing.

Sample Compatibility & Compliance

The MX205DU/A accommodates standard 80 mm diameter weighing vessels including glass vials, aluminum pans, and ceramic crucibles. Its draft shield features backlit LED illumination and electrostatic-dissipative acrylic panels to minimize static-related errors during low-mass (<10 mg) measurements. The instrument meets regulatory requirements for analytical balance validation under USP , EP 2.1.6, and JP 2.03. Full compliance with FDA 21 CFR Part 11 is enabled via optional software modules that provide electronic signatures, audit trails, and secure user authentication. Routine performance verification adheres to ISO/IEC 17025:2017 Clause 6.4.7 for measurement uncertainty estimation and minimum weight determination (2.5 mg typical at U=1%, k=2; 25 mg per USP 0.1% tolerance).

Software & Data Management

Embedded firmware supports direct integration with METTLER TOLEDO LabX® software for centralized method management, automated report generation (PDF/CSV/XLSX), and real-time data synchronization with LIMS or ELN systems. All weighing sessions generate structured metadata including operator ID, timestamp, environmental conditions (if connected to optional temp/humidity sensor), calibration status, and uncertainty values. Audit trail functionality complies with ALCOA+ principles — ensuring Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available records for regulatory inspections. Data export paths include encrypted USB transfer, SFTP over Ethernet, and OPC UA-compatible industrial protocol gateways.

Applications

• Pharmaceutical formulation: Active pharmaceutical ingredient (API) dispensing, reference standard preparation, and content uniformity testing per USP .
• Chemical synthesis: Stoichiometric reagent weighing, catalyst dosing, and reaction yield quantification with sub-0.02 mg repeatability.
• Materials science: Nanoparticle mass characterization, thin-film thickness calculation via gravimetric deposition, and catalyst loading verification.
• Reference material certification: Primary standard assignment under ISO Guide 35, supporting certified reference material (CRM) production workflows.
• Environmental testing labs: Filter weighing for PM2.5/PM10 particulate matter analysis per EPA Method 201A and ISO 12103-1.

FAQ

What does “DU/A” signify in the model number MX205DU/A?
The “DU” denotes dual-range capability (82 g / 220 g), while “A” indicates inclusion of advanced connectivity (Ethernet + USB-C) and enhanced software features aligned with GxP digital lab requirements.
Is the MX205DU/A suitable for USP minimum weight validation?
Yes — it achieves a typical minimum weight of 25 mg under USP 0.1% tolerance criteria, verified using certified test weights and documented in the factory acceptance test (FAT) report.
Does the balance support 21 CFR Part 11 compliance out-of-the-box?
Hardware-level security features (user roles, audit trail logging, electronic signature readiness) are built-in; full Part 11 compliance requires LabX software configuration and site-specific validation documentation.
Can the SmartPan™ be cleaned with ethanol or isopropanol?
Yes — the SmartPan™ surface is chemically resistant to common laboratory solvents including 70% ethanol and 70% isopropanol; avoid abrasive cleaners or ultrasonic immersion.
How often must FACT calibration be performed?
FACT initiates calibration automatically when temperature changes exceed ±1.5 °C or at user-defined intervals (e.g., daily startup, pre-use, or every 2 hours); no manual schedule required.
