Millipore Milli-Q Advantage A10 Ultra-Pure Water System
| Brand | Millipore |
|---|---|
| Origin | France |
| Model | Milli-Q Advantage A10 |
| Pure Water Grade | ASTM Type I / ISO 3696 Grade 1 |
| Resistivity | 18.2 MΩ·cm @ 25 °C |
| Heavy Metals & Soluble Silica | <0.1 ppb |
| Total Organic Carbon (TOC) | <3 ppb |
| Microbial Count | <0.1 CFU/mL |
| Endotoxins | <0.001 EU/mL |
| Particles (>0.1 µm) | <1 particle/mL |
Overview
The Millipore Milli-Q Advantage A10 Ultra-Pure Water System is an engineered solution for laboratories requiring continuous, on-demand production of ultrapure water compliant with stringent international standards for analytical, life science, and pharmaceutical applications. Designed around a modular architecture—comprising a compact purification unit and remotely deployable Q-POD dispensers—the system delivers consistent Type I water per ASTM D1193, ISO 3696, USP , EP 2.2.44, and CLSI (formerly NCCLS) guidelines. Its core purification sequence integrates pretreatment (Q-Gard cartridges), dual-wavelength UV oxidation (185/254 nm), final polishing (Quantum cartridges), and point-of-use terminal filtration (Millipak or Biopak). This multi-stage approach ensures removal of ions, organic compounds, microorganisms, endotoxins, nucleases, and submicron particles—enabling reproducible performance in sensitive workflows such as HPLC mobile phase preparation, cell culture media formulation, and trace-level elemental analysis.
Key Features
- Modular design with centralized purification unit and up to three independently positioned Q-POD dispensers—maximizing lab flexibility and ergonomic access.
- Terminal polishing at the point of use: Millipak filter (0.22 µm sterilizing grade) for particle- and microbe-free water; Biopak ultrafilter (50 kDa MWCO) for endotoxin-, RNase-, and DNase-free water suitable for molecular biology.

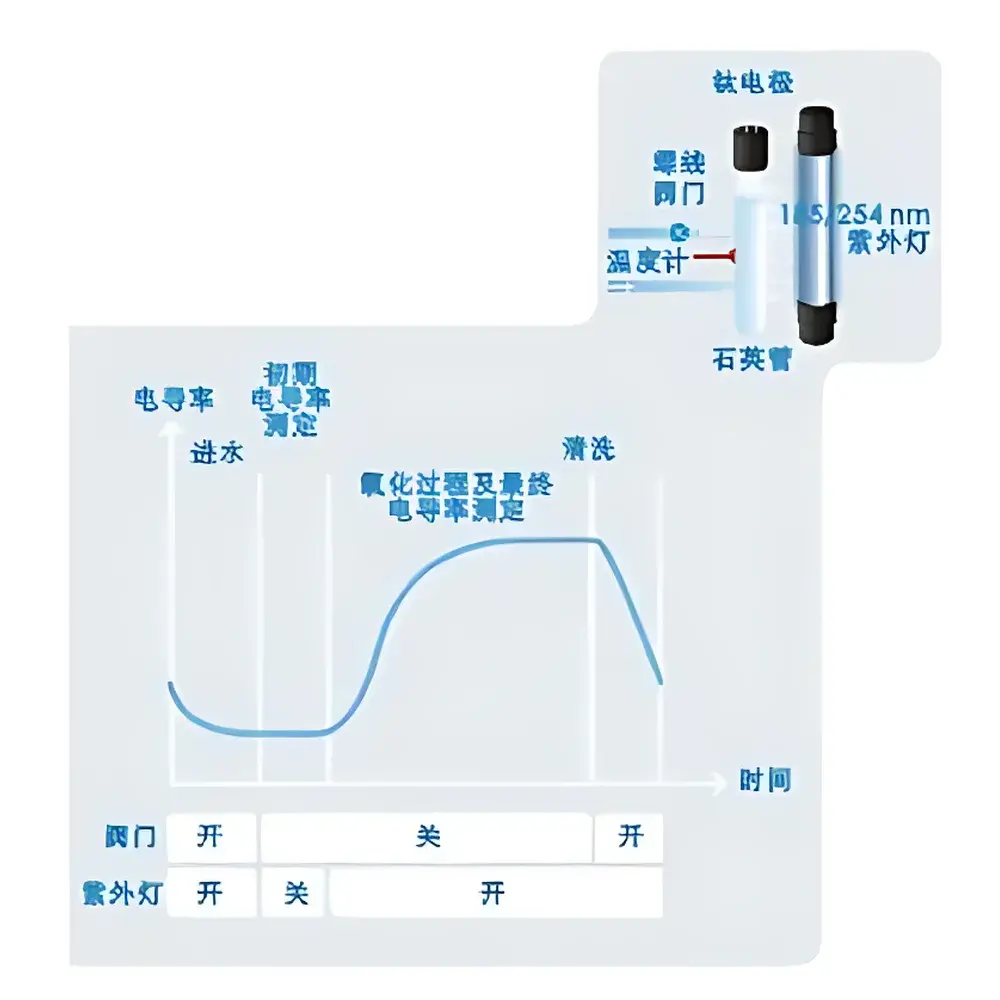

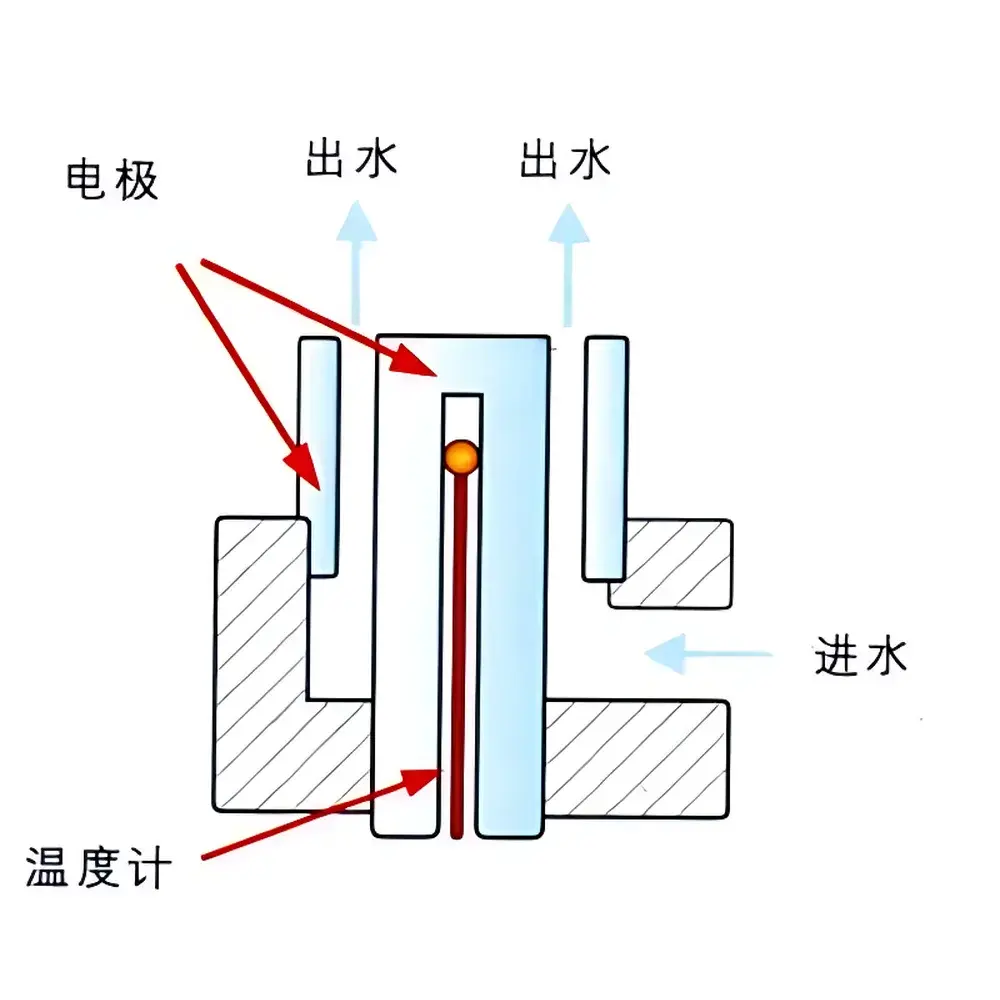

- Integrated real-time monitoring: High-precision resistivity sensor (electrode constant 0.01 cm⁻¹, ±0.01 MΩ·cm accuracy) and TOC analyzer (1–999 ppb range, ±1 ppb precision), both compliant with USP and respectively.
- Intuitive Q-POD interface with color graphical display, programmable volume dispensing, and four selectable flow rates (dropwise to 2 L/min).
- Compact footprint (497 × 332 × 360 mm) and low operational weight (19 kg), enabling placement under fume hoods, on benches, or in confined spaces without compromising utility access.
- Comprehensive validation support: Pre-qualified protocols, IQ/OQ documentation, and certified field service by Millipore-trained engineers aligned with GMP/GLP and FDA 21 CFR Part 11 audit-trail requirements.
Sample Compatibility & Compliance
The Milli-Q Advantage A10 produces water meeting or exceeding the most rigorous specifications for laboratory-grade ultrapure water. It is validated for use with critical instrumentation including LC-MS, ICP-MS, ELISA, PCR, and electrophoresis systems. All components—including tubing, filters, and sensors—are manufactured from low-leaching, USP Class VI-certified materials. The system conforms to CE marking directives, complies with ISO 9001 quality management principles, and supports full regulatory alignment for GLP, GMP, and ISO/IEC 17025-accredited environments. Terminal filtration options are selected based on application-specific risk assessment: Millipak for general analytical chemistry and spectroscopy; Biopak for sterile, nuclease-free applications in biotechnology and regenerative medicine.
Software & Data Management
The Q-POD interface provides local data logging—including date/time stamps, dispensed volume, resistivity, TOC, and filter lifetime status—with optional thermal printing for immediate audit-ready records. While the base system operates without network connectivity, its architecture supports integration into centralized laboratory information management systems (LIMS) via analog output signals (4–20 mA) for resistivity and TOC. All calibration events, maintenance logs, and alarm histories are retained with tamper-resistant timestamps—fulfilling essential traceability requirements under 21 CFR Part 11 when paired with appropriate IT infrastructure controls. Firmware updates are delivered via secure USB protocol, maintaining system integrity during lifecycle management.
Applications
- HPLC and UHPLC mobile phase preparation (isocratic and gradient)
- Buffer and reagent formulation for immunoassays, ELISA, and Western blotting
- Cell culture media and transfection solution preparation
- Trace metal analysis (ICP-OES, ICP-MS) and atomic absorption spectroscopy
- PCR master mix preparation and next-generation sequencing library construction
- Electrophoresis buffer preparation and gel staining solutions
- Calibration standard dilution and reference material handling
FAQ
What is the maximum distance between the Milli-Q Advantage A10 purification unit and a Q-POD dispenser?
The system supports up to 2.9 meters of tubing length between the main unit and each Q-POD, with included 80 cm flexible dispensing arms.
Can the system be validated for GMP-compliant manufacturing environments?
Yes—Millipore provides full IQ/OQ documentation packages, installation qualification kits, and on-site validation services performed by certified engineers adhering to Annex 15 and ASTM E2500 principles.
Does the TOC monitor meet pharmacopeial requirements for water quality testing?
Yes—the integrated TOC analyzer satisfies USP system suitability criteria, including oxidation efficiency, detection limit, and linearity verification across the 1–999 ppb range.
How often must the Quantum and Q-Gard cartridges be replaced?
Cartridge lifetimes are dynamically calculated based on feed water quality and daily usage; typical replacement intervals range from 3 to 12 months, with real-time alerts displayed on the Q-POD interface.
Is the resistivity sensor temperature-compensated?
Yes—it operates in both temperature-compensated (to 25 °C) and non-compensated modes, with built-in Pt1000 thermistor for ±0.1 °C accuracy, ensuring metrological traceability to national standards (e.g., PTB).
