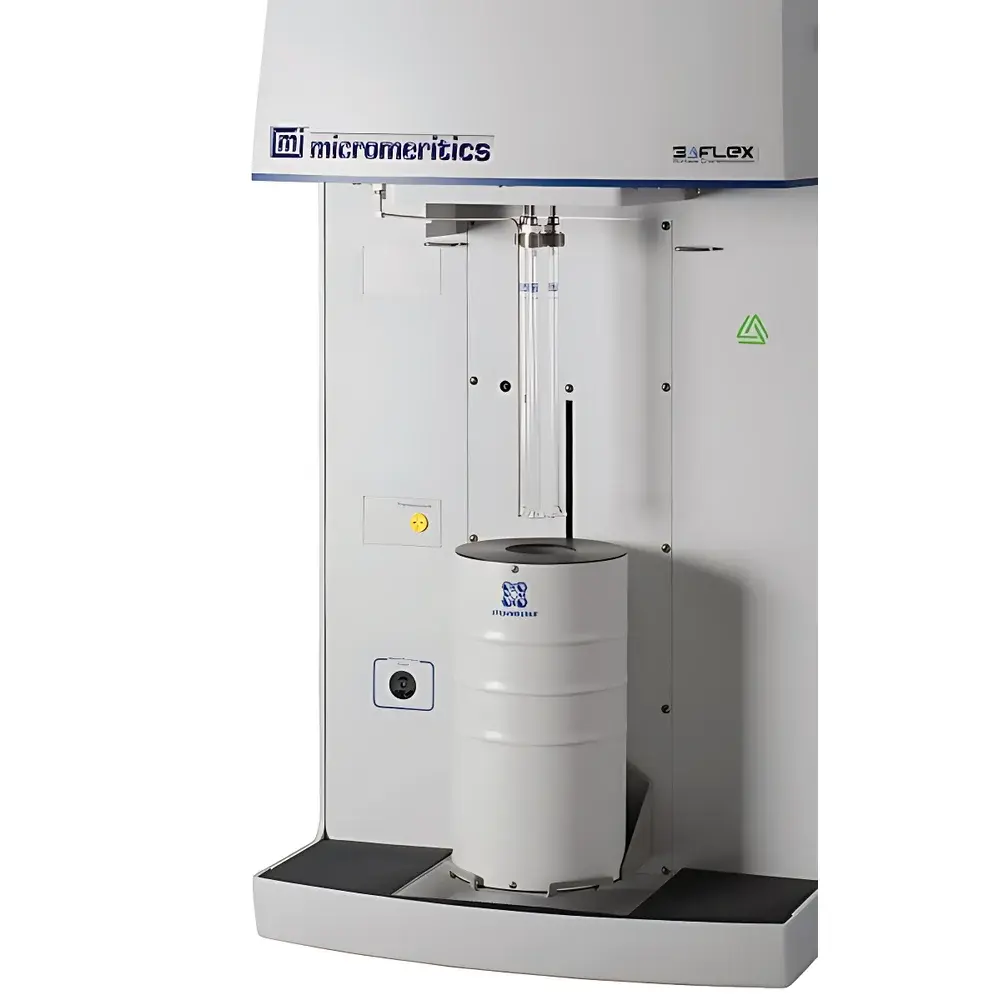

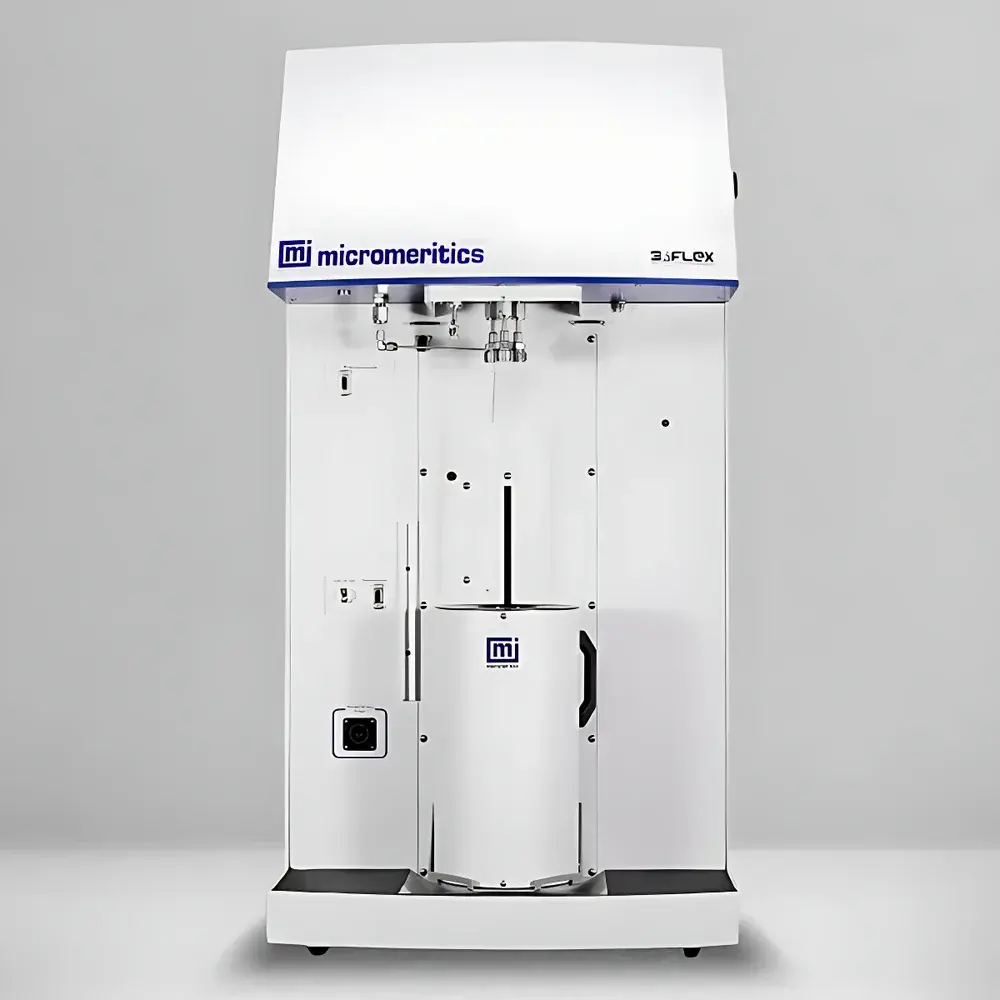

Micromeritics 3Flex Tri-Station Advanced Gas Sorption Analyzer

Overview

The Micromeritics 3Flex Tri-Station Advanced Gas Sorption Analyzer is a high-precision static volumetric gas sorption system engineered for comprehensive characterization of specific surface area, pore size distribution, pore volume, and surface energetics across microporous (50 nm) materials. Operating on the fundamental principle of gas adsorption equilibrium under controlled pressure and temperature conditions, the 3Flex measures incremental gas uptake during stepwise pressure increases—enabling construction of full adsorption/desorption isotherms from P/P₀ = 1×10⁻⁹ to unity. Its tri-station architecture allows concurrent, independent analyses using different gases (e.g., N₂ at 77 K, Ar at 87 K, CO₂ at 273 K) or protocols (physisorption vs. chemisorption), eliminating sequential instrument downtime and accelerating method development, quality control, and comparative benchmarking.

Key Features

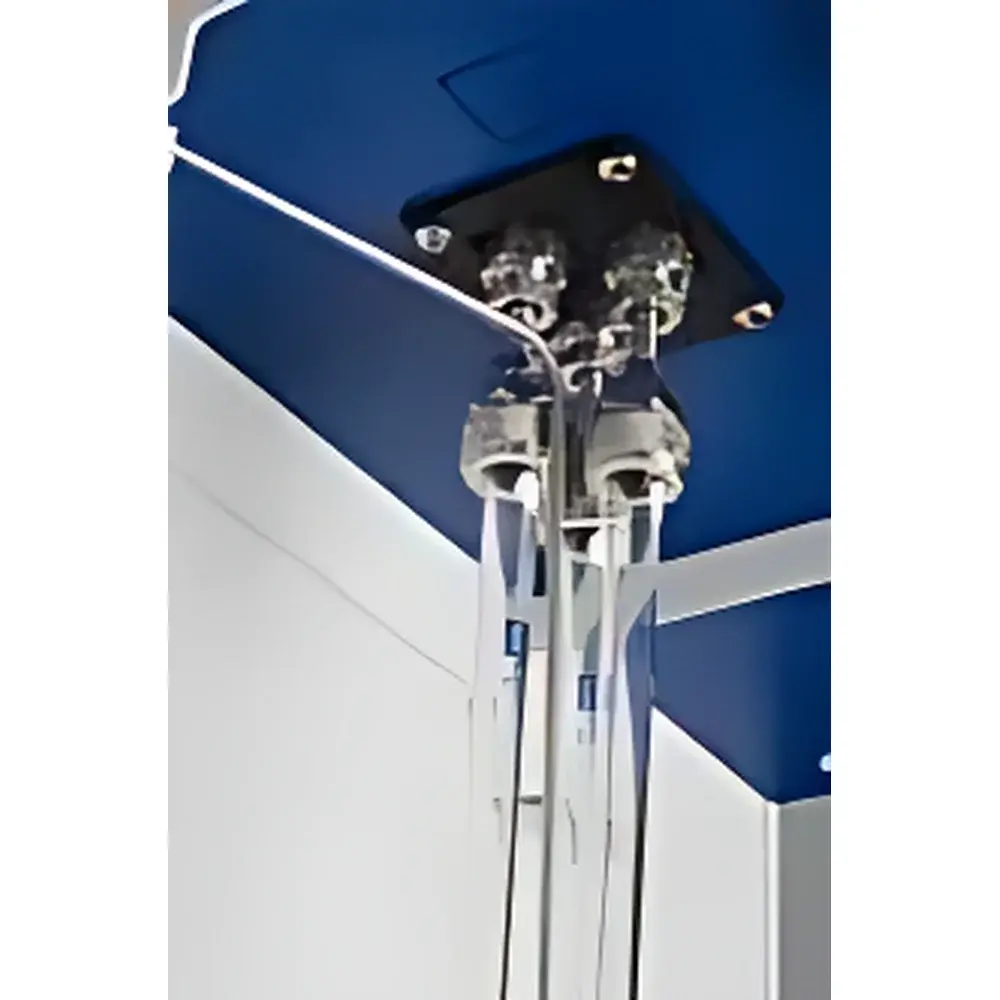

• Three fully independent analysis stations with individual temperature-controlled dewars, pressure transducers, and dosing lines—enabling simultaneous multi-gas, multi-temperature, or multi-mode experiments.
• Ultra-high vacuum manifold with all-metal seals and hardened stainless-steel valves, rated for chemical resistance against corrosive gases (e.g., NH₃, HCl, SO₂) and solvent vapors.
• P₀ measurement station equipped with a dedicated high-resolution capacitance manometer for continuous, real-time saturation vapor pressure tracking—critical for accurate relative pressure calculation in low-P/P₀ regions.
• Extended low-pressure capability: detection limit of 10⁻⁶ mmHg enables reliable micropore filling analysis using CO₂ at 273 K or N₂ at 77 K, supporting HK, DA, DR, and NLDFT modeling down to ~0.3 nm.
• Modular gas selection: standard N₂/Ar/Kr capability; optional CO₂, H₂, CH₄, and vapor modules (water, alcohols, hydrocarbons) with dedicated cold traps and vapor saturators.
• Advanced dosing logic: hybrid mode combining fixed-pressure and fixed-volume increments ensures optimal data density in both monolayer and capillary condensation regions.
• Compact footprint (1.2 m × 0.7 m × 0.9 m) optimized for shared core facilities and regulated laboratory environments.

Sample Compatibility & Compliance

The 3Flex accommodates powders, pellets, monoliths, and thin films (0.01–2 g typical mass range) across diverse material classes—including metal–organic frameworks (MOFs), hierarchical zeolites, biomass-derived carbons, supported catalysts, battery electrode materials, and pharmaceutical excipients. Each station supports automated degassing under programmable temperature, vacuum, and time profiles, with optional turbomolecular pumping for ultra-dry pretreatment. The system meets ASTM D3663 (BET surface area), ISO 15901-2 (pore size distribution by gas adsorption), and USP (porosity testing for solid dosage forms). Optional 21 CFR Part 11 compliance packages include electronic signatures, role-based access control, and immutable audit trails—validated for GMP/GLP-regulated R&D and QC labs.

Software & Data Management

MicroActive™ v4.x serves as the integrated acquisition, modeling, and reporting platform. Its graphical interface enables real-time isotherm visualization and interactive parameter adjustment—sliders dynamically recalculate BET, t-plot, α_s, BJH, DH, HK, MP, and DFT/NLDFT results without reprocessing raw data. The software embeds thermodynamically rigorous NLDFT kernels for carbon, silica, alumina, and zeolite models, with user-selectable slit/cylindrical/helical pore geometries. Reporting is fully customizable via a WYSIWYG editor; templates support multi-file overlay (up to 25 datasets), cross-instrument correlation (e.g., mercury intrusion + gas sorption), and export to CSV, PDF, XML, or HDF5. A documented Python API permits scripted batch analysis, custom model integration, and LIMS connectivity—facilitating automated QA workflows and AI-driven feature extraction.

Applications

The 3Flex supports mission-critical applications in catalysis (active site quantification, support porosity mapping), energy storage (electrode pore hierarchy optimization), environmental science (adsorbent capacity validation), pharmaceutical development (excipient surface heterogeneity, stability prediction), and nanomaterial synthesis (batch-to-batch reproducibility assessment). Its ability to resolve sub-nanometer pores with Kr at 77 K or CO₂ at 273 K makes it indispensable for MOF activation studies and carbon capture material screening. Simultaneous three-station operation accelerates DOE (Design of Experiments) campaigns—e.g., evaluating thermal treatment effects across replicate samples under identical conditions—or validating new adsorption theories against legacy reference materials.

FAQ

Can the 3Flex perform both physisorption and chemisorption on the same sample without manual transfer?
Yes—each station supports sequential physisorption (e.g., N₂ at 77 K) followed by chemisorption (e.g., H₂ pulse titration at elevated temperature) using integrated furnace and gas switching modules.
Is NLDFT modeling validated against certified reference materials?
Yes—Micromeritics provides NIST-traceable SRMs (e.g., NIST SRM 2973, 310a) with pre-validated NLDFT parameters and uncertainty budgets for routine calibration verification.
Does the system support unattended overnight operation?
Yes—the 3Flex includes hardware-level safety interlocks, automatic liquid nitrogen level monitoring, and software-resumable experiment queues with email alerts upon completion or error.
How is data integrity ensured in regulated environments?
With optional 21 CFR Part 11 add-on, the system enforces electronic signature workflows, session logging, and cryptographic hash verification of raw data files—fully auditable during FDA or EMA inspections.
Can I integrate 3Flex data into my existing ELN or LIMS?
Yes—MicroActive™ supports direct ODBC/JDBC connectivity and RESTful API endpoints for bidirectional data exchange with major ELN (e.g., LabArchives, Benchling) and LIMS platforms.
