Micromeritics 3Flex Tri-Station Gas Sorption Analyzer

Overview

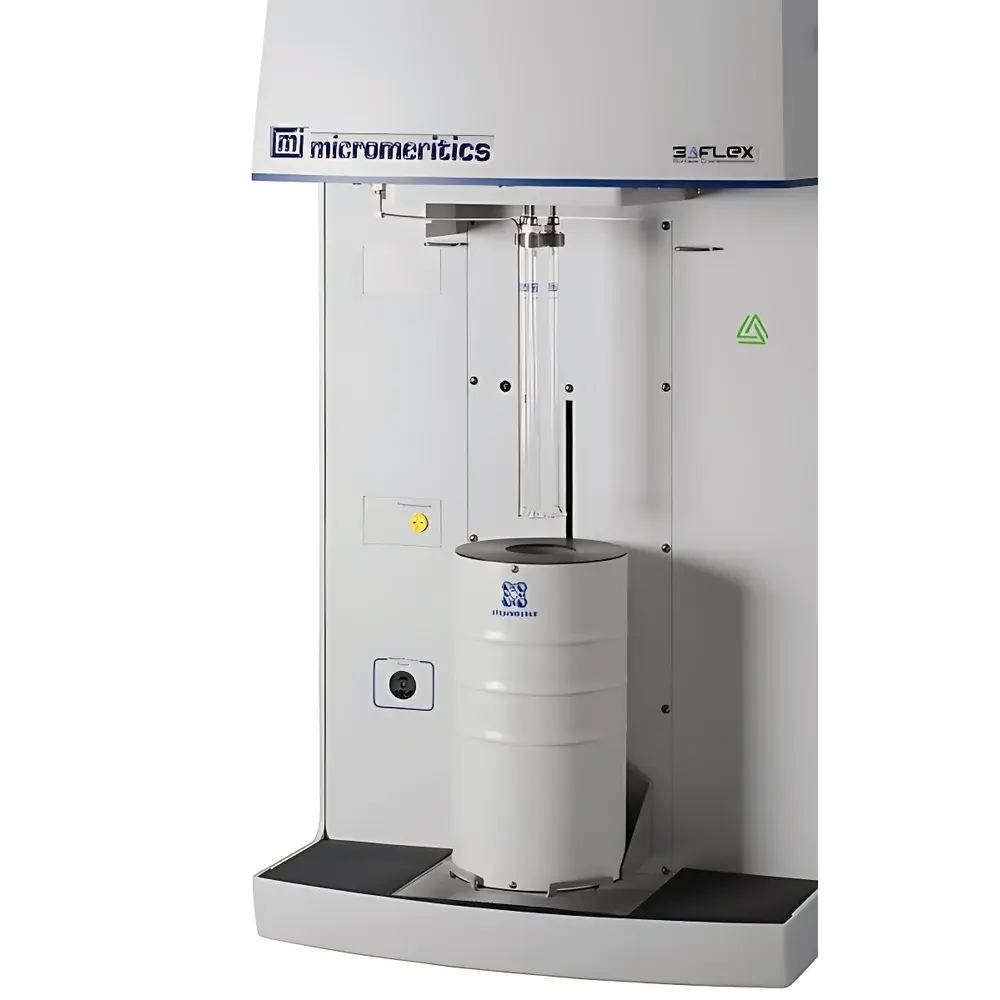

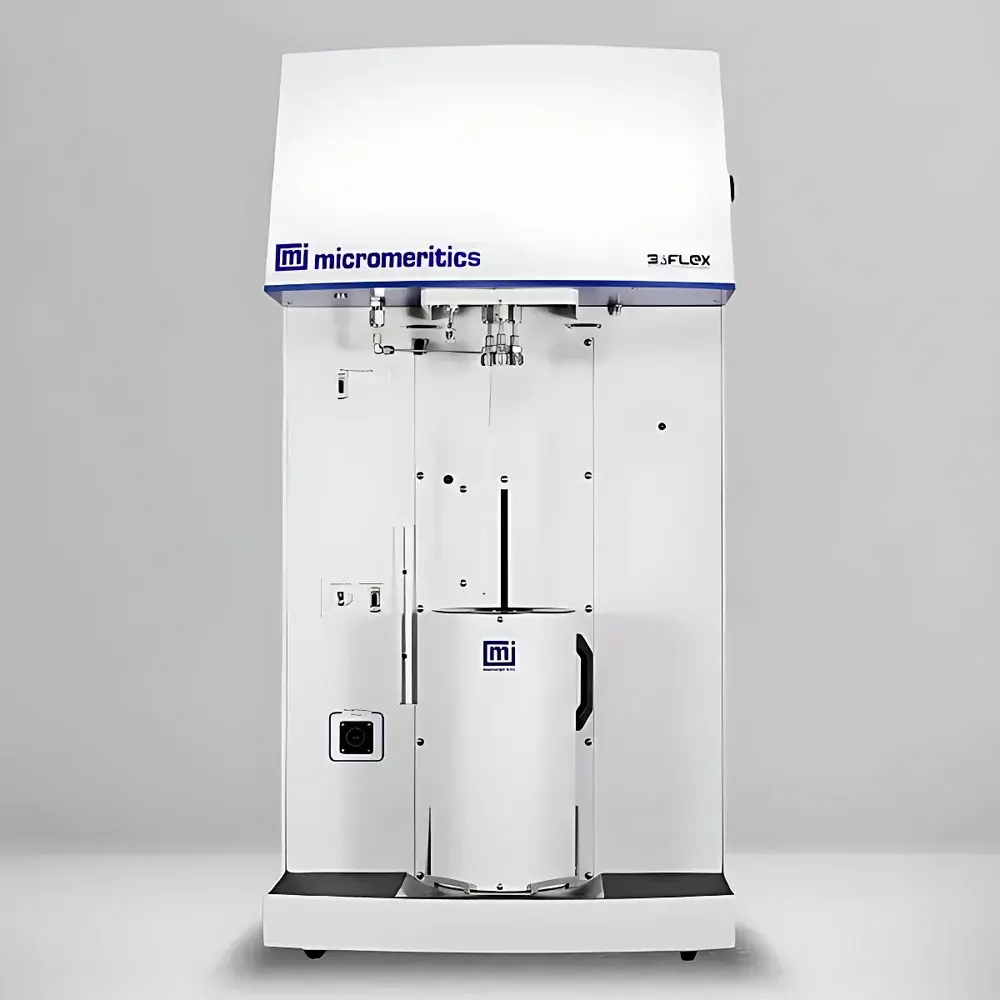

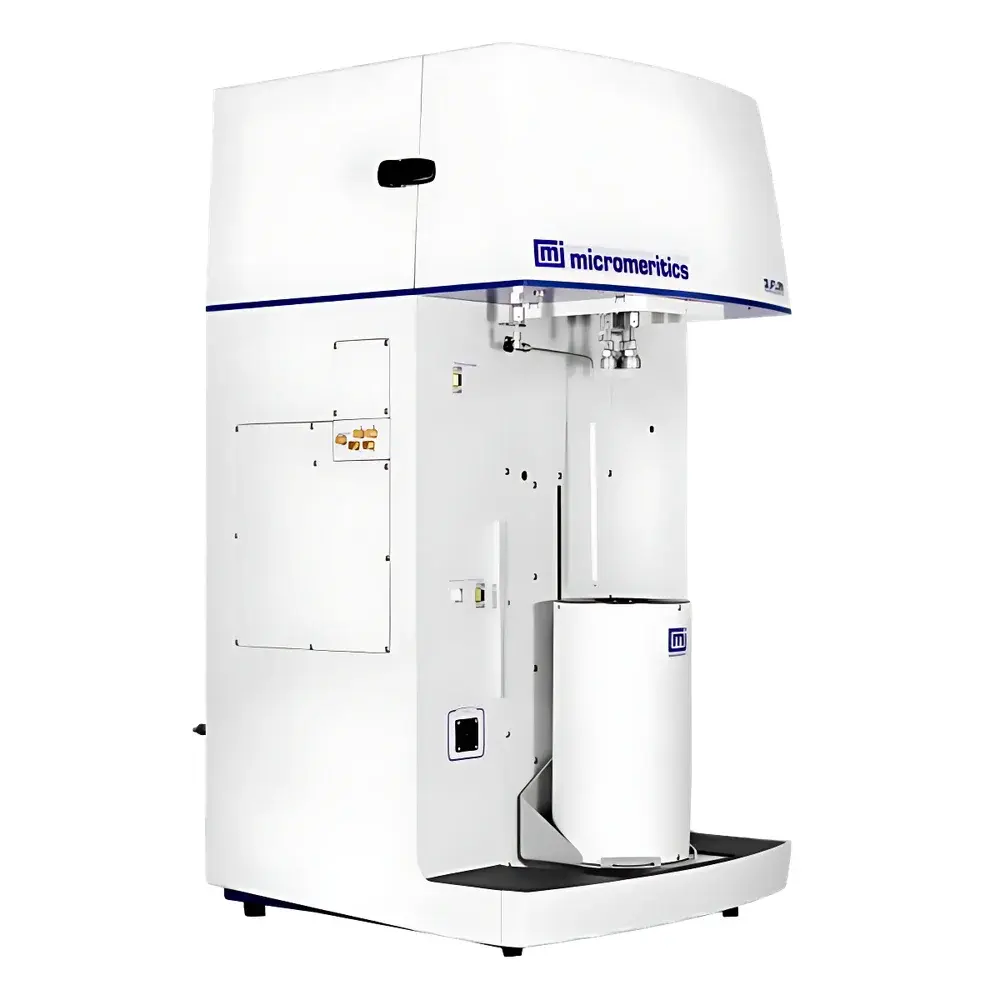

The Micromeritics 3Flex Tri-Station Gas Sorption Analyzer is a high-precision, research-grade instrument engineered for comprehensive physical and chemical sorption characterization of porous and non-porous solids. Operating on the fundamental principles of gas adsorption isotherm measurement—primarily via volumetric (manometric) techniques—the 3Flex delivers quantitative data on specific surface area (BET, Langmuir), pore size distribution (DFT, NLDFT, QSDFT models), total pore volume, micropore volume, and adsorption enthalpy. Its design adheres to internationally recognized standards including ASTM D3663 (BET surface area), ISO 9277 (surface area by gas adsorption), ISO 15901 (pore size distribution), and USP (porous materials in pharmaceutical excipients). The system supports both cryogenic (e.g., N₂ at 77 K, Ar at 87 K) and ambient-temperature vapor sorption (e.g., water, ethanol, toluene), enabling robust material evaluation across catalysis, battery electrode development, MOF synthesis, carbon capture, and pharmaceutical solid-state science.

Key Features

• Tri-station architecture: Three fully independent analysis ports allow concurrent, method-differentiated experiments—e.g., one station for N₂ physisorption (77 K), one for CO₂ ultramicropore analysis (273 K), and one for water vapor sorption (25–45 °C)—without cross-contamination or scheduling conflict.
• Ultra-high vacuum manifold: Equipped with metal-sealed, hard-stop stainless-steel valves and electropolished internal surfaces, ensuring long-term integrity against corrosive gases (NH₃, HCl, SO₂) and minimizing outgassing artifacts.
• Sub-nanopascal pressure resolution: Capable of measuring relative pressures down to 1×10⁻⁹ P/P₀ using redundant capacitance manometers and active P₀ referencing—critical for accurate characterization of ultra-microporous frameworks (e.g., zeolitic imidazolate frameworks, carbon molecular sieves).
• In-situ sample activation: Integrated resistive tube heater (up to 400 °C, programmable ramp/soak) enables controlled degassing directly within the analysis tube under dynamic vacuum or flowing inert gas—eliminating transfer-induced contamination and preserving true micropore accessibility.
• Vapor-ready thermal management: Thermostatted manifold maintained at 45.00 ±0.05 °C prevents condensation during volatile organic or aqueous vapor dosing; optional heated vapor saturator extends operational range to higher-boiling-point adsorbates (e.g., glycerol, ethylene glycol).
• MicroActive™ software suite: Provides model-agnostic isotherm fitting, multi-temperature DFT kernel selection, automatic report generation compliant with GLP audit trails, and FDA 21 CFR Part 11–ready electronic signatures (with optional validation package).

Sample Compatibility & Compliance

The 3Flex accommodates powdered, granular, pelletized, and monolithic samples (standard tube: 6–12 mm OD, up to 2 g capacity). It is routinely employed for characterization of metal–organic frameworks (MOFs), activated carbons, silica gels, alumina catalysts, battery cathode precursors (e.g., LiCoO₂, NMC), pharmaceutical co-crystals, and aerogels. All hardware and software modules conform to ISO/IEC 17025 requirements for testing laboratories, and raw data files (.3fx) retain full traceability—including timestamped valve actuation logs, pressure transducer calibration coefficients, and temperature stabilization records—supporting GMP process validation and regulatory submissions.

Software & Data Management

MicroActive™ operates on Windows-based platforms with native support for .csv, .xls, and .pdf export. It embeds thermodynamic consistency checks (e.g., Gibbs–Donnan equilibrium verification), allows batch reprocessing of legacy isotherms using updated DFT kernels, and supports user-defined calculation protocols aligned with internal SOPs. Audit trail functionality logs all parameter modifications, report exports, and user logins. Optional IQ/OQ/PQ documentation packages are available for laboratory qualification under FDA, EMA, or PMDA guidelines.

Applications

• Quantification of accessible surface area in low-surface-area catalysts (e.g., bulk metals, sulfides) using krypton (Kr) at 77 K.
• Distinguishing interlayer vs. intraparticle porosity in layered double hydroxides (LDHs) via combined N₂/CO₂ isotherms.
• Accelerated stability assessment of hygroscopic APIs through dynamic water vapor sorption (DVS) at controlled RH ramps (0–90% RH).
• Structure–performance correlation in carbon capture sorbents by correlating CO₂ uptake at 0.15 bar with DFT-derived pore geometry.
• Validation of synthetic reproducibility in MOF batches using normalized isosteric heat of adsorption profiles.

FAQ

Can the 3Flex perform both physisorption and chemisorption on the same sample without manual intervention?
Yes—the instrument supports sequential automated protocols: e.g., N₂ physisorption at 77 K followed immediately by H₂ chemisorption at 100 °C, all under software control with integrated temperature ramping and gas switching.
Is Kr surface area measurement supported out-of-the-box?
Yes—Kr expansion capability is standard; the system includes calibrated Kr dosing lines, dedicated low-range pressure sensors, and Kr-specific BET constants preloaded in MicroActive™.
Does the 3Flex meet requirements for regulated pharmaceutical environments?
With the optional 21 CFR Part 11 compliance module (including electronic signatures, role-based access, and immutable audit logs), it satisfies data integrity expectations for ICH Q5, Q6, and Q7 submissions.
How is P₀ measured during an isotherm run?
A dedicated, temperature-stabilized P₀ tube with its own high-accuracy capacitance manometer continuously monitors saturation pressure—enabling real-time P/P₀ calculation without interrupting adsorption steps.
What level of technical support is provided post-installation?
Micromeritics offers remote diagnostics, annual preventive maintenance contracts, application-specific training workshops, and access to a global network of certified field service engineers trained in vacuum integrity testing and manifold leak-checking per ASTM E493.
