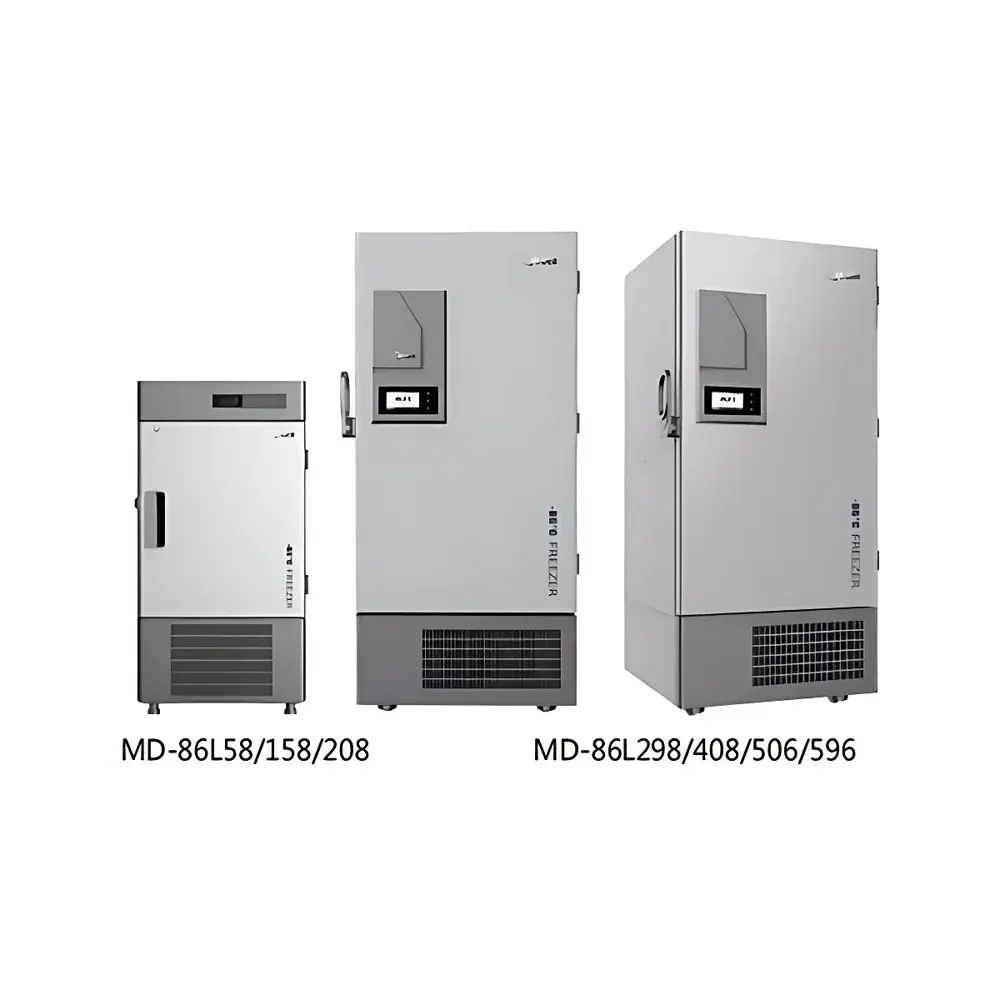

Midea MD-86L Series Ultra-Low Temperature Freezer

Overview

The Midea MD-86L Series Ultra-Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biological specimens—including primary cells, stem cell lines, serum, plasma, DNA/RNA extracts, and tissue samples—in research laboratories, biobanks, clinical diagnostics centers, and pharmaceutical QC environments. Designed around a high-efficiency dual-stage or cascade compressor refrigeration system (depending on model capacity), the unit maintains stable thermal conditions across its full operating range of −40 °C to −86 °C. Its architecture prioritizes temperature uniformity, energy efficiency, and operational resilience under variable ambient conditions—critical requirements for ISO 13485-compliant medical device storage, GLP-aligned sample integrity protocols, and FDA-regulated biobanking workflows.

Key Features

• Precision microprocessor-based temperature control with adjustable differential setpoints (e.g., ±0.5 °C to ±3 °C hysteresis) to minimize compressor cycling and reduce intra-chamber thermal fluctuation.
• Multi-level alarm system with configurable audible/visual alerts for high/low temperature deviations, door ajar, power failure, and sensor fault conditions—each event logged with timestamp in non-volatile memory.
• Robust compressor assembly from globally certified OEM suppliers, paired with low-noise axial fans and optimized condenser airflow paths to ensure consistent cooling performance across ambient temperatures from 10 °C to 32 °C and supply voltages from 187 V to 253 V AC.
• LBA (Low Blowing Agent) polyurethane foam insulation applied via high-pressure injection molding, achieving thermal conductivity ≤0.018 W/(m·K); reinforced by dual magnetic door gaskets and vacuum-sealed perimeter seals to suppress heat ingress.
• Food-grade 304 stainless steel interior chamber and removable wire shelving—resistant to embrittlement at −86 °C, corrosion-resistant to common decontamination agents (e.g., 70% ethanol, hydrogen peroxide vapor), and compliant with USP surface cleanability standards.
• Ergonomic mobility system featuring locking casters and adjustable leveling feet; optional 7-inch capacitive-touch LCD interface (standard on MD-86L208 and above) supporting real-time graphing, historical trend review, and user-accessible calibration logs.

Sample Compatibility & Compliance

The MD-86L series accommodates standard cryovial racks (e.g., 10×10 configurations for 2 mL vials), cryoboxes (up to 1000-cell format), and custom-sized specimen containers up to 410 mm height. Internal airflow distribution has been validated per ICH Q5C stability guidelines to ensure ≤±3 °C spatial deviation at steady state (measured at 9-point grid per ASTM F2697-21 Annex A1). The freezer meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and complies with ISO 14001 environmental design principles through use of zero-ozone-depletion-potential (ODP) refrigerants and recyclable component architecture. Optional IQ/OQ documentation packages support 21 CFR Part 11–compliant validation in GxP environments.

Software & Data Management

Units equipped with the 7-inch display integrate embedded firmware supporting USB data export (CSV format) of continuous temperature logs (1-minute resolution, ≥30-day buffer), alarm history, and maintenance counters. Remote monitoring is enabled via RS485 Modbus RTU protocol for integration into centralized BMS or LIMS platforms. Audit trail functionality records all parameter changes—including setpoint modifications, alarm acknowledgments, and door-open events—with user ID stamping and tamper-evident timestamps. Firmware updates are performed via authenticated firmware signing to maintain data integrity and regulatory traceability.

Applications

• Long-term archival storage of human biospecimens in NIH-funded biorepositories and NCI-designated cancer centers.
• Cold chain continuity for mRNA vaccine intermediates requiring uninterrupted −70 °C storage prior to lyophilization.
• QC hold storage of reference standards and stability batches under ICH Q1A(R2) accelerated and long-term testing conditions.
• Backup freezing for liquid nitrogen-dependent workflows where mechanical redundancy mitigates LN₂ supply interruption risk.
• Pre-analytical processing labs maintaining frozen aliquots for multi-omics profiling (proteomics, metabolomics, single-cell sequencing).

FAQ

What is the minimum recommended ambient temperature for stable operation at −86 °C?
The unit is rated for continuous operation at −86 °C when ambient temperature remains between 10 °C and 32 °C and relative humidity does not exceed 80% RH non-condensing.
Does the freezer support 21 CFR Part 11 compliance out of the box?
Yes—when configured with the optional audit trail-enabled firmware and paired with validated user access controls, electronic signatures, and secure data export protocols.
Can internal temperature uniformity be verified independently?
Yes—calibration ports are provided at standardized locations (top/mid/bottom, front/mid/back per ISO/IEC 17025:2017 Annex B), enabling third-party thermocouple mapping using accredited metrology services.
Is the refrigerant compatible with global phase-down regulations (e.g., EU F-Gas Regulation)?
Yes—the HFC-free blend used meets current GWP thresholds under EC No. 517/2014 and is approved for servicing through 2030 under EPA SNAP Program Subpart G.
What is the expected mean time between failures (MTBF) for the compressor system?
Based on accelerated life testing per MIL-HDBK-217F, the dual-stage compressor assembly demonstrates ≥15,000 hours MTBF under nominal load conditions at −80 °C setpoint.
