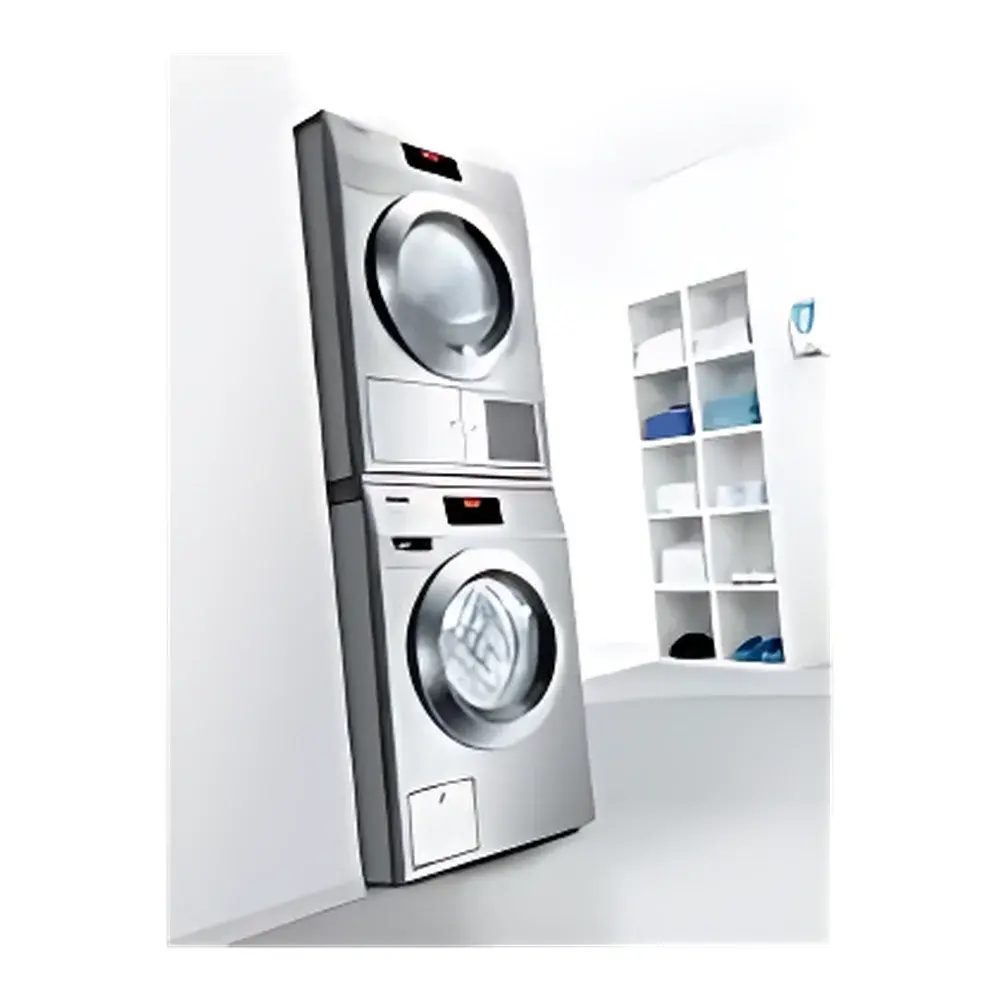

Miele Little Giants Compact Washer-Dryer Combination for Textile Testing Laboratories

Overview

The Miele Little Giants Compact Washer-Dryer Combination is engineered specifically for textile testing laboratories requiring precise, repeatable, and standards-compliant fabric preconditioning and post-test conditioning. Unlike domestic or commercial laundry appliances, this integrated system meets the stringent mechanical and environmental reproducibility requirements of ISO 6330 (domestic washing and drying procedures for textiles), ISO 3175 (dry cleaning), AATCC TM135 (dimensional change in automatic home laundering), and EN 14987 (laboratory-scale washing machines). Its dual-function architecture—combining a high-g-force washer (1200 g nominal spin acceleration) with a closed-loop heat pump dryer—enables full-cycle textile treatment within a single, space-constrained footprint (< 0.5 m² when stacked), eliminating inter-unit transfer variability and ambient humidity interference common in separate-unit setups. The system operates under programmable, auditable parameters—including temperature ramp profiles, water level precision (±30 mL), drum rotation symmetry, and airflow velocity control—ensuring compliance with GLP and GMP-aligned laboratory workflows.

Key Features

• Honeycomb drum technology (Miele-patented): Minimizes fiber abrasion and mechanical stress during both wash and dry cycles, preserving fabric integrity for subsequent tensile, pilling, or colorfastness testing.
• CapDosing™ automatic detergent dispensing: Delivers exact volumes of standardized test detergents (e.g., ECE Reference Detergent, ISO 105-C06) per cycle, eliminating operator-dependent dosing errors and ensuring inter-lab reproducibility.
• M Select™ control interface: Rotary dial navigation with symbol-based program selection and 29-language touchscreen support—including Simplified Chinese—enabling seamless integration into multinational textile R&D facilities.
• XCI-Box-LG expandable control module: Enables external PLC or LIMS integration for automated chemical delivery sequencing, cycle logging, and parameter locking—supporting FDA 21 CFR Part 11 audit trail requirements.
• Heat pump drying system: Operates without external venting; achieves energy savings up to 60% versus condenser-type dryers while maintaining ±1.5°C temperature stability across the drying chamber (validated per ISO 3175 Annex B).
• Ergonomic loading base (900 mm height): Reduces operator fatigue during repetitive sample loading/unloading—critical for high-throughput QA/QC labs processing hundreds of specimens weekly.

Sample Compatibility & Compliance

The Little Giants system accommodates flat fabric specimens (woven, knitted, nonwovens), garment assemblies, and technical textiles up to 8 kg total mass, with programmable load balancing to prevent centrifugal imbalance during high-speed extraction. All standard test programs—including “Hygienic Wash” (EN 14885), “Sportswear Care” (ISO 15797), and “Household Linen” (ISO 6330-2)—are pre-validated against reference methods. Drum geometry and thermal dynamics have been verified via third-party calibration reports traceable to PTB (Physikalisch-Technische Bundesanstalt). The unit bears CE marking and conforms to IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity), ensuring electromagnetic compatibility in shared lab environments with spectrophotometers, tensile testers, and HPLC systems.

Software & Data Management

Cycle execution data—including water temperature profiles, drum RPM history, drying air inlet/outlet temperatures, and final residual moisture content (calculated per ISO 6330 Annex D)—is timestamped and exportable via USB or Ethernet. Optional Miele LabLink software provides CSV/Excel output compatible with statistical process control (SPC) platforms. Audit logs record user ID, program selection, parameter overrides, and error events—fully compliant with GLP documentation requirements. Firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification.

Applications

• Preconditioning of specimens prior to tensile strength (ISO 13934), tear resistance (ISO 13937), or abrasion testing (ISO 12947).
• Dimensional stability evaluation under repeated laundering (AATCC TM135, ISO 6330).
• Colorfastness assessment after multiple wash-dry cycles (ISO 105-C06, ISO 105-X12).
• Validation of antimicrobial or flame-retardant finish durability (ISO 105-E01, ISO 15025).
• Accelerated aging protocols for technical textiles used in medical, automotive, or protective apparel.

FAQ

Is the Little Giants system validated for ISO/IEC 17025-accredited textile testing laboratories?
Yes—full validation documentation, including installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) templates aligned with ISO/IEC 17025:2017 Clause 6.4.1, is available upon request.
Can detergent concentration be adjusted per ISO 6330 Annex A requirements?
Yes—the CapDosing™ system supports programmable volumetric delivery from 0.5 mL to 25 mL per cycle, calibrated to ±1.2% accuracy using gravimetric verification protocols.
Does the heat pump dryer meet ISO 3175’s airflow and temperature uniformity criteria?
Yes—thermal mapping per ISO 3175 Annex B confirms ≤±1.5°C spatial variation across the drum volume and ≥0.3 m/s minimum airflow velocity at all measurement points.
Is remote monitoring supported for multi-site laboratory networks?
Yes—via optional Miele LabLink Gateway, enabling centralized status dashboards, predictive maintenance alerts, and firmware update orchestration across distributed facilities.
