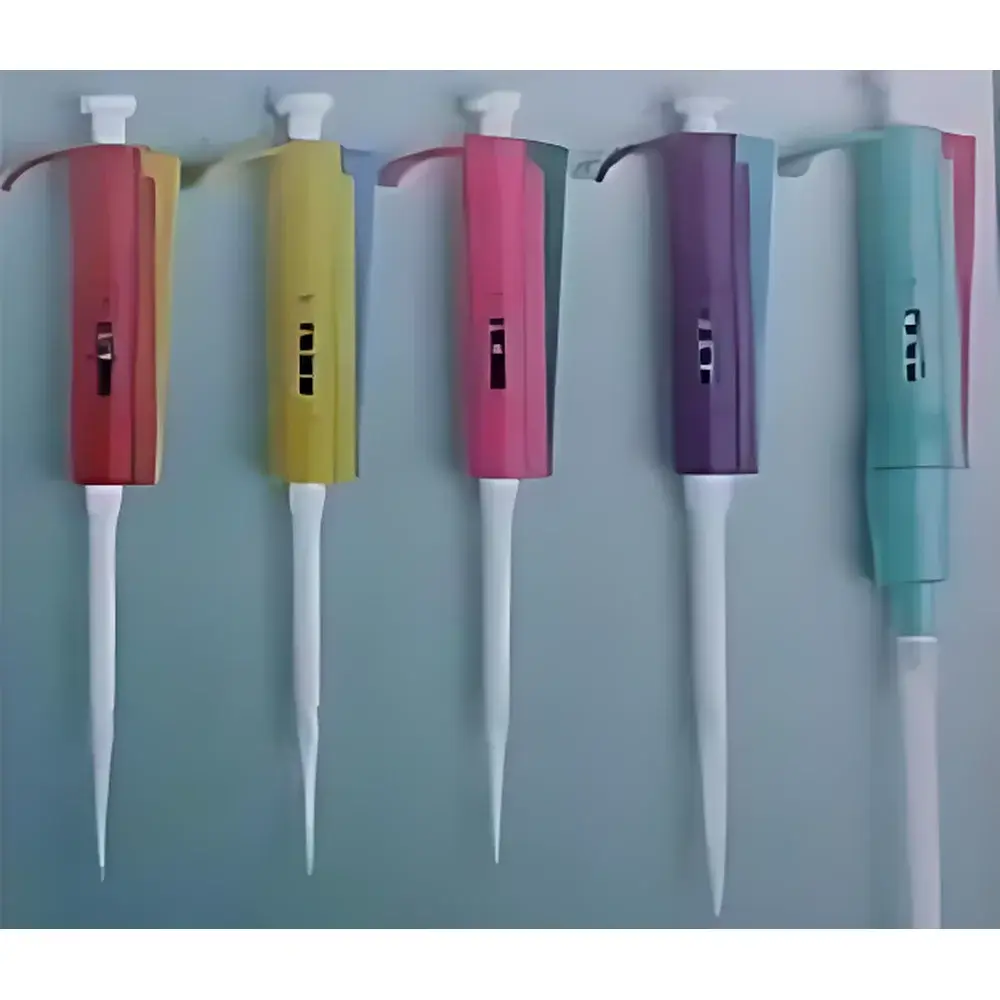

Thermo Scientific Finnpipette Color Single-Channel Manual Pipette, 1–5 mL

Overview

The Thermo Scientific Finnpipette Color Single-Channel Manual Pipette (1–5 mL) is an ergonomically engineered precision liquid handling instrument designed for high-frequency, low-fatigue operation in demanding laboratory environments. Based on the globally recognized Finnpipette platform—originally developed by Labconco and now part of Thermo Fisher Scientific—this pipette employs a proven air-displacement principle to deliver consistent volumetric accuracy across its full 1–5 mL range. Its mechanical design integrates a low-force plunger mechanism, optimized spring tension, and a balanced center-of-gravity configuration to reduce operator hand and wrist strain during repetitive dispensing tasks. Unlike basic volumetric transfer devices, this model features a patented piston seal architecture that minimizes capillary retention and ensures complete blow-out performance—a critical factor for viscous, volatile, or surface-tension-sensitive samples such as glycerol solutions, ethanol-based reagents, or protein-containing buffers.

Key Features

• Ergonomic design with contoured finger rest, lightweight polymer housing, and tactile soft-touch plunger—reducing muscular effort by up to 30% compared to conventional manual pipettes (per ISO 8549-2 anthropometric assessment guidelines)
• Enhanced blow-out capability via dynamic piston compression technology, eliminating residual droplet formation and improving delivery reproducibility
• Half-body autoclavable construction (121°C, 20 min, 1 bar)—compatible with standard laboratory sterilization cycles without disassembly
• Color-coded volume adjustment ring and digital display window for rapid visual identification and precise setting verification
• Interchangeable tip cone with universal compatibility for certified low-retention, filtered, and sterile tips meeting ISO 8655-2 dimensional tolerances
• Calibration-friendly design: accessible internal components allow field adjustment using standard gravimetric procedures per ISO 8655-6

Sample Compatibility & Compliance

This pipette is validated for use with aqueous, organic, and mildly corrosive liquids—including PBS, Tris-HCl, methanol, isopropanol, and diluted acids/bases—within ambient temperature ranges (15–30°C) and relative humidity ≤70%. It complies with ISO 8655 parts 1–6 for piston-operated volumetric apparatus, including metrological requirements for accuracy (±2.5% at nominal volume), repeatability (CV ≤1.0%), and thermal stability. The device supports GLP and GMP workflows through traceable calibration documentation and optional factory-certified calibration certificates (NIST-traceable). While not intrinsically compliant with FDA 21 CFR Part 11 due to its manual nature, it is routinely deployed in regulated environments where operator SOPs, logbook entries, and periodic verification meet audit requirements for equipment control.

Software & Data Management

As a manually operated instrument, the Finnpipette Color 1–5 mL does not incorporate embedded electronics or connectivity interfaces. However, it integrates seamlessly into digitally managed lab ecosystems through companion tools: Thermo Scientific’s Pipette Calibration Manager software supports creation of calibration schedules, storage of historical gravimetric test data, and generation of PDF reports aligned with ISO/IEC 17025 documentation standards. Users may pair the pipette with digital balance systems (e.g., Mettler Toledo XSR series) and automated data capture platforms to minimize transcription errors and support audit-ready records. Calibration logs can be exported in CSV or XML format for ingestion into LIMS or ELN systems.

Applications

This pipette serves core functions in molecular biology, clinical diagnostics, pharmaceutical QC, and academic research laboratories. Typical applications include preparation of PCR master mixes, serial dilutions of antibody stocks, buffer formulation for HPLC mobile phases, cell culture medium supplementation, and sample aliquoting for ELISA and mass spectrometry workflows. Its 5 mL upper limit makes it particularly suited for bulk reagent transfers where higher-volume single-channel precision is preferred over multi-channel or electronic alternatives—such as preparing 96-well plate coatings, filling centrifuge tubes prior to extraction, or dispensing media into T-flasks. The color-coded system also facilitates workflow segregation (e.g., red for hazardous reagents, blue for controls) in shared lab spaces.

FAQ

Is this pipette fully autoclavable?
No—only the lower half (tip cone and shaft) is autoclavable at 121°C for 20 minutes; the upper body containing the spring and plunger mechanism must remain unsterilized to preserve mechanical integrity.
What tip types are compatible?
Standard conical tips meeting ISO 8655-2 dimensions, including low-retention, filtered, and pre-sterilized variants from Thermo Scientific, Eppendorf, and Gilson.
Can accuracy be adjusted in-house?
Yes—via the external calibration screw located beneath the volume adjustment ring; adjustment requires a certified reference balance and adherence to ISO 8655-6 gravimetric validation protocols.
Does it meet ISO 8655 certification requirements?
Yes—the pipette is manufactured and tested to comply with ISO 8655-2 (volumetric performance) and ISO 8655-5 (mechanical durability), with full test reports available upon request.
What is the recommended recalibration interval?
Every 3–6 months under routine use; more frequently if subjected to >100 daily operations, exposure to aggressive solvents, or mechanical impact.
