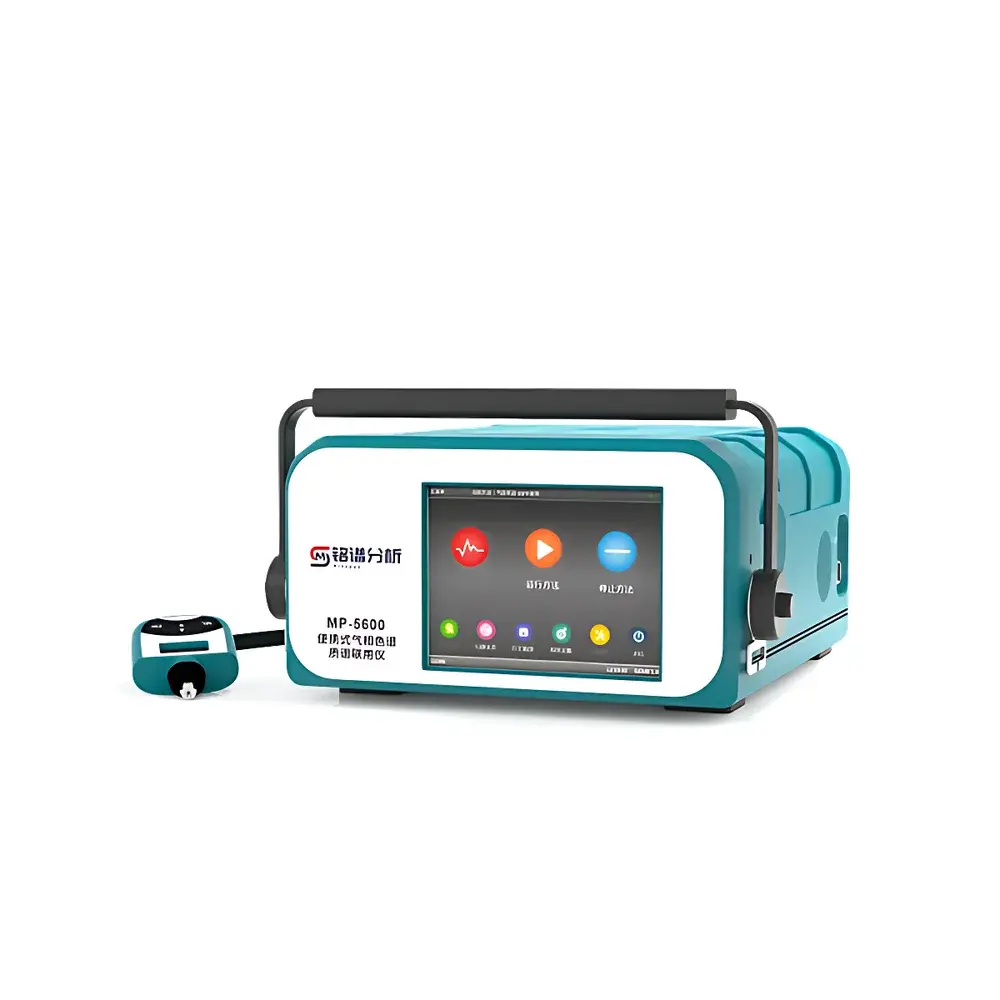

MINSPEC MP-5600 Portable Gas Chromatography Mass Spectrometry System
| Brand | MINSPEC |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MP-5600 |
| Instrument Type | Linear Ion Trap Mass Spectrometer |
| Chromatography Configuration | Low Thermal Mass (LTM) Gas Chromatograph |
| Mass Range | 15–550 m/z |
| Scan Speed | 10,000 Da/s |
| Mass Accuracy | High (typical ≤ 0.2 Da RMS error under calibration) |
| Oven Ramp Rate | Up to 30 °C/s |
| Detection Limit | Sub-ppt (v/v) for target VOCs in air matrix |
| Dimensions | 420 × 320 × 210 mm |
| Weight | <12.5 kg |
| Sample Introduction | Direct gas, headspace, liquid injection, and thermal desorption (solid-phase microextraction compatible) |
Overview
The MINSPEC MP-5600 Portable Gas Chromatography Mass Spectrometry (GC-MS) System integrates low thermal mass (LTM) gas chromatography with a high-sensitivity linear ion trap mass spectrometer to deliver laboratory-grade analytical performance in a field-deployable platform. Designed for real-time, on-site identification and quantification of volatile organic compounds (VOCs) and semi-volatile organic compounds (SVOCs), the MP-5600 operates on the principle of gas-phase separation followed by electron ionization (EI) and ion trapping detection. Its compact architecture enables rapid thermal cycling of the GC column—achieving oven ramp rates up to 30 °C/s—while the linear ion trap provides enhanced duty cycle efficiency, improved signal-to-noise ratio, and MSn capability for structural elucidation. The system is engineered for precision under variable environmental conditions, meeting stringent mechanical and thermal stability requirements defined in military and environmental standards.
Key Features
- Low thermal mass (LTM) GC module enabling sub-minute chromatographic runtimes without compromising resolution
- Linear ion trap mass analyzer with mass range 15–550 m/z and scan speed ≥10,000 Da/s, supporting full-scan, SIM, and data-dependent MSn acquisition
- Integrated triple-mode sample introduction: direct air sampling, headspace vial analysis, and syringe-based liquid injection; compatible with solid-phase microextraction (SPME) and thermal desorption tubes
- Embedded expert software with automated spectral deconvolution, NIST-compatible library matching (≥500 target compounds preloaded), and retention index alignment
- Ruggedized chassis certified to GJB150.16A-2009 (vibration resistance), GB/T11606-2007 (environmental robustness), and IP54-rated ingress protection
- Battery-operated mode (optional external Li-ion pack) supports ≥4 hours continuous operation; DC/AC dual-power input for vehicle-mounted deployment
Sample Compatibility & Compliance
The MP-5600 accommodates gaseous, liquid, and solid-phase samples without hardware modification. Air samples are introduced via integrated pump and sorbent trap; aqueous matrices are analyzed using headspace equilibrium or purge-and-trap derivatization; solid samples (soil, wipe extracts, filters) undergo thermal desorption or solvent extraction prior to injection. All operational protocols align with Chinese environmental monitoring standards: HJ1223-2021 (ambient air VOC emergency analysis), HJ1227-2021 (water VOC analysis via headspace-GC-MS), and GB/T32210-2015 (performance verification methodology for portable GC-MS systems). Data integrity complies with GLP principles, including audit-trail-enabled method logging, user-access controls, and electronic signature support per FDA 21 CFR Part 11 guidelines.
Software & Data Management
The proprietary MINSPEC GC-MS Control Suite runs on embedded Linux OS and provides fully automated workflow management—from method setup and instrument calibration to report generation. Key modules include AutoTune for real-time mass axis calibration, Deconvolution Engine for co-eluting peak resolution, and QuantStudio for internal standard-based quantitation with linear dynamic range spanning 4 orders of magnitude. Raw data (.D format) and processed results (.csv, .pdf) are exportable via USB 3.0 or Ethernet. Software validation documentation (IQ/OQ/PQ templates) and raw data backup utilities are included to support regulatory submissions and laboratory accreditation (CNAS, CMA).
Applications
- Environmental emergency response: Rapid source identification during chemical spills, industrial leaks, or post-disaster air/water contamination events
- Indoor air quality (IAQ) assessment: Screening for formaldehyde, benzene, toluene, xylene, PAHs, and phthalate esters in residential and occupational settings
- Food safety and packaging migration studies: Detection of residual solvents, plasticizers, and off-flavor compounds in polymers and consumables
- Forensic toxicology and anti-doping labs: Field screening of controlled substances and metabolites in biological fluids and seized materials
- Pharmaceutical manufacturing: In-process monitoring of residual solvents (ICH Q3C compliant) and cleaning validation swab extracts
FAQ
Does the MP-5600 support quantitative analysis with internal standards?
Yes—the system includes calibrated multi-point response curves and supports isotopically labeled internal standards for precise quantitation across complex matrices.
Is the mass spectrometer capable of tandem MS (MS/MS) experiments?
Yes—the linear ion trap enables MS2 and MS3 fragmentation for structural confirmation and interference reduction in crowded spectra.
Can the instrument be operated remotely via network connection?
Yes—Ethernet interface enables secure remote control, live data streaming, and centralized fleet management through optional MINSPEC CloudLink gateway.
What maintenance intervals are recommended for field use?
Ion source cleaning every 100–200 sample injections; GC column trimming every 500 injections; annual mass calibration and vacuum system inspection.
Is method transfer possible from benchtop GC-MS platforms?
Yes—retention time indexing and spectral library compatibility ensure seamless migration of validated methods from Agilent, Thermo, or Shimadzu systems.
