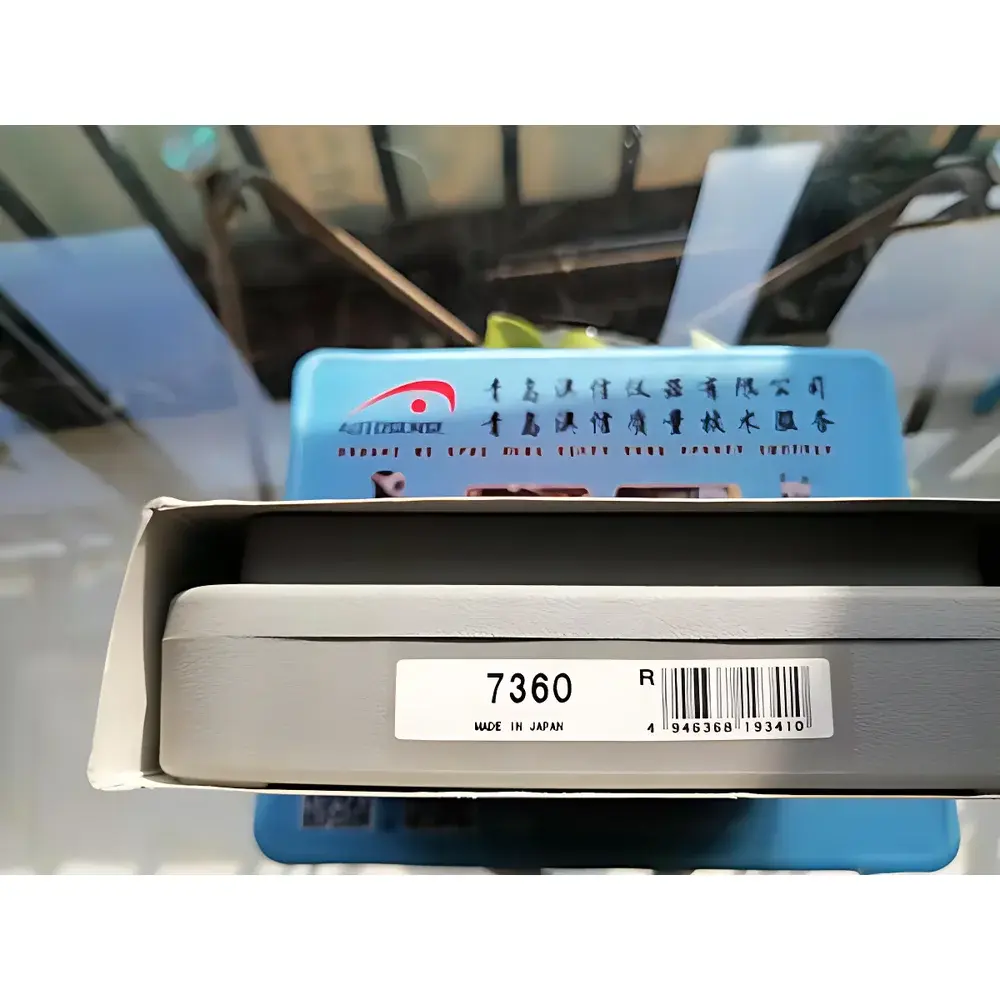

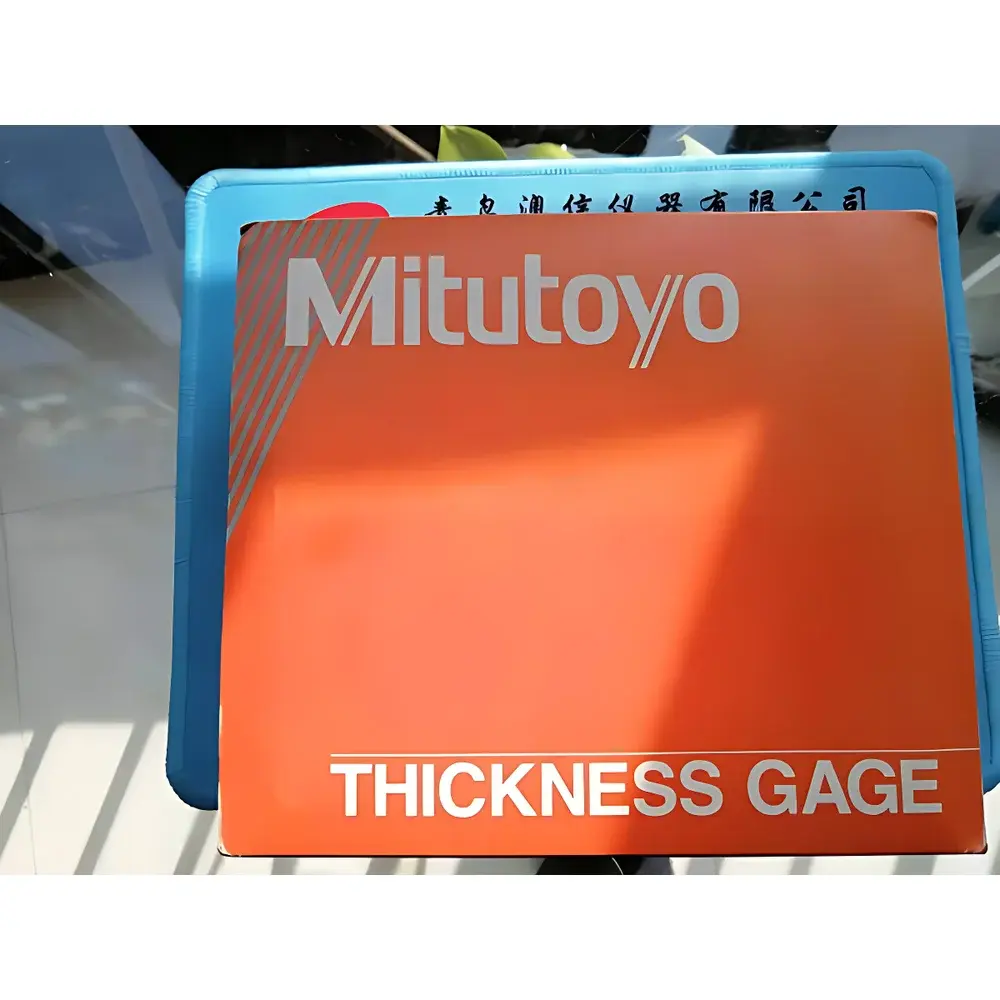

Mitutoyo Thickness Gauge Model 7360

Overview

The Mitutoyo Thickness Gauge Model 7360 is a precision analog thickness measuring instrument engineered for repeatable, tactile dimensional verification of thin planar and curved components in quality control, incoming inspection, and production line environments. Designed according to the fundamental principle of mechanical contact measurement—where linear displacement of a spring-loaded spindle is translated into angular deflection of a precision gear train and displayed via a calibrated analog dial—the Model 7360 delivers traceable, operator-independent thickness readings without reliance on batteries or electronic signal processing. Its robust mechanical architecture ensures long-term stability under repeated use, making it particularly suitable for applications demanding zero drift, immediate visual feedback, and immunity to electromagnetic interference (EMI) or electrostatic discharge (ESD). As part of Mitutoyo’s 7-series thickness gauges, the 7360 conforms to international metrological standards including ISO 1302 (geometrical product specifications), JIS B 7502 (dial indicators), and ASTM E110 (standard test method for hardness and thickness of metallic coatings), supporting audit-ready documentation in GLP- and GMP-regulated facilities.

Key Features

• Mechanically stable analog dial display with 0.01 mm resolution and ±15 µm accuracy across its 0–10 mm range
• Ceramic spindle and anvil surfaces—resistant to corrosion, wear, and galling—ensuring consistent surface interaction and extended calibration interval
• Ergonomic handle and thumb-actuated trigger mechanism enabling one-handed operation and rapid sequential measurements
• Interchangeable spindle sleeves (8 mm ISO/JIS or 3/8″ ANSI/AGD) for compatibility with standard mounting fixtures and custom jigs
• Dust- and oil-resistant front-sealed dial housing rated to IP42 (basic protection against solid objects >1 mm and vertically falling water drops) or IP53 (enhanced dust resistance and protection against sprayed water at 60°)
• Low, consistent measuring force of ≤1.4 N—minimizing part deformation during measurement of soft or compliant materials such as foams, gaskets, and polymer films
• Zero-resettable dial with fine-adjustment capability for relative measurements and comparative tolerance checking

Sample Compatibility & Compliance

The Model 7360 is optimized for thickness verification of flat, slightly curved, or contoured specimens up to 10 mm thick, including metal foils, laminated sheets, printed circuit board substrates, rubber gaskets, paperboard, optical lens blanks, and extruded plastic profiles. Its ceramic-tipped spindle and anvil provide non-marring contact for delicate surfaces, while the low-force design prevents indentation errors in soft thermoplastics or elastomers. The gauge complies with ISO/IEC 17025 requirements for measurement uncertainty estimation and supports traceability through Mitutoyo’s accredited calibration services (certified to ISO/IEC 17025:2017). It is routinely employed in industries subject to regulatory oversight—including automotive Tier-1 suppliers (IATF 16949), medical device manufacturers (ISO 13485), and aerospace component producers (AS9100)—where documented measurement system analysis (MSA), gage R&R studies, and periodic verification per ASTM E29 are mandatory.

Software & Data Management

As a purely analog instrument, the Model 7360 does not incorporate embedded electronics, data logging, or digital output capabilities. However, it is fully compatible with Mitutoyo’s external digitization ecosystem: when paired with optional accessories such as the 902011 or 902794 spindle lift rods, operators can integrate the gauge into manual or semi-automated measurement stations equipped with Mitutoyo’s ID-S or IDC series digital indicators (e.g., 547-401S) for SPC-compliant data capture. In such hybrid configurations, the 7360 serves as the mechanical sensing module, while downstream Digimatic units provide real-time statistical process control outputs—including GO/±NG judgment, automatic zeroing, and GLP/GMP-compliant audit trails per FDA 21 CFR Part 11 when used with certified SPC software platforms.

Applications

• Verification of sheet metal thickness consistency in stamping and forming operations
• Quality screening of coated paper, label stock, and flexible packaging films
• In-process thickness checks of injection-molded plastic housings and extruded profiles
• Final inspection of anodized or plated layers on aluminum and steel substrates
• Dimensional validation of O-rings, gasket materials, and composite laminates prior to assembly
• Calibration reference for ultrasonic thickness gauges in NDT laboratories
• Teaching tool in metrology training programs for foundational concepts of mechanical amplification, hysteresis, and repeatability

FAQ

Is the Model 7360 suitable for measuring soft or compressible materials?

Yes—the fixed measuring force of ≤1.4 N minimizes elastic deformation, enabling reliable thickness assessment of foams, rubber sheets, and nonwovens when combined with appropriate dwell time and consistent actuation technique.
Does the gauge require periodic recalibration?

Yes—per ISO/IEC 17025 and internal quality procedures, annual calibration against traceable standards (e.g., grade AA gage blocks) is recommended; frequency may increase based on usage intensity and environmental conditions.
Can the spindle be replaced or upgraded?

Yes—Mitutoyo offers interchangeable spindles, lift rods (e.g., 902011, 902794), and protective sleeves to adapt the gauge for specialized geometries including deep grooves, narrow channels, or convex surfaces.
What is the expected service life under normal industrial use?

With proper handling, periodic cleaning, and storage in a controlled environment, mechanical lifetime exceeds 10 years; spindle and anvil wear is negligible due to hardened ceramic construction.
Is the Model 7360 compatible with automated measurement fixtures?

Yes—it features standardized mounting interfaces (M6 thread on base, 8 mm sleeve OD) and is widely integrated into pneumatic or servo-driven test stands using Mitutoyo’s mechanical adapter kits and position-sensing modules.
