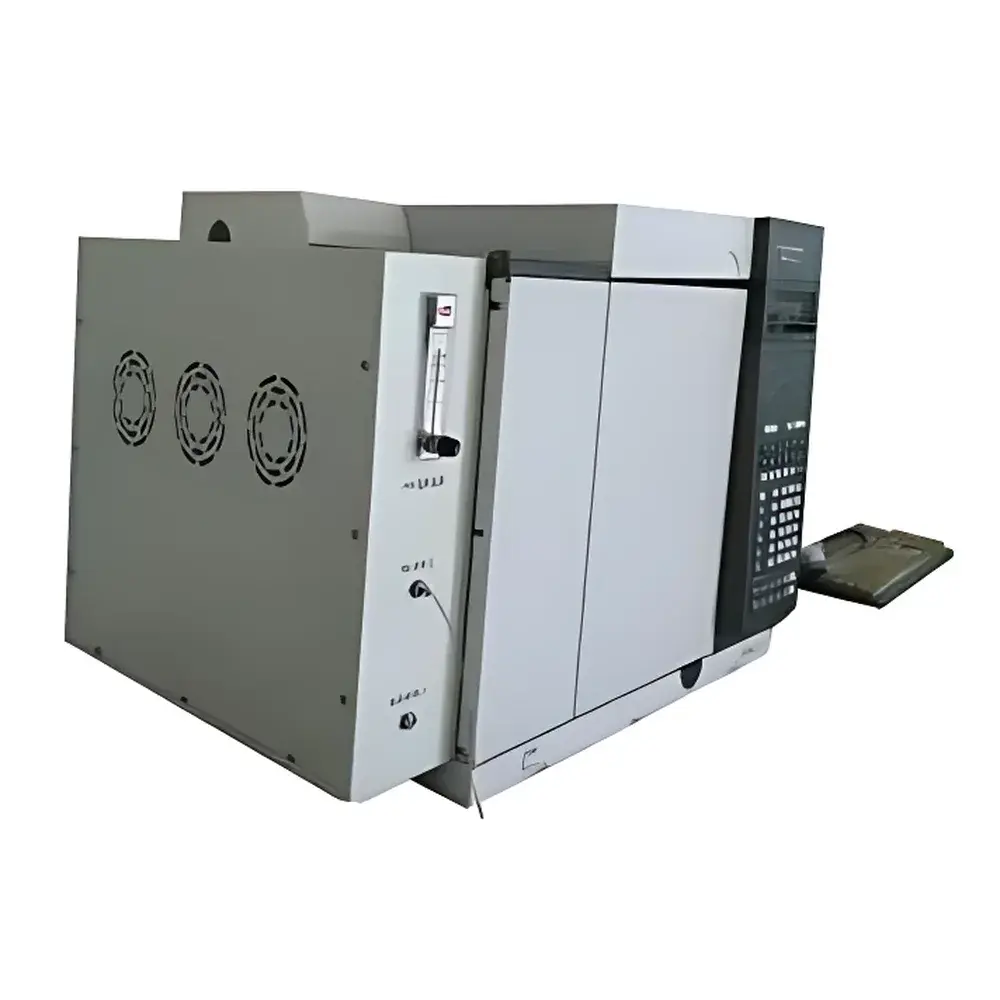

MNK GC7890B PDHID Gas Chromatograph (Agilent Platform with Pulsed Discharge Helium Ionization Detector)
| Brand | MNK |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor & System Integrator |
| Regional Classification | Domestic (China-Made) |
| Model | GC7890B |
| Pricing | Upon Request |
Overview
The MNK GC7890B PDHID Gas Chromatograph is a purpose-engineered analytical system designed for ultra-trace impurity profiling in high-purity and specialty gases. Built upon the proven Agilent 7890B gas chromatographic platform, this configuration integrates a factory-calibrated, VICI-branded Pulsed Discharge Helium Ionization Detector (PDHID) — a detector recognized globally for its universal, near-equimolar response to permanent gases and low-molecular-weight compounds without flame or radioactive sources. Unlike conventional TCD or FID detectors, the PDHID operates under helium plasma discharge, enabling sub-ppb detection limits for H₂, O₂, N₂, CH₄, CO, CO₂, Ar, Kr, Xe, Ne, He, and other inert and reactive species commonly found in electronic-grade, medical-grade, and food-grade gases. The system maintains full compatibility with Agilent’s original hardware architecture, firmware, and data acquisition protocols, ensuring seamless integration into existing laboratory workflows and regulatory-compliant environments.
Key Features
- PDHID detector sourced directly from VICI (USA), recipient of the Pittcon Editors’ Award for innovation in detector technology
- Full integration with Agilent 7890B GC platform — preserving all original temperature programming, pressure control, and valve sequencing capabilities
- VICI-manufactured sample injection valves and multi-port switching valves, ensuring long-term reproducibility and leak-tight operation
- SilcoTek® silcoNert® surface passivation applied to all gas-contacting stainless-steel components, minimizing adsorption and catalytic decomposition of sulfur-containing and reactive analytes
- Dedicated HP2 high-capacity helium purifier for carrier gas conditioning, reducing background contaminants to <10 ppt levels
- Double-sealed, guard-sleeve injection valve assembly to prevent atmospheric ingress during sampling and mitigate operator exposure to toxic or hazardous gas standards
Sample Compatibility & Compliance
The GC7890B PDHID system is validated for analysis of high-purity industrial gases (ISO 8573-1 Class 1–2), electronic specialty gases (SEMI F57, ASTM D7607), food-grade CO₂ (FDA 21 CFR §184.1191), and ultra-high-purity hydrogen for fuel cell applications (IEC 62282-8-101). All hardware modifications comply with Agilent’s mechanical and electrical interface specifications, retaining full traceability to original OEM design documentation. The system supports GLP/GMP audit requirements through configurable electronic logbooks, user-access controls, and optional 21 CFR Part 11-compliant software modules when paired with Agilent OpenLab CDS.
Software & Data Management
Instrument control and data processing are performed via Agilent OpenLab CDS (ChemStation Edition or EZChrom-compatible mode), ensuring full retention of method validation parameters, peak integration rules, and calibration history. PDHID-specific signal optimization routines — including pulse frequency, discharge voltage, and quench gas flow tuning — are embedded within the method editor. Raw detector output is recorded at ≥100 Hz sampling rate to resolve transient peaks from fast-eluting gases. All data files conform to ASTM E1947-compliant .D format, enabling interoperability with LIMS platforms and third-party spectral libraries.
Applications
- Trace-level quantification of residual air components (O₂, N₂, Ar) in semiconductor process gases (e.g., SiH₄, NF₃, BCl₃)
- Monitoring sulfur compounds (H₂S, COS, SO₂) in natural gas and biogas streams per ISO 6974-5
- Verification of purity compliance for medical oxygen (USP ) and nitrogen (USP )
- Stability testing of laser gas mixtures (CO₂/He/Ne/N₂) per IEC 60825-1
- Residual solvent screening in cryogenic CO₂ used for supercritical fluid extraction (SFE) of nutraceuticals
FAQ
Is the PDHID detector compatible with Agilent’s original GC7890B firmware?
Yes — the VICI PDHID communicates via standard analog voltage output and is fully supported by Agilent’s native detector configuration utilities without firmware modification.
Can this system be retrofitted onto an existing Agilent 7890B already installed in my lab?
Yes — MNK provides on-site retrofit services including mechanical integration, gas plumbing validation, detector alignment, and full performance qualification (PQ) per ASTM E2655.
Does the PDHID require radioactive materials or hydrogen fuel gas?
No — the PDHID uses only ultra-high-purity helium as both carrier and plasma gas; it contains no radioactive sources or flammable reagents.
What is the typical detection limit for O₂ in argon using this configuration?
Under optimized conditions (2 m, 0.53 mm ID PLOT column; 40 °C isothermal; 1 mL splitless injection), sub-50 ppt (v/v) detection limits for O₂ in Ar have been verified across multiple independent laboratories.
Is method transfer support available from MNK for regulatory submissions?
Yes — MNK supplies complete IQ/OQ documentation packages, system suitability test protocols, and raw data archiving guidance aligned with FDA, EMA, and NMPA expectations for gas purity testing.
