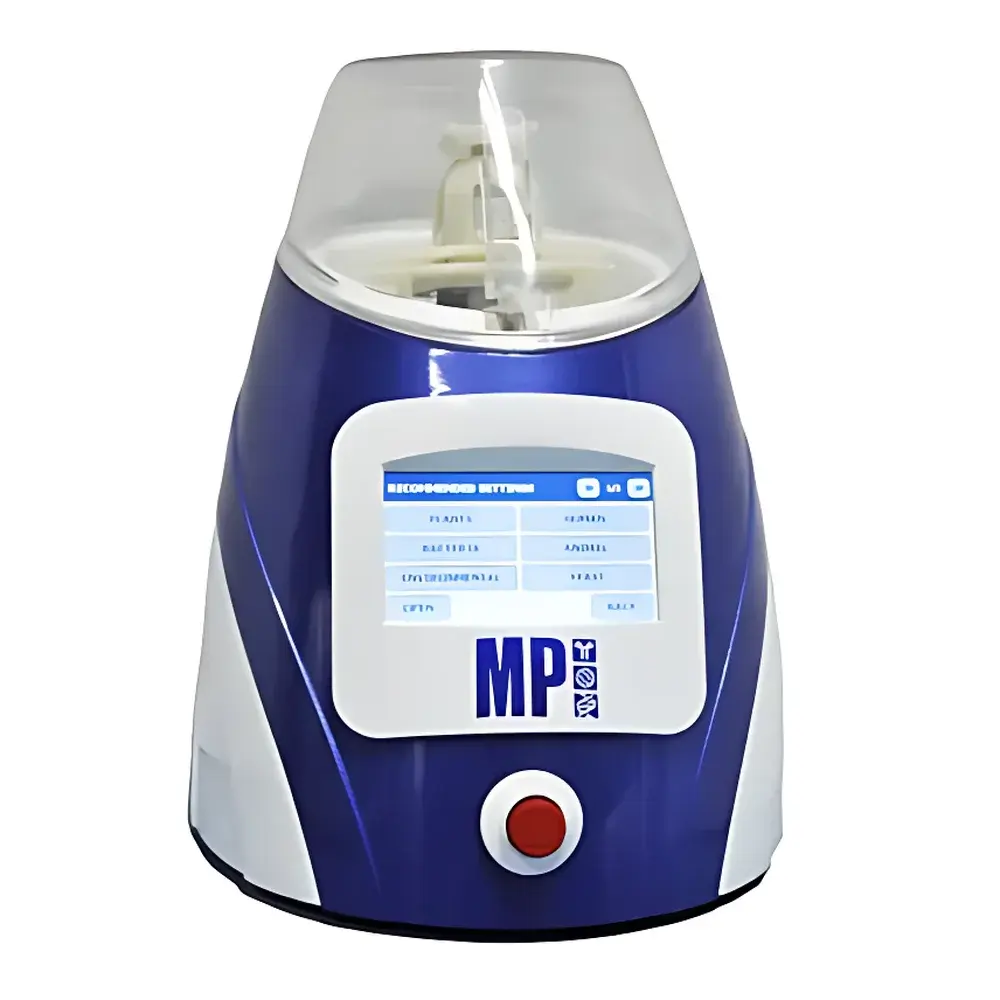

MP FastPrep-24® 5G Bead-Based Homogenizer System

Overview

The MP FastPrep-24® 5G Bead-Based Homogenizer System is an engineered solution for high-efficiency, reproducible mechanical lysis of diverse biological and environmental samples. Operating on the principle of high-speed bead beating—where kinetic energy from rapidly oscillating ceramic, glass, or steel beads induces shear, impact, and compression forces—the system delivers consistent cell disruption across heterogeneous matrices. Its patented “figure-eight” motion profile generates simultaneous vortexing, shaking, and aspiration-like agitation within sample tubes, ensuring uniform bead distribution and minimizing localized overheating or incomplete lysis. Designed for laboratories requiring rapid, scalable, and operator-independent sample preparation, the FastPrep-24® 5G supports downstream applications in genomics, proteomics, metabolomics, and environmental microbiology where integrity of nucleic acids, proteins, or metabolites must be preserved during homogenization.

Key Features

• Patented figure-eight orbital motion enabling three concurrent agitation modes: vortexing, reciprocating shake, and pseudo-aspiration—enhancing bead-sample collision frequency and homogenization uniformity.
• Velocity range: 4.0–10.0 m/s in 0.5 m/s increments; full acceleration to maximum speed achieved in ≤2 seconds; full deceleration to stop in ≤2 seconds.
• Precise time control: 1–120 seconds per cycle, adjustable in 1-second increments.
• Programmable multi-cycle operation: up to 9 cycles per run, with inter-cycle pause intervals configurable from 1–300 seconds.
• 60 pre-installed, application-optimized protocols covering tissues, soil, feces, plants, and microbial cultures.
• 12 user-definable protocol slots with persistent storage via internal flash memory.
• Capacitive touchscreen interface with intuitive navigation, real-time status feedback, and embedded diagnostics.
• 10 USB ports supporting firmware updates, protocol import/export, and audit-ready data logging (timestamped start/stop, velocity, duration, cycle count).
• Modular adapter architecture: 11 interchangeable, application-specific adapters—including cryogenic variants compatible with −80 °C storage and autoclavable stainless-steel options (e.g., QuickPrep™, TeenPrep®, BigPrep®).
• Integrated safety systems: lid-open detection, motor overtemperature monitoring, rotor imbalance sensing, and brushless DC motor drive for extended service life and low electromagnetic interference.
• Ergonomic rotary clamping mechanism ensures 100% tube retention force without manual torque adjustment; transparent polycarbonate lid with synchronized strobe lighting enables real-time visual monitoring of lysis dynamics.

Sample Compatibility & Compliance

The FastPrep-24® 5G accommodates a broad spectrum of challenging sample types—including fibrous plant tissue, mineral-rich soil, calcified bone, keratinized skin, vascular tissue, and dense microbial biofilms—without requiring pre-chopping or enzymatic pretreatment. All adapters function as stable tube racks and are rated for direct placement into −80 °C freezers; stainless-steel adapters withstand standard autoclave cycles (121 °C, 15 psi, 20 min), supporting GLP/GMP-compliant workflows. The system meets IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emissions) standards. While not FDA-cleared as a medical device, its data logging capabilities—including immutable timestamps, operator ID fields (via optional network integration), and exportable CSV logs—align with 21 CFR Part 11 requirements for electronic records when deployed within validated laboratory information management systems (LIMS).

Software & Data Management

Protocol execution and instrument diagnostics are managed through an embedded Linux-based OS with a responsive GUI. All run parameters—including velocity, duration, cycle count, pause intervals, and selected adapter type—are logged automatically and stored locally with date/time stamps. Data export is supported via USB mass storage mode in CSV format, enabling traceability for ISO/IEC 17025 audits. Firmware updates are delivered as signed binary packages to ensure integrity. Optional Ethernet or Wi-Fi modules (sold separately) enable remote monitoring, centralized protocol deployment, and integration with enterprise LIMS or ELN platforms via RESTful API endpoints.

Applications

• RNA/DNA extraction from mammalian tissues, plant leaves, and fungal mycelia with minimized degradation.
• Protein solubilization from membrane-bound organelles and inclusion bodies.
• Metabolite recovery from soil and rhizosphere samples for LC-MS analysis.
• Microbial cell lysis for metagenomic library preparation from stool, sputum, or environmental swabs.
• Homogenization of FFPE tissue sections prior to nucleic acid retrieval.
• Preparation of homogeneous suspensions for particle size analysis (e.g., DLS, laser diffraction) and rheological characterization.

FAQ

What types of beads are compatible with the FastPrep-24® 5G?

Standard bead sets include 0.1 mm, 0.5 mm, and 1.4 mm silica, zirconia/silica, and stainless-steel beads—each optimized for specific sample hardness and molecular target stability.
Can the system be validated for regulated environments?

Yes—when paired with documented IQ/OQ protocols, calibrated velocity verification tools, and electronic audit trails, it supports GxP validation under ISO 13485, USP , and FDA guidance for laboratory equipment qualification.
Is cryogenic operation supported?

All cryo-adapters maintain structural integrity at −80 °C; however, the instrument itself must operate within ambient conditions of 15–30 °C and ≤80% non-condensing humidity.
How is cross-contamination prevented between runs?

Rigorous cleaning protocols using ethanol, bleach, or RNase/DNase decontamination solutions are recommended; stainless-steel adapters allow autoclaving, and disposable tube systems (e.g., MP Biomedicals’ Lysing Matrix tubes) eliminate carryover risk.
Does the system support regulatory-compliant data archiving?

Yes—CSV logs include all critical parameters and timestamps; when integrated with a compliant LIMS or ELN, full ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity is achievable.
