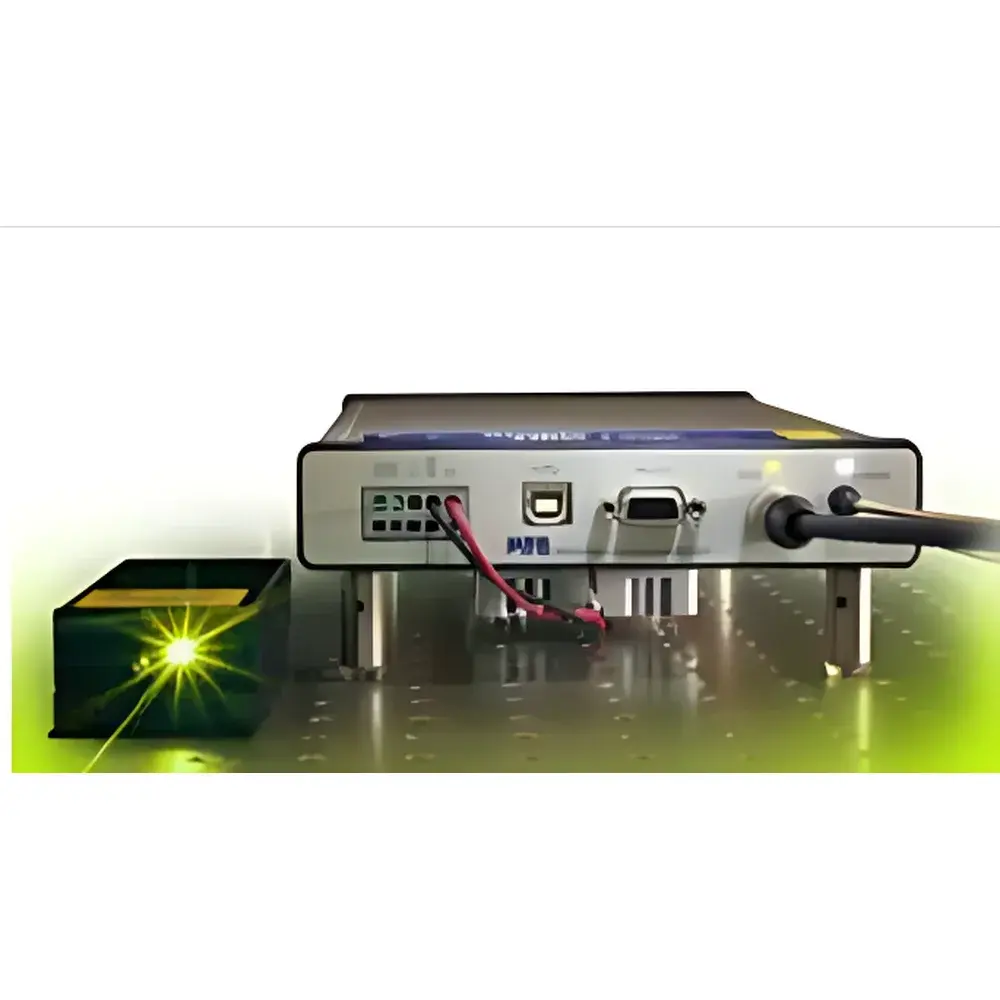

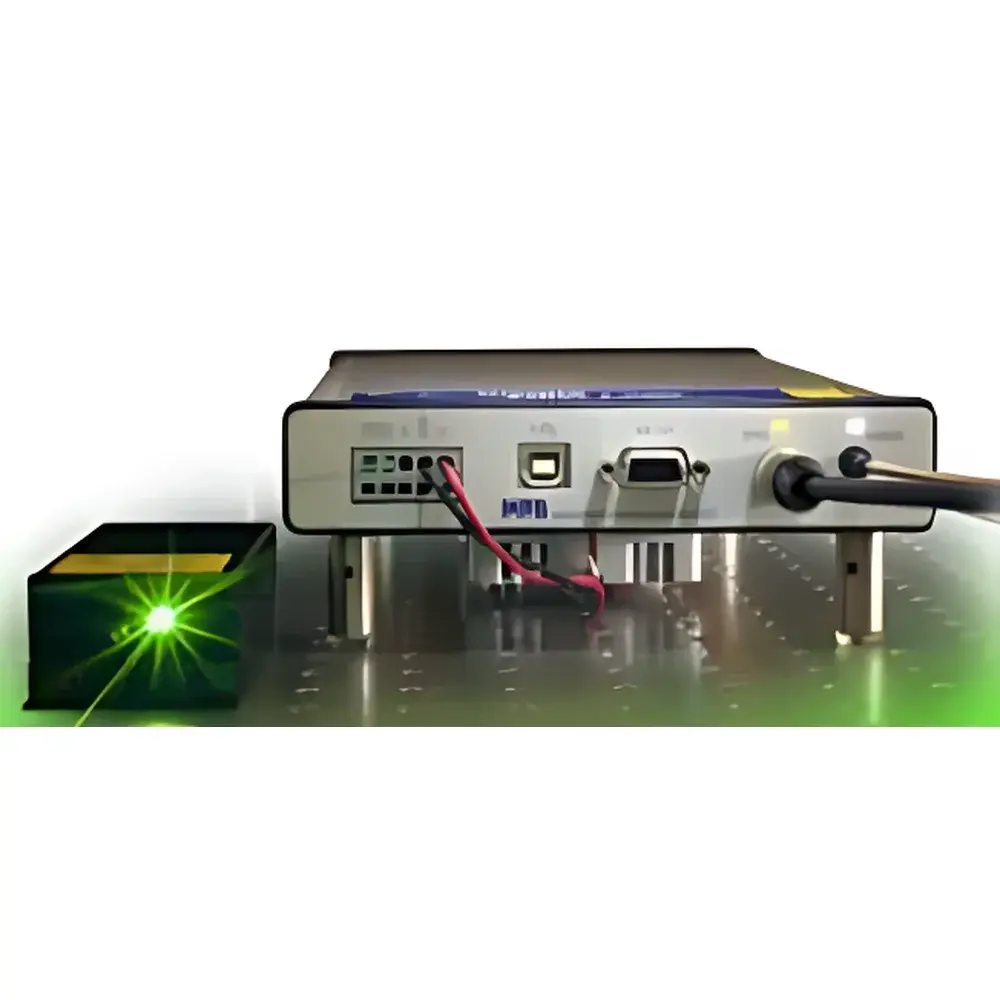

MPB VFL-P-200-546 546 nm Single-Frequency Fiber Laser

Overview

The MPB VFL-P-200-546 is a continuous-wave (CW), single-frequency fiber laser engineered for high spectral purity and exceptional amplitude stability at the mercury green line wavelength of 546 nm. Unlike conventional DPSS lasers operating at this wavelength—prone to mode hopping, thermal drift, and power fluctuations—the VFL series leverages MPB’s proprietary frequency-stabilized fiber architecture to deliver narrow-linewidth (<1 MHz typical), low-noise output with intrinsic resistance to environmental perturbations. This makes it uniquely suited for applications demanding long-term coherence, precise photon–matter interaction, and quantitative repeatability—particularly in life science instrumentation where photostability and signal-to-noise ratio directly impact assay fidelity.

Key Features

• Stable CW output at 546 nm with RMS power fluctuation <±0.5% over 8 hours—validated under GLP-aligned test protocols.
• TEM₀₀ spatial mode with M² ≤1.1 and beam divergence <5 mrad (full angle), enabling efficient coupling into single-mode fibers and high-NA microscope objectives.
• Linear polarization oriented vertically relative to the mounting baseplate—facilitating straightforward integration with polarizing optics and electro-optic modulators.
• Dual control interface: RS232 for OEM system integration and USB 2.0 for local GUI operation; firmware supports SCPI command set compliance.
• Air-cooled design eliminates requirement for external chillers or water lines—reducing footprint, maintenance overhead, and operational risk in cleanroom or clinical environments.
• Benchtop configuration includes safety interlock circuitry compliant with IEC 60825-1:2014 Class 3B requirements; rackmount variants (2RU) integrate an internal transformer and certified emergency stop per EN 60204-1.

Sample Compatibility & Compliance

The VFL-P-200-546 is compatible with standard 1/2″ and 1″ optical mounts, kinematic platforms, and commercial fluorescence filter sets centered at 546±5 nm. Its wavelength aligns precisely with the emission peak of fluorescein derivatives (e.g., FITC, Alexa Fluor 488) and the excitation band of quantum dot QD545. All units undergo factory calibration traceable to NRC Canada standards and include full spectral characterization reports (power vs. time, wavelength drift, beam profile). The laser complies with FDA 21 CFR Part 1040.10/1040.11 for laser products, carries CE marking under the EU Laser Product Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and meets RoHS 3 and REACH substance restrictions.

Software & Data Management

MPB provides the VFL Control Suite—a cross-platform (Windows/macOS/Linux) application supporting real-time monitoring of output power, temperature diagnostics, and interlock status. The software logs timestamped operational parameters (power setpoint, actual output, diode current, heatsink temperature) with CSV export capability for audit trails. For regulated environments, optional firmware enables 21 CFR Part 11-compliant user access controls, electronic signatures, and immutable audit logs—fully compatible with LIMS and ELN systems. API documentation and Python SDK are supplied for automated calibration workflows and integration into ISO/IEC 17025-accredited testing procedures.

Applications

• Fluorescence Microspectroscopy: Stable 546 nm excitation enables ratiometric quantification of calcium indicators (e.g., Fluo-4) without photobleaching-induced artifacts.
• Flow Cytometry: High beam quality ensures uniform illumination across hydrodynamic focusing channels, improving CV values for side-scatter and fluorescence channels.
• Ophthalmic Imaging: Used in adaptive optics scanning laser ophthalmoscopes (AOSLO) for retinal cone photoreceptor mapping due to minimal chromatic dispersion at this wavelength.
• Thin-Film Metrology: Serves as a stable reference source in ellipsometers measuring optical constants of ITO, SiO₂, and photoresist layers.
• Laser Sintering R&D: Enables selective photopolymerization studies of green-sensitive resins (e.g., SR-351) under controlled irradiance conditions.

FAQ

Is wavelength tuning available on the VFL-P-200-546?
No—this model is factory-set to 546.00 nm with ±0.02 nm thermal stability; wavelength-tunable variants are not offered in the VFL series.
Can the laser be modulated externally?
Yes—TTL-compatible analog modulation input (0–5 V) is provided for intensity control up to 100 kHz bandwidth; modulation depth and linearity are specified in the datasheet.
What is the expected lifetime of the pump diode?
MTTF exceeds 50,000 hours at rated operating conditions, validated per Telcordia GR-468-CORE reliability testing protocols.
Are OEM integration kits available?
Yes—MPB offers mechanical mounting brackets, fiber-pigtailed versions (SMF-28, FC/APC), and custom firmware builds for embedded controller interfaces.
Does the 2RU rackmount version support remote power cycling?
Yes—integrated Ethernet (optional) or RS485 enables remote ON/OFF, interlock bypass override (with dual-key authorization), and fault reporting via SNMP traps.
