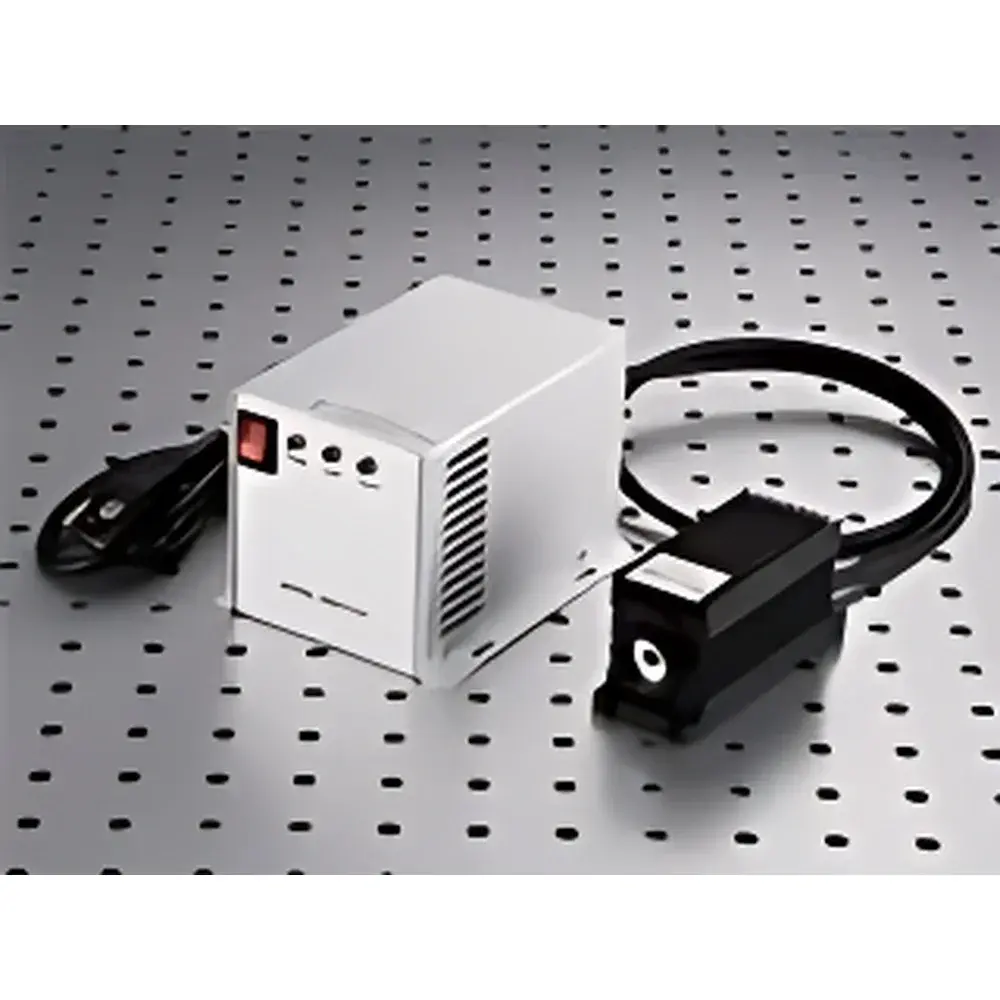

NewOpto DPSSL Series Diode-Pumped Solid-State Lasers

Overview

The NewOpto DPSSL Series comprises diode-pumped solid-state (DPSS) lasers engineered for high-efficiency, long-term operational stability, and compact integration into precision optical systems. Based on intracavity frequency-doubling of Nd:YAG, Nd:YVO₄, or Nd:YLF gain media, these lasers deliver narrow-linewidth (<0.1 nm), diffraction-limited (TEM₀₀) output across four fundamental wavelengths: 473 nm (blue), 532 nm (green), 671 nm (red), and 1064 nm (near-infrared). Each model is thermally stabilized with active temperature control and hermetically sealed optics, ensuring consistent beam quality and minimal mode hopping under laboratory or industrial ambient conditions. Designed for continuous-wave (CW) operation with optional analog or TTL modulation capability, the DPSSL platform meets the stringent requirements of scientific instrumentation, industrial metrology, and regulated analytical applications where spectral purity, polarization fidelity, and power repeatability are critical.

Key Features

• Four-wavelength platform supporting 473 nm, 532 nm, 671 nm, and 1064 nm outputs — enabling multi-spectral experimental configurations without hardware replacement
• TEM₀₀ spatial mode with M² < 1.2 (standard models) or < 2.0 (high-power variants), ensuring optimal focusability for confocal microscopy, holography, and nonlinear optics
• Narrow spectral linewidth (100:1 linear polarization ratio — essential for interferometric measurements and polarization-sensitive spectroscopy
• Thermally managed design with integrated TEC cooling and feedback-controlled crystal alignment — maintains beam pointing stability <5 µrad over 8-hour operation
• Low-noise power supply architecture delivering <±3% RMS power stability over 2 hours (1064 nm U-series), validated per ISO 11554 Annex B test protocols
• Compact OEM-ready housing (120 × 80 × 40 mm typical) with standardized 12 V DC input, SMA modulation interface, and FC/PC or free-space collimated output options

Sample Compatibility & Compliance

The DPSSL Series is compatible with a broad range of optical components and sample types used in quantitative measurement workflows. Its stable Gaussian beam profile enables precise coupling into single-mode fibers (SMF-28, HI1060), acousto-optic modulators (AOMs), and electro-optic deflectors (EODs). The lasers comply with IEC 60825-1:2014 Class 3B/4 laser safety standards (dependent on output power), and all units undergo full factory calibration traceable to NIST-certified photodiode standards. For regulated environments, the DPSSL supports GLP-compliant operation through external logging of operating hours, temperature logs, and power drift metrics — fully compatible with FDA 21 CFR Part 11 audit trail requirements when integrated with compliant data acquisition software.

Software & Data Management

Each DPSSL unit includes a USB- or RS-232–enabled control interface supporting ASCII command protocol for remote power adjustment, modulation enable/disable, and status query (e.g., “GET:TEMP”, “SET:POWER=500”). Optional NewOpto Laser Control Suite (v3.2+) provides real-time monitoring of output power, head temperature, and cumulative runtime, with CSV export and configurable alarm thresholds. All firmware versions adhere to IEC 62443-3-3 security baseline for industrial control devices, including secure boot and signed firmware updates. Integration with LabVIEW™, MATLAB®, and Python (PySerial, PyVISA) is documented and verified for automated alignment routines and closed-loop intensity stabilization.

Applications

• Confocal & multiphoton microscopy: 473 nm and 532 nm variants serve as excitation sources for GFP, YFP, and quantum dot labeling; 1064 nm enables deep-tissue SHG imaging
• Laser Doppler vibrometry & interferometry: High coherence length (>10 m at 532 nm) supports sub-nanometer displacement resolution in vibration analysis systems
• Flow cytometry & particle sizing: Stable 532 nm output ensures reproducible scatter signal calibration per ISO 21501-3 and ASTM E2456 standards
• Holographic data storage & optical trapping: Low wavefront distortion (<λ/8 PV) and high polarization extinction support phase-encoded recording and stable trap stiffness
• Industrial LIDAR & remote sensing: 1064 nm high-power models (up to 3 W) meet eye-safe range-gating specifications for atmospheric backscatter profiling
• Quantum optics education & research: Dual-wavelength (473/532 nm) setups facilitate spontaneous parametric down-conversion (SPDC) demonstrations and entanglement verification

FAQ

What is the typical warm-up time required to achieve specified power stability?
All DPSSL models reach thermal equilibrium and meet power stability specifications within ≤5 minutes; the DPSSL-532H achieves full stability in <1 minute due to optimized thermal mass distribution.
Are these lasers suitable for use in cleanroom environments (ISO Class 5 or better)?
Yes — all optical assemblies are assembled in ISO 7 cleanrooms, and housings are rated IP52 for dust resistance; optional vacuum-compatible versions (with stainless steel body and bake-out rated seals) are available upon request.
Can the DPSSL series be integrated into a GMP-compliant manufacturing line?
Yes — full traceability documentation (including calibration certificates, material declarations, and RoHS/REACH compliance reports) is provided; firmware supports electronic signature and audit trail export per 21 CFR Part 11 Annex 11 guidelines.
Is beam expansion or collimation optics included with the standard configuration?
Standard units ship with fixed-focus collimators delivering specified beam diameter (1/e²) and divergence; variable-collimation adapters and anamorphic prism pairs are available as accessories.
What is the warranty coverage and expected service interval?
NewOpto provides a 24-month limited warranty covering defects in materials and workmanship; no scheduled maintenance is required within the first 10,000 operating hours, consistent with IEC 61508 SIL-2 reliability targets.
