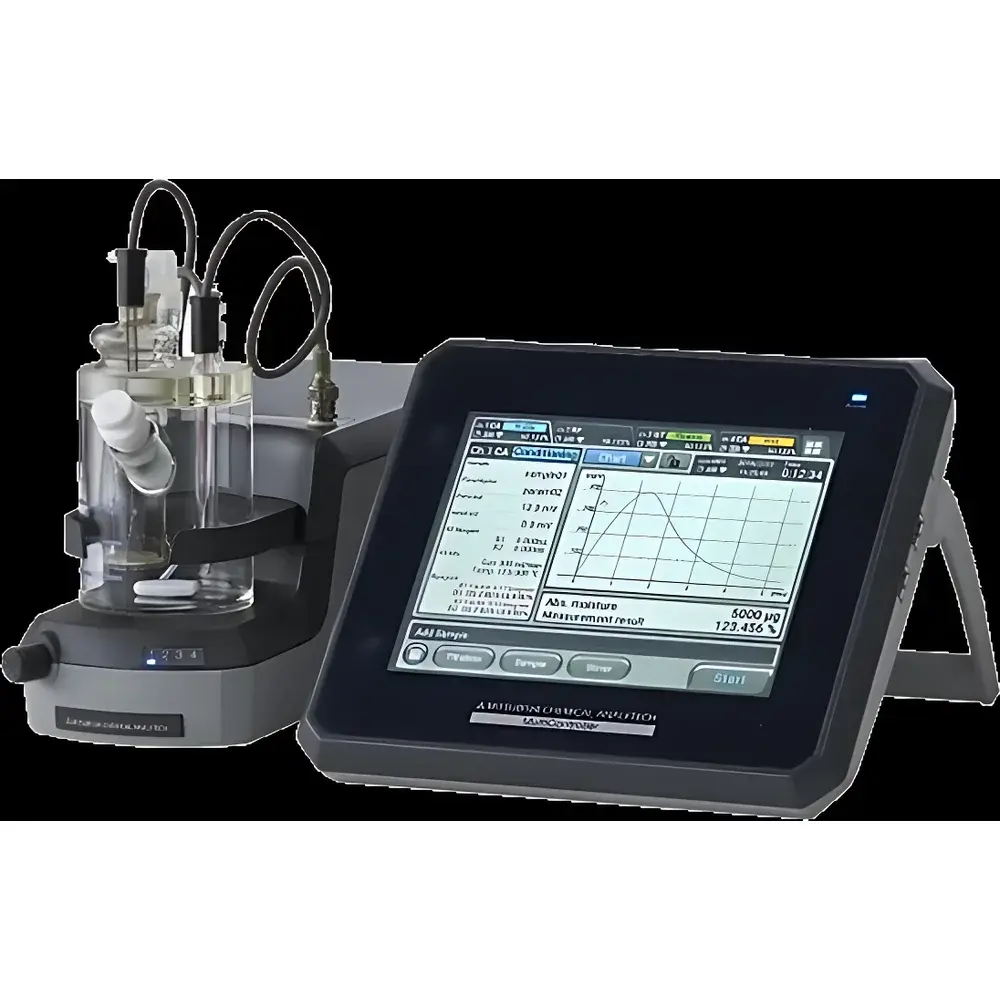

Nittoseiko Analytech CA-310 Coulometric Karl Fischer Moisture Analyzer
| Brand | Nittoseiko Analytech |
|---|---|
| Origin | Japan |
| Model | CA-310 |
| Measurement Principle | Coulometric Karl Fischer Titration |
| Detection Range | 5 µg – 999.9999 mg H₂O |
| Sensitivity | 0.1 µg H₂O |
| Accuracy | ±3 µg (for 10–1000 µg H₂O) |
| RSD | <0.3% (for >1 mg H₂O) |
| Electrolysis Current | 430 mA (516 mA in High-Speed Mode) |
| Titration Speed | 2.2 mg H₂O/min (36 µg H₂O/sec) |
| Display | 8.4-inch color LCD touchscreen |
| Max Channels | 4 (optional) |
| Data Integrity | GLP/GMP-compliant |
| Interface | 4× USB, 1× LAN |
| Operating Temperature | 15–40 °C |
| Humidity Limit | ≤85% RH (non-condensing) |
| Power Supply | AC 100–120 V / 80 VA or AC 230–240 V / 310 VA, 50/60 Hz |
Overview
The Nittoseiko Analytech CA-310 is a high-precision coulometric Karl Fischer moisture analyzer engineered for trace-level water quantification in pharmaceuticals, polymers, lithium-ion battery materials, and fine chemicals. It operates on the fundamental electrochemical principle of coulometric titration: water reacts stoichiometrically with iodine generated *in situ* via controlled electrolysis of iodide at the anode, while the endpoint is determined by continuous monitoring of polarization potential across a dual-platinum electrode system. Unlike volumetric KF systems, the CA-310 eliminates reagent calibration drift and delivers absolute quantification based on Faraday’s law—enabling reproducible detection down to 5 µg absolute water mass under controlled environmental conditions. Its architecture integrates a dedicated main control unit with up to four independently addressable titration cells, supporting parallel analysis without cross-contamination or timing interference.
Key Features
- Automated pre-run stabilization: Scheduled power-on and self-conditioning sequence minimizes operator wait time prior to analysis.
- High-speed electrolysis mode: Increases anodic current output to 516 mA, reducing analysis time by up to 35% for low-moisture samples while lowering cumulative reagent consumption.
- Embedded SOP execution engine: Stores and guides users through up to 99 predefined standard operating procedures—including sample weight entry, solvent selection, cell conditioning, and endpoint criteria—ensuring method consistency across operators and shifts.
- Intelligent stepwise temperature control (Patent No. 3284783): The integrated vaporizer (compatible with VA-300, VA-200, VA-210, VA-230, VA-236S, VA-121, VA-122, and VG-200 modules) dynamically adjusts heating profile based on real-time evaporation kinetics, preventing thermal degradation of thermolabile analytes such as aldehydes or carboxylic acids.
- Dual-electrode flexibility: Supports both membrane-free and diaphragm-type generator electrodes—enabling use of single-component AQUAMICRON® reagents for routine maintenance, or broad-spectrum compatibility with ketones, low-hydroxyl acids, and reactive carbonyls when using membrane-separated cells.
- Comprehensive data integrity framework: Full audit trail, electronic signatures, user access levels, and immutable timestamped records compliant with FDA 21 CFR Part 11, ISO/IEC 17025, and ICH Q2(R2) validation requirements.
Sample Compatibility & Compliance
The CA-310 accommodates solid, liquid, and gaseous samples via optional vaporization units, with validated performance across matrices including hygroscopic APIs (e.g., amorphous lactose), polymer pellets (PET, PA6), electrolyte solvents (EC/DMC), and catalyst powders. Its coulometric design ensures minimal interference from side reactions common in volumetric KF—particularly with strong reducing agents or oxidizers. All firmware and data handling protocols conform to GLP and GMP documentation standards. Instrument qualification packages (IQ/OQ/PQ) are available upon request, aligned with ASTM E203, USP , and EP 2.5.30 methodologies.
Software & Data Management
Data acquisition and reporting are managed through the native CA-310 Control Software, supporting real-time titration curve visualization, post-run reprocessing (e.g., baseline correction, endpoint recalibration), statistical summary (mean, SD, RSD, confidence intervals), and customizable report templates exportable as PDF or CSV. Four USB ports enable direct backup to external drives, firmware updates, and peripheral integration (e.g., balance auto-weighing via RS-232-to-USB adapter). The embedded LAN interface supports centralized instrument monitoring and secure data archival within enterprise LIMS or ELN environments. All stored methods, results, and system logs retain cryptographic hash verification for forensic traceability.
Applications
- Pharmaceutical QC: Residual moisture testing of lyophilized proteins per USP , excipient qualification, and stability-indicating assays for hygroscopic active ingredients.
- Battery materials: Quantification of ppm-level water in LiPF₆ electrolytes and cathode precursors—critical for preventing HF generation and SEI layer instability.
- Electronics manufacturing: Moisture content verification in solder pastes, encapsulants, and dielectric films where hydrolysis compromises long-term reliability.
- Polymer science: Determination of bound vs. free water in polyamide and polyacrylonitrile fibers affecting melt viscosity and tensile strength.
- Research laboratories: Method development for novel KF-compatible solvents and investigation of water–matrix interactions using variable temperature vaporization profiles.
FAQ
What is the minimum detectable water mass, and what conditions are required to achieve it?
The CA-310 achieves reliable detection at 5 µg absolute water mass. This requires operation in a temperature- and humidity-controlled environment (<25 °C, <40% RH), use of freshly activated reagents, and strict adherence to blank subtraction protocols.
Can the CA-310 be integrated into an automated laboratory workflow?
Yes—via LAN or USB-serial interfaces, it supports bidirectional communication with robotic sample handlers, balance systems, and LIMS platforms using Modbus TCP or custom ASCII command sets.
Does the instrument support remote diagnostics or firmware updates?
Firmware updates are performed via USB drive; remote diagnostic access is available through optional VPN-enabled service modules authorized under Nittoseiko’s Technical Support Agreement.
Is validation documentation provided with the system?
A complete validation toolkit—including URS, DQ/IQ/OQ templates, test scripts, and raw data examples—is supplied with each CA-310 configuration, fully editable for site-specific regulatory submission.
How does the stepwise temperature control improve accuracy for difficult samples?
By continuously adapting heater output to observed evaporation rate—not fixed setpoints—it prevents localized overheating that causes decomposition or incomplete release, particularly critical for aldehydes, organic acids, and crystalline hydrates.
