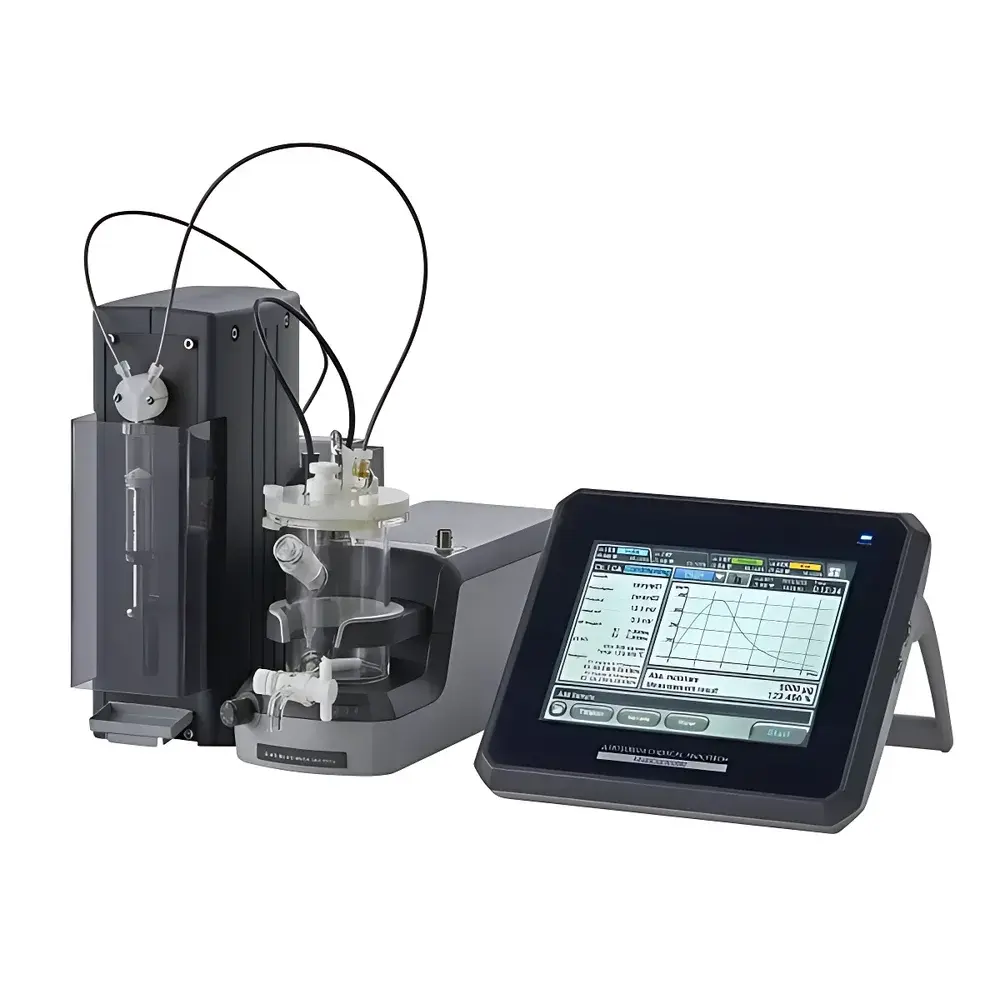

Nittoseiko Analytech CA-310 Volumetric Karl Fischer Moisture Titrator

Overview

The Nittoseiko Analytech CA-310 is a high-precision volumetric Karl Fischer titrator engineered for trace-level moisture quantification in pharmaceuticals, polymers, lithium-ion battery materials, fine chemicals, and excipients. It operates on the stoichiometric principle of the Karl Fischer reaction—where iodine, sulfur dioxide, methanol, and a base react quantitatively with water—and measures moisture content via controlled reagent delivery from a calibrated burette. Unlike coulometric systems suited for sub-microgram water analysis, the CA-310’s volumetric architecture delivers optimal accuracy and reproducibility across the 0.1 µg to 999.999 mg water mass range, making it ideal for routine QC testing of solvents, active pharmaceutical ingredients (APIs), and hygroscopic intermediates where sample size or matrix complexity precludes coulometric applicability.

Key Features

• Fully automated titration sequence—including solvent conditioning, electrode stabilization, sample injection, endpoint detection, and post-titration rinse—minimizes operator dependency and inter-user variability.
• Stepwise temperature-controlled sample heating (patented thermal algorithm, JP Patent No. 3284783): The integrated vaporizer dynamically adjusts heating profile based on real-time evaporation kinetics, preventing thermal degradation of heat-sensitive analytes while ensuring complete water release from solid or viscous matrices.
• 8.4-inch high-resolution color touchscreen interface with intuitive icon-driven navigation supports multilingual operation (English, Japanese, Chinese) and provides immediate visual feedback on titration progress, electrode status, and reagent consumption.
• Dual-pump fluid handling system enables precise separation of anolyte/catholyte delivery (in hybrid configurations) or independent control of titrant and solvent lines—enhancing reagent stability and reducing cross-contamination risk in multi-sample workflows.
• Master console architecture allows up to four independent titration channels to be synchronized under a single control unit, facilitating parallel analysis, statistical validation (e.g., %RSD calculation across replicates), and comparative method development.
• Optional wireless channel management permits remote monitoring and intervention via secure IEEE 802.11 b/g/n connection—supporting lab-wide instrument integration without dedicated cabling infrastructure.

Sample Compatibility & Compliance

The CA-310 accommodates liquid, solid, paste, and gas-phase samples through interchangeable sampling modules—including syringe injection, oven coupling (with optional KF oven adapter), and headspace vial analysis. Its design conforms to ISO 8533:2014 (determination of water content by volumetric KF titration), ASTM E203–22 (standard test method for water using volumetric KF titration), and USP “Water Determination.” All data acquisition, user actions, method parameters, and audit trails are timestamped and stored in non-volatile memory, satisfying FDA 21 CFR Part 11 requirements for electronic records when paired with appropriate access controls and electronic signatures. Full GLP/GMP documentation support includes automatic generation of raw data files (.csv, .txt), method version history, and user login logs.

Software & Data Management

Embedded firmware supports SOP-based workflow execution: users define step-by-step instructions—including sample weight entry prompts, solvent volume presets, titration delay settings, and pass/fail criteria—which appear sequentially during analysis to enforce procedural consistency. All measurement results—including titrant consumption, calculated water mass, % moisture, relative standard deviation (RSD), and electrode potential curves—are exportable via USB to external storage or LIMS. Internal memory retains ≥10,000 test records with full metadata. Firmware updates are delivered via USB stick, ensuring long-term regulatory compliance without cloud dependency.

Applications

• Pharmaceutical QC: Moisture verification of lyophilized powders, tablet granules, and packaging desiccants per ICH Q5C stability guidelines.
• Battery Materials: Quantification of residual H₂O in cathode precursors (e.g., Ni-rich NMC), electrolyte solvents (e.g., EC/DMC), and separator films—critical for SEI formation control.
• Polymer Industry: Monitoring moisture in PET, PBT, and polyamide resins prior to extrusion or injection molding to prevent hydrolytic degradation.
• Electronics Manufacturing: Validation of low-moisture environments for semiconductor packaging and conformal coating processes.
• Food & Cosmetics: Regulatory-compliant water activity correlation studies and preservative efficacy testing.

FAQ

What distinguishes volumetric from coulometric Karl Fischer titration?
Volumetric KF uses a standardized iodine-containing titrant delivered from a burette; it is optimal for samples containing >100 µg water. Coulometric KF generates iodine electrochemically at the anode and is preferred for sub-10 µg measurements.
Can the CA-310 be validated per GMP requirements?
Yes—the system supports IQ/OQ documentation templates, configurable user roles with password protection, electronic audit trails, and data integrity features aligned with Annex 11 and ALCOA+ principles.
Is oven coupling supported out-of-the-box?
Oven integration requires the optional KF Oven Adapter Kit (model OV-CA310); the base unit includes all necessary analog/digital I/O for seamless temperature and signal synchronization.
How is reagent stability maintained during extended operation?
The dual-pump architecture isolates titrant from solvent flow paths, while programmable purge cycles and sealed reagent reservoirs minimize atmospheric moisture ingress and iodine volatility.
What file formats are generated for raw data export?
CSV (for spreadsheet import), TXT (ASCII-readable), and proprietary .KFD binary files containing full titration curves and metadata—compatible with Nittoseiko’s optional DataStation software for advanced curve analysis and reporting.
