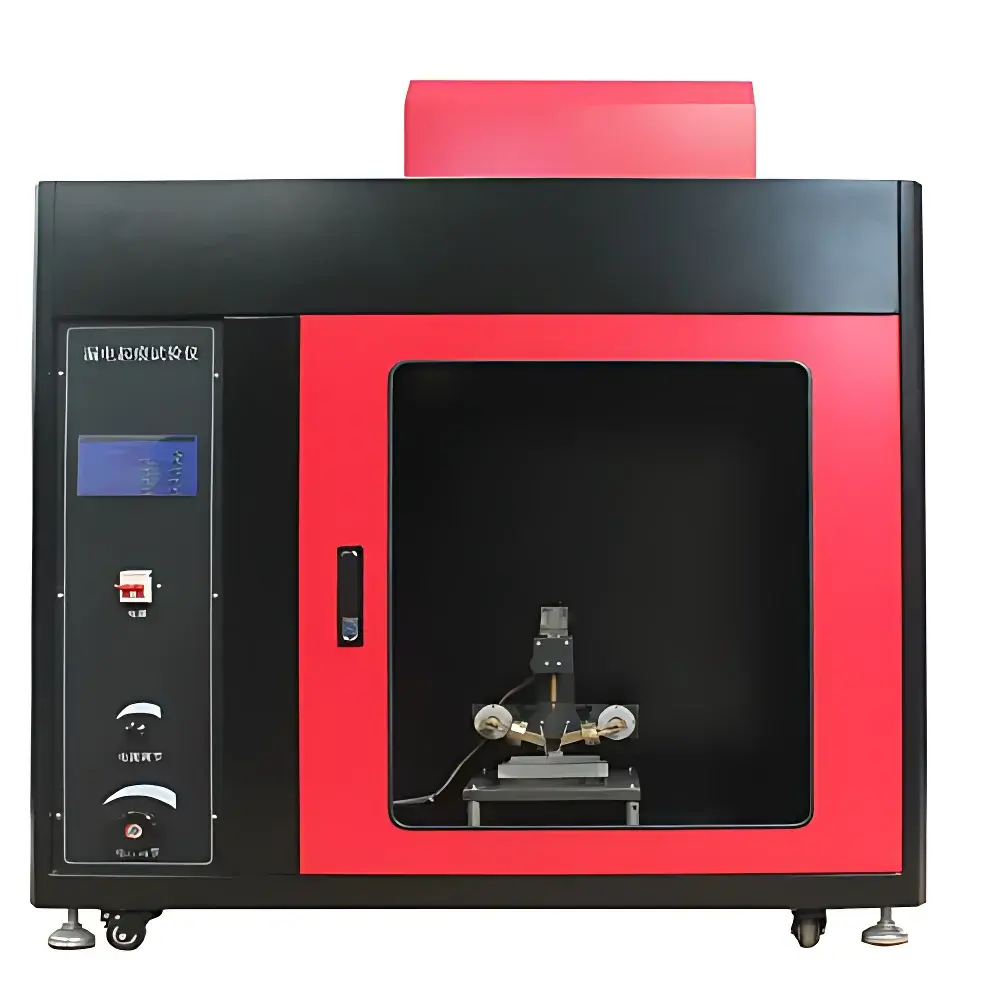

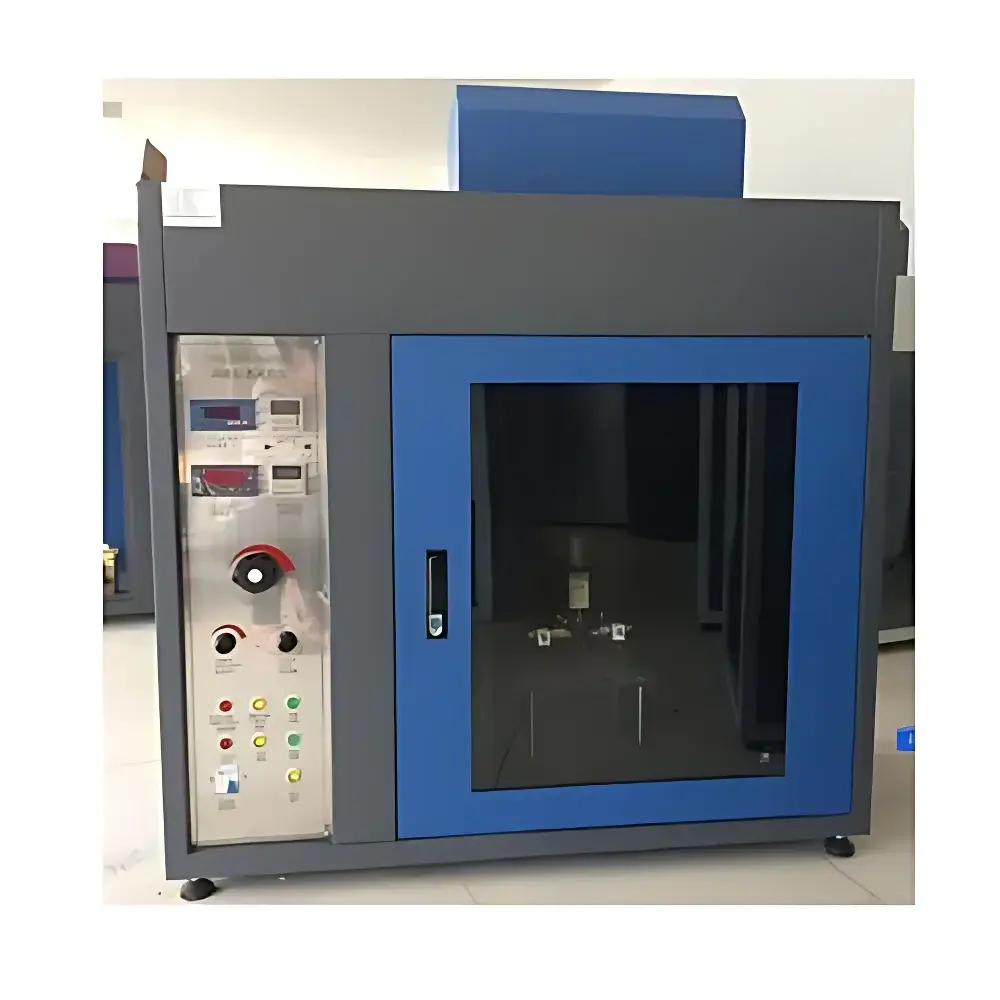

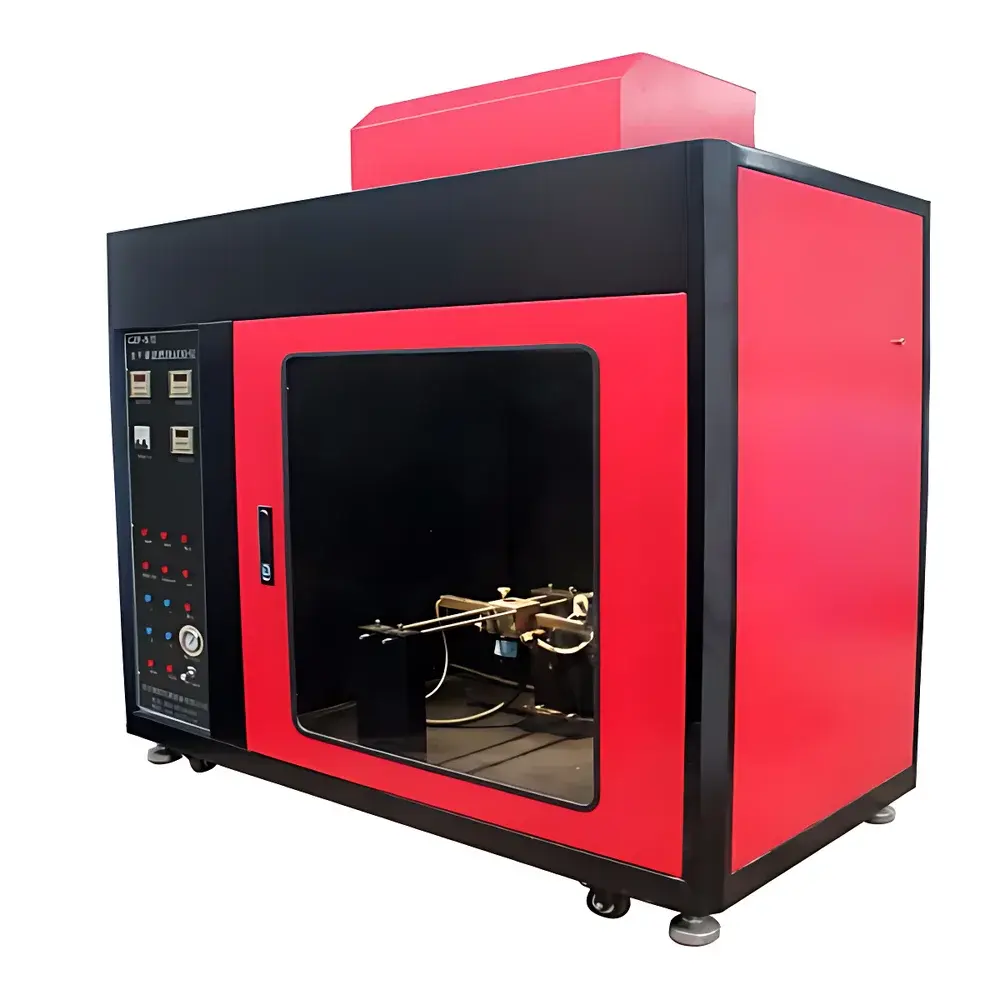

North Guang Precision BLD-6 Electrical Tracking Resistance Tester

Overview

The North Guang Precision BLD-6 Electrical Tracking Resistance Tester is an IEC 60112:2003–compliant instrument engineered for standardized evaluation of electrical tracking resistance in solid insulating materials—particularly polymer-based wire and cable sheaths, connectors, terminal blocks, and molded housings. It implements the comparative tracking index (CTI) and proof tracking index (PTI) test methods by simulating accelerated surface degradation under high-voltage, humid, and contaminant-laden conditions. The system applies controlled AC voltage (100–600 V, 48–60 Hz) across platinum-tipped copper electrodes while delivering calibrated electrolyte droplets onto the specimen surface. Tracking failure is defined as sustained conductive path formation resulting in current exceeding 0.5 A for ≥2 seconds, triggering automatic circuit interruption and pass/fail classification per IEC 60112, UL 746A, ASTM D3638-92, and DIN 53480 protocols.

Key Features

• Precision-machined electrodes: 5.0 ± 0.1 mm × 2.0 ± 0.1 mm cross-section, with one edge beveled at 30°; electrode material composition: copper base with ≥12 mm platinum tip (purity ≥99.0%) ensuring chemical inertness and dimensional stability during repeated arcing.
• Fixed inter-electrode spacing: 4.0 ± 0.1 mm, maintained via rigid stainless steel alignment fixtures to eliminate positional drift during thermal cycling.
• Controlled mechanical loading: Each electrode applies a consistent normal force of 1.0 ± 0.05 N to the specimen surface, ensuring repeatable contact pressure and eliminating variability from manual clamping.
• Electrolyte delivery system: Electromagnetically actuated valve with adjustable drop interval (30 ± 5 s), needle outer diameter 0.9–1.1 mm, and calibrated drop volume (20 ± 30 mm³ per drop; 50-drop mass: 0.997–1.147 g; 20-drop mass: 0.380–0.480 g).
• Drop height adjustment: Vertical positioning of the dispensing needle between 30–40 mm above specimen surface, enabling optimization for different material wettability and surface topography.
• Robust test chamber: Standard internal volume 0.5 m³ (optional 0.75 m³ or 1.0 m³ configurations); constructed from powder-coated A3 steel plate; includes Ø100 mm exhaust port for fume management and optional stainless-steel chamber upgrade.
• Integrated safety architecture: Dual-stage overcurrent protection—primary short-circuit detection (≥0.5 A for ≥2 s) triggers relay cutoff and visual/audible fault indication; secondary leakage current monitoring via integrated RCD (30 mA sensitivity).

Sample Compatibility & Compliance

The BLD-6 accommodates specimens ≥15 mm × 15 mm in planar dimension and ≥3 mm in thickness, suitable for flat-surface insulation testing of extruded cable jackets, molded insulators, PCB substrates, and thermoset enclosures. All operational parameters—including voltage regulation, current limiting, timing accuracy, and drop volumetric consistency—conform to the metrological requirements specified in IEC 60112:2003 (equivalent to GB/T 4207), UL 746A Section 22, ASTM D3638-92 (Standard Test Method for Determining Comparative Tracking Index of Solid Electrical Insulating Materials), and DIN 53480. The instrument supports full traceability for GLP/GMP-regulated environments through calibrated components and documented maintenance logs.

Software & Data Management

The BLD-6 operates in standalone mode with embedded digital controls: programmable voltage setpoint, real-time current monitoring via high-accuracy shunt-based ammeter (±0.01 A resolution), dual independent timers (test duration and drop interval), and event-logged pass/fail output with timestamped fault records. Optional RS-232 or USB interface enables integration with laboratory information management systems (LIMS) for automated data export. All firmware complies with IEC 61000-4 electromagnetic compatibility standards and supports audit-ready operation per FDA 21 CFR Part 11 when paired with validated third-party data acquisition software.

Applications

• Determination of Comparative Tracking Index (CTI) and Proof Tracking Index (PTI) for polymeric insulation used in low- and medium-voltage power cables, automotive wiring harnesses, and industrial control cables.
• Material qualification per UL recognition requirements for end-product manufacturers seeking UL file listings.
• Quality assurance testing of halogen-free flame-retardant (HFFR) compounds, silicone elastomers, and thermoplastic polyolefins exposed to coastal or industrial pollution environments.
• R&D validation of surface-modified insulators, nano-filled composites, and ceramic-polymer hybrids intended for high-humidity service conditions.
• Compliance verification for RoHS-compliant formulations where brominated flame retardants may influence surface conductivity under wet contamination.

FAQ

What standards does the BLD-6 fully support for CTI/PTI testing?

IEC 60112:2003, GB/T 4207, UL 746A, ASTM D3638-92, and DIN 53480.
Is calibration documentation provided with shipment?

Yes—NIST-traceable calibration certificates for voltage output, current sensing, and timer modules are included.
Can the test chamber be upgraded to stainless steel post-purchase?

Stainless steel chamber retrofit kits are available as field-installable options with factory technical support.
What is the recommended maintenance interval for the platinum electrodes?

Electrode inspection and surface polishing are advised after every 50 test cycles or upon visible pitting/arcing residue accumulation.
Does the system meet CE or UKCA marking requirements?

The BLD-6 meets EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU; CE marking is applied following third-party notified body assessment (certificate available upon request).
