NorthKawakami P-51 Emergency Toxic & Hazardous Gas Detection Kit

Overview

The NorthKawakami P-51 Emergency Toxic & Hazardous Gas Detection Kit is a hand-operated, instrument-free colorimetric gas analysis system engineered for immediate, on-site qualitative and semi-quantitative assessment of airborne toxic, combustible, and corrosive gases. Unlike electronic sensors or laboratory-based analytical platforms, the P-51 relies on standardized gas detection tubes—each containing a chemically impregnated reagent layer—that undergo visible color development upon exposure to target analytes. The intensity and length of the stain are directly proportional to gas concentration, enabling rapid estimation within minutes. This passive, non-electronic methodology eliminates calibration drift, battery dependency, and electromagnetic interference risks, making it uniquely suitable for Zone 0/1 hazardous areas where intrinsic safety is mandatory. The system is purpose-built for first responders, industrial hygienists, environmental inspectors, and plant safety officers conducting initial hazard identification during spill response, confined space entry, leak investigation, or post-incident atmospheric assessment.

Key Features

• Zero-power operation: Fully manual system requiring no batteries, electricity, or external power sources—compliant with ATEX/IECEx Class I, Division 1 intrinsic safety requirements.
• Immediate deployment: No warm-up time, zero pre-analysis preparation, and minimal operator training required—enabling use by personnel with varying technical backgrounds.

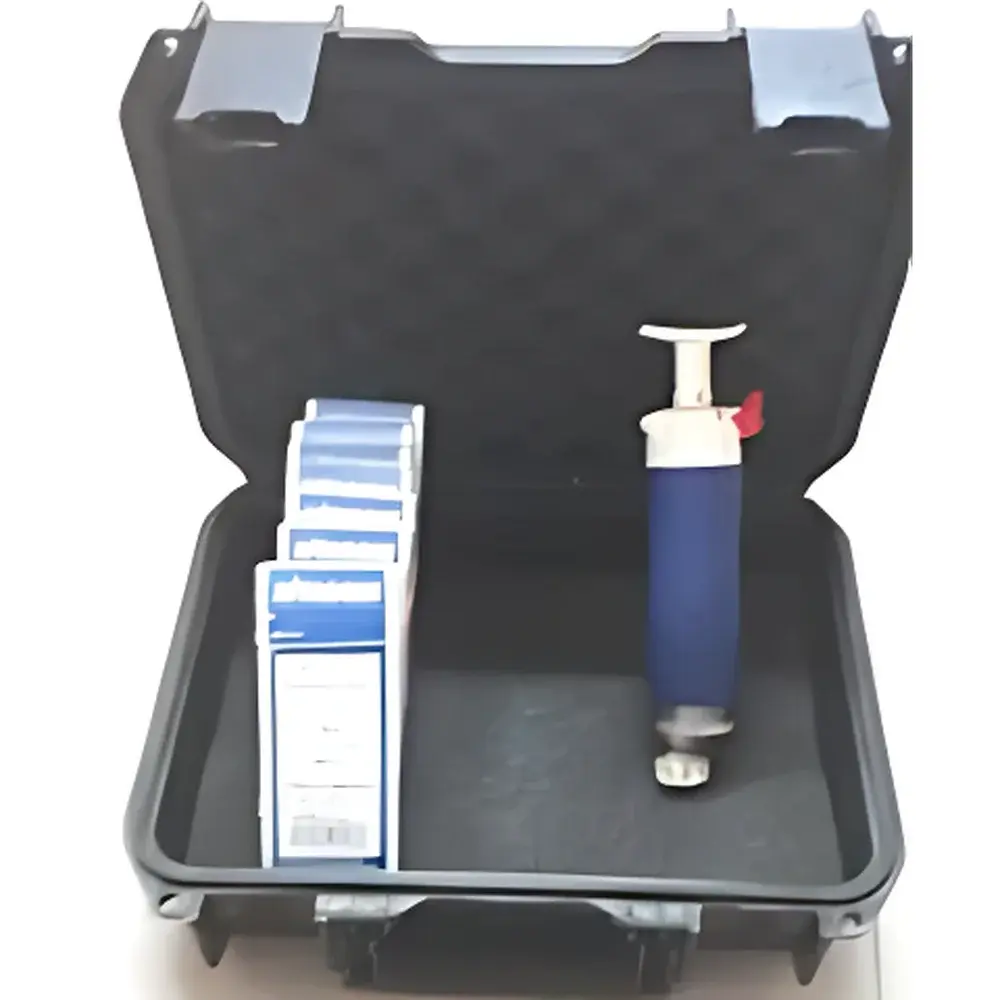

• Compact field architecture: Integrated ZG-1 portable carrying case houses up to 12 detection tubes, hand pump (ZG-1), calibration syringes, instruction cards, and record log sheets—optimized for belt-mounted or vehicle-mounted deployment.
• Broad-spectrum coverage: Compatible with over 400 tube variants covering more than 300 distinct chemical compounds, including CO, H₂S, Cl₂, SO₂, NOₓ, NH₃, HCl, HF, O₃, formaldehyde, and hydrocarbons.
• Quantitative trace sensitivity: Minimum detectable concentrations range from 0.01 ppm (ozone) to 100 ppm (CO₂), with resolution as fine as 0.03 ppm for formaldehyde—meeting preliminary screening thresholds defined in EPA Method TO-11A and NIOSH Manual of Analytical Methods (NMAM) Chapter 6.

Sample Compatibility & Compliance

The P-51 system accepts standardized 3–6 mm diameter glass detection tubes conforming to JIS K 0201 and DIN 33880 specifications. Each tube is individually sealed, nitrogen-purged, and labeled with lot-specific expiration dates and batch-certified calibration curves. Tubes are validated against certified reference gases traceable to NIST SRMs. The kit supports ambient air sampling across temperature ranges of −10 °C to +50 °C and relative humidity up to 95% RH (non-condensing). It is routinely deployed under OSHA 29 CFR 1910.120 (HAZWOPER), NFPA 472 (Standard for Competence of Responders to Hazardous Materials Incidents), and ISO 17025-accredited laboratories for preliminary triage prior to confirmatory GC-MS or FTIR analysis.

Software & Data Management

As a non-digital, analog field tool, the P-51 does not incorporate embedded software or wireless connectivity. All measurement records are documented manually using standardized field logs included in the ZG-1 case. Each log sheet supports traceable entries including date/time, location (GPS coordinates optional), operator ID, tube lot number, draw volume, observed stain length, calculated concentration, and environmental conditions. These paper-based records satisfy GLP documentation requirements for initial hazard assessment and are admissible as evidentiary field data in incident reports compliant with ISO 45001 and ANSI/AIHA Z9.5.

Applications

• Emergency response: Real-time detection of chlorine, ammonia, or hydrogen sulfide releases at chemical facilities, wastewater treatment plants, or transportation corridors.
• Industrial hygiene: Routine screening for formaldehyde in laboratories, SO₂ in boiler stacks, or NOₓ in combustion exhaust ducts during preventive maintenance.
• Confined space entry: Pre-entry verification of CO, H₂S, and O₂ deficiency/enrichment in tanks, silos, or utility vaults per OSHA 1910.146.
• Fire investigation: Post-blaze assessment of residual HF, Cl₂, or phosgene formation from thermal decomposition of fluoropolymers or chlorinated solvents.
• Environmental compliance: Stack emission spot-checks for regulatory reporting under local air quality ordinances where continuous monitoring is not mandated.

FAQ

Does the P-51 require calibration before each use?
No. Each detection tube is factory-calibrated and sealed; calibration verification is performed annually using certified reference gas standards per JIS K 0201 Annex B.
Can the same tube be reused?
No. Detection tubes are single-use consumables; re-use compromises accuracy and violates ISO 8573-2 sampling integrity guidelines.
Is the hand pump compatible with all tube types?
Yes. The ZG-1 pump delivers precise 100 mL or 50 mL draw volumes across all NorthKawakami tube series via interchangeable plungers and flow restrictors.
How are results quantified without digital output?
Concentration is determined by comparing the developed stain length against the printed scale on the tube’s outer jacket—validated through gravimetric and spectrophotometric inter-laboratory studies.
What shelf life do the tubes maintain under field storage?
Unopened tubes retain stated accuracy for 12–24 months when stored at ≤25 °C and <60% RH; lot-specific expiration dates are laser-printed on each tube.
