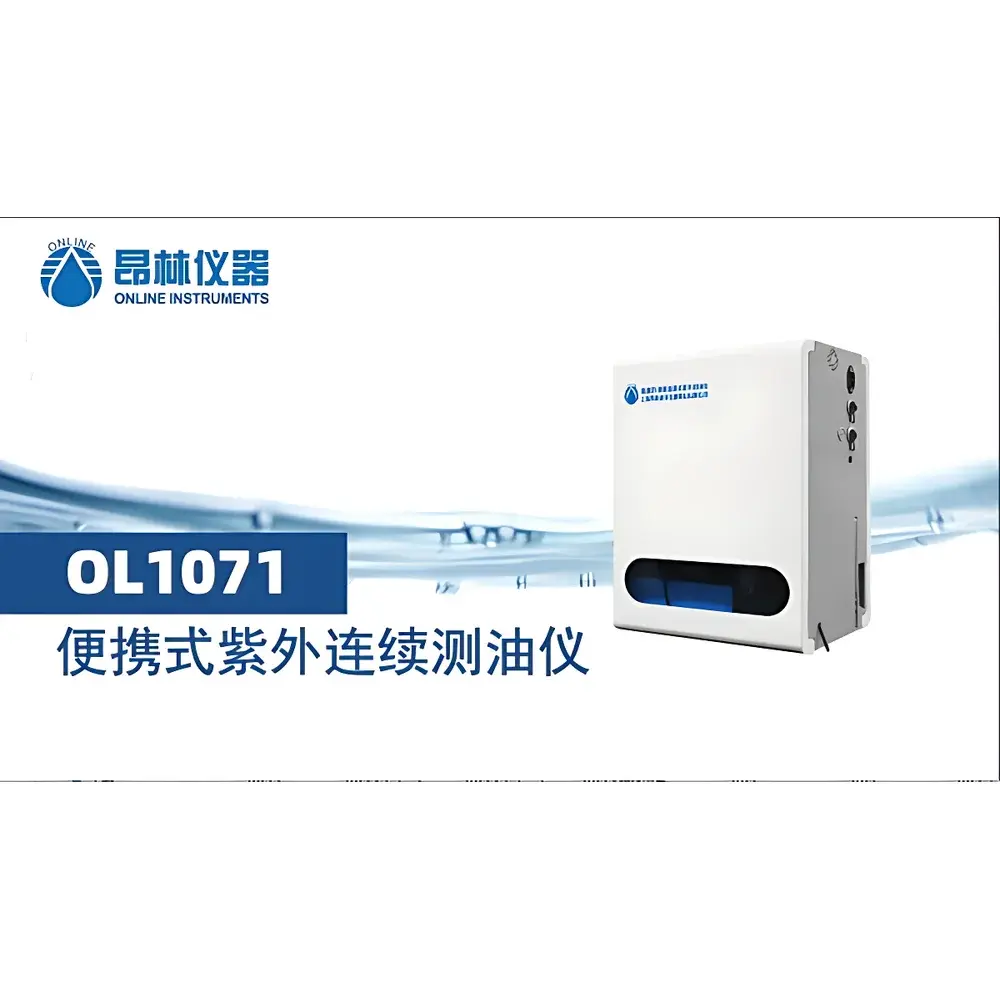

Online Instrument OL1071 Portable Continuous UV Oil-in-Water Analyzer

Overview

The Online Instrument OL1071 Portable Continuous UV Oil-in-Water Analyzer is an integrated, field-deployable analytical system engineered for on-site quantification of petroleum hydrocarbons in aqueous matrices. It operates on the principle of ultraviolet absorption spectrophotometry at 225 nm—a standardized wavelength for detecting aromatic and aliphatic hydrocarbon components following solvent extraction. Unlike discrete batch methods, the OL1071 employs continuous flow liquid-liquid extraction with n-hexane as the extractant, enabling real-time, unattended measurement without manual phase separation or cuvette handling. Its fully integrated architecture—housing sampling, extraction, phase separation, optical detection, and waste segregation modules within a single ruggedized enclosure—ensures operational stability during mobile deployment, including operation inside moving environmental monitoring vehicles. The system complies with foundational methodological frameworks referenced in EPA Method 1664A (for oil and grease) and ISO 9377-2:2000 (water quality — determination of hydrocarbon oil index), supporting trace-level detection down to 0.005 mg/L with metrological traceability suitable for regulatory screening.

Key Features

• Monolithic portable design: All functional units—including peristaltic sampling pump, n-hexane reagent reservoir, continuous-flow extraction cell, gravity-based aqueous/organic phase separator, UV photometric flow cell, and segregated waste collection chambers—are housed in a single IP65-rated transport case.
• Vibration-resistant optical path: Fixed-path UV absorbance measurement cell with temperature-stabilized LED source (225 nm ± 2 nm) and silicon photodiode detector ensures signal integrity under dynamic field conditions.
• Intelligent adaptive sampling: Onboard concentration estimation algorithm dynamically adjusts sample intake volume (1–100 mL) based on preliminary absorbance feedback, optimizing sensitivity across wide dynamic ranges (0.005–100 mg/L).
• Zero-touch workflow: Fully automated sequence—submersible probe sampling (to 0.5 m depth), reagent metering, continuous extraction (1:1 to 1:50 hexane:water ratio), phase separation, organic-phase transfer, and photometric quantification—is initiated via single touchscreen command.
• Battery-operated field autonomy: Integrated rechargeable Li-ion power system supports ≥8 hours of continuous operation; optional 12 V DC vehicle input compatibility.
• Remote operational interface: Embedded Wi-Fi module enables secure remote instrument control, real-time data streaming, and diagnostic access via web browser or dedicated mobile application.

Sample Compatibility & Compliance

The OL1071 is validated for use with surface water, groundwater, seawater, estuarine, and wastewater effluent samples containing petroleum-derived hydrocarbons (e.g., diesel, crude oil, lubricants). It accommodates suspended solids ≤50 mg/L without clogging due to its self-cleaning extraction flow path and integrated particulate trap. The system adheres to GLP-aligned data integrity practices: all measurement events—including timestamps, operator ID (if logged), calibration history, and raw absorbance values—are immutably stored with SHA-256 hashing. Audit trails comply with FDA 21 CFR Part 11 requirements when configured with user authentication and electronic signature modules. While not certified to ISO/IEC 17025, its performance specifications align with ASTM D7066-22 (Standard Test Method for Determination of Oil and Grease in Water by Infrared Spectrophotometry) for comparative screening applications.

Software & Data Management

The embedded Linux-based control software provides a responsive 7-inch capacitive touchscreen interface with multilingual support (English, Spanish, French, Chinese). Data output includes CSV-exportable reports containing sample ID, collection time, measured concentration (mg/L), confidence flag (based on signal-to-noise ratio >10), and QC status (calibration verification pass/fail). Internal storage retains ≥10,000 test records with automatic rollover. Cloud synchronization (via TLS 1.2–encrypted MQTT) enables centralized dashboard visualization across multi-instrument deployments. Firmware updates are delivered over-the-air with cryptographic signature validation to ensure system integrity.

Applications

• Emergency response: Rapid assessment of oil spills in rivers, coastal zones, and harbors during incident mobilization.
• Regulatory compliance monitoring: Field verification of discharge permits for industrial outfalls and offshore platforms.
• Long-term trend analysis: Unmanned deployment at fixed stations using solar-charged battery packs and cellular telemetry.
• Research-grade profiling: High-frequency spatial mapping of hydrocarbon plumes in estuaries and sediment pore water interfaces.
• QA/QC support: Cross-validation against laboratory GC-FID or IR methods in method transfer studies.

FAQ

What extraction solvent is required, and is it supplied with the instrument?
n-Hexane (UV-grade, ≥95% purity) is the specified extractant. One 500 mL bottle is included with initial shipment; subsequent consumables are ordered separately under part number OL-SOLV-HEX.
Can the OL1071 be used for wastewater with high turbidity or emulsified oil?
It is validated for samples with ≤50 mg/L total suspended solids. For emulsified systems, optional pre-filtration (0.45 µm PTFE) or acidification (pH <2) may be applied prior to analysis per site-specific SOPs.
Is calibration traceable to NIST standards?
Yes—factory calibration uses n-hexane extracts of certified mineral oil reference material (NIST SRM 2781), with certificate of analysis provided per unit.
How often must the optical path be cleaned or maintained?
The flow cell requires no routine cleaning under normal operation; a built-in 30-second n-hexane flush cycle executes automatically after each analysis to prevent residue buildup.
Does the system support integration with LIMS or SCADA platforms?
Yes—via Modbus TCP or RESTful API endpoints, enabling bidirectional data exchange with enterprise laboratory information management systems and supervisory control networks.
