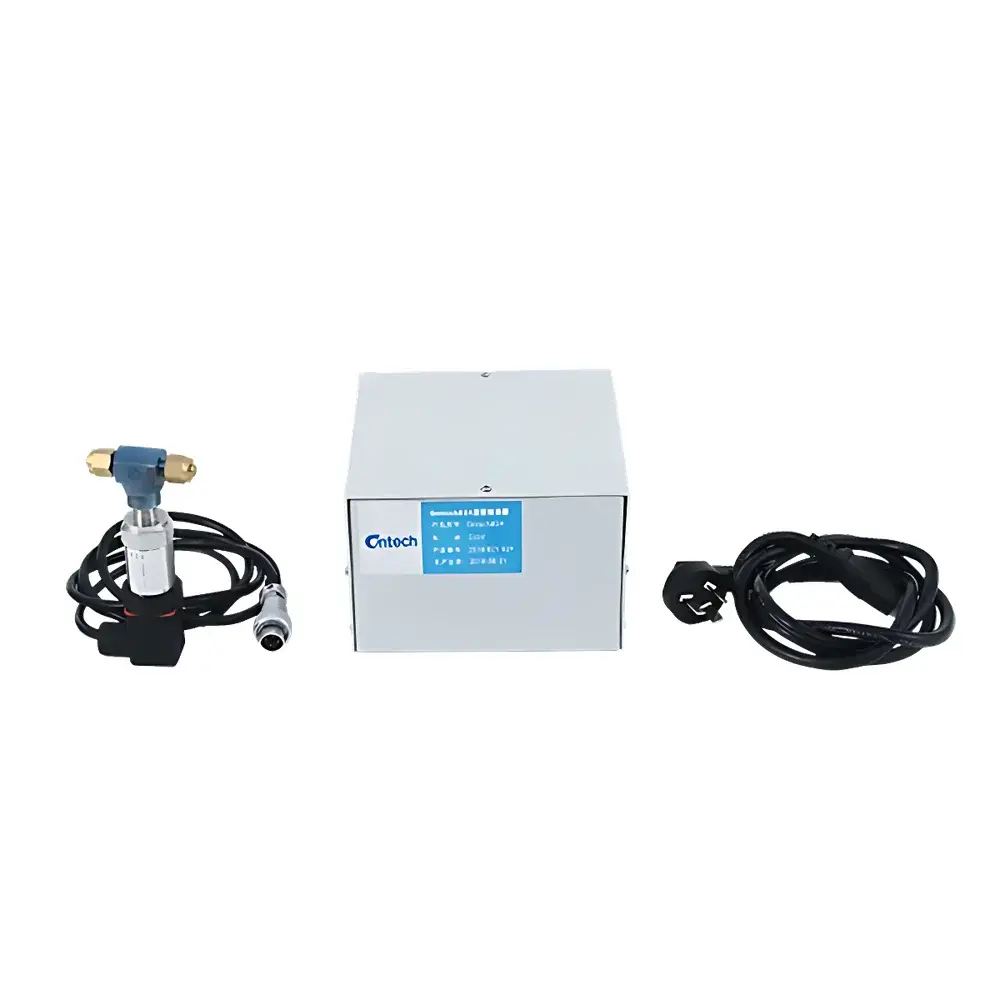

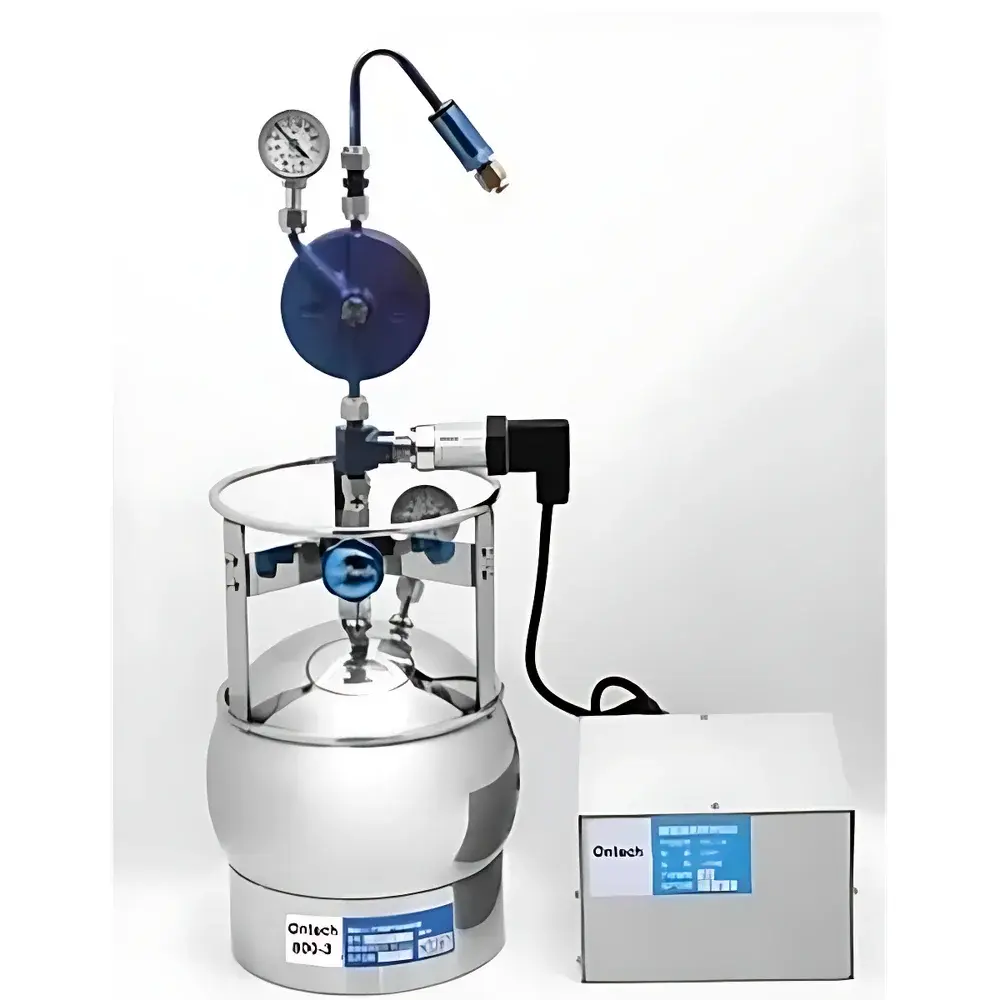

Ontech824 Flow Calibration and Leak Detection System

Overview

The Ontech824 Flow Calibration and Leak Detection System is a precision-engineered laboratory instrument designed for quantitative verification and real-time monitoring of mass flow rates in inert gas sampling systems—particularly those employing electropolished stainless-steel canisters (e.g., SUMMA®-type, SilcoCan®, or TO-14/TO-15 compliant canisters). Unlike passive flow restrictors or analog rotameters, the Ontech824 operates on a differential pressure-based volumetric flow measurement principle, calibrated against NIST-traceable standards under controlled temperature and pressure conditions. It is not a gas chromatograph or analytical detector, but rather a metrological support tool essential for method validation, field calibration traceability, and regulatory compliance in ambient air monitoring programs. Its architecture integrates a high-stability pressure transducer, low-drift thermal mass flow sensor, and embedded microcontroller with real-time clock synchronization—enabling synchronized logging of instantaneous flow (mL/min), absolute pressure (kPa), and elapsed time (s) across multi-hour canister filling protocols.

Key Features

• Zero-pressure-drop inline design: Engineered with laminar flow elements and ultra-low-resistance internal pathways to eliminate backpressure artifacts during canister pressurization—ensuring representative sample integrity per EPA Method TO-15 and ASTM D5504.
• Ruggedized industrial-grade signal conditioning: Equipped with 24-bit A/D conversion circuitry and ARM Cortex-M4 microcontroller, rated for continuous operation across −10 °C to +50 °C ambient ranges—validated for both laboratory benchtop use and unsheltered field deployment.
• Universal mechanical compatibility: Standard ¼-inch NPT male/female threaded ports conform to ISO 11553 and CGA V-7 specifications, enabling direct connection to all major canister brands (Entech, Markes, Restek, Thermo Fisher) without adapters or sealing compromises.
• Embedded firmware with audit-ready data capture: Stores timestamped flow and pressure logs internally (up to 16,384 data points) with automatic CSV export via USB-C; no driver installation required—fully compatible with Windows, macOS, and Linux hosts.
• Integrated leak detection mode: Supports automated pressure-decay testing (per ASTM E499 and ISO 12236) with configurable hold time, decay threshold, and pass/fail reporting—documented in machine-readable log files for GLP/GMP audits.

Sample Compatibility & Compliance

The Ontech824 is validated for use with inert, non-corrosive, non-condensable gases at ambient temperatures—including nitrogen, helium, argon, and synthetic air matrices. It is not suitable for reactive, high-humidity, or particulate-laden streams. All wetted materials comply with USP Class VI biocompatibility requirements and meet RoHS 2011/65/EU directives. Data acquisition meets FDA 21 CFR Part 11 criteria for electronic records when used with configured user authentication and audit trail-enabled software environments. Instrument performance adheres to ISO/IEC 17025:2017 clause 6.4.4 for measurement traceability, with factory calibration certificates traceable to CNAS-accredited laboratories (certificate number appended to each unit shipment).

Software & Data Management

The Ontech824 ships with OntechFlowLog v3.2—a lightweight, portable application that runs directly from USB drive or local directory without registry modification or administrator privileges. The interface displays real-time dual-axis plots (flow vs. time; pressure vs. time), supports manual annotation of sampling events (e.g., “valve open”, “canister sealed”), and exports ISO 8601-compliant CSV files containing column headers: “UTC_Timestamp”, “Flow_mL_min”, “Pressure_kPa_abs”, “Temperature_C”, and “Status_Code”. Raw binary logs are encrypted using AES-128 and retain SHA-256 checksums for forensic data integrity verification. Optional API access (REST over HTTPS) enables integration into LIMS platforms supporting HL7 or ASTM E1384 message formats.

Applications

• Calibration and verification of critical flow-limiting devices—including orifice plates, critical flow controllers (CFCs), and electronic mass flow controllers (MFCs) used in EPA Method TO-14A/TO-15 sampling trains.
• Quantitative assessment of canister system integrity prior to deployment: detection of microleaks (<1×10⁻⁶ atm·mL/s) via pressure decay analysis under 10–30 psi test pressure.
• Validation of dynamic flow stability during extended-duration ambient air sampling (e.g., 2–24 hr integrated canister fills), ensuring linearity within ±2% of full scale per ISO 5167-2.
• Supporting QA/QC documentation for environmental laboratories accredited to ISO/IEC 17025, particularly for parameters requiring uncertainty budgets (e.g., flow rate contribution to overall expanded uncertainty in VOC quantitation).
• Field troubleshooting of inconsistent canister fill volumes or anomalous breakthrough behavior in sorbent tube–canister hybrid sampling configurations.

FAQ

Does the Ontech824 require periodic recalibration?
Yes—annual recalibration is recommended per ISO/IEC 17025 Section 6.5.2; factory recalibration services include NIST-traceable pressure and flow reference standards with full uncertainty budget reporting.
Can it be used with humidified or heated sample lines?
No—condensation or thermal gradients upstream of the sensor will compromise accuracy; users must ensure dew point remains ≥20 °C below ambient and line temperature is stabilized prior to connection.
Is raw sensor data accessible for third-party analysis?
Yes—binary .OFL log files may be decoded using the publicly documented Ontech Binary Protocol Specification (v2.1), available under NDA upon request from technical support.
What is the maximum allowable inlet pressure?
300 kPa absolute (43.5 psi); exceeding this limit may cause permanent diaphragm deformation and void the warranty.
Does it support Modbus RTU or other industrial communication protocols?
Not natively—but optional RS-485 expansion module (ONT-485-EX) enables Modbus RTU slave functionality with configurable register mapping for SCADA integration.
