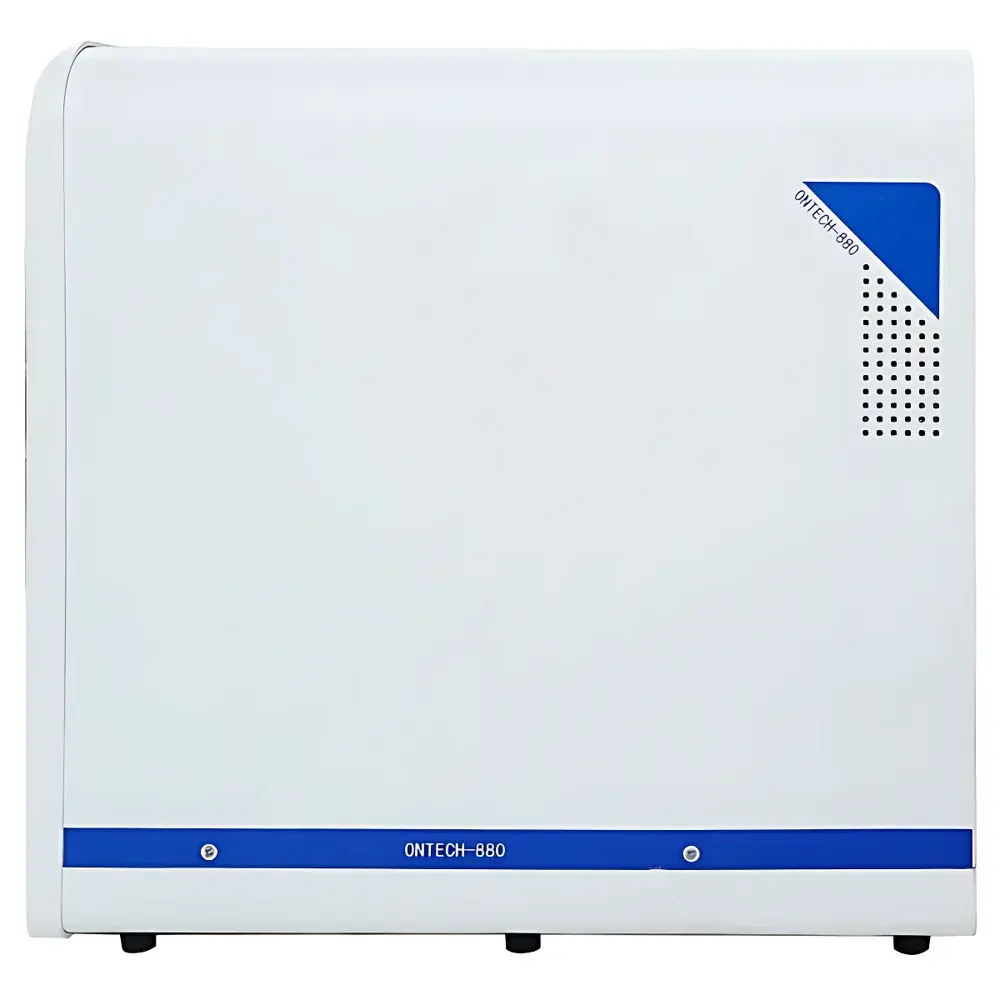

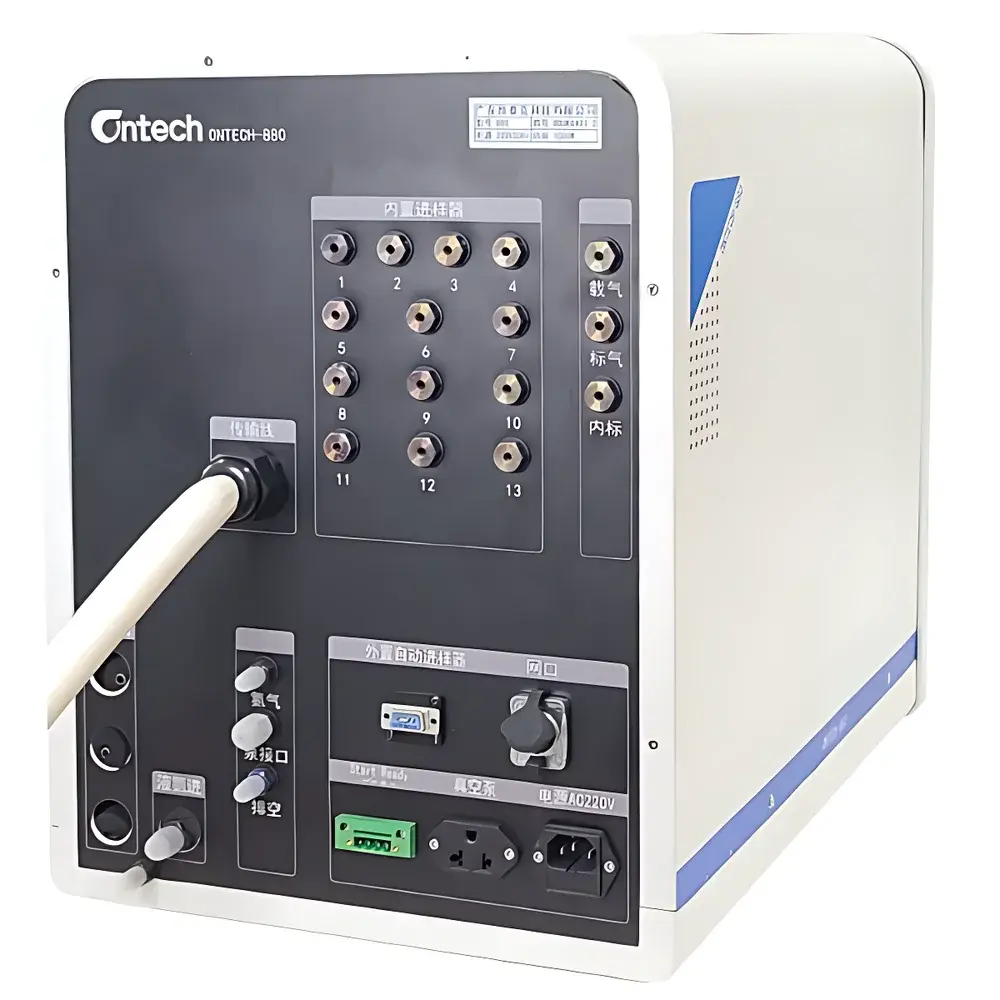

Ontech880 ODS Quad-Stage Liquid Nitrogen-Cooled Atmospheric Pre-concentrator

Overview

The Ontech880 ODS is a quad-stage, liquid nitrogen-cooled atmospheric pre-concentrator engineered for high-fidelity trace-level volatile organic compound (VOC) analysis in ambient air monitoring. It operates on the principle of cryogenic trapping and thermal desorption, utilizing four independently controlled cold traps to achieve sequential condensation, water removal, fractionation, and focused re-volatilization. Unlike conventional three-stage systems, the Ontech880 ODS decouples water removal from VOC capture via a dedicated separation-stage cryotrap—eliminating co-condensation losses of high-boiling-point analytes (e.g., naphthalene, biphenyl, and C₁₀–C₁₂ aldehydes/ketones) during the dehydration step. This architecture enables quantitative recovery across a broad polarity spectrum—including polar oxygenates (aldehydes, alcohols, esters, ketones, ethers), non-polar hydrocarbons, sulfur-containing compounds (e.g., methanethiol, dimethyl sulfide), and nitrogen-containing VOCs—without matrix-induced bias or thermal degradation.

Key Features

• Quad-stage cryogenic architecture with independent temperature control for each trap—enabling discrete water removal, interference elimination, analyte focusing, and ultra-fast desorption;
• Dedicated separation-stage cryotrap operating at −190 °C ensures complete decoupling of moisture condensation from VOC retention, improving recovery of high-boiling analytes by up to 170% (e.g., naphthalene, bp 218 °C);
• Integrated fourth-stage focus trap with ramp rates exceeding 2000 °C/min, delivering sharp, symmetrical chromatographic peaks and enhanced signal-to-noise ratios in GC and GC-MS detection;
• Multi-mode inlet configuration supporting split, splitless, and loop injection—compatible with canister, Tedlar® bag, and sorbent tube sampling protocols;
• Full automation capability including timed sampling, programmable trap conditioning, and synchronized GC/MS trigger output via TTL or Ethernet interface;
• Robust mechanical design optimized for unattended operation in field-deployable and central-lab environments, with minimal liquid nitrogen consumption per analysis cycle.

Sample Compatibility & Compliance

The Ontech880 ODS is validated for use with EPA TO-14A/TO-15-compliant canisters and HJ 1078–2019-specified stainless-steel canisters, as well as gas-tight bags compliant with HJ 759–2023 for ozone-depleting substances (ODS) and fluorinated greenhouse gases (F-GHGs). Its performance meets the precision, accuracy, and detection limit requirements outlined in China’s Ministry of Ecology and Environment (MEE) standards, including quantitative recovery ≥90% for 65 target VOCs across concentration ranges from low-pptv to ppmv. The system supports audit-ready operation under GLP and ISO/IEC 17025 frameworks, with optional electronic logbook functionality for full traceability of calibration events, maintenance records, and method parameters.

Software & Data Management

Control and method development are performed via Ontech’s proprietary Windows-based software suite, which provides intuitive graphical workflow building, real-time trap temperature monitoring, and automated sequence scheduling. All method parameters—including trap setpoints, hold times, desorption profiles, and GC synchronization settings—are stored with version control and user-access logging. The software supports export of raw metadata (timestamp, LN₂ level, pressure, temperature logs) in CSV and XML formats for integration into LIMS or ELN platforms. Optional 21 CFR Part 11 compliance modules include electronic signatures, audit trail generation, and role-based access control.

Applications

The Ontech880 ODS serves as a core component in regulatory ambient air monitoring networks, especially for urban VOC speciation, industrial fence-line monitoring, and fugitive emission assessment. It is routinely deployed by provincial environmental monitoring centers, third-party testing laboratories accredited to CNAS (China National Accreditation Service), and research institutions conducting source apportionment studies using receptor modeling (e.g., PMF, CMB). In industrial settings, it supports internal compliance verification for refrigerant leak detection (CFCs, HCFCs, HFCs), fire suppression agent monitoring (e.g., halons, FK-5-1-12), and process off-gas characterization in petrochemical, pharmaceutical, and coating manufacturing facilities.

FAQ

What types of sampling media are compatible with the Ontech880 ODS?
Canisters (electropolished stainless steel, SUMMA®-type), gas-tight polymeric bags (Tedlar®, FlexFoil®), and packed sorbent tubes (Tenax TA, Carbopack™ series) are all supported via configurable inlet modules.
Does the system require external GC/MS vendor-specific drivers?
No—standard TTL and Ethernet-based triggering protocols ensure plug-and-play compatibility with Agilent, Thermo Fisher, Shimadzu, and PerkinElmer GC/MS platforms.
How is method validation performed for regulatory reporting?
The instrument includes built-in calibration check routines for breakthrough volume, trap efficiency, and desorption reproducibility; users may generate QC reports aligned with HJ 759–2023 Annex D and HJ 1078–2019 Section 8 requirements.
Is remote monitoring and diagnostics supported?
Yes—via optional secure VPN-enabled web interface, enabling real-time status viewing, alarm notifications, and firmware updates without on-site intervention.
