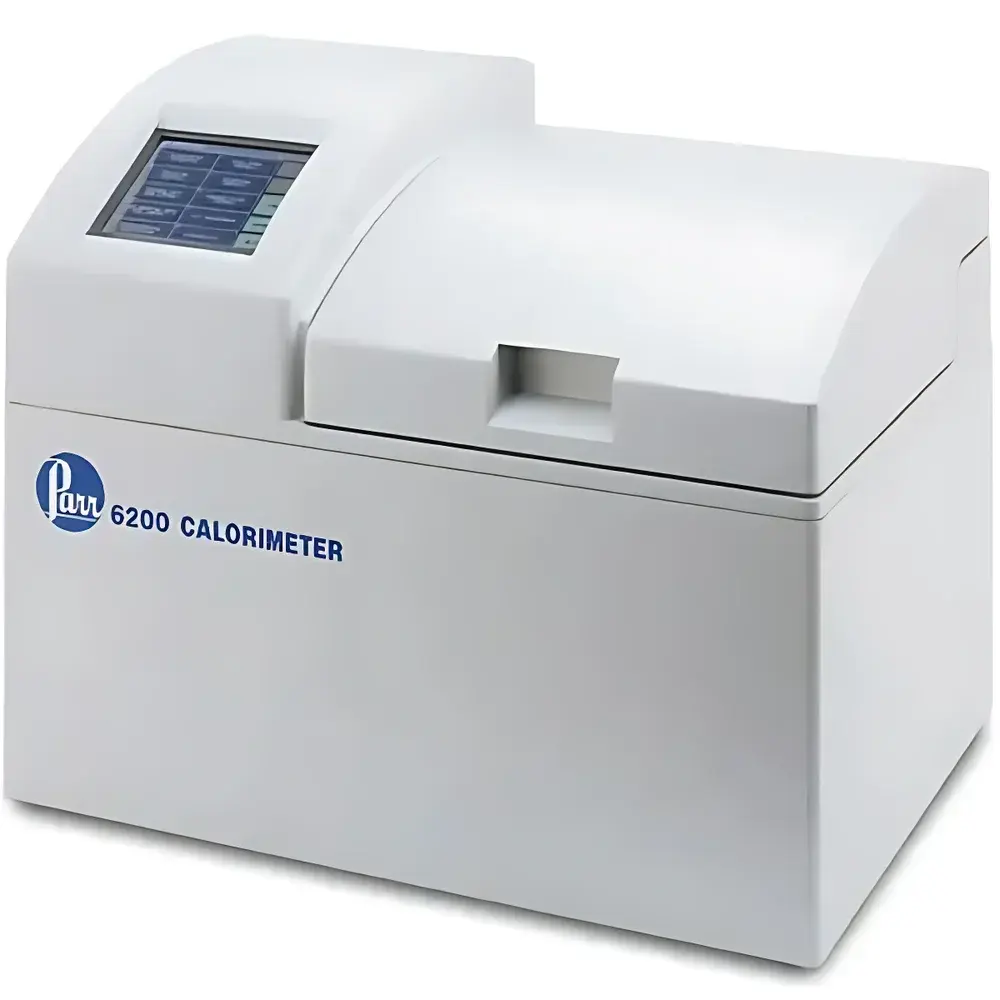

Parr 6200 Automated Bomb Calorimeter

Overview

The Parr 6200 Automated Bomb Calorimeter is a precision-engineered isoperibol oxygen bomb calorimeter designed for accurate and repeatable determination of gross calorific value (GCV) — also known as higher heating value (HHV) — of combustible materials under standardized high-pressure oxygen combustion conditions. Based on the fundamental principle of adiabatic or isoperibol heat measurement, the instrument quantifies the total thermal energy released when a precisely weighed sample undergoes complete oxidation in a sealed, high-strength stainless-steel oxygen bomb immersed in a thermally stabilized water jacket. Unlike fully automated systems, the Parr 6200 employs a semi-automated workflow where the oxygen bomb and inner water bucket are manually removed, refilled, and reinstalled between tests — offering robustness and operational transparency while maintaining compliance with internationally recognized calorimetric standards including ASTM D240, ASTM D4809, ASTM D1989, ISO 1928, and EN 14918.

Key Features

• Removable high-pressure oxygen bomb (up to 35 bar) compatible with multiple Parr-standard bomb configurations (e.g., 1108, 1109, 1341), enabling method flexibility across solid, liquid, and heterogeneous samples.
• Isoperibol temperature control architecture ensures stable outer jacket temperature via external chiller/heater circulator integration — eliminating reliance on internal heaters and improving long-term baseline stability.
• High-resolution temperature sensing with 0.0001 °C resolution supports rigorous data acquisition for precise enthalpy-of-combustion calculations according to NIST-traceable calibration protocols.
• Integrated vacuum and inert gas purging capability allows pre-combustion atmosphere conditioning — critical for moisture-sensitive, volatile, or reactive samples (e.g., explosives, pharmaceutical intermediates, or biomass feedstocks).
• Dedicated keypad interface with non-volatile memory storing up to 1000 test records, including sample ID, mass, ignition energy, temperature rise, and calculated GCV — facilitating manual audit trails and offline QA review.
• Structural design optimized for routine laboratory use: corrosion-resistant stainless-steel construction, ergonomic bomb handling fixtures, and modular water bucket assembly minimizing operator fatigue during repetitive cycling.

Sample Compatibility & Compliance

The Parr 6200 accommodates a broad spectrum of oxidizable matrices, including coal, coke, petroleum fuels (gasoline, diesel, jet fuel), waste-derived fuels, foodstuffs, animal feed, construction materials (e.g., insulation composites), propellants, and energetic compounds. Its 3300 J/°C effective heat capacity ensures sufficient thermal inertia for reliable signal-to-noise ratios across diverse energy densities (from ~5 kJ/g to >45 kJ/g). All operational procedures align with Good Laboratory Practice (GLP) documentation requirements and support 21 CFR Part 11-compliant data integrity when paired with validated external LIMS or electronic lab notebook (ELN) systems. Calibration traceability follows NIST SRM 3261 (benzoic acid) and adheres to ISO/IEC 17025-accredited validation protocols where applicable.

Software & Data Management

While the Parr 6200 operates via standalone keypad control, its RS-232 serial interface enables bidirectional communication with third-party data acquisition software (e.g., Parr’s optional CalWin or custom LabVIEW/Python scripts). Raw temperature-time datasets, correction factors (e.g., fuse wire, nitric acid, sulfur corrections), and final GCV outputs can be exported in CSV or ASCII format. Audit-ready reporting includes timestamped test logs, operator ID fields, calibration certificate references, and uncertainty budgets per GUM (Guide to the Expression of Uncertainty in Measurement) principles. The system supports manual entry of sample-specific parameters (moisture, ash, sulfur content) to compute net calorific value (NCV) in accordance with ISO 6976 and ASTM D5865.

Applications

• Fuel quality assurance in power generation, refinery, and transportation sectors.
• Regulatory compliance testing for solid recovered fuels (SRF) and refuse-derived fuels (RDF) under EU Waste Framework Directive criteria.
• R&D screening of novel biofuels, hydrogen carriers, and carbon-neutral synthetic hydrocarbons.
• Nutritional energy profiling in food science laboratories (Atwater factor validation).
• Thermochemical characterization of energetic materials in defense and pyrotechnics research.
• Building material certification per ASTM E135–23 for fire safety and energy content evaluation.

FAQ

What distinguishes the Parr 6200 from fully automated models like the 6400 series?

The 6200 requires manual removal and reloading of both the oxygen bomb and inner water bucket after each test, whereas the 6400 integrates robotic handling and auto-filling subsystems — reducing operator intervention but increasing system complexity and service requirements.
Can the Parr 6200 perform low-heat-value measurements below 10 kJ/g?

Yes, provided appropriate sample mass adjustment, high-precision weighing (<0.0001 g), and optimized calibration using low-energy reference materials such as sucrose or methyl benzoate.
Is external temperature control mandatory?

While not strictly mandatory, integration with a programmable chiller/heater circulator is strongly recommended to maintain ±0.01 °C jacket stability over multi-hour test sequences — essential for achieving ≤0.1% RSD performance.
How is calibration verified on this instrument?

Calibration is performed using certified benzoic acid (NIST SRM 3261) with documented ignition energy correction, repeated across ≥5 independent runs to establish mean energy equivalent and standard deviation prior to sample analysis.
Does the system meet FDA or pharmacopeial requirements for calorimetric release testing?

When operated within a validated environment with documented SOPs, raw data archiving, and analyst training records, the Parr 6200 supports USP <1231> and Ph. Eur. 2.2.42 compliance for calorimetric assays in pharmaceutical excipient and active ingredient characterization.
