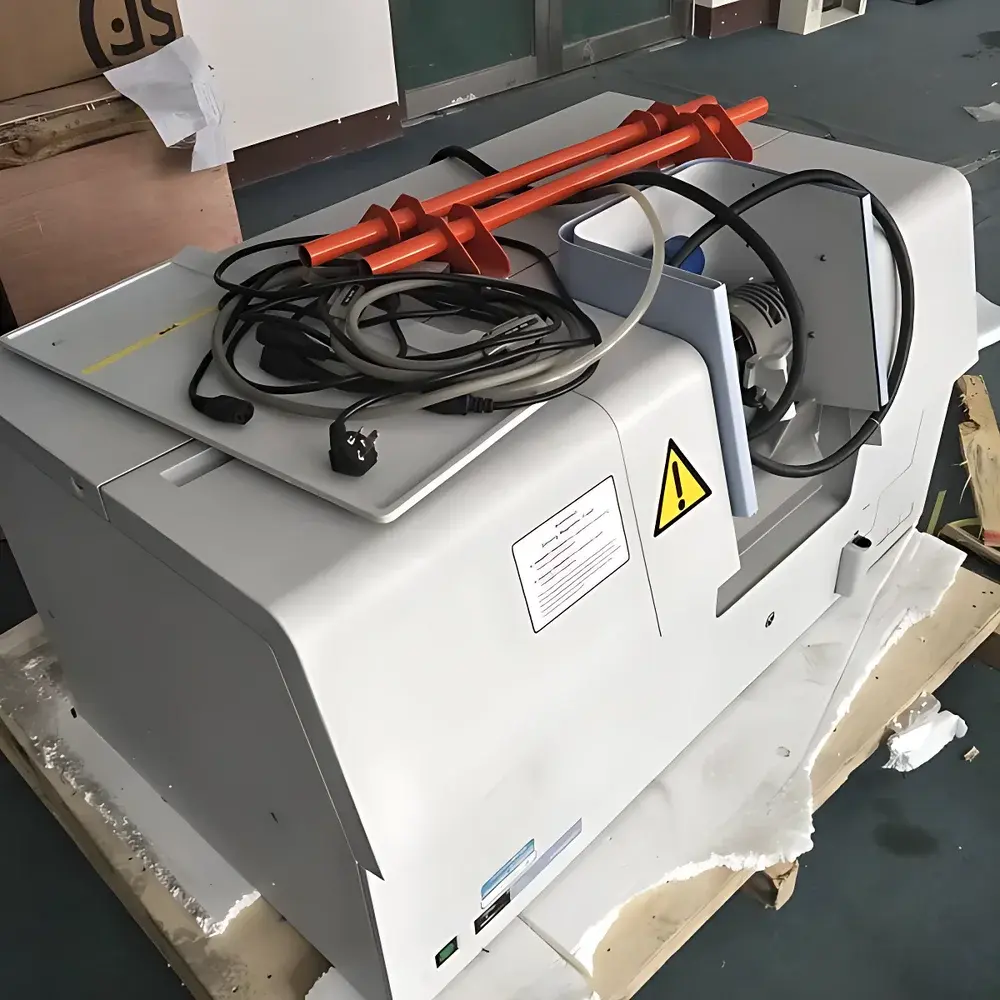

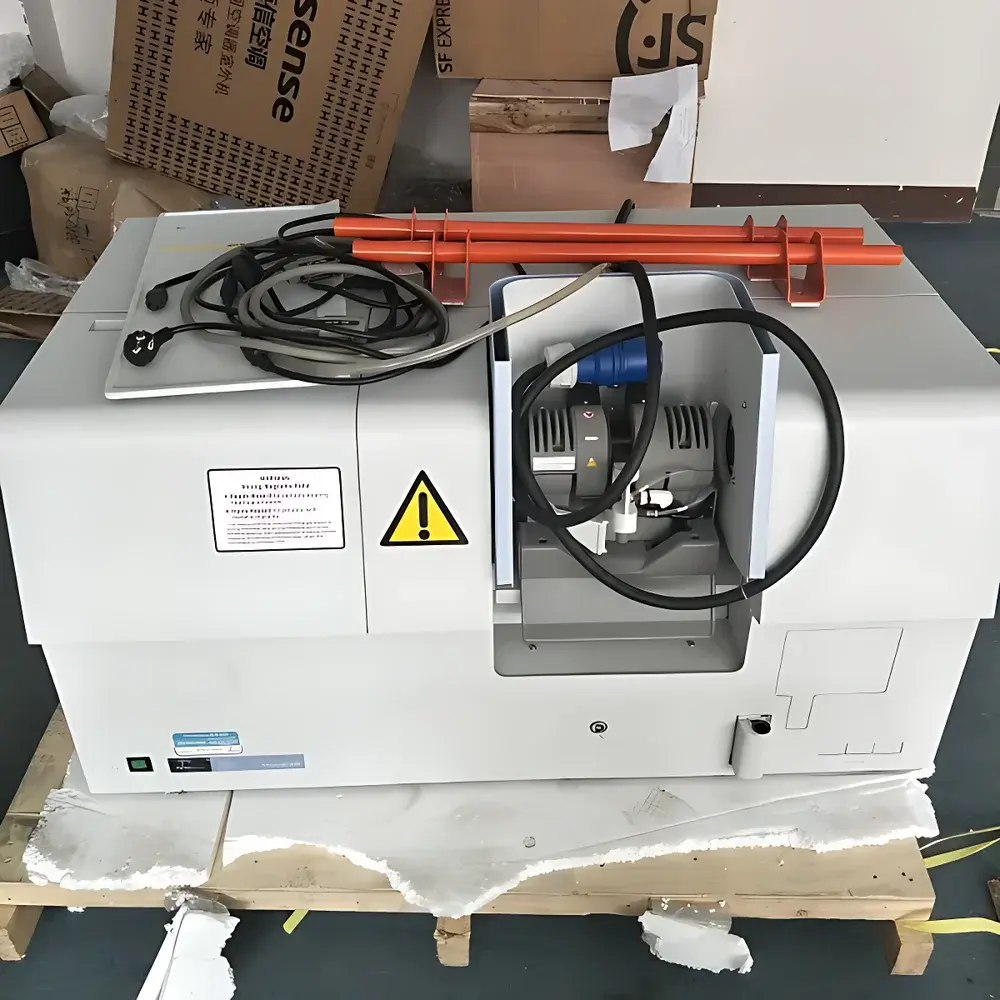

PerkinElmer AA-600 Atomic Absorption Spectrophotometer Repair Service

Overview

This service offering provides certified, on-site and benchtop repair and preventive maintenance for the PerkinElmer AA-600 atomic absorption spectrophotometer — a widely deployed flame and graphite furnace AAS platform originally engineered for trace metal quantification in environmental, pharmaceutical, food safety, and clinical laboratories. The AA-600 operates on the principle of atomic absorption spectroscopy: sample solutions are atomized in a high-temperature flame or electrothermal graphite furnace, and absorbance is measured at element-specific wavelengths (typically 190–900 nm) using hollow cathode lamps. Accurate calibration, optical alignment, nebulizer performance, gas flow stability, and furnace temperature ramp fidelity are critical to measurement integrity. Our technical intervention targets root-cause diagnostics across optical path components (monochromator, photomultiplier tube), atomization systems (burner head, graphite tube, autosampler), electronics (power supply, detector board, lamp driver), and software communication interfaces.

Key Features

• 10-year documented field experience servicing PerkinElmer AA-series instruments, including AA-600, AA-800, and Zeeman variants
• Response time guaranteed within 12 business hours for urgent diagnostic requests in Beijing metro area
• Full-service repair workflow: remote pre-diagnosis → on-site assessment → component-level fault isolation → OEM-equivalent replacement parts sourcing → functional validation per ASTM E1995-21 guidelines
• Calibration verification and wavelength accuracy check using NIST-traceable holmium oxide and mercury vapor standards
• Preventive maintenance packages include burner head cleaning, nebulizer optimization, graphite tube conditioning, gas line leak testing, and optical alignment verification
• Technical documentation delivered post-service: detailed fault report, replaced part list with serial numbers, calibration verification records, and operational test logs

Sample Compatibility & Compliance

The AA-600 supports aqueous and organic solvent-based samples across a broad concentration range (sub-pptr to ppm levels), compatible with standard flame (air-acetylene, nitrous oxide-acetylene) and electrothermal atomization protocols. All repair and recalibration procedures adhere to internationally recognized analytical quality frameworks. Service documentation is structured to support GLP and GMP compliance requirements, including audit-ready records for instrument history, maintenance log entries, and calibration traceability. Where applicable, software updates and firmware patches align with PerkinElmer’s official release notes and maintain compatibility with WinLab32 v6.x and AA WinLab v7.x environments. No modifications are made to instrument firmware or security architecture that would invalidate regulatory validation status.

Software & Data Management

Post-repair system validation includes full integration testing with native PerkinElmer acquisition software. We verify bidirectional communication between hardware controllers and PC host, confirm proper lamp selection sequencing, validate autosampler coordinate mapping, and ensure correct background correction algorithm execution (deuterium or Zeeman). All data files retain original timestamping and metadata structure. For labs operating under FDA 21 CFR Part 11 requirements, our service does not alter electronic signature modules or audit trail configurations; however, we provide guidance on maintaining compliant backup and retention practices for raw data (.raw, .dat) and method files (.mth). Remote diagnostics utilize encrypted VNC sessions with client-approved access protocols — no data extraction or storage occurs on third-party systems.

Applications

This repair service directly supports laboratories performing regulated elemental analysis in accordance with ISO 11885 (water), EPA Method 7000B (soil/sediment), USP (heavy metals in pharmaceuticals), and GB/T 5009.12–2017 (food safety). Typical use cases include Pb/Cd/As/Hg quantification in drinking water matrices, Cr/Ni/Co analysis in electroplating effluents, and Al/Cu/Mn profiling in nutritional supplement formulations. Restored AA-600 systems demonstrate reproducibility ≤2% RSD (n=6) for mid-range calibrators and detection limits consistent with factory specifications when operated under validated methods. Our technicians routinely collaborate with QA/QC managers to re-establish system suitability criteria — including sensitivity checks, carryover assessments, and linearity verification over 3–5 point calibration curves.

FAQ

Do you supply original PerkinElmer spare parts?
Yes — we procure genuine PerkinElmer consumables and wear components (e.g., graphite tubes, hollow cathode lamps, burner heads) through authorized regional channels. Non-OEM alternatives are only used upon explicit client approval and with full specification disclosure.
Is remote support available before dispatching a technician?
Yes — initial troubleshooting is conducted via secure screen-sharing, error log review, and real-time parameter interrogation using PerkinElmer’s diagnostic utilities. Approximately 35% of reported faults are resolved remotely without site visit.
Can you assist with method transfer or revalidation after repair?
Yes — we provide technical consultation for IQ/OQ documentation, assist in drafting revalidation protocols aligned with ICH Q2(R2), and perform system suitability tests per client-defined acceptance criteria.
What warranty applies to repaired units?
All labor and installed parts carry a 90-day functional warranty covering recurrence of the originally diagnosed fault. Extended service agreements (12–24 months) are available with scheduled PM visits.
Do you support instruments outside Beijing?
We operate a network of certified field engineers across Tier-1 Chinese cities (Shanghai, Guangzhou, Chengdu, Wuhan); travel surcharges apply beyond 100 km from Beijing city center.
