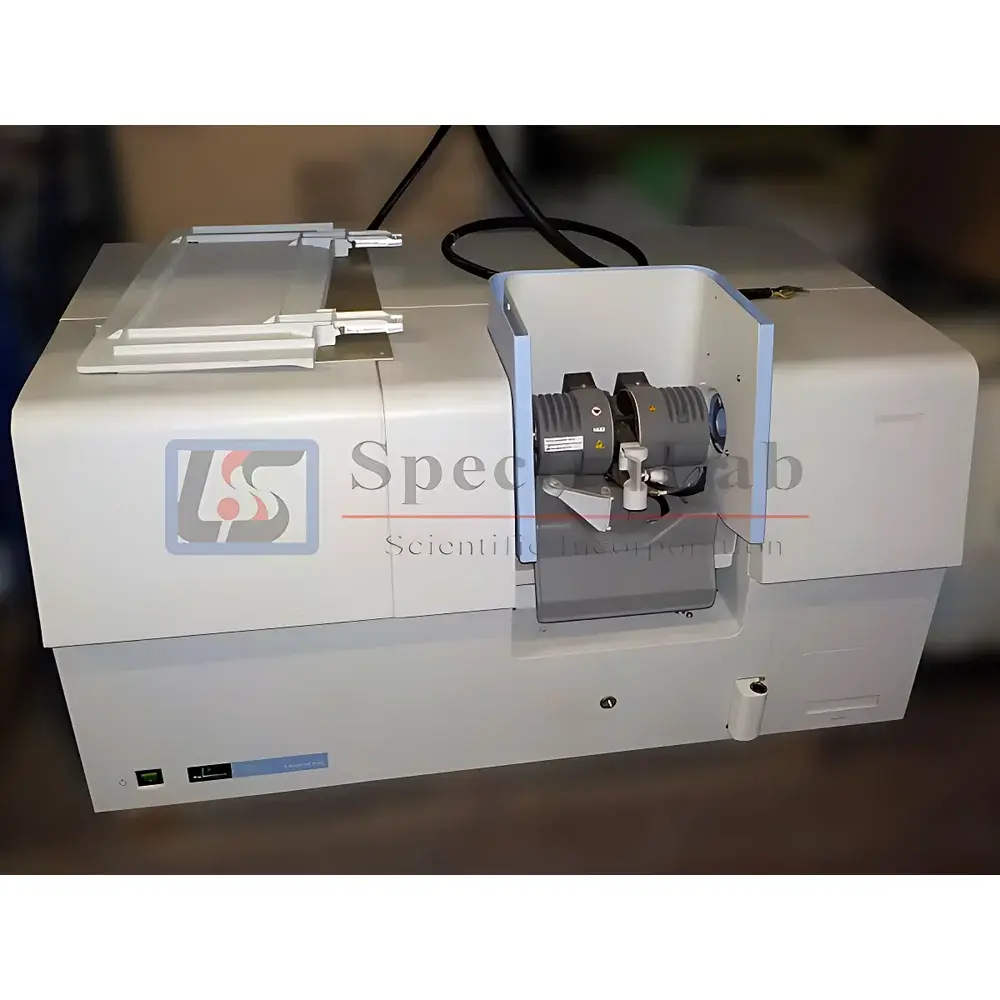

PerkinElmer AAnalyst 600 Atomic Absorption Spectrometer (Refurbished)

Overview

The PerkinElmer AAnalyst 600 is a dual-atomization atomic absorption spectrometer engineered for high-precision elemental quantification in environmental, clinical, pharmaceutical, and industrial quality control laboratories. It operates on the fundamental principle of atomic absorption spectroscopy (AAS), where ground-state free atoms in a flame or graphite furnace absorb light at element-specific wavelengths emitted by hollow cathode or electrodeless discharge lamps. The AAnalyst 600 employs a double-beam optical design with real-time background correction (D₂ or Zeeman), enabling accurate compensation for spectral interferences and matrix effects. Its modular architecture supports both flame-AAS (FAAS) and graphite furnace-AAS (GFAAS) configurations—making it suitable for routine ppm-level analysis as well as trace-level (sub-pg) determinations in complex matrices such as serum, wastewater, soil digests, and food extracts.

Key Features

• Double-beam optical system with automatic wavelength scanning and slit width selection (0.1, 0.2, 0.5, 1.0 nm) for optimized signal-to-noise ratio across analyte lines
• Integrated flame and graphite furnace atomization capability—flame module includes air-acetylene and nitrous oxide-acetylene burner heads; furnace module compatible with PerkinElmer GF-3000 controller (optional upgrade)
• Real-time background correction using deuterium arc (D₂) or transverse Zeeman systems, validated per ASTM E2173 for interference mitigation
• WinLab32 v3.52 software suite supporting method development, calibration curve generation (linear, quadratic, weighted), QC flagging, and automated report export in CSV, XML, and PDF formats
• Full GLP compliance features including user access levels, electronic signatures, audit trail logging, and 21 CFR Part 11–ready configuration (when deployed with validated IT infrastructure)
• Factory-refurbished unit with full functional verification: wavelength accuracy ±0.1 nm, photometric precision ≤0.5% RSD, baseline stability <0.003 absorbance units over 30 minutes

Sample Compatibility & Compliance

The AAnalyst 600 accommodates liquid samples introduced via pneumatic nebulization (flame mode) or programmable autosampler injection (graphite furnace mode). It supports standard aqueous standards, acid-digested environmental solids (EPA Method 200.7/200.8), biological fluids (CLIA-compliant dilution protocols), and organic solvent-based extracts when paired with appropriate modifiers and platform pyrolysis. All operational procedures align with ISO/IEC 17025 requirements for testing laboratories. Instrument validation documentation—including installation qualification (IQ), operational qualification (OQ), and performance verification reports—is available upon request to support internal QA audits or regulatory submissions.

Software & Data Management

WinLab32 v3.52 provides a secure, role-based interface for method storage, instrument parameter control, and raw data archiving. Data files are stored in encrypted local directories with timestamped metadata. The software generates audit-trail logs capturing all user actions, parameter changes, and calibration events—essential for FDA, EPA, or ISO-regulated environments. Exported reports include full instrument configuration snapshots, integration parameters, and uncertainty estimates per ISO/IEC Guide 98-3 (GUM). Integration with LIMS platforms is supported via ODBC drivers and configurable ASCII output templates.

Applications

• Environmental monitoring: Pb, Cd, As, Cr, Ni, and Hg quantification in drinking water (EPA 7000B), wastewater (EPA 200.9), and solid waste leachates (TCLP)
• Clinical toxicology: Trace metal analysis in whole blood and urine (e.g., Zn, Cu, Se for nutritional assessment; Al in dialysis patients)
• Pharmaceutical QC: Catalyst residue testing (Pd, Pt, Rh) in APIs per ICH Q2(R2) guidelines
• Food safety: Total arsenic speciation screening (after hydride generation coupling), Fe/Cu/Zn in fortified cereals and infant formula
• Geological and metallurgical assays: Multi-element determination in ore concentrates and refinery slags using matrix-matched calibration

FAQ

Is this unit factory-certified refurbished?
Yes—the instrument underwent full functional requalification at an authorized PerkinElmer service center prior to resale, including optical alignment, burner head calibration, and lamp energy verification.
Does the 6-month warranty cover parts and labor?
Yes—warranty includes all components, consumables (excluding lamps and graphite tubes), and on-site or depot technical support.
Can the AAnalyst 600 be upgraded to support hydride generation or cold vapor techniques?
Hydride generation (HG-AAS) and cold vapor (CV-AAS) modules were not originally integrated into the AAnalyst 600 platform; however, third-party HG/CV accessories may be interfaced with appropriate gas flow controllers and quartz cells.
What documentation accompanies the instrument?
You receive a Certificate of Refurbishment, OQ report, calibration certificate traceable to NIST SRMs, and full WinLab32 license documentation.
Is remote diagnostics supported?
Yes—WinLab32 supports secure remote desktop access (via customer-approved VPN) for troubleshooting and preventive maintenance coordination.
