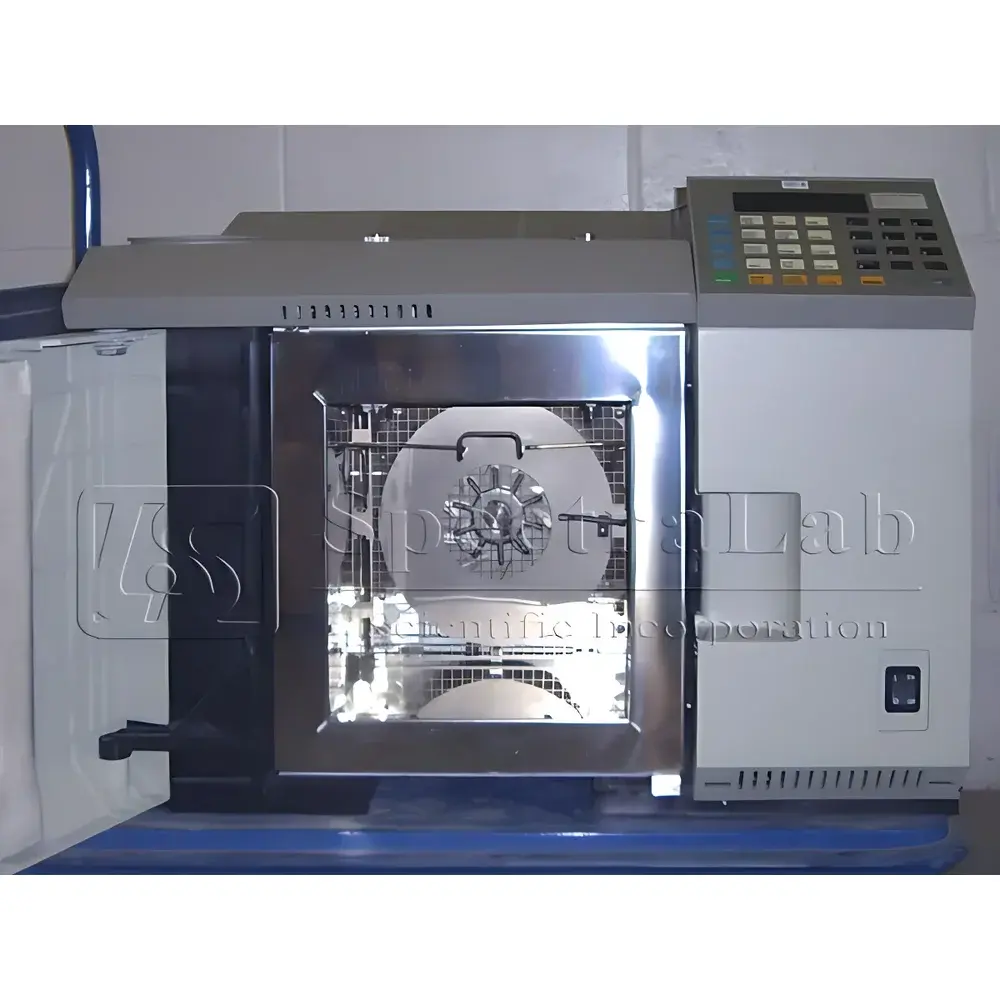

PerkinElmer AutoSystem GC with Dual Flame Ionization Detectors

Overview

The PerkinElmer AutoSystem GC with Dual Flame Ionization Detectors is a robust, benchtop gas chromatography system engineered for high-throughput quantitative analysis of volatile and semi-volatile organic compounds. Based on classical capillary gas chromatography principles, the system separates analytes via differential partitioning in a temperature-programmable fused-silica column, followed by highly sensitive, linear detection using two independent flame ionization detectors (FIDs). This dual-FID architecture enables simultaneous or sequential analysis of multiple sample streams—or parallel quantification of target analytes with built-in redundancy—enhancing method robustness and laboratory productivity. Designed and originally manufactured in Canada, the AutoSystem platform features a modular oven design, precision electronic pressure control (EPC), and integrated autosampler compatibility. Its proven architecture supports method transfer across laboratories and long-term operational stability under routine QC/QA conditions.

Key Features

• Dual independent Flame Ionization Detectors (FIDs) with individually adjustable hydrogen/air flows and optimized jet geometries for enhanced sensitivity and dynamic range (typical linear response >10⁷).
• Temperature-controlled column oven with ramp rates up to 40 °C/min and operating range from 5 °C above ambient to 450 °C, supporting fast elution and high-boiling-point compound analysis.
• Electronic Pressure Control (EPC) for carrier gas (He, H₂, or N₂) with ±0.01 psi precision, ensuring retention time reproducibility (<0.02 min RSD over 24 h).
• Integrated 10-position autosampler interface (compatible with standard 2 mL vials) enabling unattended operation and method automation.
• Refurbished and fully validated unit: all critical subsystems—including detector baselines, oven thermal uniformity, injector septum purge integrity, and EPC calibration—have been verified per PerkinElmer OEM service protocols.
• Comprehensive post-refurbishment performance qualification (PQ) documentation provided, including chromatograms, retention time tables, and signal-to-noise (S/N) ratios for certified reference standards (e.g., n-alkane mix, EPA TO-14A compounds).

Sample Compatibility & Compliance

The AutoSystem GC with Dual FID is routinely deployed in environmental testing labs (EPA Method 8260D, 8021B), petrochemical QA (ASTM D3606, D5503), and pharmaceutical residual solvent analysis (ICH Q2(R2), USP ). It accommodates liquid, gaseous, and headspace-derived samples injected via split/splitless, on-column, or PTV inlets. All refurbished units undergo leak testing to <1 × 10⁻⁷ atm·mL/s helium equivalent and are verified for compliance with ISO/IEC 17025:2017 requirements for equipment verification. Data integrity is supported through audit-trail-capable acquisition software (see Software section), aligning with FDA 21 CFR Part 11 expectations for electronic records in regulated environments.

Software & Data Management

The system operates with TurboMass™ GC/MS software (v8.x or later), which provides full instrument control, real-time data acquisition, peak integration, library search (NIST/EPA/WHO), and customizable reporting templates. For dual-FID configurations, the software enables synchronized acquisition, differential calibration curve generation, and cross-detector ratio validation—critical for method robustness assessment. All software installations are licensed, updated to current patch levels, and configured with user-access controls, electronic signatures, and automated backup routines. Raw data files (.raw) and processed reports (.pdf/.xlsx) are stored with immutable timestamps and versioned metadata, satisfying GLP/GMP traceability requirements.

Applications

• Quantitative analysis of BTEX (benzene, toluene, ethylbenzene, xylenes) in groundwater and soil extracts.
• Residual solvent profiling in active pharmaceutical ingredients (APIs) per ICH Q3C guidelines.
• Fatty acid methyl ester (FAME) profiling in biodiesel feedstocks (ASTM D6751).
• Hydrocarbon group-type analysis (PIONA) in gasoline and naphtha fractions.
• Calibration verification and system suitability testing for USP chromatographic methods.
• Method development and validation support for ISO 17025-accredited testing laboratories.

FAQ

Is this instrument eligible for IQ/OQ/PQ documentation support?
Yes—SpectraLab Scientific provides vendor-verified Installation Qualification (IQ) and Operational Qualification (OQ) protocols; Performance Qualification (PQ) is performed using client-defined test standards upon installation.
What maintenance history is available for this unit?
Full service logs, including detector cleaning dates, column replacement records, and EPC recalibration events from the prior owner, are included with the unit.
Can the system be upgraded to support mass spectrometric detection?
The AutoSystem GC chassis is mechanically and electronically compatible with PerkinElmer’s Turbomass single-quadrupole MS; upgrade path requires separate MS purchase and integration by certified field service engineers.
Does the 6-month warranty cover detector components and electronics?
Yes—the warranty covers all factory-refurbished components, including FID jets, thermocouples, PCBs, and firmware modules, subject to standard terms excluding misuse or unauthorized modification.
Is remote diagnostics and software support available post-purchase?
Yes—SpectraLab offers optional annual technical support contracts with remote access, firmware updates, and priority response for instrument troubleshooting.
