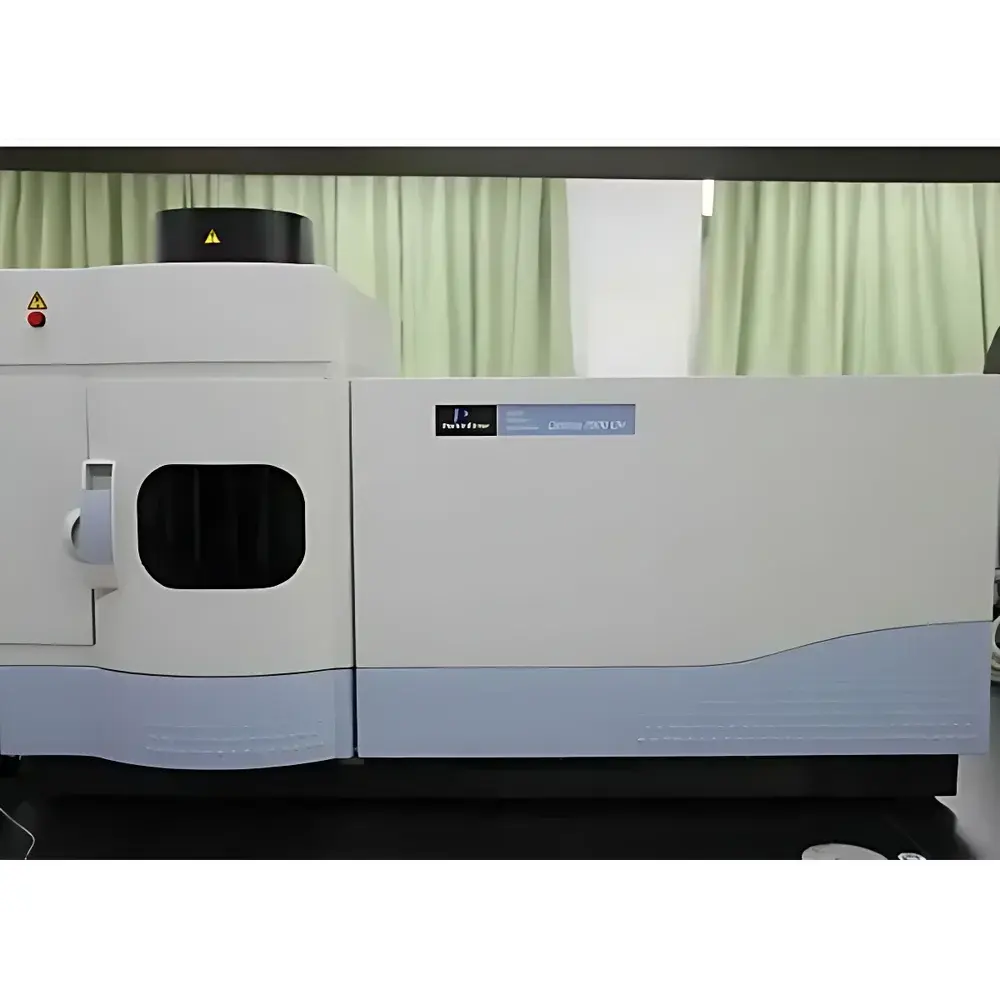

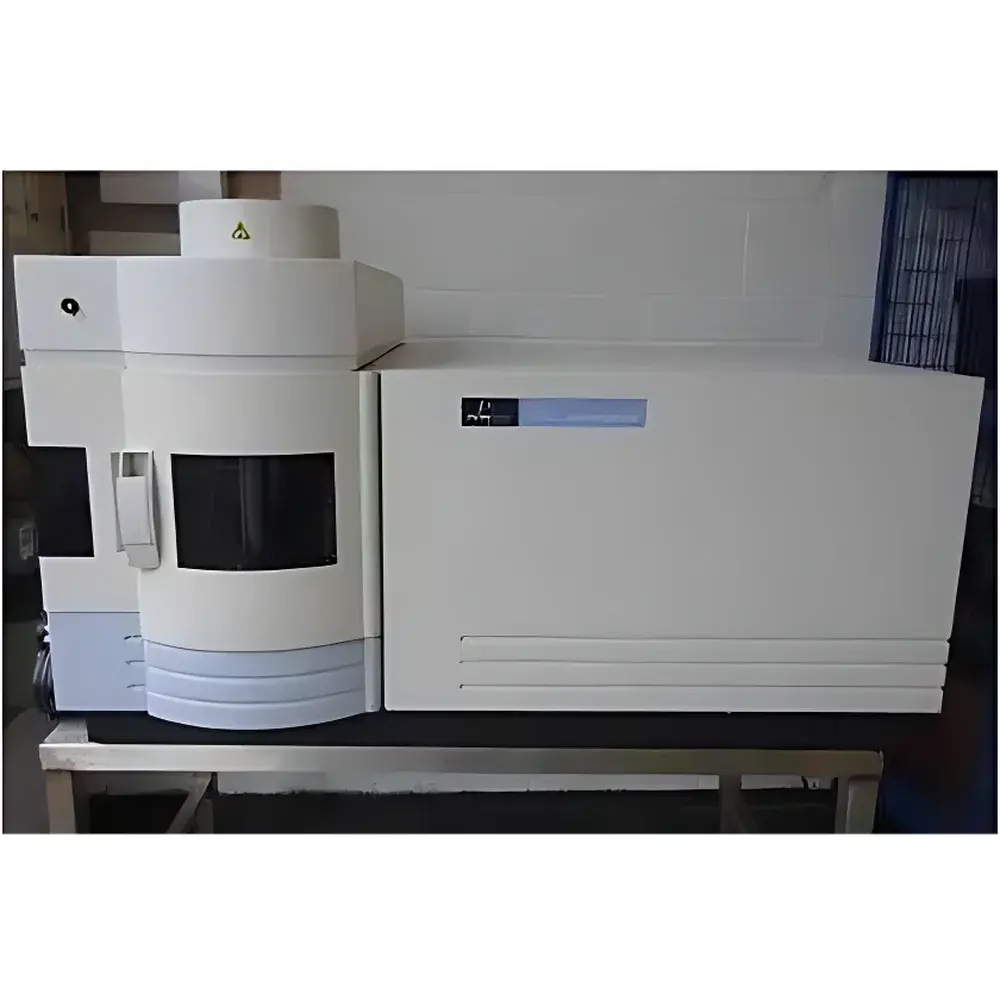

PerkinElmer Optima 2100 DV ICP-OES System

Overview

The PerkinElmer Optima 2100 DV is a dual-view inductively coupled plasma optical emission spectrometer (ICP-OES) engineered for high-precision elemental analysis across environmental, pharmaceutical, clinical, and industrial laboratories. Operating on the fundamental principle of atomic emission spectroscopy, the system atomizes and excites liquid samples in a high-temperature argon plasma (~6,000–10,000 K), causing elements to emit characteristic wavelengths of ultraviolet and visible light. A high-resolution echelle spectrometer with segmented array detector (CCD or CID) captures simultaneous multi-element spectra across 165–900 nm. The “DV” (Dual View) architecture enables rapid switching between radial and axial plasma observation—radial mode for high-concentration samples with superior matrix tolerance, axial mode for sub-pptr detection limits and enhanced sensitivity for trace-level analytes. This configuration supports method flexibility without hardware reconfiguration, ensuring robustness for routine QC and research-grade quantification.

Key Features

• Dual-view plasma interface with motorized optical path selection for seamless radial/axial mode switching
• Echelle optical design with prism-grating cross dispersion and thermoelectrically cooled solid-state detector (CID)
• Integrated peristaltic pump with programmable flow rate control and auto-dilution capability
• RF generator delivering stable 1.0–1.5 kW power output with real-time impedance matching
• Robust nebulizer chamber with Peltier-cooled spray chamber option for improved transport efficiency and memory effect reduction
• Full wavelength coverage from 165 nm to 900 nm with <0.009 nm resolution at 200 nm (FWHM)
• Pre-aligned, factory-qualified torch assembly and injector optimized for aqueous and organic solvent compatibility

Sample Compatibility & Compliance

The Optima 2100 DV accepts liquid samples introduced via pneumatic nebulization (standard Meinhard or MicroMist nebulizers), with optional accessories for slurry, laser ablation, or hydride generation interfaces. It supports acid-digested environmental matrices (soils, waters, sediments), biological digests (tissues, serum), pharmaceutical excipients, and high-purity semiconductor chemicals. The system complies with key regulatory frameworks: ASTM D1976 (metals in water), ISO 11885 (water quality—determination of selected elements by ICP-OES), EPA Method 200.7 (metals by ICP), and EPA Method 6010D (trace metals in wastewater). When configured with WinLab32 v4.1 and enabled audit trail logging, it meets data integrity requirements under FDA 21 CFR Part 11 for electronic records and signatures in GLP and GMP environments.

Software & Data Management

WinLab32 v4.1 provides comprehensive instrument control, spectral acquisition, background correction (multi-point, polynomial, and peak-fit), interference correction (internal standardization, multivariate regression), and quantitative analysis using calibration curves (linear, quadratic, or weighted least squares). All analytical sessions are timestamped and logged with full user action tracking—including method edits, calibration updates, and result overrides. Raw spectral data (.spc), processed reports (.pdf/.xls), and audit logs are stored in a structured directory hierarchy with configurable retention policies. Data export supports LIMS integration via ODBC and ASTM E1384-compliant file formats. Remote diagnostics and firmware update capability enable proactive maintenance planning without on-site intervention.

Applications

• Environmental monitoring: Quantification of As, Cd, Cr, Pb, Hg, Se, and U in drinking water, wastewater, and leachates per EPA protocols
• Pharmaceutical QA/QC: Elemental impurity testing (ICH Q3D) for catalyst residues (Pd, Pt, Ni, Ru) in APIs and intermediates
• Food safety: Screening of toxic elements (As, Pb, Cd) in infant formula, spices, and dietary supplements per USP /
• Geochemical analysis: Multi-element profiling of rock digests and soil extracts with internal standard normalization (Y, Sc, In, Bi)
• Metallurgical process control: Rapid alloy composition verification (Al, Mg, Si, Fe, Cu, Zn) in foundry and aerospace manufacturing

FAQ

Is this unit fully refurbished and performance-verified?
Yes. Each Optima 2100 DV undergoes a standardized refurbishment protocol including RF generator recalibration, optical alignment verification, detector dark current characterization, and full-system validation using NIST-traceable multi-element standards.
What documentation accompanies the system?
A complete package includes original PerkinElmer service manuals, validated IQ/OQ protocols, calibration certificates, refurbishment report, and software license transfer documentation.
Can the system be upgraded to support newer software versions?
WinLab32 v4.1 is the final supported version for the 2100 DV platform; however, legacy method files are forward-compatible with PerkinElmer’s current Syngistix software via conversion utilities.
What maintenance support is available post-purchase?
Comprehensive technical support, spare parts availability, and optional annual service contracts are provided through authorized PerkinElmer service partners in North America and EMEA.
Does the system include an argon gas regulator and exhaust interface?
Standard delivery includes plasma gas pressure regulator, auxiliary gas solenoid valve, and certified exhaust ducting compliant with NFPA 51 and local laboratory ventilation codes.
