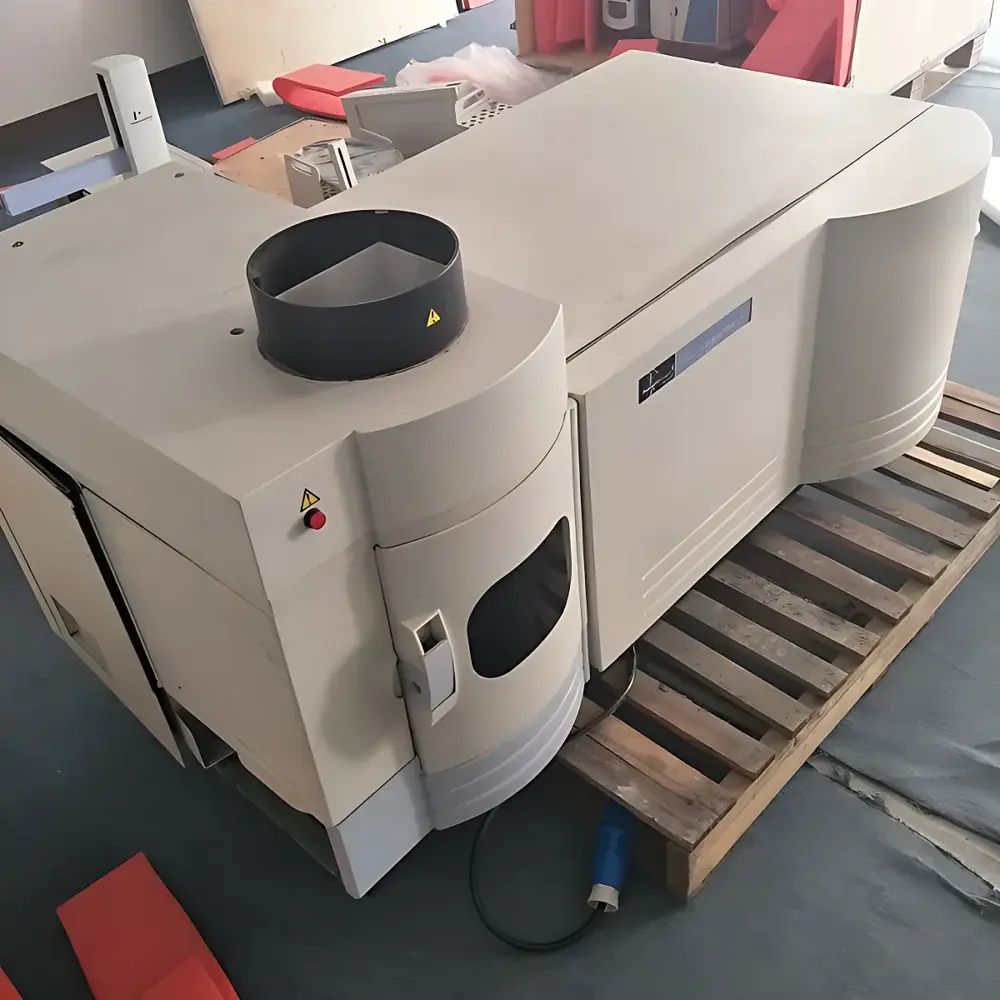

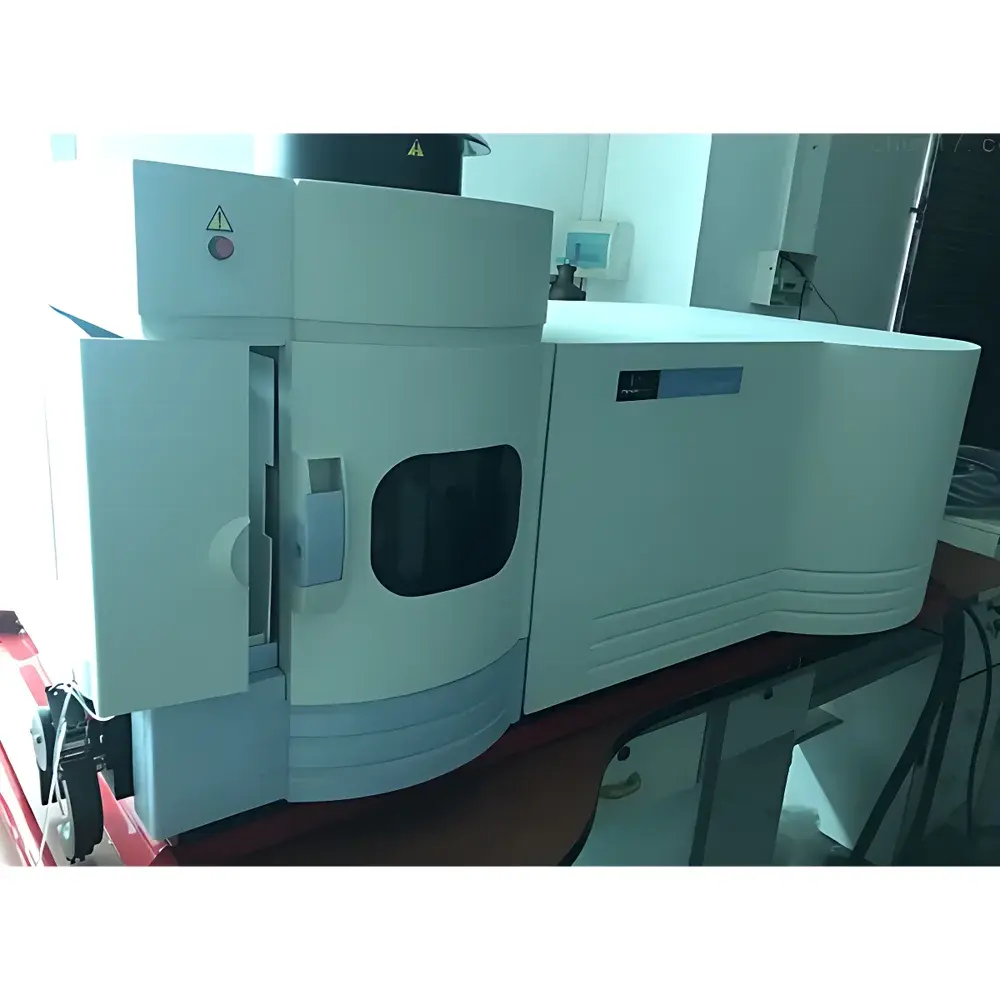

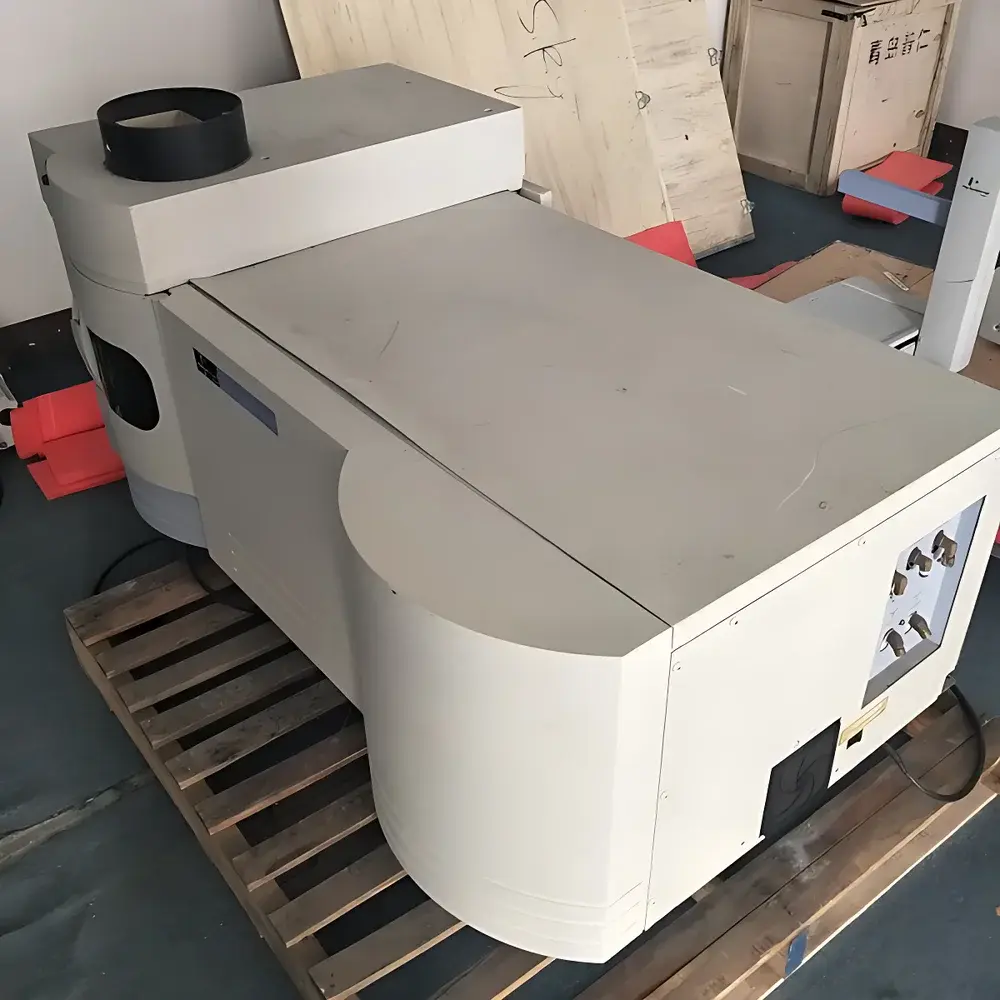

PerkinElmer Optima 5300DV Inductively Coupled Plasma Optical Emission Spectrometer (Refurbished)

Overview

The PerkinElmer Optima 5300DV is a high-performance, simultaneous-type inductively coupled plasma optical emission spectrometer (ICP-OES) engineered for robust elemental analysis across demanding laboratory environments. Operating on the fundamental principle of atomic emission spectroscopy, the instrument atomizes and excites liquid samples in a high-temperature argon plasma (~6,000–10,000 K), causing constituent elements to emit characteristic wavelengths of UV-Vis light. These emissions are dispersed via a high-efficiency echelle grating spectrometer and detected simultaneously across the full spectral range (165–870 nm) using a solid-state charge-coupled device (CCD) detector array. Designed for routine multi-element quantification in environmental monitoring, pharmaceutical quality control, geological surveying, and food safety testing, the Optima 5300DV delivers high reproducibility, low detection limits, and stable baseline performance — critical for compliance with regulatory frameworks including EPA Method 200.7, ISO 11885, and ASTM D1976.

Key Features

• Simultaneous multi-element detection architecture with no moving optical components, enabling rapid analysis (<60 sec per sample) and superior inter-day precision.
• Echelle optical system with cross-dispersion and thermally stabilized optics, achieving an optical resolution (FWHM) of ≤0.007 nm — essential for resolving complex spectral overlaps in matrix-rich samples.
• Robust RF generator (27.12 MHz) with automatic impedance matching and plasma viewing in both axial and radial configurations (hardware-enabled dual-view option available).
• Integrated peristaltic pump with programmable flow rate control and integrated rinse cycle management to minimize carryover and ensure analytical integrity.
• Advanced background correction algorithms (including multi-point and interpolated background modeling) to enhance accuracy in high-salt or organic solvent matrices.
• Refurbished unit fully reconditioned to OEM specifications: includes recalibrated wavelength alignment, plasma torch refurbishment, nebulizer cleaning/replacement, and comprehensive performance verification against NIST traceable standards.

Sample Compatibility & Compliance

The Optima 5300DV accommodates aqueous solutions, diluted acids (HNO₃, HCl), and low-viscosity organic solvents (e.g., kerosene, xylene) when paired with appropriate nebulization systems (e.g., Babington-type or micro-concentric). It supports direct analysis of digested environmental solids (soils, sediments), biological tissues, and pharmaceutical excipients following EPA 3050B/3052 or ISO 17294-2 protocols. All operational parameters and calibration records are structured to support GLP and GMP workflows. Data acquisition software maintains full audit trail functionality compliant with FDA 21 CFR Part 11 requirements when deployed with validated IT infrastructure and user access controls.

Software & Data Management

Instrument control and data processing are managed via WinLab32 v5.1 or later — PerkinElmer’s legacy-certified platform offering method development wizards, QC charting (X-bar/R, Levey-Jennings), and automated calibration curve fitting (linear, quadratic, or cubic). Raw spectral data (.SPE files) are stored in vendor-neutral formats compatible with third-party chemometric tools. The system supports LIMS integration via ASTM E1384-compliant ASCII export and ODBC connectivity. Full electronic record retention, user-defined permission levels, and electronic signature capability are configurable to meet ISO/IEC 17025 documentation requirements.

Applications

• Environmental labs: Quantification of regulated metals (As, Cd, Cr, Pb, Hg) in drinking water per EPA 200.7 and wastewater per ISO 11885.
• Pharmaceutical QA/QC: Elemental impurity screening in active pharmaceutical ingredients (APIs) and excipients aligned with ICH Q3D guidelines.
• Geochemical exploration: Multi-element profiling of rock digests and leachates for rare earth element (REE) and transition metal mapping.
• Food and feed testing: Monitoring toxic elements (e.g., Pb in spices, Cd in rice) and nutritional minerals (Ca, Mg, Fe, Zn) in accordance with EU Commission Regulation (EU) No 2023/1367.
• Academic and contract research: High-throughput screening of catalyst compositions, battery electrode slurries, and nanomaterial suspensions.

FAQ

Is this a factory-refurbished unit or dealer-refurbished?
This Optima 5300DV has undergone comprehensive refurbishment by an authorized PerkinElmer service partner, including full optical realignment, RF generator diagnostics, plasma interface inspection, and performance validation against certified reference materials (CRMs) such as NIST SRM 3100 series.
What consumables are included with the system?
The package includes one refurbished torch assembly, one Scott-type spray chamber, one standard concentric nebulizer, and a complete set of peristaltic pump tubing calibrated for 1.5 mL/min flow. Additional consumables (e.g., injector tubes, O-rings, argon filters) are available separately.
Does the system support axial view mode?
Yes — the 5300DV platform is equipped with hardware-level axial/radial switching capability; configuration requires proper alignment and optional axial-view optics module, which can be verified during installation qualification (IQ).
Can the instrument be validated for regulated use?
Yes — the system supports full 3Q validation (IQ/OQ/PQ) documentation packages. We provide pre-executed protocol templates aligned with ASTM E2500 and USP , along with raw test data from post-refurbishment performance qualification runs.
What level of technical support is available post-purchase?
Buyers receive 12 months of remote application support and firmware updates. On-site service contracts and extended warranty options are available through certified PerkinElmer field engineers in North America and Europe.
