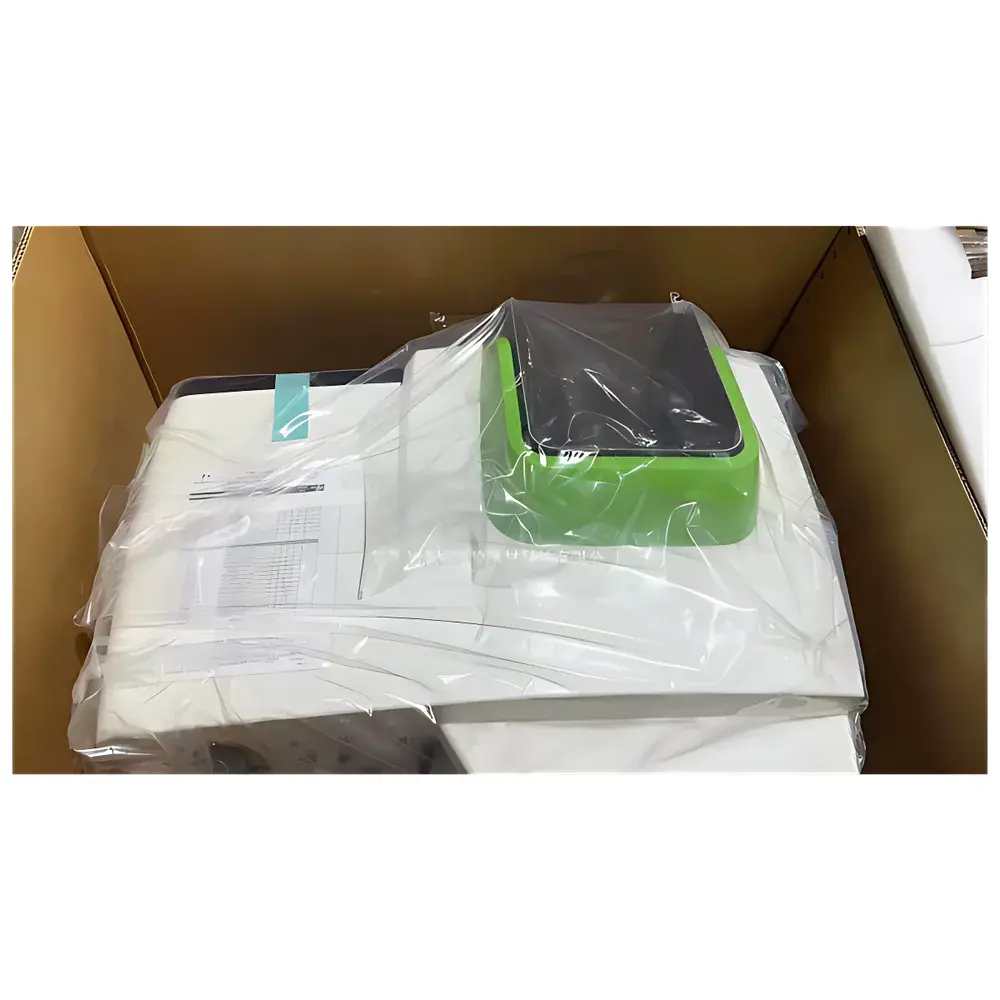

PerkinElmer PinAAcle 900 Series Atomic Absorption Spectrometer

Overview

The PerkinElmer PinAAcle 900 Series Atomic Absorption Spectrometer is a dual-mode benchtop instrument engineered for precision elemental quantification across flame atomic absorption spectroscopy (FAAS) and electrothermal atomic absorption spectroscopy (ET-AAS). Based on Beer-Lambert law–governed absorption of element-specific resonance lines—typically in the 190–900 nm UV-Vis range—the system employs high-stability hollow cathode lamps (HCLs) and electrodeless discharge lamps (EDLs) to deliver narrow-line emission profiles. Its continuum-source background correction architecture supports both deuterium and longitudinal Zeeman configurations, enabling accurate compensation for structured molecular absorption and scattering in complex matrices such as biological fluids, petrochemicals, and environmental digests. The integrated stackable design places the titanium alloy burner head directly above the transversely heated graphite furnace (THGA), minimizing optical path length and thermal drift while allowing sub-10-second mode switching—critical for laboratories requiring rapid assay turnaround without hardware reconfiguration.

Key Features

• 8-position motorized lamp turret with automatic lamp identification, pre-heating control, and real-time usage logging to ensure spectral stability and reproducibility
• Transversely heated graphite furnace with integrated TubeView color camera for real-time visual monitoring of drying, pyrolysis, and atomization stages—enabling precise method development and troubleshooting
• High-throughput autosampler compatibility with programmable sample dilution, matrix modifier addition, and platform-assisted ashing protocols
• Continuum-source background correction with selectable deuterium or longitudinal Zeeman modes—optimized for clinical, environmental, and industrial applications involving high-salt or organic-rich samples
• Compact footprint achieved via vertical integration: flame module stacked above furnace module, reducing bench space by up to 40% versus conventional side-by-side configurations
• Full compatibility with PerkinElmer’s FIAS/FIMS hydride generation and cold vapor mercury analysis systems—supporting automated As, Se, Sb, Hg, and Bi determination at sub-ppt levels in seawater, urine, blood, and soil extracts

Sample Compatibility & Compliance

The PinAAcle 900 Series accommodates direct liquid injection, solid sampling (via slurry introduction), and hydride-generating species across diverse sample types—including whole blood, serum, urine, milk powder, wine, gasoline, naphtha, edible oils, and acid-digested geological matrices. Its graphite furnace configuration implements isothermal platform technology (IPT) with integrated temperature ramping and gas flow control, ensuring uniform atomization and minimizing memory effects. Method validation aligns with ASTM D3694 (trace metals in water), ISO 8288 (nickel in ores), and USP (elemental impurities in pharmaceuticals). For regulated environments, Syngistix Enhanced Security software provides full 21 CFR Part 11 compliance—including electronic signatures, role-based access control, and immutable audit trails—meeting GLP and GMP documentation requirements for clinical diagnostics and contract testing laboratories.

Software & Data Management

Syngistix for AA is a modular, Windows-based acquisition and processing platform available in three tiers: Express (for routine QA/QC labs), Standard (with advanced calibration curve fitting, multi-element sequence programming, and QC rule enforcement), and Enhanced Security (validated for FDA-regulated workflows). All versions support automated wavelength selection, dynamic background subtraction, peak area/height integration, and customizable report templates exportable to PDF, CSV, or LIMS-compatible XML. Raw data files retain full metadata—including lamp current, slit width, integration time, furnace temperature profile, and autosampler coordinates—ensuring traceability from raw signal to final concentration. Instrument diagnostics, lamp lifetime tracking, and error-log archiving are embedded for preventive maintenance scheduling and ISO/IEC 17025 accreditation readiness.

Applications

• Clinical toxicology: Direct analysis of Pb, Cd, As, and Hg in whole blood and urine without digestion—enabled by Zeeman-corrected furnace AAS and IPT stabilization
• Foods & beverages: Quantification of Ca, Mg, Fe, Cu, Zn, and Mn in infant formula, dairy products, and alcoholic beverages using flame AAS; As and Se in rice and seafood via FIAS-HG
• Environmental monitoring: Sub-10 ppt detection of Sb and Hg in seawater using cold vapor AAS coupled with FIMS; Cr, Ni, and Co in soil leachates after microwave-assisted HNO₃/HF digestion
• Petrochemical QA: Direct determination of Na, V, Ni, and Fe in crude oil and lubricants using high-temperature flame AAS with N₂O-C₂H₂ chemistry
• Pharmaceutical quality control: Elemental impurity screening per ICH Q3D guidelines—particularly for catalyst residues (Pd, Pt, Rh) in active pharmaceutical ingredients

FAQ

Is the PinAAcle 900 Series compatible with third-party autosamplers or digestion systems?
Yes—it interfaces with standard RS-232, USB, and Ethernet ports, supporting OEM integration with Titan MPS™ microwave digesters and SPB-series block digesters. Communication protocols follow ASTM E1381 and ASTM E1482 standards.
What is the typical detection limit for arsenic using the graphite furnace configuration?
Under optimized conditions (Zeeman correction, IPT, Pd-Mg modifier), the characteristic mass (m₀) for As is ≤ 50 pg, corresponding to a practical detection limit of 0.8–1.2 ppt in aqueous standards.
Does the system support regulatory audit requirements for clinical laboratories?
When configured with Syngistix Enhanced Security software, it meets CLIA, CAP, and ISO 15189 requirements—including user authentication, change control logs, and electronic signature validation.
Can the instrument be upgraded from flame-only to flame/furnace capability post-purchase?
No—flame-only (PinAAcle 900F) and dual-mode (PinAAcle 900H) models have distinct optical and furnace module architectures; retrofitting is not supported.
What consumables require regular replacement and how often?
Graphite tubes: 200–500 firings depending on matrix; HCLs: 5,000–10,000 mAh usage; EDLs: 1,000–2,000 hours; burner heads: 12–24 months under continuous operation.
