PFA Continuous Flow Reaction Digestion Vessel with PTFE Absorption Bottle
| Brand | Nanjing Binzhenghong |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | OEM/ODM Producer |
| Origin Category | Domestic (China) |
| Model | Customizable Dimensions |
| Pricing | Upon Request |
Overview
The PFA Continuous Flow Reaction Digestion Vessel System is a high-purity, chemically inert fluid handling platform engineered for controlled gas–liquid and gas–solid reaction processes under ambient to moderately elevated pressure conditions. Designed around perfluoroalkoxy alkane (PFA) — a fluoropolymer with exceptional resistance to strong acids, bases, halogens, and aggressive solvents including anhydrous ammonia (NH₃), carbon tetrachloride (CCl₄), and hydrofluoric acid (HF) — this system enables reproducible, contamination-free absorption, digestion, and synthesis workflows in ultra-clean environments. Its core architecture follows a serial, uninterrupted flow configuration: multiple PFA absorption bottles are hydraulically coupled via seamless 1/4″ (6.35 mm) PFA tubing, eliminating dead volumes and minimizing cross-contamination risk. The system operates at a maximum working pressure of 0.3 MPa (≈43.5 psi), making it suitable for pressurized gas delivery without compromising material integrity or sealing performance.
Key Features
- Chemically inert construction: Entire wetted surfaces — including bottle bodies, caps, tubing, and fittings — fabricated from ASTM D4894-compliant PFA resin, ensuring negligible leachables and trace metal extractables (<0.1 ng/mL for Na, K, Fe, Ni, Cr)

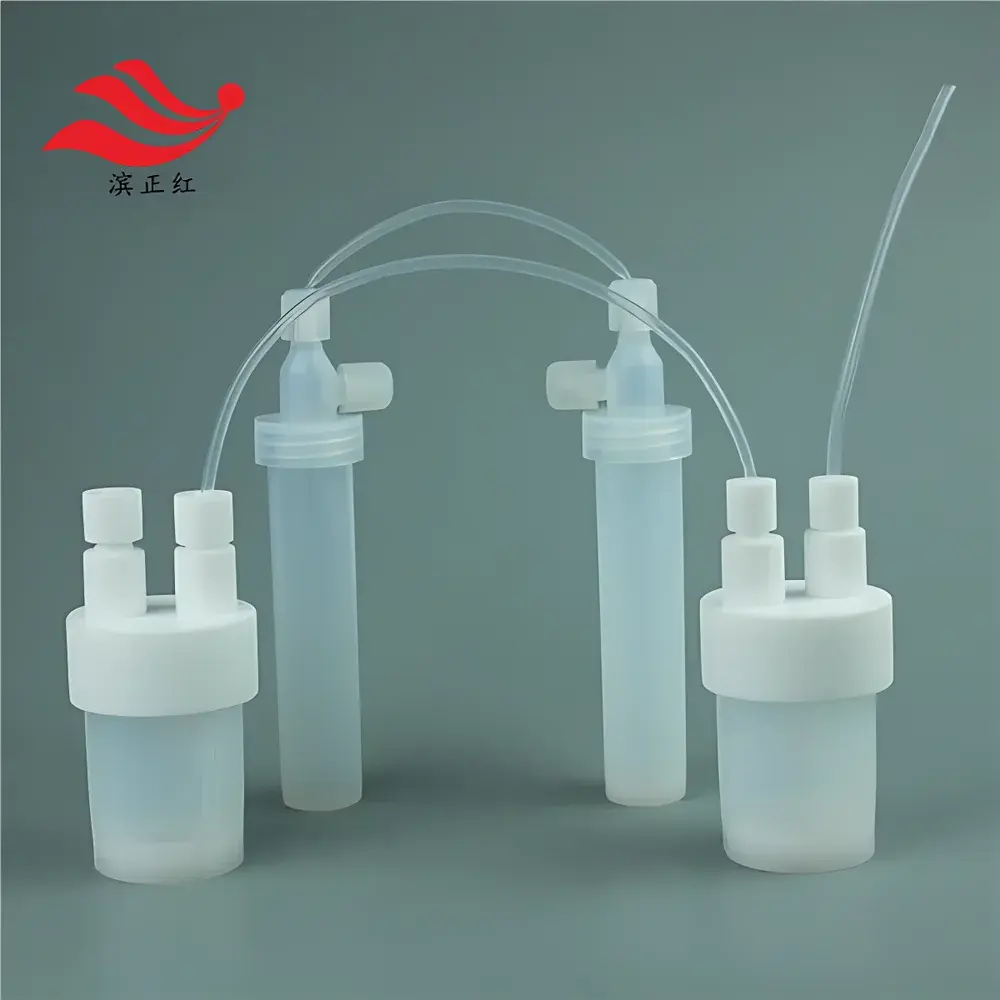

- Modular, scalable design: Standard configurations include 3-vessel串联 sets; custom arrays of up to 5 vessels (e.g., two complete 5-unit sets totaling 10 bottles) are available with consistent inter-bottle connectivity
- Dual cap interface options: (1) Threaded PTFE compression fitting with PFA nut for leak-tight sealing (tested per ISO 15848-1 Class A); (2) Direct tube penetration through pre-drilled cap for rapid assembly and inline sensor integration
- Flexible tubing compatibility: Accepts standard PFA/PTFE tubing sizes — 1/8″ (3.175 mm), 1/4″ (6.35 mm), 3×2 mm, 6×4 mm, and 8×6 mm — with smooth internal bore to prevent particle retention
- Pressure-rated sealing: O-ring–free cap design with machined PFA-to-PFA face seal; validated for continuous operation at 0.3 MPa at 25°C per ASME B31.3 process piping guidelines
Sample Compatibility & Compliance
This system is routinely deployed in semiconductor-grade photovoltaic manufacturing (e.g., SiH₄/NH₃ CVD precursor scrubbing), high-purity etchant recovery (NF₃, ClF₃), and environmental air monitoring (e.g., EPA Method TO-15 compliant VOC trapping). All components comply with SEMI F57 (specifications for fluoropolymer components in microelectronics) and meet USP Class VI biocompatibility requirements. The PFA material conforms to ASTM D4894 and FDA 21 CFR §177.1550 for repeated food-contact use — a benchmark indicating suitability for ultra-trace analytical applications where background interference must be minimized. No lubricants, adhesives, or secondary seals are used; all joints rely on cold-flow deformation of virgin PFA.
Software & Data Management
As a passive, hardware-only fluidic module, this system does not incorporate embedded electronics or firmware. It is designed for integration into larger automated platforms — such as programmable gas delivery systems (e.g., Brooks Instrument GC-200 series), mass flow controller networks, or GLP-compliant environmental test chambers. When deployed within regulated environments (e.g., ISO/IEC 17025-accredited labs or FDA-regulated cleanrooms), full traceability is maintained through vendor-provided CoA (Certificate of Analysis) documenting elemental impurity testing (ICP-MS), extractables profiling (GC-MS), and dimensional inspection reports. Batch-specific lot numbers are laser-etched on each vessel base for audit-ready identification.
Applications
- Scrubbing and neutralization of corrosive process gases (e.g., NH₃, HF, Cl₂, BF₃) in photovoltaic cell fabrication lines
- In-line absorption of volatile metal organics (e.g., trimethylindium, TMIn) during MOCVD reactor exhaust treatment
- Multi-stage gas purification for high-purity carrier gas conditioning (N₂, Ar, He) in analytical instrumentation supply chains
- Controlled hydrolysis or fluorination reactions involving moisture-sensitive reagents under inert atmosphere
- Environmental stack emission sampling per ISO 10871 and EPA Method 26A for halogenated compound quantification
FAQ
What pressure rating is certified for continuous operation?
The system is validated for uninterrupted service at 0.3 MPa (43.5 psi) at 25°C; derating is recommended above 80°C.
Can I integrate temperature sensors or pressure transducers directly into the vessel array?
Yes — the direct-tube-penetration cap option allows for flush-mounting of miniature Pt100 RTDs or piezoresistive pressure taps without compromising seal integrity.
Is post-manufacturing cleaning required before first use?
No — all units undergo ultrasonic cleaning in ASTM E2656-certified Class 100 cleanroom conditions and are double-bagged in nitrogen-purged LDPE with Certificate of Cleanliness.
Do you provide dimensional drawings and material certifications?
Yes — CAD files (STEP/IGES), ASTM D4894 compliance statements, and ICP-MS elemental test reports are supplied with every order.
Are replacement caps and tubing available as spare parts?
Yes — all consumables (caps, tubing, compression nuts, and O-rings for hybrid configurations) are stocked and shipped with serialized lot traceability.
