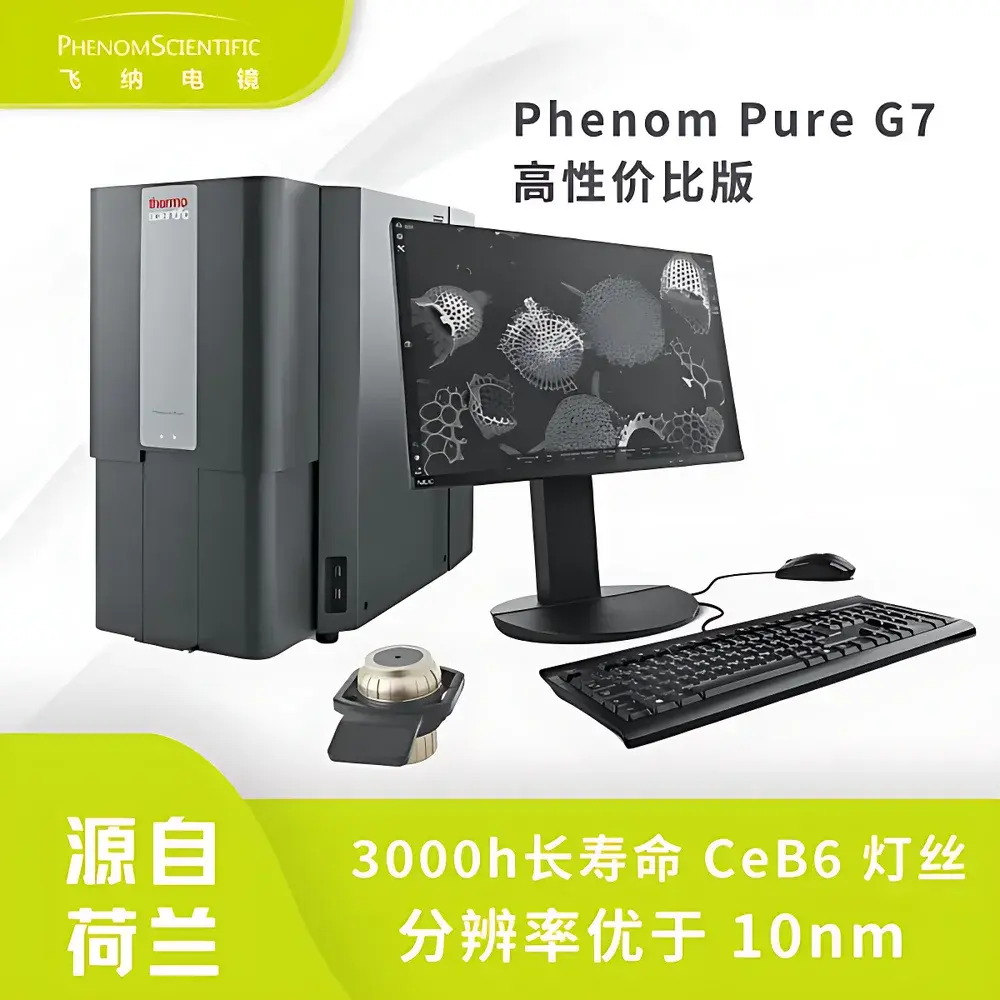

Phenom Pure G7 Desktop Scanning Electron Microscope

Overview

The Phenom Pure G7 is a fully integrated, benchtop scanning electron microscope engineered for precision, speed, and operational simplicity in industrial quality control, academic teaching, and applied R&D environments. Unlike conventional floor-standing SEMs requiring dedicated shielded rooms and extensive infrastructure, the Pure G7 employs a robust CeB₆ thermionic electron source operating at low vacuum-compatible conditions—enabling high-resolution imaging without cryogenic pumping or ultra-high vacuum systems. Its core measurement principle relies on raster-scanned electron beam interaction with solid samples, generating backscattered electrons (BSE) for compositional contrast and topographic signal separation, while optional secondary electron detection enhances surface texture fidelity. With sub-10 nm resolution at 10 kV and real-time optical navigation via integrated color CCD, the system delivers quantitative morphological data directly applicable to ISO 13322-1 (particle size and shape analysis), ASTM E1245 (metallographic inclusion rating), and USP (microscopic evaluation of pharmaceutical particulates).

Key Features

• High-brightness CeB₆ electron source with >3,000 hours lifetime—reducing consumable cost and downtime versus tungsten or field-emission alternatives
• Ultra-fast vacuum cycle: <15 seconds to operational pressure; full BSE image acquisition within 30 seconds from sample insertion
• Intelligent automation suite: auto-focus, auto-stigmator, beam alignment, and optical-to-electron coordinate registration—all executed without user intervention
• Benchtop mechanical architecture featuring active magnetic shielding and passive vibration isolation—certified for stable operation on upper-floor laboratories, production line benches, and mobile platforms
• Motorized 5-axis stage (X/Y/Z/tilt/rotation) controlled via intuitive touchscreen interface—no prior SEM expertise required
• Modular upgrade path: seamless hardware/software integration to Phenom Pro (enhanced SE imaging) or Phenom ProX (integrated energy-dispersive X-ray spectroscopy)

Sample Compatibility & Compliance

The Phenom Pure G7 accommodates conductive and non-conductive samples up to 100 mm in diameter and 50 mm in height. Standard workflow includes carbon or gold sputter coating for insulating specimens—a process validated under ISO 16700 for coating uniformity and artifact minimization. The system complies with IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity to industrial electromagnetic interference), ensuring reliable function in factory-floor settings. All image metadata—including kV, dwell time, magnification, detector mode, and stage coordinates—is embedded in TIFF headers per EXIF 2.3 specification, supporting audit-ready documentation for GLP/GMP-regulated labs.

Software & Data Management

Acquisition and analysis are managed through Phenom Desktop Software v5.x, a Windows-based platform compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. It provides role-based user accounts, audit trail logging, and encrypted local storage. Image processing includes particle analysis (size distribution, aspect ratio, circularity), fiber length quantification (ISO 13322-2), and 3D surface reconstruction from tilt-series BSE data. An open PPI (Phenom Programming Interface) enables third-party integration with LIMS, MES, and Python-based machine learning pipelines—supporting automated defect classification in semiconductor wafer inspection or battery cathode morphology screening.

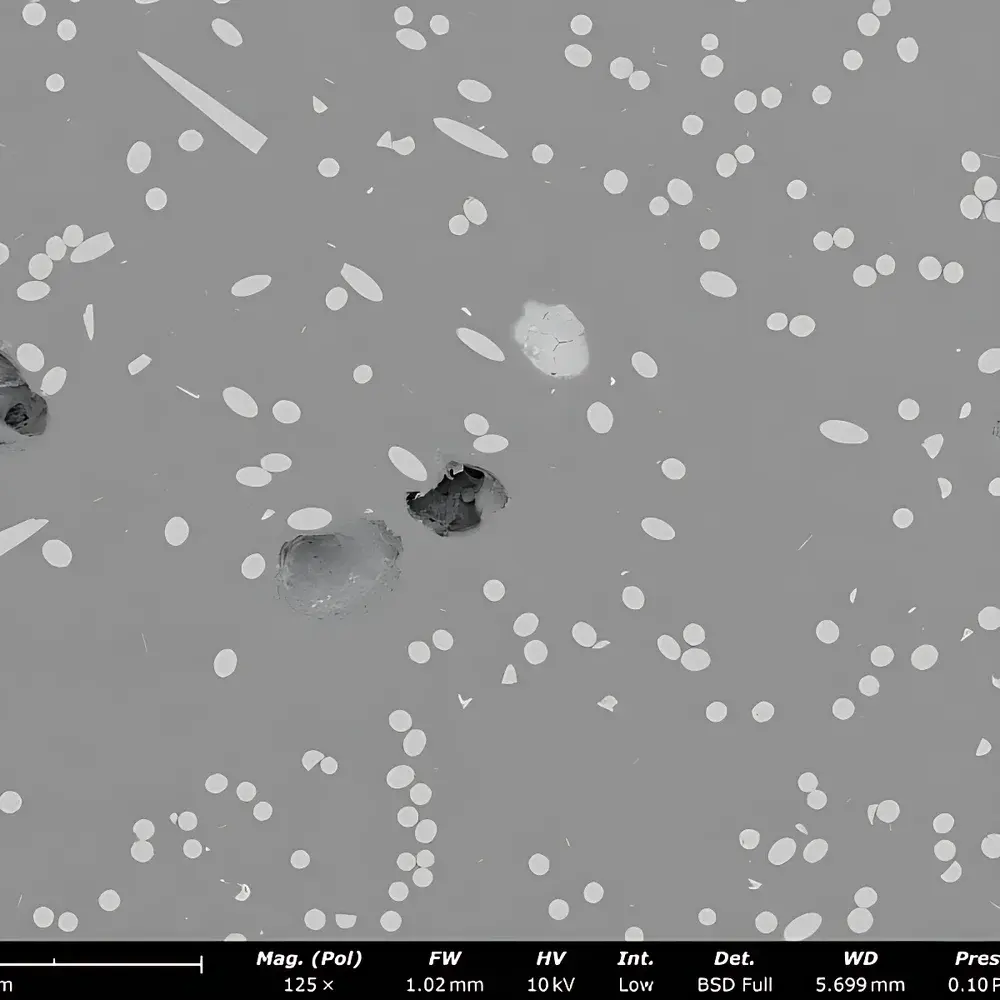

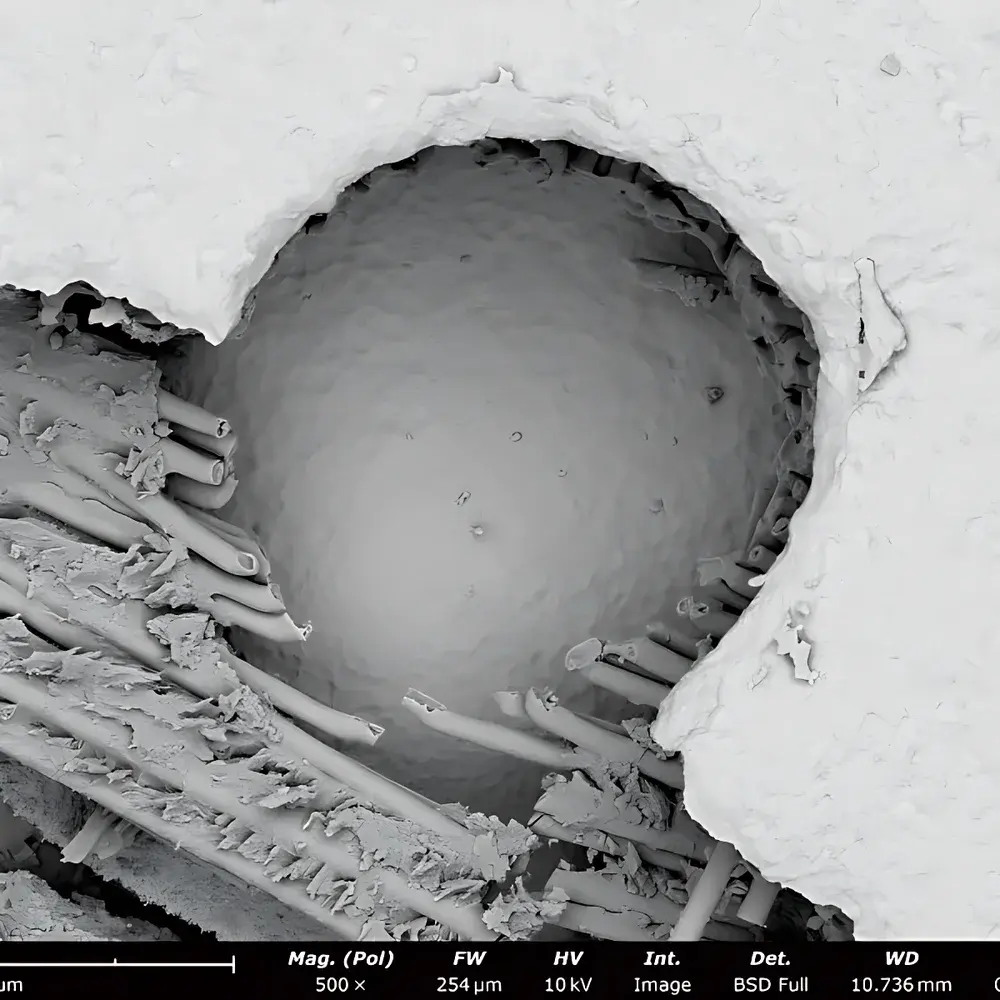

Applications

• Materials science: grain boundary mapping in sintered ceramics, pore network characterization in catalyst supports
• Electronics: solder joint integrity verification, PCB trace inspection, MEMS device metrology
• Battery R&D: anode/cathode particle cracking assessment, SEI layer thickness estimation (cross-section mode)
• Life sciences: pollen morphology, diatom taxonomy, tissue scaffold porosity validation
• Forensics & geology: gunshot residue identification, mineral phase differentiation in thin sections
• Quality assurance: incoming raw material screening, coating adhesion failure root cause analysis

FAQ

What vacuum level does the Phenom Pure G7 achieve?
The system operates at a final pressure of ~1 × 10⁻¹ Pa using a turbomolecular pump—sufficient for stable CeB₆ emission and high signal-to-noise BSE imaging without requiring differential pumping stages.
Can the Pure G7 perform elemental analysis?
Not natively—but it supports full mechanical and software integration with Oxford Instruments or EDAX EDS detectors as part of the ProX upgrade path, enabling quantitative ZAF-corrected composition mapping per ISO 14704.
Is remote diagnostics supported?
Yes—the instrument includes embedded Ethernet connectivity and secure TLS-encrypted remote access for firmware updates, calibration validation, and predictive maintenance alerts.
How is sample charging mitigated for non-conductive materials?
Through low-kV imaging (2–5 kV), charge compensation via gas injection option (not standard on Pure G7), and optimized BSE detector geometry that maximizes signal yield before charge buildup occurs.
Does the system meet regulatory requirements for pharmaceutical QA?
Yes—when deployed with Part 11-compliant configuration (audit trail enabled, electronic signature workflow, and locked user permissions), it satisfies documentation traceability expectations outlined in EU Annex 11 and USP .
