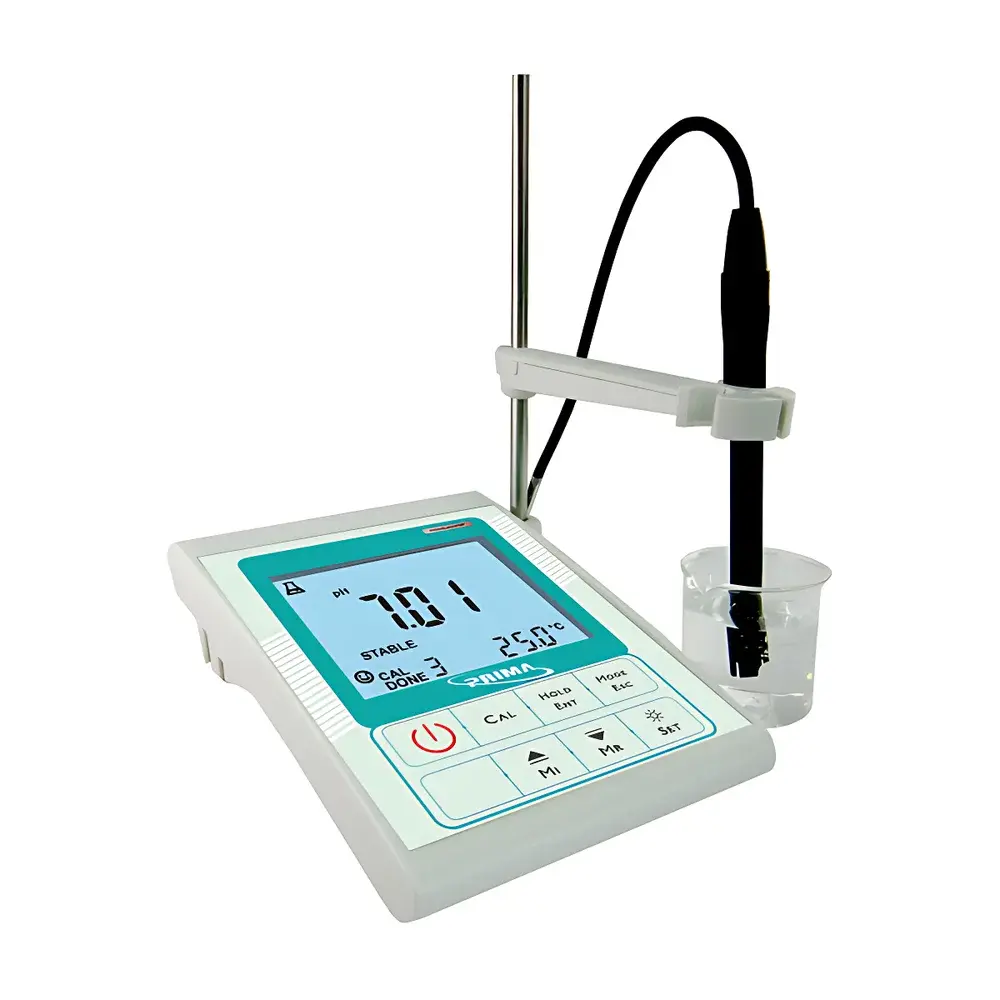

PRIMA innoLab 20P Benchtop pH and ORP Analyzer

Overview

The PRIMA innoLab 20P is a precision-engineered benchtop pH and oxidation-reduction potential (ORP) analyzer designed for routine water quality assessment in environmental laboratories, municipal water treatment facilities, aquaculture operations, and academic research settings. It operates on the principle of potentiometric measurement: pH is determined via the Nernst equation using a glass electrode system, while ORP is measured as the open-circuit potential difference (in millivolts) between a noble metal indicator electrode (e.g., platinum or gold) and a stable reference electrode (typically Ag/AgCl). The instrument features a robust, chemically resistant housing rated IP54—ensuring protection against dust ingress and water splashes during daily lab use. Its compact footprint (150 × 194 × 56 mm) and lightweight design (1.0 kg) allow flexible placement on laboratory benches without requiring dedicated mounting infrastructure.

Key Features

• Large 100 × 74 mm monochrome LCD display with adjustable backlight—optimized for readability under varied ambient lighting conditions.
• Multi-point calibration support (up to 5 points) compliant with both NIST and USA standard buffer series, enabling high reproducibility across the full pH range (–2.00 to 16.00).
• Intelligent temperature compensation: automatic (ATC) when a compatible temperature probe is connected; seamless fallback to manual temperature input (MTC mode) if no sensor signal is detected.
• Ergonomic, tool-free electrode holder with fully adjustable tilt angle—facilitating precise immersion depth control and minimizing mechanical stress on fragile pH electrodes.
• Integrated rechargeable lithium-ion battery powered via standard USB interface (5 V DC), eliminating dependency on AC mains during field-deployable benchtop operation.
• HOLD function for stable reading capture; USB communication port supporting data export to PC-based spreadsheet or LIMS software without proprietary drivers.

Sample Compatibility & Compliance

The innoLab 20P is validated for aqueous samples across diverse matrices—including raw surface water, drinking water, wastewater effluents, cooling tower fluids, and hydroponic nutrient solutions. It supports interchangeable electrode configurations: standard combination pH electrodes (BNC connector), antimony-based pH sensors for HF-containing or low-ionic-strength samples, and dedicated ORP electrodes with platinum or gold sensing elements. While not certified for regulatory submission under ISO/IEC 17025, its calibration traceability aligns with ASTM D1293 (Standard Test Method for pH of Water) and EPA Method 150.1. The device meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (EN 61010-1), and its IP54 rating satisfies typical GLP laboratory environmental specifications for non-hazardous areas.

Software & Data Management

Data acquisition and archival are handled through direct USB serial communication using industry-standard ASCII protocol. No proprietary software installation is required: exported readings (pH, ORP, temperature, timestamp) populate CSV-compatible files readable by Excel, LabArchives, or ELN platforms. Each stored record includes user-defined sample ID, calibration status flag, and electrode identification metadata. The 100-entry internal memory retains values with time/date stamps—even during power interruption—supporting basic audit trail functionality. For laboratories operating under FDA 21 CFR Part 11 requirements, external validation of the USB data transfer workflow and procedural documentation of calibration logs remain the responsibility of the end user.

Applications

• Monitoring pH stability in wastewater neutralization tanks prior to discharge compliance verification.
• Tracking ORP shifts during chlorine disinfection processes in potable water distribution systems.
• Validating buffer capacity and acid-base titration endpoints in environmental chemistry teaching labs.
• Assessing corrosion potential in industrial cooling water circuits via continuous ORP trending.
• Supporting ISO 5667-3-compliant sampling protocols where field-deployable benchtop accuracy is preferred over handheld limitations.

FAQ

Does the innoLab 20P support GLP-compliant calibration logging?
It stores calibration date, buffer values used, and slope/mV offset—but does not generate electronic signatures or enforce user authentication. Full GLP compliance requires supplemental procedural controls.
Can I use this analyzer with non-aqueous solvents?
No. It is validated exclusively for aqueous-phase measurements per manufacturer specifications and electrode compatibility guidelines.
Is the USB interface compatible with macOS and Linux systems?
Yes—when configured as a CDC ACM virtual COM port, it enumerates as a standard serial device on modern kernels without additional drivers.
What is the expected service life of the internal battery?
Rated for ≥500 charge cycles under normal usage; capacity retention remains >80% after two years of typical intermittent operation.
How often should the pH electrode be recalibrated?
Daily calibration is recommended for critical applications; otherwise, verify before each analytical session using at least two standard buffers bracketing the expected sample pH.
