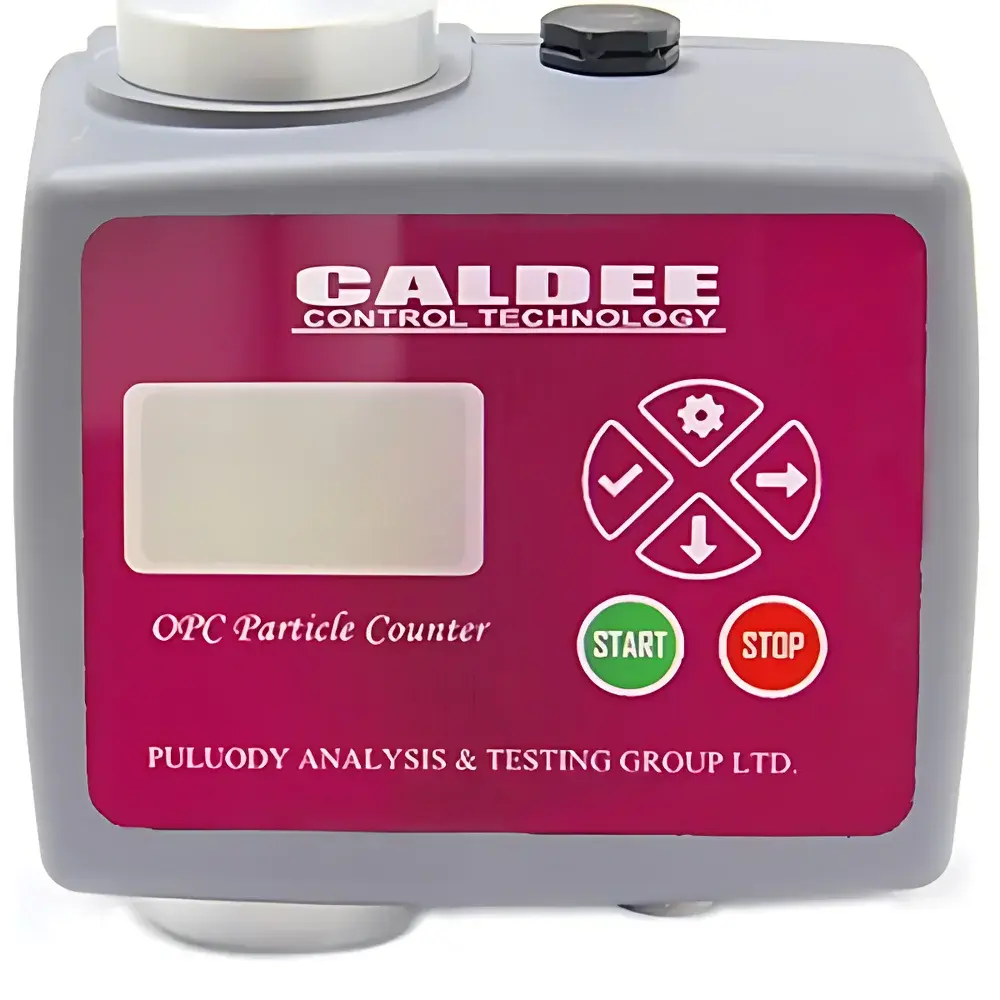

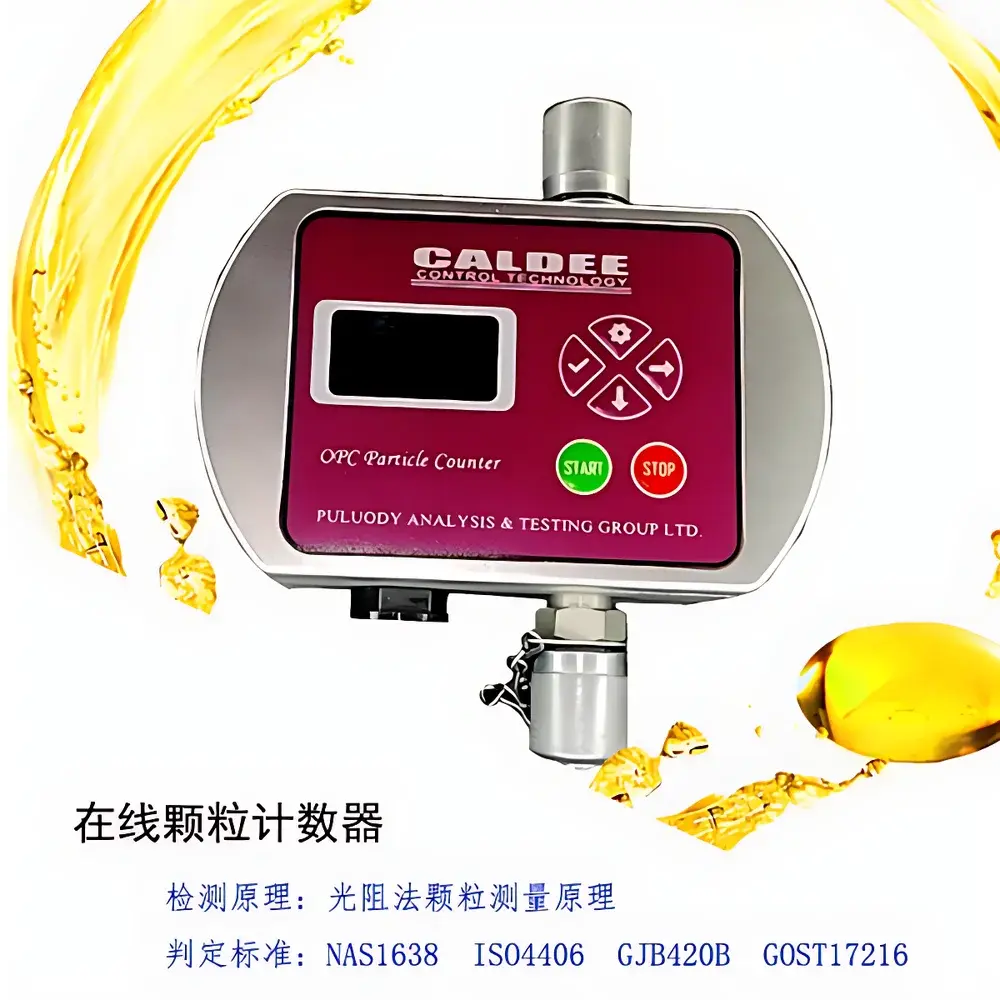

PULUODY OPC Economy Edition Online Oil Particle Monitor

Overview

The PULUODY OPC Economy Edition Online Oil Particle Monitor is an industrial-grade, real-time fluid contamination monitoring system engineered for continuous in-line measurement of particulate contamination in hydraulic oils, lubricants, turbine oils, and other mineral- or synthetic-based working fluids. Based on the seventh-generation dual-laser narrow-beam light scattering detection principle—originally developed by PULUODY Analytical Testing Group (UK)—this instrument delivers high reproducibility and long-term stability under dynamic process conditions. Unlike laboratory-based offline particle counters, the OPC Economy Edition integrates directly into pressurized hydraulic circuits without requiring bypass loops or sample extraction. It operates continuously during equipment runtime, enabling proactive condition-based maintenance through real-time particle concentration trending (particles/mL) and automated contamination grade classification per internationally recognized standards. Its compact, modular architecture supports direct mounting on hydraulic manifolds, test benches, filtration validation rigs, and offshore platform control systems, making it suitable for both OEM integration and retrofitted monitoring applications.

Key Features

• True online operation with continuous sampling at flow rates from 15 to 500 mL/min—no manual sampling or downtime required
• Dual-laser optical sensing system optimized for high signal-to-noise ratio across 1–150 µm particle size range, with eight user-configurable detection channels
• Integrated pressure handling: rated for 0–1.0 MPa continuous operation; optional built-in pressure reducer extends operational range to 31.5 MPa for high-pressure servo and aerospace hydraulics
• Ruggedized IP65 enclosure with thermal and EMI resilience—certified for ambient temperatures from −10 °C to +80 °C and compatible with vibration-prone environments including marine drilling platforms and mobile construction machinery
• Multi-standard compliance engine: automatic grade assignment per NAS 1638 (00–12), ISO 4406 (00–28), GJB 420B (00–12), GOST 17216 (00–17), and 12 additional national and industry-specific standards
• Flexible analog and digital output: configurable RS232/RS485 serial interface, 4–20 mA current loop, or 0–5 V voltage output—designed for seamless integration with DCS, PLC, SCADA, and local panel displays
• On-device alarm logic with programmable thresholds for instantaneous exceedance notification, supporting predictive maintenance workflows

Sample Compatibility & Compliance

The OPC Economy Edition is validated for use with mineral oils, phosphate esters, polyol esters, synthetic hydrocarbons, and water-glycol fluids within a viscosity range of 0–500 cSt. It complies with ISO 11171:2010 calibration traceability requirements when used with NIST-traceable reference particles. Instrument performance meets the repeatability and resolution criteria specified in ISO 4402 and ASTM D6786 for particle counting instrumentation. All firmware and reporting modules support audit-ready data logging compliant with GLP and GMP principles. While not FDA 21 CFR Part 11-certified out-of-the-box, the system provides timestamped, non-editable raw count logs and exportable CSV reports suitable for regulated environments where electronic records are subject to internal validation protocols.

Software & Data Management

The embedded firmware includes an integrated, menu-driven interface accessible via local keypad or remote serial command set. No external PC is required for basic operation, calibration verification, or report generation. Standard outputs include real-time particle counts per channel (particles/mL), cumulative and differential histograms, and ISO/NAS/GJB contamination grades updated every 10 seconds. Optional PC-based software (PULUODY ParticleView™) enables advanced trend analysis, multi-instrument fleet monitoring, automated PDF report generation, and database archiving compatible with SQL Server and Oracle backends. All stored data includes operator ID, timestamp, temperature, pressure, and flow rate metadata—ensuring full traceability for ISO 9001 and AS9100 quality audits.

Applications

• Real-time wear debris monitoring in military vehicle hydraulic systems and naval propulsion units
• Condition-based maintenance for excavators, cranes, tunnel boring machines, and other heavy construction equipment
• Filtration efficiency testing of hydraulic filter elements per ISO 16889 and ISO 4572
• Contamination control in power plant turbine lube oil systems and wind turbine gearboxes
• Validation of cleanliness levels in aerospace hydraulic test benches (per MIL-STD-1246D Class 100 or Class 300)
• Offshore oil & gas platform hydraulic integrity assurance, especially in subsea control systems
• Quality assurance during bulk oil delivery and storage tank commissioning

FAQ

Is the OPC Economy Edition calibrated to ISO 11171:2010?

Yes—the optical detection module is factory-calibrated using NIST-traceable polystyrene latex (PSL) reference particles per ISO 11171:2010. A calibration certificate with uncertainty budget is supplied with each unit.

Can the instrument be installed directly into a 30 MPa hydraulic circuit?

Yes—when equipped with the optional integrated pressure reducer, the unit maintains full measurement accuracy and sensor protection at pressures up to 31.5 MPa.

Does it support third-party calibration verification?

Yes—its standardized analog/digital outputs and documented transfer function allow independent verification by accredited metrology laboratories per ISO/IEC 17025.

What maintenance is required during normal operation?

No consumables or routine optical cleaning is required. Annual verification against certified reference samples is recommended per ISO 4406 Annex B guidelines.

Is firmware upgrade supported remotely?

Yes—firmware updates are delivered via secure USB flash drive or serial upload using PULUODY’s authenticated update protocol. Version history and changelogs are provided in each release package.
