QATM Qmount UV Curing Mounting Press

Overview

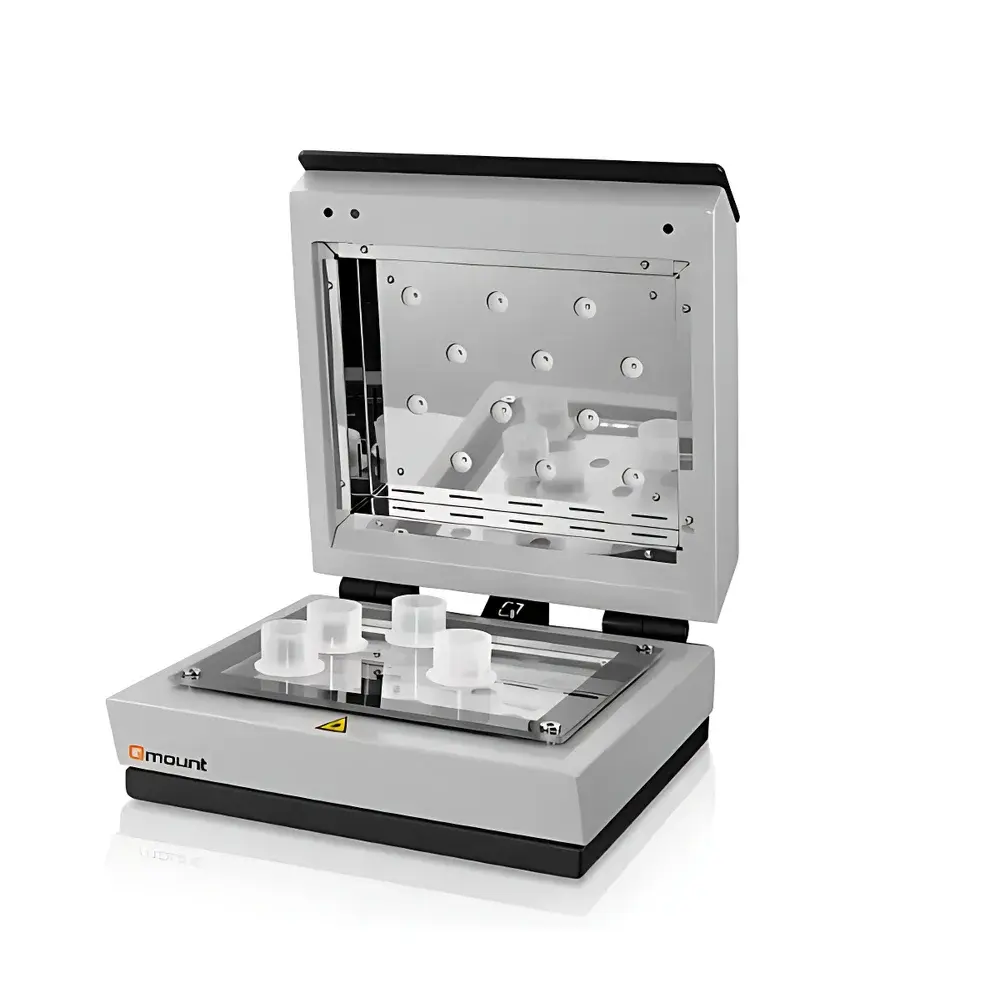

The QATM Qmount is a precision-engineered UV curing mounting press designed for rapid, reproducible encapsulation of metallographic and material science specimens. Unlike conventional thermosetting hot-mounting systems relying on heat and pressure alone, the Qmount integrates high-intensity, narrow-band 365 nm ultraviolet LED illumination with controlled thermal polymerization—enabling dual-mode crosslinking of proprietary UV-curable acrylic and epoxy resins. This hybrid approach significantly reduces cycle time while preserving microstructural integrity, minimizing thermal distortion, and eliminating volatile organic emissions typical of phenolic or diallyl phthalate (DAP) resins. The system operates under ambient pressure and does not require hydraulic or pneumatic infrastructure, making it suitable for ISO 17025-accredited laboratories, QC environments compliant with ASTM E3, ISO 14688-1, and EN 1504-3, and research facilities requiring GLP-aligned sample preparation traceability.

Key Features

• High-efficiency 365 nm UV-LED array with uniform irradiance distribution across the full 200 × 260 mm platen—engineered for consistent photopolymerization without hotspots or edge attenuation.
• Adjustable curing duration (0–100 minutes) and programmable temperature ramp profiles (70–90 °C), enabling optimization for diverse resin chemistries including low-shrinkage acrylics, high-fill composites, and conductive matrix formulations.
• Robust all-metal chassis with integrated thermal insulation and passive cooling architecture—ensuring stable long-term operation and compliance with IEC 61000-6-2 electromagnetic immunity standards.
• Ergonomic front-loading design with transparent polycarbonate safety shield and interlocked door mechanism meeting EN 60204-1 machinery safety requirements.
• Modular vacuum interface (ISO-KF 25 compatible) for optional connection to laboratory fume extraction systems—reducing operator exposure to uncured monomer vapors and supporting OSHA 1910.1200 hazard communication compliance.
• LED light source rated for >20,000 hours L70 lifetime—eliminating routine lamp replacement and associated calibration drift common in mercury-vapor UV sources.

Sample Compatibility & Compliance

The Qmount accommodates specimens up to 40 mm in height and 200 × 260 mm in footprint—including irregularly shaped castings, sintered ceramics, electronic substrates, geological thin sections, and multi-material assemblies. Its open-die configuration supports both standard metallographic molds (e.g., 25 mm, 30 mm, 40 mm diameter) and custom silicone or aluminum tooling. All contact surfaces are electropolished stainless steel (AISI 316L), resistant to resin adhesion and compatible with solvent-based cleaning protocols per ASTM D4290. The system meets CE marking requirements under the Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. Optional audit-trail logging (via external USB data logger) supports 21 CFR Part 11 readiness when paired with validated software interfaces.

Software & Data Management

While the Qmount operates via intuitive tactile controls and an embedded OLED status display, it supports digital integration through RS-232 and USB-C ports. Firmware updates and parameter backup are performed using QATM’s QSoft Mount Suite (v3.2+), a Windows-based utility that enables recipe storage, cycle timestamping, operator ID tagging, and export of CSV-formatted process logs—including real-time UV intensity monitoring (via optional calibrated sensor add-on), temperature ramp profiles, and door-open/close events. All exported data conforms to ASTM E2919-22 guidelines for digital records in materials testing laboratories.

Applications

• Routine metallographic preparation for optical and electron microscopy (SEM/EDS, TEM lamella prepping).
• Encapsulation of fragile or porous samples—e.g., additive-manufactured alloys, battery electrode cross-sections, fiber-reinforced polymers—where thermal stress must be minimized.
• Embedding of coated or plated components prior to cross-sectional analysis per ISO 20455 and ASTM B571.
• Preparation of wear-test specimens for ASTM G133 or ISO 7148-2 tribological evaluation.
• Geotechnical specimen stabilization for triaxial or direct shear testing where binder migration must be avoided.

FAQ

Is the Qmount compatible with non-QATM branded UV resins?
Yes—provided the resin formulation is optimized for 365 nm excitation and exhibits sufficient thermal stability within the 70–90 °C operating window. Viscosity and inhibitor content should be verified against QATM Technical Bulletin TB-MT-08.
Does the system require water cooling or compressed air?
No. The Qmount is air-cooled and self-contained; no external utilities beyond standard AC power are required.
Can multiple samples be mounted simultaneously?
Yes—up to six standard 30 mm diameter specimens can be processed concurrently in a single cycle, provided total footprint remains within 200 × 260 mm and height does not exceed 40 mm.
What safety certifications does the Qmount hold?
CE-marked per Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, and RoHS 2011/65/EU. Full test reports available upon request from QATM’s Technical Documentation Center.
Is remote monitoring or Ethernet connectivity supported?
Not natively—but third-party industrial IoT gateways (e.g., Siemens Desigo CC, Ignition SCADA) may interface via RS-232 using Modbus RTU protocol (register map available under NDA).
