Qioptiq iFLEX-IRIS 488 nm Single-Mode Diode Laser System
| Brand | Qioptiq |
|---|---|
| Origin | United Kingdom |
| Model | iFLEX-IRIS 488 nm |
| Output Power | 25 mW |
| Beam Diameter (at aperture) | 0.7 mm |
| Beam Divergence | Diffraction-limited |
| Spatial Mode | TEM₀₀, M² < 1.1 |
| Power Stability (8 h) | < 0.5 % RMS |
| Intensity Noise | < 0.05 % RMS (20 Hz – 20 MHz) |
| Polarization Ratio | >200:1 (Vertical ±2°) |
| Pointing Stability | <1 µrad/°C |

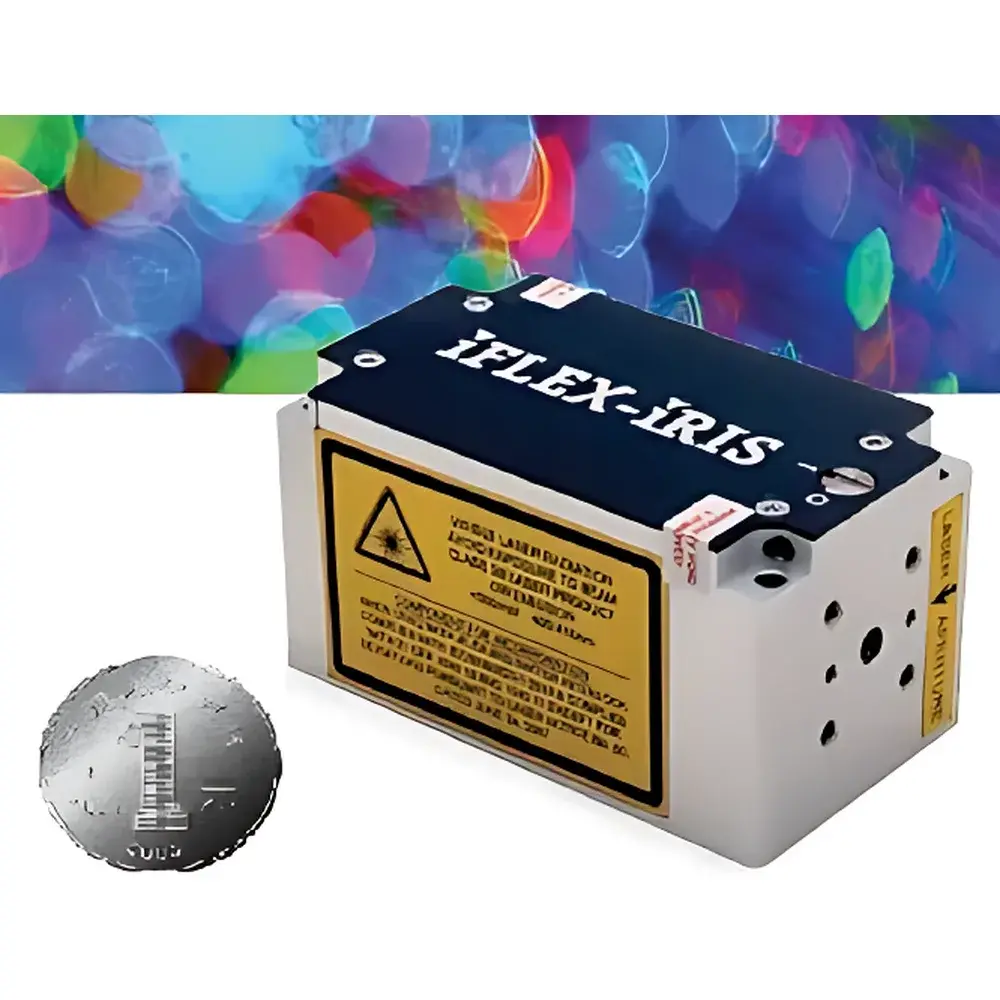

| Dimensions | 70 mm × 40 mm × 38 mm |

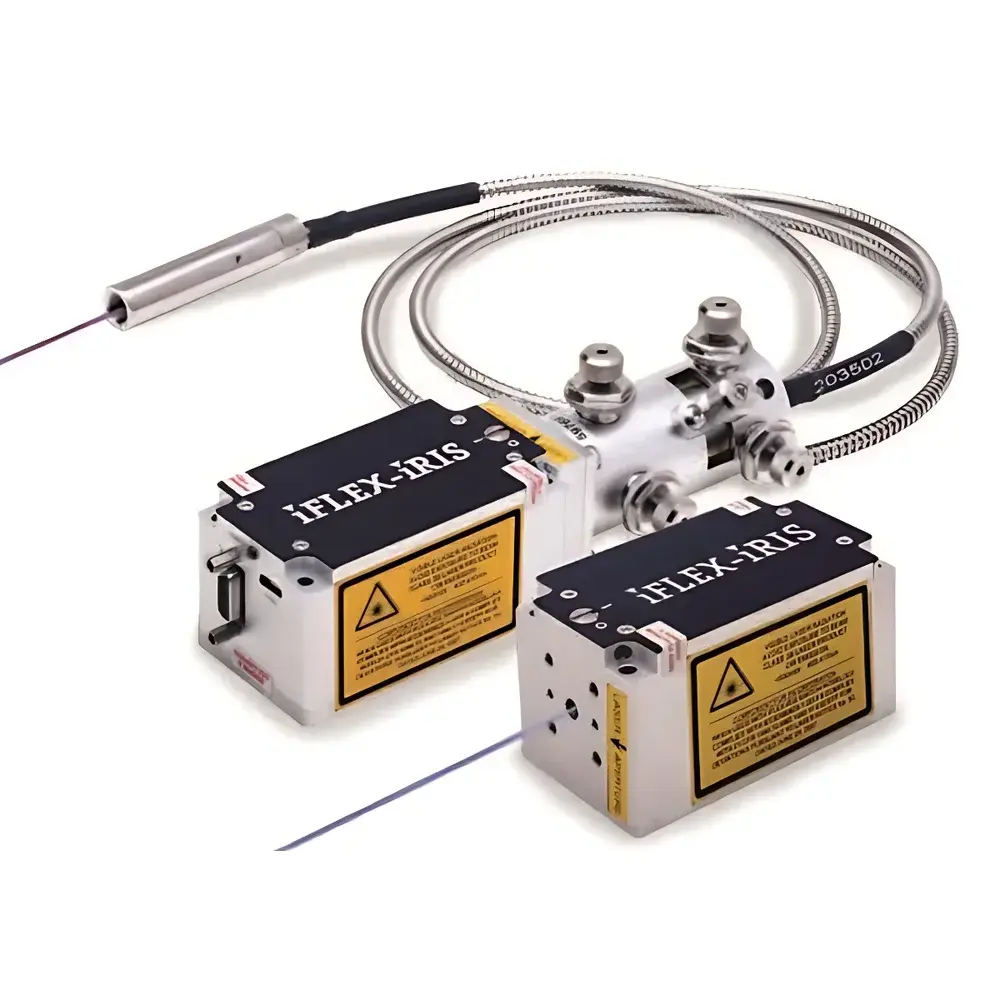

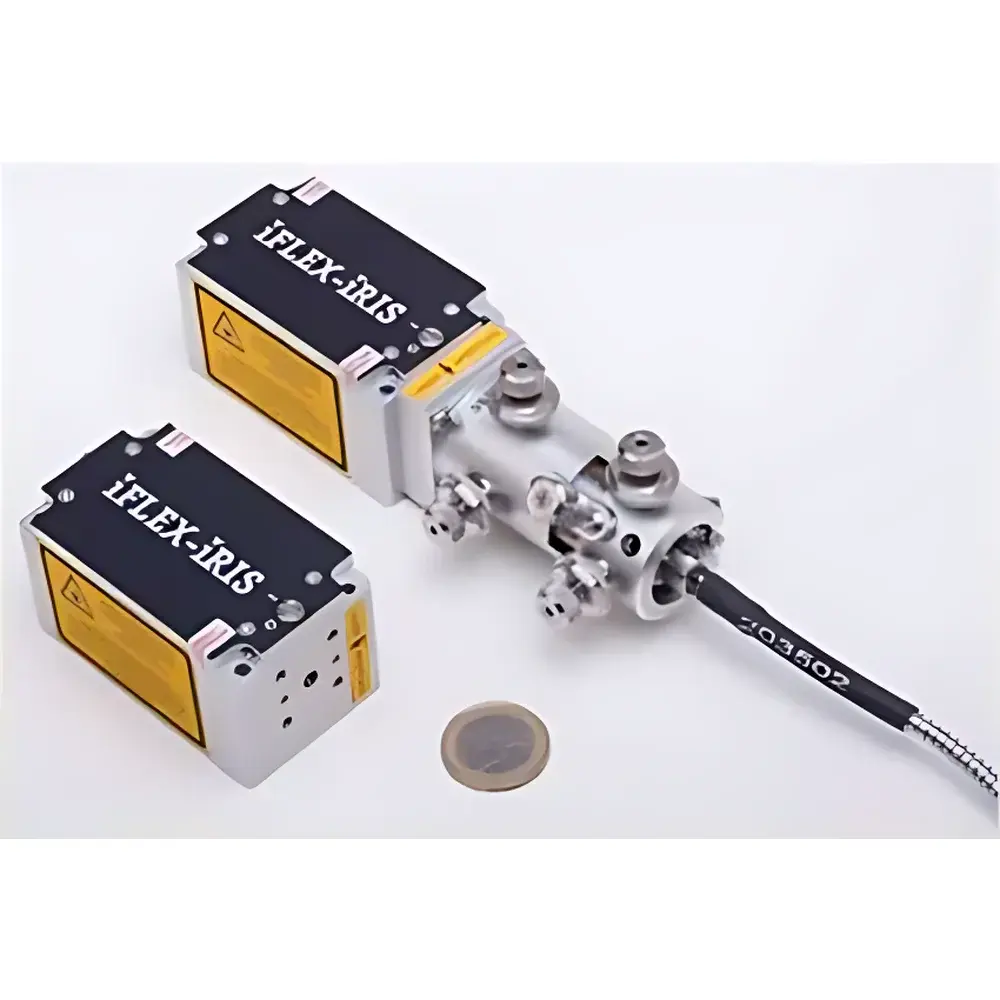

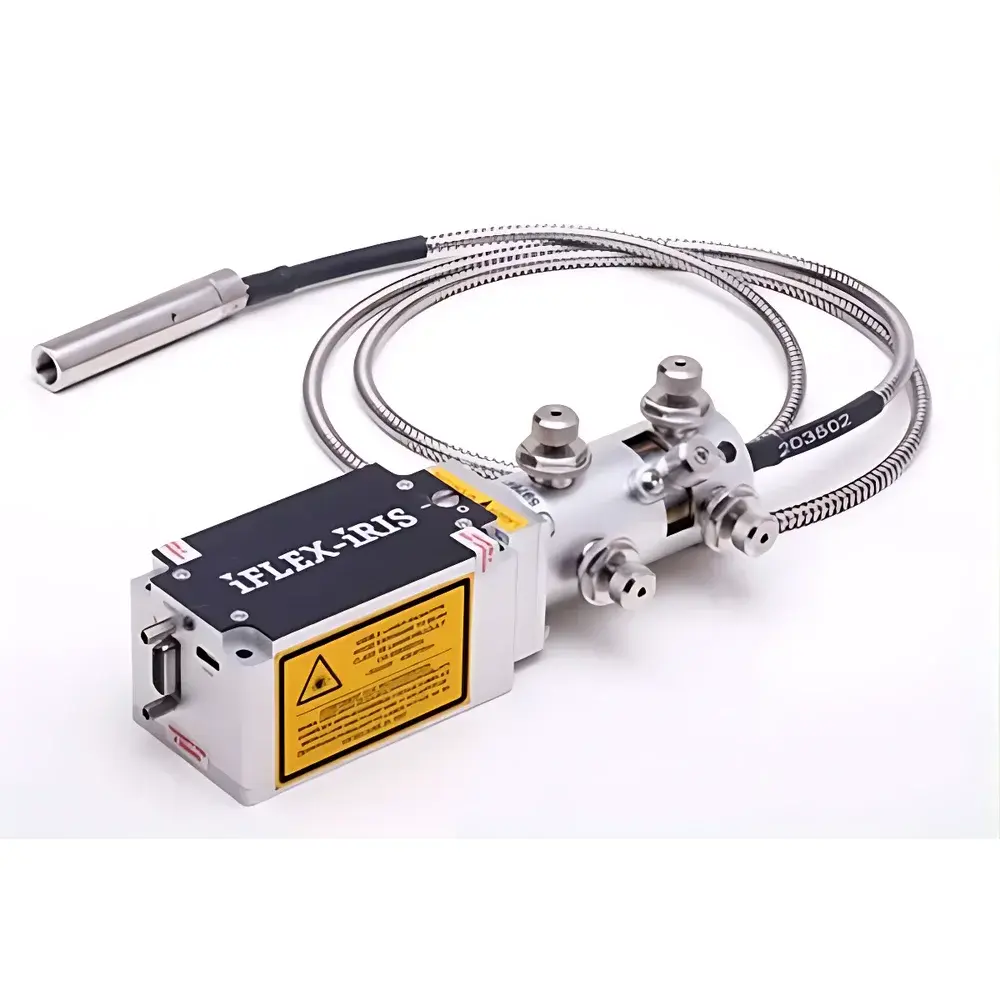

| Output | Collimated free-space beam or single-mode polarization-maintaining fiber-coupled option |
| Cooling | Active temperature control with CLM (Controlled Laser Mode) technology |
| Customization | Adjustable output power, circular or shaped beam profile available |
Overview
The Qioptiq iFLEX-IRIS 488 nm laser is a high-performance, compact diode-based laser system engineered for demanding optical instrumentation applications requiring exceptional beam quality, long-term power stability, and low-intensity noise. Operating at the critical 488 nm wavelength—widely adopted in fluorescence excitation, confocal microscopy, flow cytometry, and dynamic light scattering—the iFLEX-IRIS leverages Controlled Laser Mode (CLM) technology combined with precision active thermal regulation to deliver true single-transverse-mode (TEM₀₀) output with M² < 1.1. Unlike standard semiconductor lasers, this system eliminates mode-hopping and thermal drift through real-time thermal feedback control, ensuring diffraction-limited beam divergence and sub-microradian pointing stability (<1 µrad/°C). Its robust mechanical architecture and hermetically sealed optomechanical design support integration into OEM instruments where space, reliability, and regulatory compliance are paramount.
Key Features
- Stable TEM₀₀ output at 488 nm with M² < 1.1 and diffraction-limited divergence
- Low-intensity noise: <0.05 % RMS over 20 Hz–20 MHz bandwidth
- High power stability: <0.5 % RMS over 8-hour continuous operation
- Polarization purity >200:1 (vertical orientation, ±2° tolerance)
- Compact footprint: 70 mm × 40 mm × 38 mm—designed for embedded integration
- Active thermal stabilization with CLM technology for mode and wavelength consistency
- Flexible delivery options: collimated free-space beam (0.7 mm diameter) or single-mode polarization-maintaining fiber coupling
- Factory-configurable output power and beam profile (circular or tailored intensity distribution)
Sample Compatibility & Compliance
The iFLEX-IRIS 488 nm laser meets essential requirements for use in regulated life science and analytical instrumentation environments. Its stable, low-noise output supports quantitative measurement protocols aligned with ISO/IEC 17025–compliant calibration workflows. When integrated into flow cytometers or confocal platforms, the laser’s polarization fidelity and pointing stability contribute to reproducible signal-to-noise ratios required under FDA 21 CFR Part 11–governed data integrity frameworks. The system complies with IEC 60825-1:2014 Class 3B laser safety standards and carries CE marking for EMC (EN 61326-1) and low-voltage directive (LVD) conformity. No hazardous substances are used in manufacturing per RoHS Directive 2011/65/EU.
Software & Data Management
While the iFLEX-IRIS operates as a standalone analog-controlled laser source, it is fully compatible with industry-standard TTL and analog modulation interfaces (0–5 V input for power adjustment). For traceable instrument qualification, Qioptiq provides detailed factory test reports—including power vs. time logs, beam profiling (ISO 11146), and polarization characterization—delivered in PDF and CSV formats. When integrated into larger systems, its analog control interface enables synchronization with acquisition hardware (e.g., NI DAQ, Thorlabs Kinesis) for automated power ramping, shutter gating, or closed-loop intensity stabilization. Audit trails for laser operational parameters can be maintained within host instrument software compliant with GLP/GMP documentation practices.
Applications
- Confocal and super-resolution fluorescence microscopy requiring stable 488 nm excitation
- Flow cytometry systems demanding high photon flux uniformity across multiple detectors
- Dynamic light scattering (DLS) instruments where intensity noise directly impacts hydrodynamic size resolution
- DNA sequencing platforms utilizing fluorescent dye excitation (e.g., FAM, FITC)
- Holographic interferometry and optical trapping setups reliant on diffraction-limited focusability
- OEM integration into portable Raman spectrometers and compact bioanalytical devices
FAQ
Is the iFLEX-IRIS 488 nm laser compatible with fiber-coupled microscope systems?
Yes—it supports optional single-mode, polarization-maintaining (PM) fiber coupling with FC/APC or SMA905 connectors, enabling seamless integration into commercial and custom-built fiber-fed optical platforms.
Can output power be adjusted in real time during operation?
Yes—via analog voltage input (0–5 V), enabling precise, continuous power modulation without mode disturbance or thermal overshoot.
What is the typical warm-up time to achieve specified stability?
Less than 15 minutes from cold start to full specification compliance, verified per ISO 11554 stability testing protocol.
Does Qioptiq provide calibration certificates traceable to NPL or NIST standards?
Yes—each unit ships with a manufacturer’s calibration report including power, noise, and beam parameter measurements, with traceability to UKAS-accredited laboratories.
Are custom wavelengths or multi-wavelength variants available?
The iFLEX-IRIS platform is wavelength-specific; however, the broader iFLEX family includes iFLEX-Adder (beam combiner) and iFLEX-Viper (5-laser combiner) for multi-wavelength integration at 488 nm and other common lines (e.g., 405 nm, 532 nm, 640 nm).
