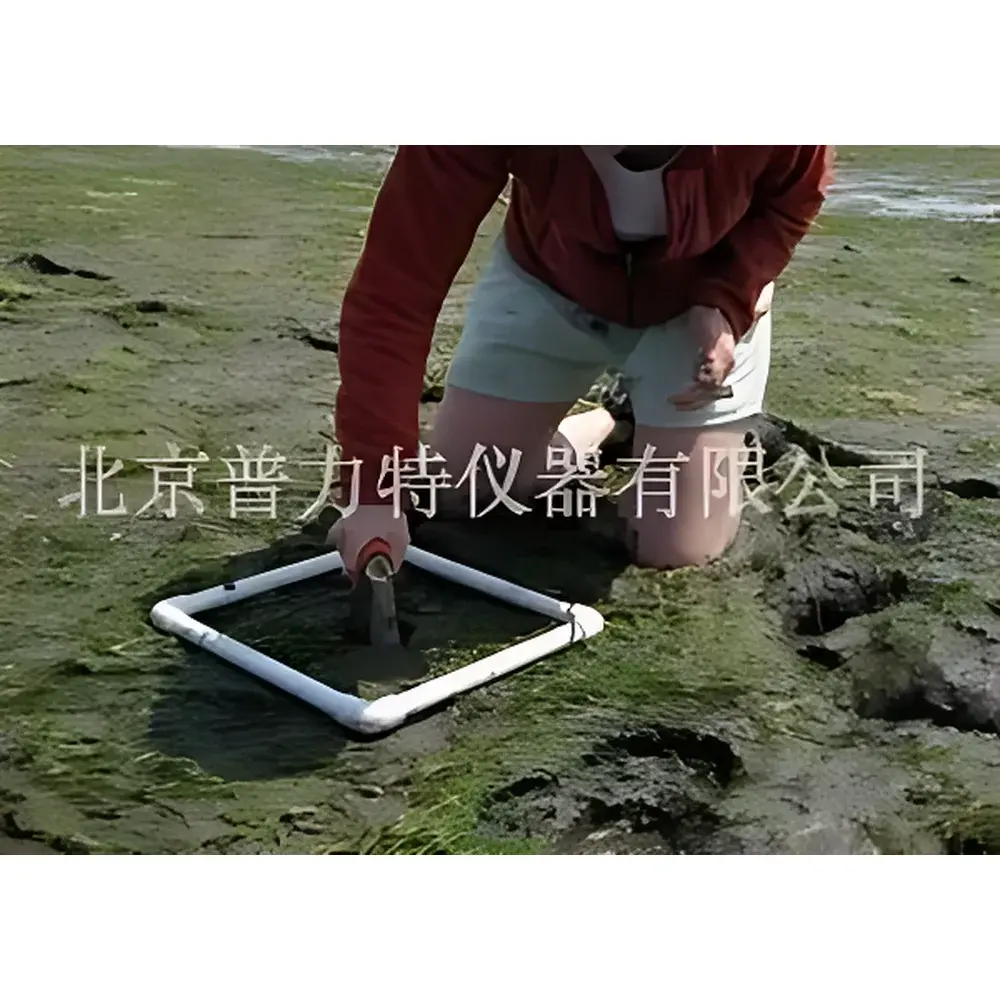

Quadrat Frame QR by Beijing Pulite Instruments Co., Ltd.

Overview

The Quadrat Frame QR is a field-deployable, standardized ecological sampling tool engineered for quantitative vegetation and benthic macroinvertebrate surveys in terrestrial, freshwater, and intertidal habitats. Designed according to the principles of plot-based sampling methodology, it enables researchers to define a fixed-area unit—commonly referred to as a quadrat—for systematic enumeration, frequency estimation, cover assessment, and species richness documentation. Its rigid square geometry ensures consistent spatial replication across transects or stratified grids, supporting statistically robust biodiversity monitoring programs aligned with ISO 14001 environmental management frameworks and national ecological survey protocols (e.g., China’s National Ecological Monitoring Network standards).

Key Features

• Two precision-molded size options: 50 cm × 50 cm (0.25 m²) and 25 cm × 25 cm (0.0625 m²), facilitating scalable sampling intensity based on habitat heterogeneity and target organism size.
• High-density, UV-stabilized PVC construction ensures dimensional stability under prolonged exposure to sunlight, rain, and soil moisture—critical for multi-season longitudinal studies.
• Smooth, rounded edges and lightweight profile (≤350 g per frame) minimize disturbance during placement and reduce operator fatigue during high-repetition field deployment.
• Non-corrosive, chemically inert material complies with ASTM D5766/D5766M for plastic durability in outdoor environmental applications and poses no leaching risk in sensitive aquatic or soil matrices.
• Modular design allows stacking, nesting, and compact transport—compatible with standard field kits, GIS-enabled mobile data collection tablets, and drone-assisted ground-truthing workflows.

Sample Compatibility & Compliance

The QR Quadrat Frame supports direct visual census, photographic documentation (with scale reference), and non-destructive point-intercept or ocular estimation techniques. It is routinely employed in compliance with national and international ecological monitoring guidelines, including GB/T 30980–2014 (China Standard for Terrestrial Vegetation Survey), EPA Method 003.0 (Rapid Bioassessment Protocols for Streams and Rivers), and the European Union’s Habitats Directive Annex I habitat mapping requirements. Its uniform geometry satisfies GLP-aligned data traceability criteria when used in conjunction with field logbooks containing GPS-tagged metadata (location, time, observer ID, weather conditions).

Software & Data Management

While the QR frame itself is a passive physical tool, its output integrates seamlessly into digital ecological data pipelines. Field-collected quadrat records—including species lists, abundance counts, percent cover estimates, and georeferenced imagery—are compatible with open-source platforms such as QGIS, R packages (vegan, ggplot2, spatstat), and commercial LIMS systems configured for environmental sample tracking. When paired with barcode-labeled frames or RFID tags (optional accessory), full audit trails—including frame calibration history, usage logs, and maintenance records—can be maintained in accordance with ISO/IEC 17025:2017 clause 7.7 on equipment management.

Applications

• Baseline biodiversity assessment prior to infrastructure development or land-use change projects.
• Long-term ecological research (LTER) plots tracking succession dynamics in grasslands, wetlands, and restored riparian zones.
• Water quality bioassessment using benthic macroinvertebrate community metrics (e.g., EPT index, BMWP score) in wadeable streams.
• Coastal zone monitoring of intertidal algal zonation and sessile invertebrate distribution patterns.
• Education and training modules for undergraduate ecology labs and citizen science initiatives (e.g., iNaturalist-verified quadrat submissions).

FAQ

Is the QR Quadrat Frame suitable for underwater use in shallow freshwater systems?
Yes—the PVC material is fully submersible and dimensionally stable in freshwater environments up to 1.5 m depth; however, optional stainless-steel corner weights are recommended for secure placement on soft sediments.
Can the frame be sterilized between sampling sites to prevent cross-contamination?
Yes—standard ethanol (70%) or sodium hypochlorite (0.5% active chlorine) disinfection protocols are compatible with PVC; autoclaving is not advised due to thermal deformation risk.
Does the manufacturer provide calibration documentation or traceable metrology certificates?
As a passive geometric tool, formal calibration is not required per ISO/IEC 17025; however, each frame undergoes dimensional verification (±1 mm tolerance) at production, with batch-specific test reports available upon request.
Are custom sizes or materials (e.g., aluminum, fiberglass) available?
Standard offerings are limited to the two PVC sizes listed; OEM customization—including anodized aluminum variants for high-wear applications—is available under separate quotation and minimum order volume terms.
How should the QR frame be stored between field campaigns?
Store flat or vertically stacked in shaded, dry conditions away from direct UV exposure and ozone-generating equipment to preserve long-term rigidity and color stability.
