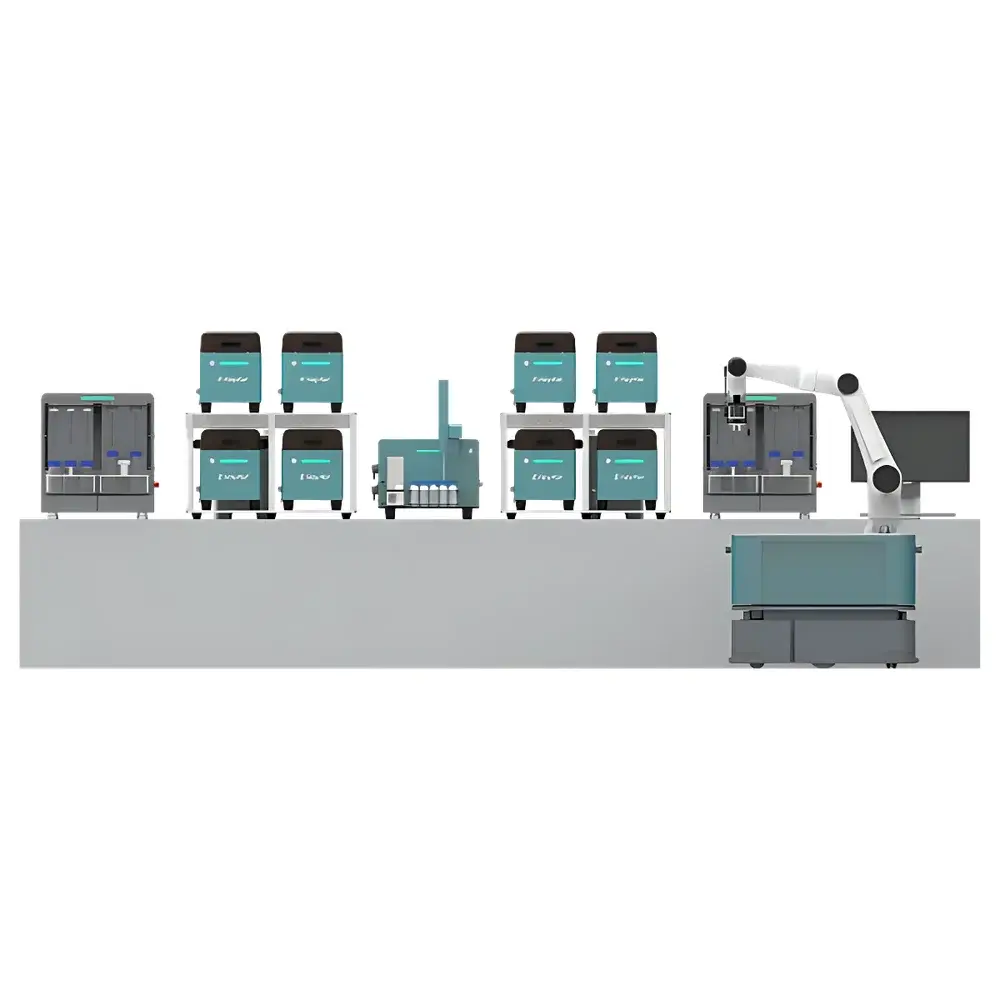

Raykol iLab-FIA Intelligent Flow Injection Analysis Platform

Overview

The Raykol iLab-FIA Intelligent Flow Injection Analysis Platform is a fully integrated, modular flow injection analyzer engineered for high-throughput, multi-parameter water quality analysis in regulated and routine laboratory environments. Based on the well-established principles of flow injection analysis (FIA), the system employs precise fluidic segmentation, controlled dispersion, and reproducible reaction kinetics to deliver quantitative spectrophotometric measurements with minimal reagent consumption and reduced analyst intervention. Unlike classical batch methods, FIA enables rapid sample processing through programmable carrier stream segmentation, ensuring strict temporal control over mixing, reaction, and detection phases. The iLab-FIA platform implements this methodology across a unified hardware architecture—comprising automated sample introduction, reagent handling, reaction manifold, and photometric detection modules—all synchronized via deterministic real-time control firmware. Designed for compliance-critical applications in environmental monitoring, public health, and industrial QA/QC, the system supports method traceability, audit-ready data logging, and seamless integration into enterprise-level laboratory informatics infrastructure.

Key Features

• Modular, field-upgradable architecture with independent control of sample injection, reagent delivery, reaction timing, and optical detection
• Multi-analyte capability: Simultaneous or sequential determination of total phosphorus, total nitrogen, ammonia nitrogen, volatile phenols, cyanide, sulfide, anionic surfactants, and hexavalent chromium per ASTM D3557, ISO 11908, and EPA Method 365.4 equivalents
• Stable LED-based photometer with 400–1100 nm spectral range and 10 mm fixed-pathlength flow cell—optimized for low baseline drift (<0.5% RSD over 8 h) and high signal-to-noise ratio
• Onboard dilution module enabling automatic standard curve preparation, sample pre-dilution, and matrix-matched calibration without manual intervention
• Network-enabled Ethernet interface (10/100BASE-TX) supporting remote diagnostics, real-time status monitoring, and secure data transmission via TLS-encrypted protocols
• AGV-compatible robotic interface for unattended sample tray exchange and reagent pallet replacement—designed for 24/7 operation in centralized water testing facilities

Sample Compatibility & Compliance

The iLab-FIA accommodates aqueous matrices including drinking water, surface water, groundwater, wastewater, seawater, soil extracts, plant digests, and food/beverage filtrates. Sample vials conform to ANSI/SLAS 1–2019 footprint standards (e.g., 12 × 75 mm, 16 × 100 mm, and 20 × 100 mm formats). All validated analytical methods align with Chinese national standards (e.g., GB/T 5750.5–2023, HJ 666–2013 through HJ 908–2017) and are technically equivalent to ISO 11908 (cyanide), ISO 15681-2 (phosphate), and EN ISO 11908 (phenols). System validation documentation includes linearity (R² ≥ 0.999), precision (≤3.5% RSD at mid-range), limit of detection (LOD) verification per ICH Q2(R2), and carryover assessment per CLSI EP26-A. Full GLP/GMP readiness is supported via configurable electronic signatures, audit trails, and 21 CFR Part 11–compliant user access controls.

Software & Data Management

The iLab-FIA operates under Raykol’s iRAY Laboratory Management Suite—a Windows-based application featuring intuitive Chinese/English bilingual UI, drag-and-drop method editor, and embedded chromatogram-like reaction profile visualization. All acquired absorbance-time traces are stored with full metadata (sample ID, timestamp, operator, method version, instrument configuration). Data export options include CSV, PDF analytical reports, and structured XML compliant with ASTM E1384 and ISO/IEC 17025–required record retention. Native LIMS connectivity is achieved via HL7 v2.5 and ASTM E1437-compliant interfaces; direct database synchronization with Oracle, SQL Server, and PostgreSQL is supported. Audit trail records capture all user actions—including method modifications, result overrides, and calibration events—with immutable timestamps and operator identifiers.

Applications

The platform serves as a core analytical engine in municipal water utilities (compliance monitoring per GB 5749–2022), provincial environmental monitoring centers (routine surveillance per HJ 91.1–2019), food safety laboratories (natural mineral water testing per GB 8538–2016), and pharmaceutical QC labs (cleaning verification of process water systems). It is routinely deployed for regulatory reporting under China’s “Blue Sky and Clear Water Protection Campaign”, third-party certification bodies accredited to CNAS-CL01:2018, and research institutions conducting method development for emerging contaminants (e.g., microplastics-associated leachates, PFAS precursors). Its robustness in high-salinity and turbid matrices has been verified in coastal seawater monitoring programs and landfill leachate characterization studies.

FAQ

Does the iLab-FIA support method validation according to ISO/IEC 17025 requirements?
Yes—the system provides full traceability of calibration standards, reagent lot tracking, environmental condition logging (temperature, humidity), and electronic audit trails required for accredited testing laboratories.
Can existing FIA methods be imported into the iRAY software?
Yes—method templates in CSV or Excel format can be mapped to iRAY’s parameter schema; custom reaction timing profiles and peak integration algorithms are configurable via the method editor.
Is remote firmware update supported?
Yes—secure over-the-air (OTA) updates are delivered via Raykol’s authenticated cloud portal; each update includes SHA-256 integrity verification and rollback capability.
What maintenance intervals are recommended for the fluidic system?
Pump tubing replacement every 3 months under continuous operation; flow cell cleaning with 10% nitric acid monthly; full system performance verification quarterly per Raykol PM-004 procedure.
How is cross-contamination prevented during high-throughput analysis?
The system employs dual-stage rinsing with deionized water and 5% HNO₃ between samples, programmable rinse volume optimization, and real-time pressure monitoring to detect clogging-induced carryover.
