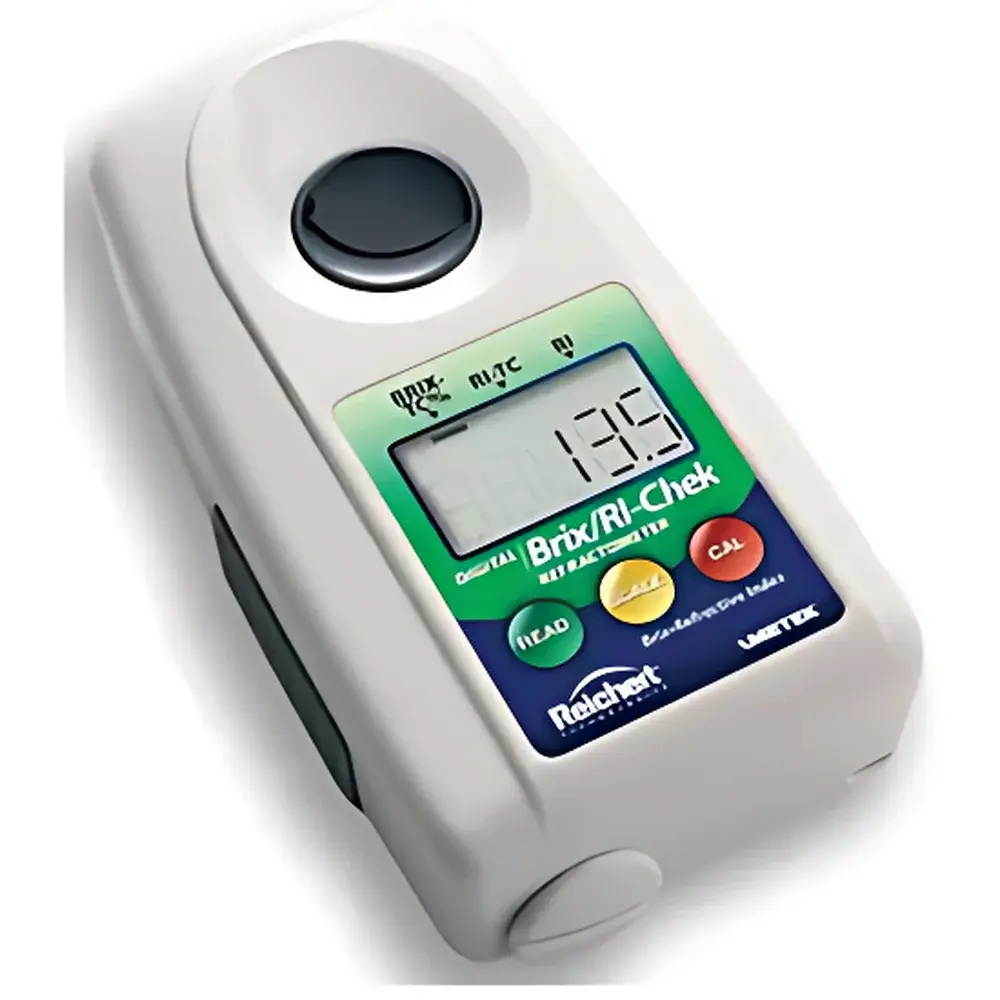

Reichert Brix/RI-Chek Digital Handheld Refractometer

Overview

The Reichert Brix/RI-Chek Digital Handheld Refractometer is a precision optical instrument engineered for rapid, field-deployable measurement of refractive index (RI) and soluble solids concentration (Brix %) in liquid samples. Based on the fundamental principle of total internal reflection at the prism–sample interface, it determines RI by detecting the critical angle shift induced by changes in sample density and composition. Its integrated Automatic Temperature Compensation (ATC) system—calibrated to the standard 20 °C reference temperature—ensures metrological consistency across ambient conditions from 10 °C to 40 °C without external thermostating. Designed for routine quality control in resource-constrained or mobile environments, the device delivers laboratory-grade repeatability in a rugged, pocket-sized form factor compliant with ISO 21748 (guidance on uncertainty estimation in refractometry) and aligned with ASTM D1218 and AOAC 932.12 methodologies for Brix determination.

Key Features

• 5-digit full-view LCD display showing simultaneous RI, Brix %, and actual sample temperature—eliminating multi-screen navigation and minimizing operator interpretation error
• Integrated ATC mechanism using bimetallic thermal compensation, maintaining RI accuracy within ±0.0002 across its operational temperature range
• IP65-rated enclosure ensuring dust-tightness and resistance to low-pressure water jets—validated for use in wet processing areas, agricultural fields, and brewery floors
• Optical glass prism with high-abrasion resistance and chemical inertness to common food-grade solvents, acids, and alcohols
• Two-second measurement cycle time from sample application to stabilized reading—optimized for high-throughput inline inspection
• Ergonomic, one-handed operation requiring no calibration training; zero adjustment performed via distilled water only

Sample Compatibility & Compliance

The Brix/RI-Chek is validated for aqueous solutions containing sucrose, glucose, fructose, ethanol–water mixtures, glycerol, and common food-grade syrups. It is not suitable for highly viscous, turbid, or non-homogeneous suspensions without prior filtration. Sample volume requirement is ≤0.1 mL, applied directly onto the prism surface. The instrument conforms to CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Its RoHS-compliant construction excludes lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE per Annex II of Directive 2011/65/EU. WEEE registration supports responsible end-of-life handling. While not FDA 21 CFR Part 11–certified (as it lacks audit trail or electronic signature functionality), its measurement traceability aligns with GLP principles when used with documented calibration logs and environmental monitoring records.

Software & Data Management

As a standalone analog–digital hybrid instrument, the Brix/RI-Chek does not feature Bluetooth, USB, or cloud connectivity. All measurements are displayed locally and retained only as visual readouts; no onboard memory or data export capability is provided. This architecture intentionally prioritizes reliability, battery longevity (>10,000 measurements per CR2032 cell), and immunity to firmware vulnerabilities. For regulated environments requiring data integrity, users may integrate manual transcription into LIMS or Excel-based QC templates with defined SOPs for timestamping, operator ID, and environmental condition logging. Calibration verification against NIST-traceable sucrose standards (e.g., SRM 84d) is recommended quarterly or per batch change.

Applications

• Agriculture: Rapid assessment of fruit ripeness (e.g., grape must Brix pre-harvest), honey purity screening, and sap concentration in maple syrup production
• Beverage & Brewing: Real-time wort gravity monitoring during mashing, post-fermentation alcohol estimation (via dual RI/Brix correlation), and soft drink syrup dilution verification
• Food Processing: Consistency control of jams, jellies, sauces, and dairy-based concentrates where sugar content directly impacts shelf life and texture
• Distilling & Spirits: Ethanol–water ratio estimation in white spirits and liqueurs, supporting cut-point decisions during fractional distillation
• Industrial Fluids: Glycol concentration checks in HVAC coolant loops and antifreeze formulations per ASTM D1120

FAQ

What calibration standards are recommended for daily verification?
Distilled or deionized water (RI = 1.3330 at 20 °C) is required for zero-point verification. For span check, a certified 10.00 ±0.02% Brix sucrose standard (traceable to NIST SRM 84d) is advised.
Can the instrument measure samples below 10 °C or above 40 °C?
No. Operation outside the 10–40 °C ambient range invalidates ATC compensation and exceeds specified thermal drift limits. Samples must be equilibrated within this interval prior to measurement.
Is the prism surface resistant to ethanol or citric acid exposure?
Yes—the borosilicate optical glass prism withstands repeated contact with <30% v/v ethanol and pH 2.5–7.0 aqueous acids typical in beverage and juice applications. Avoid abrasive cleaning agents or ultrasonic baths.
How often should the instrument be serviced?
No scheduled maintenance is required. Prism cleaning after each use with lens tissue and reagent-grade isopropanol is sufficient. Annual verification against certified standards is recommended for ISO/IEC 17025-accredited labs.
Does the device support custom scale programming?
No. The Brix/RI-Chek provides fixed factory-calibrated scales for RI and Brix only. It does not support user-defined polynomial equations or proprietary concentration units.
