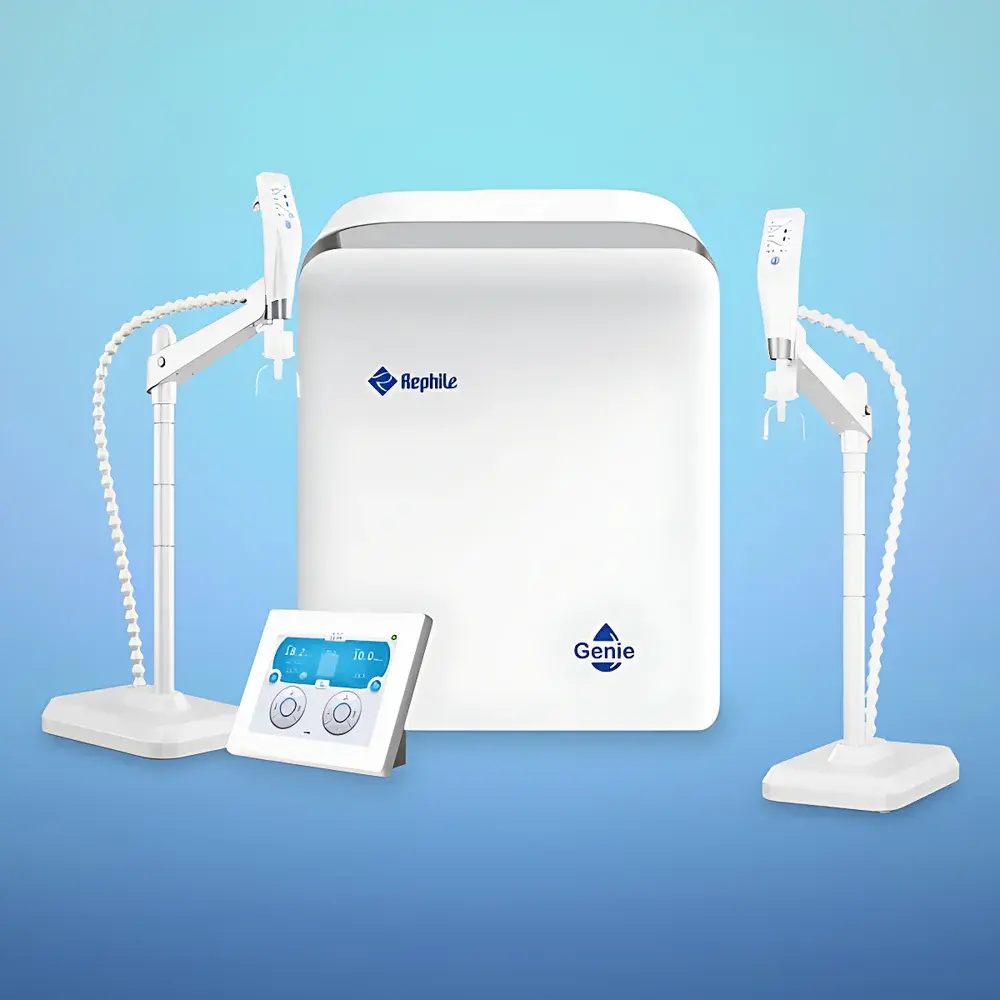

RephiLe Genie U Series Ultra-Pure Water System (RG0U040T0 / RG0U080T0)

Overview

The RephiLe Genie U Series Ultra-Pure Water System is an integrated, modular laboratory water purification platform engineered for precision-critical applications requiring continuous, on-demand supply of both Type I ultrapure water and Type III reverse osmosis (RO) pure water. Based on a dual-stage purification architecture—comprising pretreatment (activated carbon, antiscalant, microfiltration), high-rejection RO with temperature-compensated flux control, and post-RO polishing via mixed-bed ion exchange (LeFil/OrganeFil), 265 nm UVC-LED irradiation, and optional 0.2 μm sterile filtration—the system delivers consistent ultrapure water meeting or exceeding ASTM D1193-20, ISO 3696:1987, and CLSI EP22-A2 standards. Its design emphasizes regulatory traceability, operational transparency, and space-efficient deployment in modern analytical, cell culture, and molecular biology laboratories.

Key Features

• Modular architecture: Independent pre-treatment, RO, storage, and distribution modules enable flexible installation—on benchtop, wall-mounted, or stacked atop reservoir units—minimizing footprint without compromising service access.
• Intelligent consumables management: All purification cartridges (RO membranes, ion exchange columns, UV lamps, terminal filters) integrate RFID chips for automatic recognition, lifetime tracking, and real-time replacement alerts—eliminating manual logging errors.
• GLP-compliant data integrity: Two years of timestamped operational logs—including conductivity, TOC, pressure, flow rate, UV intensity, and alarm history—are stored onboard and exportable via USB in immutable, audit-ready PDF format compliant with FDA 21 CFR Part 11 requirements for electronic records.
• Multi-terminal “1+N” distribution: A single Genie U host supports up to N intelligent dispensing points, each equipped with touch-enabled handpieces offering programmable volume delivery, multi-step flow control (0.01–2 L/min), and real-time display of resistivity, TOC, and particle counts.
• Advanced monitoring: Integrated full-oxidation TOC analyzer provides continuous, non-destructive measurement; 8-inch waterproof, movable color touchscreen displays all system parameters, component status (pumps, valves, UV lamps, disinfection cycles), and maintenance schedules.
• Eco-engineered RO module: Proprietary low-volume, high-flux RO membrane maintains stable output across ambient temperatures (5–35 °C); substandard permeate is automatically diverted, and reject water is recovered to maximize system recovery ratio (>65% typical).

Sample Compatibility & Compliance

The Genie U system produces water suitable for direct use in high-sensitivity instrumentation—including HPLC, IC, ICP-MS, LC-MS, AAS, and UV-Vis spectrophotometry—as well as cell culture media preparation, molecular biology reagent formulation (e.g., PCR buffers, electrophoresis solutions), nanomaterial synthesis, and GLP/GMP-regulated standard solution preparation. Its ultrapure output complies with ISO 13485 quality management system requirements for medical device manufacturing support, and meets USP specifications for purified water when configured with optional RephiBio endotoxin-removing terminal filter. All electrical components conform to IEC 61010-1 safety standards; firmware supports configurable audit trails, user-level access control, and electronic signature capability per 21 CFR Part 11.

Software & Data Management

RephiLink mobile application enables remote monitoring and centralized fleet management of multiple Genie U systems across lab sites. Through secure TLS-encrypted communication, users view live water quality metrics, receive push notifications for maintenance events or parameter deviations, and generate compliance reports. Onboard software supports nine language interfaces (including English, Chinese, German, French, Japanese), configurable alarm thresholds, scheduled UV lamp aging compensation, and automated sanitization cycles using thermal or chemical protocols. All exported data files are digitally signed and append-only—no modification or deletion permitted post-generation—ensuring forensic-grade data integrity for internal audits or regulatory inspections.

Applications

• Chromatography and mass spectrometry: Mobile phase preparation, column equilibration, and instrument rinsing for HPLC, UHPLC, IC, and ICP-MS where ppt-level metal contamination or sub-ppb TOC can compromise detection limits.
• Cell and tissue culture: Preparation of serum-free media, trypsin solutions, and PBS buffers requiring endotoxin-free (<0.001 EU/mL), nuclease-free, and low-particle water.
• Molecular biology: Synthesis and dilution of oligonucleotides, CRISPR reagents, and qPCR master mixes where RNase/DNase activity and organic contaminants must be eliminated.
• Calibration and reference standards: Production of blank matrices and certified reference material diluents compliant with ISO/IEC 17025 proficiency testing requirements.
• Support utilities: Feed water for autoclaves, steam generators, water baths, and cleanroom humidification systems demanding microbiologically controlled input.

FAQ

What is the minimum feed water quality required for stable Genie U operation?
City-supplied tap water with TDS ≤1000 ppm, temperature between 5–35 °C, and inlet pressure of 0.1–0.6 MPa is sufficient. Integrated antiscalant dosing and microfiltration protect downstream RO membranes from fouling.
How does the system ensure TOC stability over time?
Continuous online TOC monitoring via full-oxidation UV/persulfate method enables real-time feedback; combined with UVC-LED (265 nm) irradiation and high-efficiency mixed-bed resins, it maintains TOC consistently below 2 ppb—even after extended operation or high daily usage.
Can the Genie U be validated per IQ/OQ/PQ protocols?
Yes. RephiLe provides comprehensive validation documentation packages—including DQ templates, FAT/SAT checklists, calibration certificates for onboard sensors, and PQ test procedures aligned with ASTM D1193 and EP 2.2.43—supporting GxP-compliant implementation.
Is remote firmware update supported?
Firmware updates are performed securely via encrypted USB drive or authenticated RephiLink cloud interface, with version rollback capability and change-log recording for audit purposes.
What certifications apply to the UVC-LED module?
The 265 nm UVC-LED assembly is CE-marked, RoHS-compliant, and carries IEC 62471 photobiological safety certification—eliminating mercury hazards associated with conventional low-pressure UV lamps while delivering equivalent germicidal efficacy.
