Resolution Spectra Systems SpectraResolver Laser Spectrum Analysis Software
| Brand | Resolution Spectra Systems |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SpectraResolver |

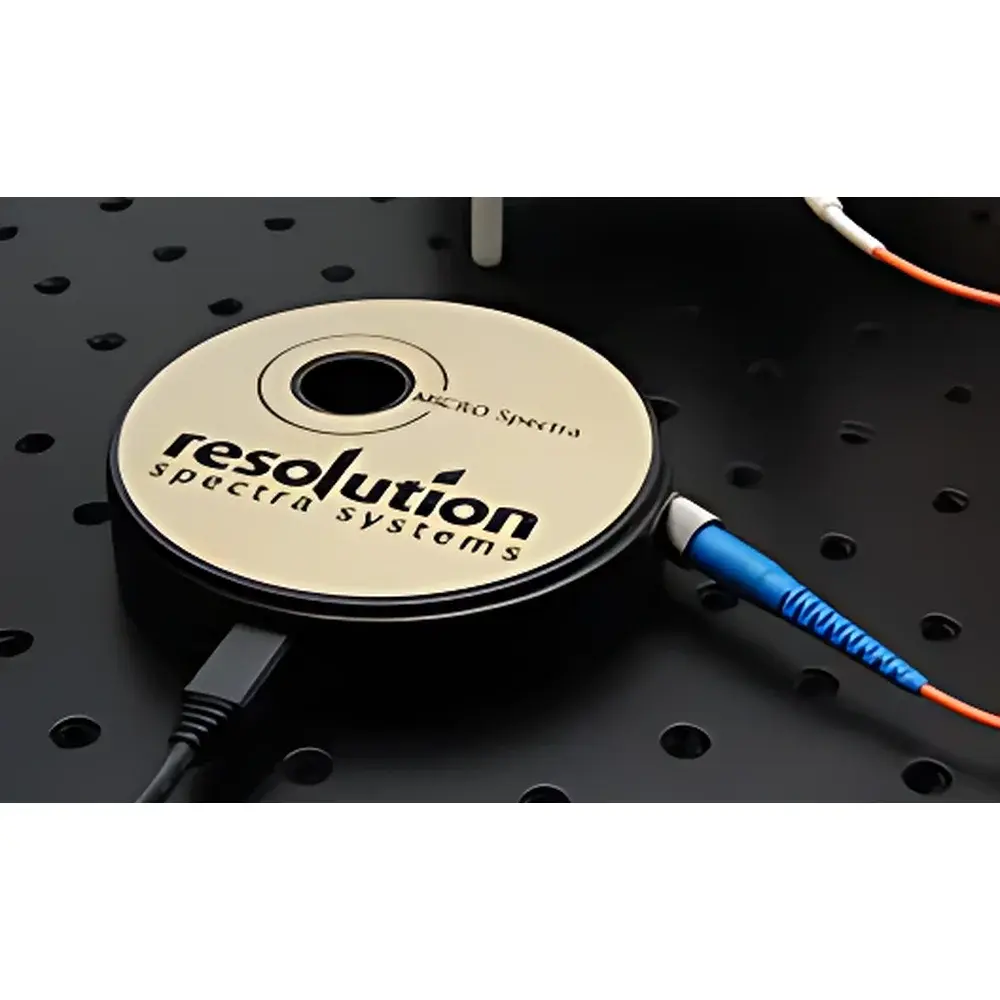

| Core Hardware Integration | SWIFTS-based laser spectrometers (Zoom Spectra & Micro Spectra platforms) |
| Supported Light Sources | Semiconductor laser diodes and multi-mode laser systems |
| Calibration Reference | Temperature-stabilized internal reference for absolute wavelength accuracy |
| Wavelength Accuracy | Sub-picometer (pm) level for multi-mode lasers under controlled thermal conditions |
| Data Acquisition Modes | High-frame-rate burst capture and low-frame-rate long-term monitoring |
| Native Data Compatibility | Zoom Spectra and Micro Spectra spectral acquisition units |
Overview
SpectraResolver is a dedicated spectral analysis software platform developed by Resolution Spectra Systems for real-time, high-fidelity characterization of semiconductor laser sources. Built exclusively for use with SWIFTS (Stationary Wave Integrated Fourier Transform Spectrometry)-based optical spectrometers—including the Zoom Spectra and Micro Spectra hardware platforms—the software implements advanced signal processing algorithms to extract full spectral information from raw interferometric data. Unlike conventional grating- or Fabry–Pérot-based systems, SWIFTS technology enables compact, alignment-free spectral acquisition with intrinsic stability, making SpectraResolver particularly suited for applications demanding continuous spectral monitoring under varying environmental conditions. The software computes absolute wavelength positions, relative mode intensities, spectral linewidths, and mode spacing (FSR) with traceable accuracy—leveraging an integrated temperature-compensated calibration routine that maintains sub-picometer absolute wavelength fidelity even for complex multi-longitudinal-mode (MLM) laser outputs.
Key Features
- Multi-Wavelength Mode Detection: Identifies all lasing modes—including dominant, side, and suppressed modes—with automatic peak labeling and spectral centroid tracking.
- Absolute Wavelength Calibration: Uses a thermally stabilized internal reference to deliver pm-level absolute wavelength accuracy without external wavelength meters or periodic recalibration.
- Dynamic Acquisition Flexibility: Supports both high-speed transient capture (up to 100 Hz frame rate depending on hardware configuration) and ultra-long-duration monitoring (hours to days) at user-defined low frame rates (e.g., 0.1 Hz).
- Real-Time Stability Metrics: Computes RMS wavelength drift, intensity fluctuation (RMS and peak-to-peak), mode hop frequency, and spectral centroid velocity in real time.

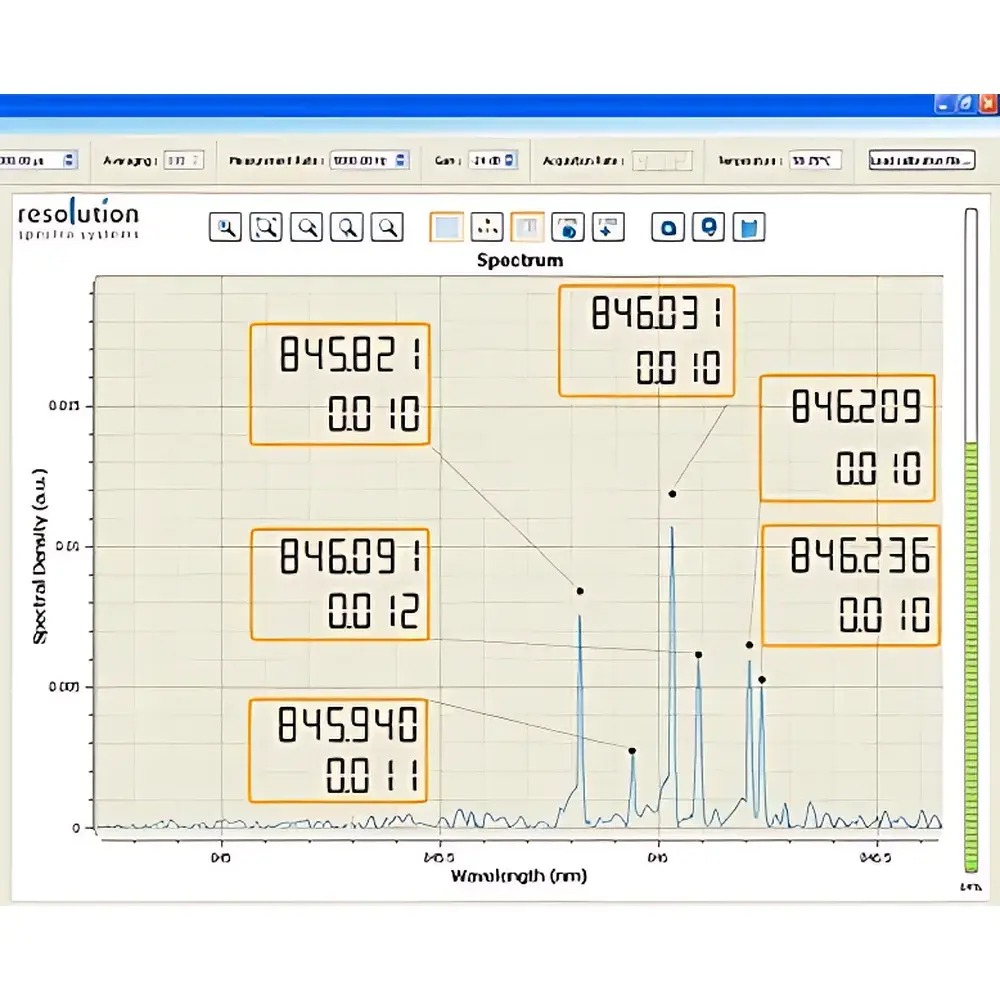

- Interactive Visualization Engine: Renders high-resolution spectral plots with logarithmic intensity scaling, zoom-pan navigation, overlay comparison of up to eight spectra, and export-ready vector graphics (SVG/PDF).
- Automated Workpoint Search: Implements iterative scanning and feedback logic to locate optimal bias/temperature operating points that minimize mode hopping or maximize single-mode yield.
Sample Compatibility & Compliance
SpectraResolver is validated for use with edge-emitting laser diodes (EELDs), distributed feedback (DFB) lasers, distributed Bragg reflector (DBR) lasers, and broad-area multi-mode laser bars operating across visible to near-infrared bands (400–1700 nm). It does not require optical pre-filtering or external etalons. All spectral computations comply with ISO/IEC 17025-relevant traceability principles through documented calibration procedures and version-controlled firmware/software release notes. While SpectraResolver itself is not a medical device or GMP-regulated instrument, its audit trail functionality—including timestamped parameter logs, user session records, and immutable spectral data archives—supports laboratory compliance with GLP and FDA 21 CFR Part 11 requirements when deployed in regulated environments.
Software & Data Management
The software runs natively on Windows 10/11 (64-bit) and communicates with Zoom Spectra and Micro Spectra hardware via USB 3.0 or GigE Vision interface. Raw spectral datasets are stored in HDF5 format, preserving metadata such as acquisition time, ambient temperature, laser drive current, and calibration state. Batch processing modules enable post-acquisition analysis of large spectral time-series, including FFT-based noise spectrum generation, autocorrelation of mode intensity fluctuations, and statistical reporting (e.g., wavelength standard deviation over 10,000 frames). Export options include CSV (for third-party statistical tools), MATLAB .mat, and industry-standard SPC (Spectral Profile Collection) files compatible with JMP, Python (SciPy/Pandas), and LabVIEW.
Applications
- Laser diode R&D: Longitudinal mode analysis, threshold current mapping, and temperature-dependent spectral shift quantification.
- Fabrication process control: In-line spectral screening of wafer-level laser arrays to reject devices exhibiting unstable multimode behavior.
- Fiber laser pump source qualification: Monitoring spectral narrowing and ASE suppression during aging tests.
- Optical sensing system development: Characterizing wavelength locking stability in external cavity diode lasers (ECDLs) used in gas detection or interferometry.
- Academic photonics research: Investigating mode competition dynamics, self-pulsation onset, and nonlinear spectral broadening in high-power diodes.
FAQ
Is SpectraResolver compatible with third-party spectrometers?
No. SpectraResolver is engineered exclusively for SWIFTS-based instruments manufactured by Resolution Spectra Systems, specifically the Zoom Spectra and Micro Spectra platforms.
Does the software support automated pass/fail testing against user-defined spectral limits?
Yes. Custom spectral acceptance criteria (e.g., maximum allowable mode spacing deviation, minimum side-mode suppression ratio) can be defined and applied during real-time acquisition or batch analysis.
Can spectral data be accessed programmatically for integration into automated test systems?
Yes. A documented COM API and Python wrapper library are provided for remote control, triggering, and data streaming—enabling integration with NI TestStand, Keysight PathWave, or custom CI/CD pipelines.
What calibration documentation is supplied with the software?
Each software license includes a digital calibration certificate referencing NIST-traceable wavelength standards, along with a detailed uncertainty budget covering thermal drift, detector nonlinearity, and algorithmic interpolation error.
Is source code available for modification or extension?
No. SpectraResolver is a closed-source application. However, Resolution Spectra Systems offers OEM licensing and co-development agreements for customers requiring deeply customized spectral analysis workflows.
