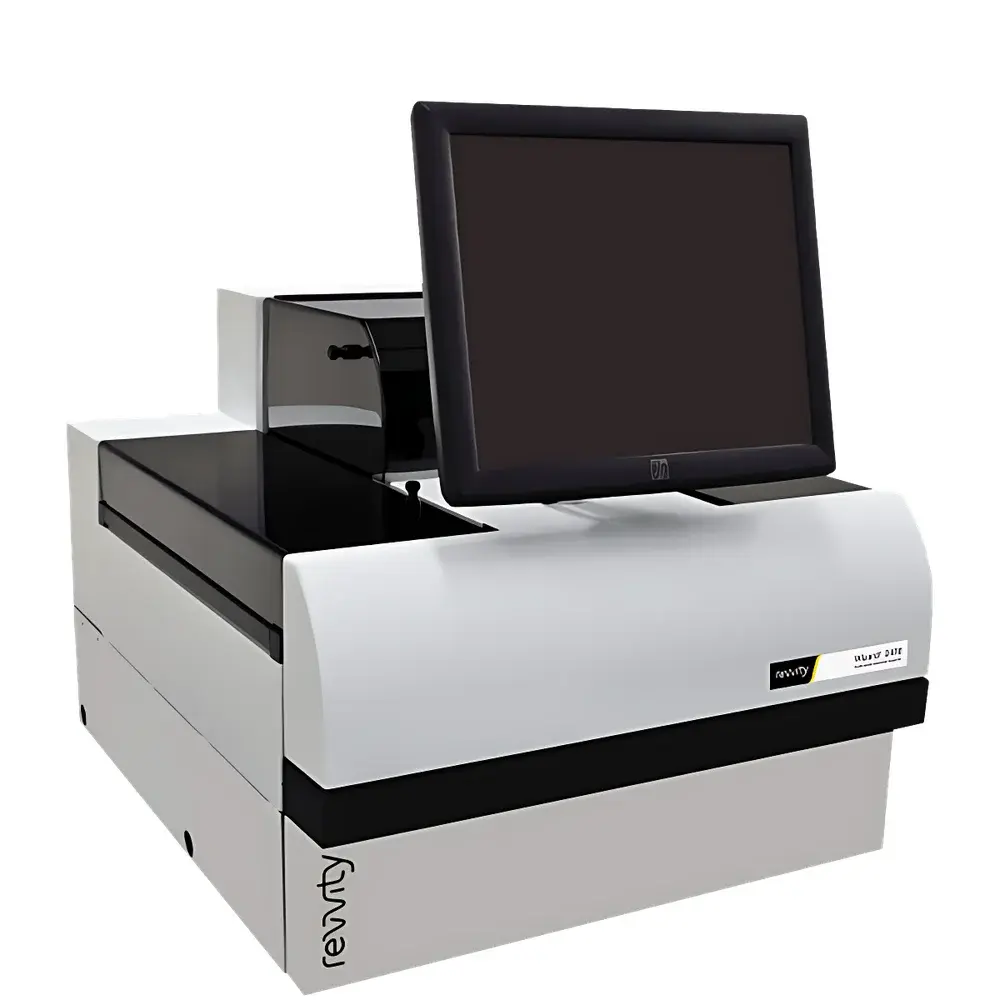

Revvity WIZARD2 Automatic Gamma Counter

Overview

The Revvity WIZARD2 Automatic Gamma Counter is a high-performance, benchtop gamma spectrometry system engineered for quantitative radioisotope detection in life science research, clinical diagnostics, and pharmaceutical development. It operates on the principle of scintillation detection—utilizing thallium-doped sodium iodide (NaI(Tl)) well-type scintillation crystals coupled with photomultiplier tubes (PMTs) to convert gamma photon energy into measurable electrical pulses. Each WIZARD2 unit integrates up to 10 independent detector wells, enabling parallel sample processing without cross-talk interference—a critical advantage for high-throughput assays such as Radioimmunoassay (RIA), Immunoradiometric Assay (IRMA), and positron emission tomography (PET) tracer validation. Designed for reproducible, low-background counting, the instrument features a robust lead-shielded chamber (≥50 mm Pb equivalent) that minimizes ambient radiation contribution and ensures consistent signal-to-noise ratios across extended acquisition periods.

Key Features

• Modular multi-well architecture: Configurable 2470 (up to 4 wells), 2480 (up to 10 wells), or 3470 (10-well + enhanced compliance) variants to match laboratory throughput and regulatory requirements.
• Well-type NaI(Tl) detectors: 3-inch diameter crystal geometry optimized for high geometric efficiency and uniform sensitivity across sample volumes (0.1–2.0 mL).
• Automated sample handling: Integrated robotic carousel accommodates up to 1000 vials per run with barcode scanning support and collision-avoidance logic.
• Real-time detector health monitoring: Intelligent Parameter Analysis (IPA) continuously tracks and archives nine core PMT and crystal parameters—including gain, baseline shift, pulse height resolution, and count rate linearity—for preventive maintenance and audit readiness.
• Compact footprint: 25.6 × 30.3 in (65 × 77 cm) chassis enables deployment in space-constrained cleanrooms, BSL-2 labs, or GMP-controlled environments.

Sample Compatibility & Compliance

The WIZARD2 supports aqueous, organic, and mixed-phase samples in standard 12 × 75 mm or 16 × 100 mm glass or plastic scintillation vials. Its energy discrimination capability covers common gamma-emitting radionuclides including ⁵¹Cr, ¹²⁵I, ¹³¹I, ^99mTc, ⁶⁷Ga, and ²⁰¹Tl. The system complies with ISO/IEC 17025:2017 for testing laboratories and supports full traceability under Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) frameworks. All 2480 and 3470 configurations include 21 CFR Part 11-compliant software modules (WorkOut Plus ES), providing electronic signatures, audit trails, role-based access control, and secure data archiving—validated for FDA submissions and regulatory inspections.

Software & Data Management

Controlled via Windows 7–10–11 compatible WorkOut Plus software suite, the WIZARD2 offers intuitive assay template creation, multi-isotope spectral deconvolution, and automated background subtraction. Data integrity is enforced through encrypted local database storage (SQL Server Express), export to CSV/XML/PDF, and direct LAN or USB 3.0 transfer to LIMS or ELN systems. The Results Viewer utility permits retrospective query, filtering by sample ID, date range, or calibration batch, and generation of QC reports aligned with CLIA and CAP guidelines. Optional integration with Revvity’s enterprise analytics platform enables cross-instrument trending and statistical process control (SPC) charting.

Applications

• Quantitative RIA/IRMA assay development and routine analysis in endocrinology, oncology, and infectious disease diagnostics.
• PET radiotracer quality control: decay-corrected activity measurement of ¹⁸F-FDG, ⁶⁸Ga-DOTATATE, and ⁸⁹Zr-labeled antibodies prior to patient administration.
• Preclinical biodistribution studies using gamma-emitting isotopes in rodent models.
• Environmental radioactivity screening of water, soil, and biological tissue extracts (e.g., ¹³⁷Cs, ⁶⁰Co).
• Pharmaceutical stability testing involving radiolabeled drug metabolites.

FAQ

What gamma-emitting isotopes are supported by the WIZARD2?
The instrument includes pre-configured nuclear libraries containing spectral data for up to 51 radionuclides, covering diagnostic, therapeutic, and research isotopes across energy ranges from 20 keV to 2.6 MeV.
Is the WIZARD2 suitable for GLP-compliant laboratories?
Yes—models equipped with WorkOut Plus ES software meet 21 CFR Part 11 requirements, including electronic signature validation, immutable audit trails, and user privilege management.
How does the IPA function improve long-term measurement reliability?
IPA performs continuous real-time assessment of detector gain drift, PMT dark current, and pulse amplitude distribution, triggering alerts when deviations exceed predefined thresholds—enabling proactive recalibration before data integrity is compromised.
Can the WIZARD2 interface with third-party LIMS platforms?
Yes—via standardized ODBC connectivity, HL7 messaging, or direct SQL database access, supporting bidirectional synchronization of sample metadata, assay protocols, and final results.
What is the typical detection efficiency for ¹²⁵I at 35 keV?
Measured efficiency exceeds 75% for 12 × 75 mm vials under standard operating conditions, validated per ASTM D7282-18 for liquid scintillation and gamma counting systems.
