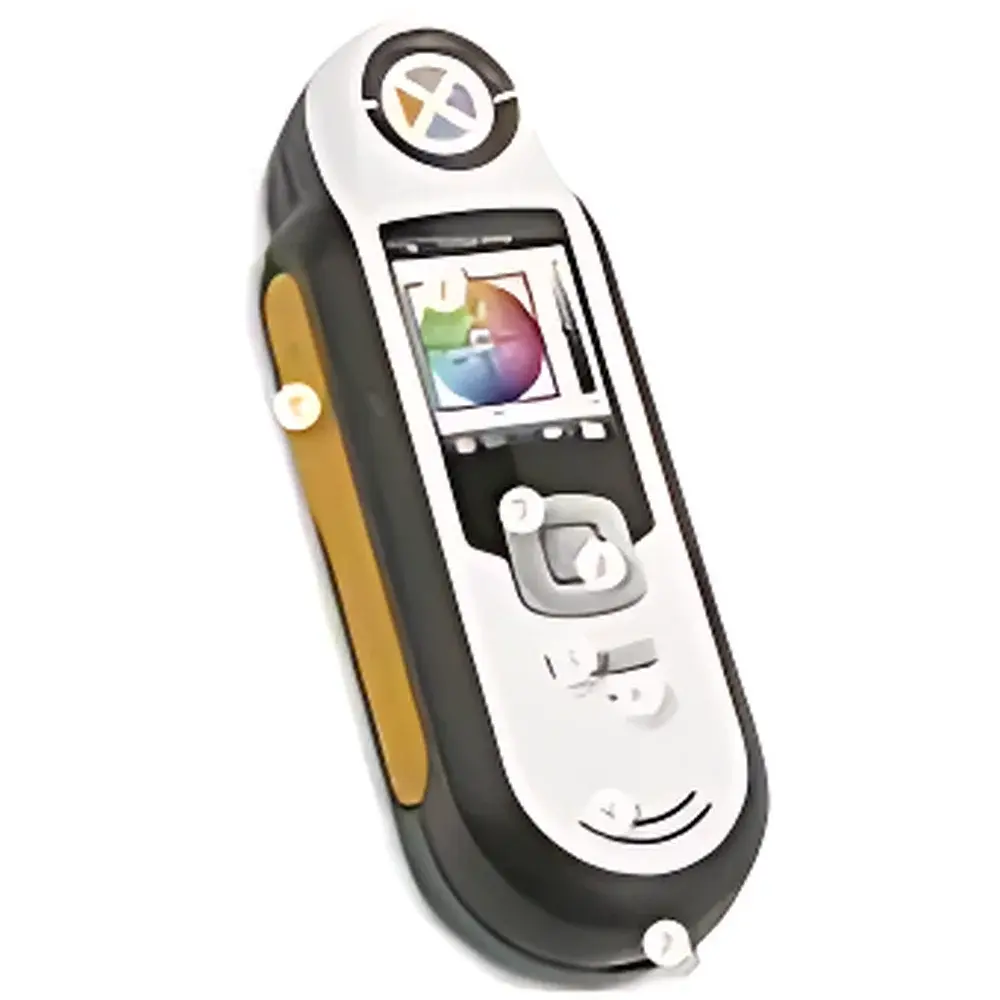

X-Rite RM200QC Portable Color Difference Meter

Overview

The X-Rite RM200QC Portable Color Difference Meter is an imaging spectrophotometric color measurement instrument engineered for high-speed, operator-independent quality control in manufacturing and laboratory environments. Unlike conventional tristimulus colorimeters, the RM200QC employs a 45°/0° imaging sphere optical geometry—compliant with ISO 7724-1 and ASTM E308—enabling spatially resolved color capture across the sample surface. Its core architecture integrates a triple-directional 25-LED illumination system: eight visible-wavelength LEDs (spanning 400–700 nm) distributed across three independent angular axes, plus one UV LED (365 nm), ensuring consistent excitation of fluorescent and non-fluorescent materials under standardized illuminants (D65/10° and A/10°). The device captures 27 synchronized color images per measurement cycle in under 1 second, reconstructing a geometrically accurate 3D color map that correlates strongly with human visual assessment—critical for evaluating texture-sensitive, mottled, or directional surfaces such as textiles, automotive coatings, and plastic injection-molded parts.

Key Features

• Imaging-based 45°/0° optical path with integrated 27-image acquisition per measurement, delivering spatial uniformity analysis beyond single-point ΔE.
• Triple-directional 25-LED light engine: eight visible LEDs per axis (24 total) + one UV LED, enabling repeatable spectral excitation without mechanical lamp movement or warm-up delay.
• Two selectable apertures (4 mm and 8 mm) to accommodate variable sample geometries—from small printed labels to textured industrial panels—while maintaining compliance with CIE 15:2018 spectral weighting functions.
• On-device pass/fail evaluation using user-defined ΔE tolerances (ΔE_CMC, ΔE₉₄, ΔE₂₀₀₀, or ΔE_ab) without PC connectivity; results displayed in real time with visual color block feedback and CIELAB vector overlay.
• Embedded 4.5 cm high-brightness TFT display with calibrated gamut rendering, supporting intuitive navigation via simulated color swatches and interactive CIELAB/CIELCh chromaticity diagrams.
• Standalone operation: stores up to 20 standards and 350 sample measurements internally; supports USB mass storage mode for direct export of CSV reports, image thumbnails, and spectral reflectance data (31-point, 10 nm intervals).

Sample Compatibility & Compliance

The RM200QC accommodates matte, glossy, translucent, and fluorescent substrates—including metallic paints, pearlescent films, and optically brightened papers—thanks to its UV-enabled excitation and multi-angle illumination. Its 45°/0° geometry minimizes specular component exclusion errors common in 0°/45° systems when measuring coated or laminated surfaces. Device firmware adheres to ISO/IEC 17025 traceability requirements for calibration verification, with factory-certified white tile validation (NIST-traceable SRM 2036). It meets IEC 61000-4 electromagnetic compatibility standards and carries CE marking for use within EU regulatory frameworks. While not FDA 21 CFR Part 11–validated out-of-the-box, audit trails, user access logs, and immutable measurement records can be configured for GLP/GMP-aligned workflows when paired with X-Rite’s Color iQC software (optional).

Software & Data Management

Although fully functional as a standalone instrument, the RM200QC supports bidirectional data exchange via USB mass storage protocol—no drivers required. Exported files include .csv (CIELAB, ΔE, spectral reflectance), .jpg (annotated color images), and .xml (metadata-rich QC reports with timestamp, operator ID, and tolerance settings). When connected to X-Rite Color iQC v6.0 or later, users gain access to advanced statistical process control (SPC) dashboards, multi-instrument fleet monitoring, and automated report generation compliant with ISO 9001 documentation requirements. All on-device operations are logged with UTC timestamps and user-assigned IDs; firmware updates preserve historical calibration coefficients and audit integrity.

Applications

• Automotive interior trim validation—measuring hue shift across curved ABS/TPU surfaces under varying gloss conditions.
• Food packaging QC—verifying batch-to-batch consistency of flexographic-printed PE films with fluorescent whitening agents.
• Textile dye lot approval—detecting metamerism between woven samples under D65 vs. A illuminants using stored spectral data.
• Pharmaceutical tablet coating uniformity—quantifying edge-to-center color variation via 8 mm aperture mapping.
• Consumer electronics housing inspection—assessing anodized aluminum color drift across production shifts without reference standard re-measurement.

FAQ

Does the RM200QC require external software to perform basic pass/fail color checks?
No. All tolerance-based evaluations, averaging, and result visualization occur onboard without PC connection.
Can the device measure fluorescent materials accurately?
Yes—the integrated UV LED enables excitation of optical brighteners, and spectral data includes UV-inclusive reflectance curves for accurate fluorescence correction per CIE 15:2018 Annex G.
Is the 45°/0° geometry compatible with ISO 12233 or ASTM E308 test protocols?
Yes. The optical design conforms to ISO 7724-1 for 45°/0° geometry and implements ASTM E308 spectral integration algorithms for CIE XYZ computation.
What is the calibration stability over time?
Factory-calibrated against NIST-traceable standards; recommended annual verification using X-Rite’s QC-20 verification tile (sold separately).
Does the RM200QC support custom illuminant definitions?
No—it supports only D65/10° and A/10° as defined in CIE 15:2018; custom illuminants require post-processing in Color iQC software.
