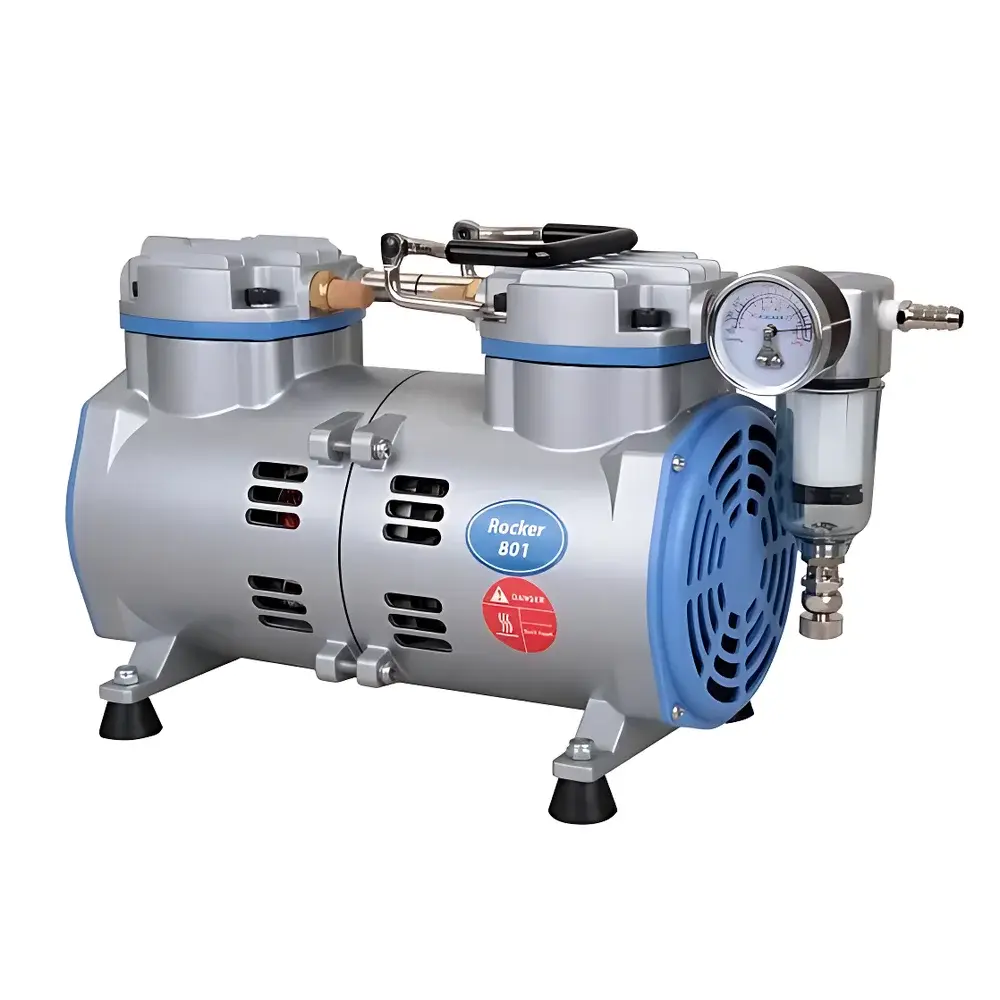

ROCKER Rocker801 Oil-Free Vacuum Pump

Overview

The ROCKER Rocker801 Oil-Free Vacuum Pump is an industrial-grade, maintenance-free piston vacuum pump engineered for reliable, contamination-free operation in analytical, preparative, and quality control laboratories. Unlike oil-lubricated vacuum systems, the Rocker801 employs a dry-running, dual-piston mechanism with precision-machined PTFE-coated cylinders and carbon-fiber reinforced vanes—eliminating hydrocarbon vapor carryover, oil mist generation, and scheduled lubrication intervals. Its operating principle relies on reciprocating positive displacement to achieve stable vacuum levels up to 670 mmHg (≈90 kPa absolute) with a maximum continuous flow rate of 68 L/min at atmospheric inlet conditions. This performance envelope supports medium-throughput vacuum processes including solvent removal, vacuum-assisted filtration, degassing of viscous samples, and controlled drying in ovens or desiccators—without introducing volatile organic contaminants that could compromise sample integrity or instrument calibration.

Key Features

• Oil-free piston architecture: Eliminates risk of oil backstreaming, cross-contamination, and VOC interference—critical for GC-MS sample preparation, pharmaceutical filtration, and cell culture workflows.
• Integrated thermal protection: Embedded bimetallic temperature switch automatically interrupts power when internal motor temperature exceeds safe operational thresholds; auto-resets upon cooling to prevent coil damage and ensure long-term reliability.
• Standardized inlet filtration: Removable, replaceable sintered stainless-steel and hydrophobic PTFE filter cartridge captures particulates, aerosols, and condensable vapors upstream of the compression chamber—extending service life of pistons and valves.
• Low-noise engineering: Acoustically damped housing and balanced crankshaft assembly limit operational noise to ≤68.0 dB(A) at 1 m distance—suitable for shared lab spaces and ISO 14644-compliant cleanroom-adjacent environments.
• Universal voltage compatibility: Factory-configurable for either 220 V / 50 Hz (standard) or 110 V / 60 Hz supply—enabling seamless deployment across North American, European, and APAC laboratory infrastructures.
• CE-certified safety compliance: Conforms to EN 61000-6-3 (EMC emission), EN 61000-6-2 (immunity), and EN 60335-1 (general safety) standards—validated for use in GLP-regulated and ISO/IEC 17025-accredited facilities.

Sample Compatibility & Compliance

The Rocker801 is compatible with aqueous, organic, and mildly corrosive vapors commonly encountered in vacuum filtration (e.g., Büchner, Hirsch, or membrane setups), vacuum drying of hygroscopic solids, and degassing of polymer precursors or coating formulations. It is not rated for continuous exposure to halogenated solvents, strong acids, or reactive gases (e.g., Cl₂, NH₃). For applications requiring trace-level purity—such as residual solvent analysis per ICH Q3C guidelines or extractables/leachables studies—the pump’s oil-free design avoids baseline interference in headspace-GC or FTIR quantification. Its mechanical construction meets material compatibility requirements outlined in USP for polymeric components in contact with lab equipment. While not intrinsically rated for Class I Div 1 hazardous locations, it may be installed in ventilated enclosures per NFPA 45 for low-flashpoint solvent handling.

Software & Data Management

The Rocker801 operates as a standalone analog device with no embedded microcontroller or digital interface. It does not generate telemetry data, nor does it support RS-232, USB, or Ethernet connectivity. As such, it complies with FDA 21 CFR Part 11 only in its role as a non-data-generating auxiliary device—requiring no audit trail, electronic signature, or system validation when used downstream of validated analytical instruments (e.g., as a vacuum source for HPLC degassers or lyophilizer condensers). Maintenance logs—including filter replacement dates and observed pressure decay rates—should be recorded manually in laboratory notebooks or LIMS per GLP Annex 11 principles. ROCKER provides a printable calibration verification checklist aligned with ISO/IEC 17025 Clause 6.4.10 for periodic functional assessment.

Applications

• Vacuum-assisted gravity filtration of biological suspensions, precipitates, or crystallization slurries using standard glass funnels or multi-well filter manifolds.
• Drying heat-sensitive compounds (e.g., APIs, peptides, oligonucleotides) in vacuum ovens at controlled temperatures ≤60 °C without oxidation or solvent residue.
• Deaeration of adhesives, resins, and dental composites prior to casting or dispensing—reducing void formation and improving mechanical consistency.
• Supporting rotary evaporation systems as a secondary or backup vacuum source where ultimate vacuum is not required but oil-free operation is mandatory.
• Providing stable negative pressure for vacuum-controlled fluid transfer in automated sample prep workstations compliant with ISO 22196 antimicrobial testing protocols.

FAQ

Is the Rocker801 suitable for continuous 24/7 operation?
No. It is rated for intermittent duty cycles up to 60% duty factor (e.g., 30 min ON / 20 min OFF) to maintain thermal stability and piston seal longevity.
Can I replace the inlet filter with a custom-made alternative?
Only ROCKER-certified filter cartridges (Part No. FTR-01) are validated for dimensional fit, pressure drop, and particulate retention efficiency; third-party filters may compromise motor protection and void warranty.
Does the pump meet FDA requirements for pharmaceutical manufacturing environments?
It satisfies mechanical and electrical safety aspects of FDA expectations for ancillary lab equipment but requires site-specific risk assessment per ICH Q9 and documented controls for filter change frequency and leak integrity checks.
What is the expected service life under typical lab usage?
With biannual filter replacement and adherence to duty cycle limits, mean time between failures (MTBF) exceeds 12,000 hours based on ROCKER’s accelerated life testing per ISO 13384-1.
Is vacuum level adjustable via built-in regulation?
No. Vacuum output is fixed by pump geometry and motor speed; external throttling valves or vacuum regulators must be added to the outlet line for pressure modulation.
