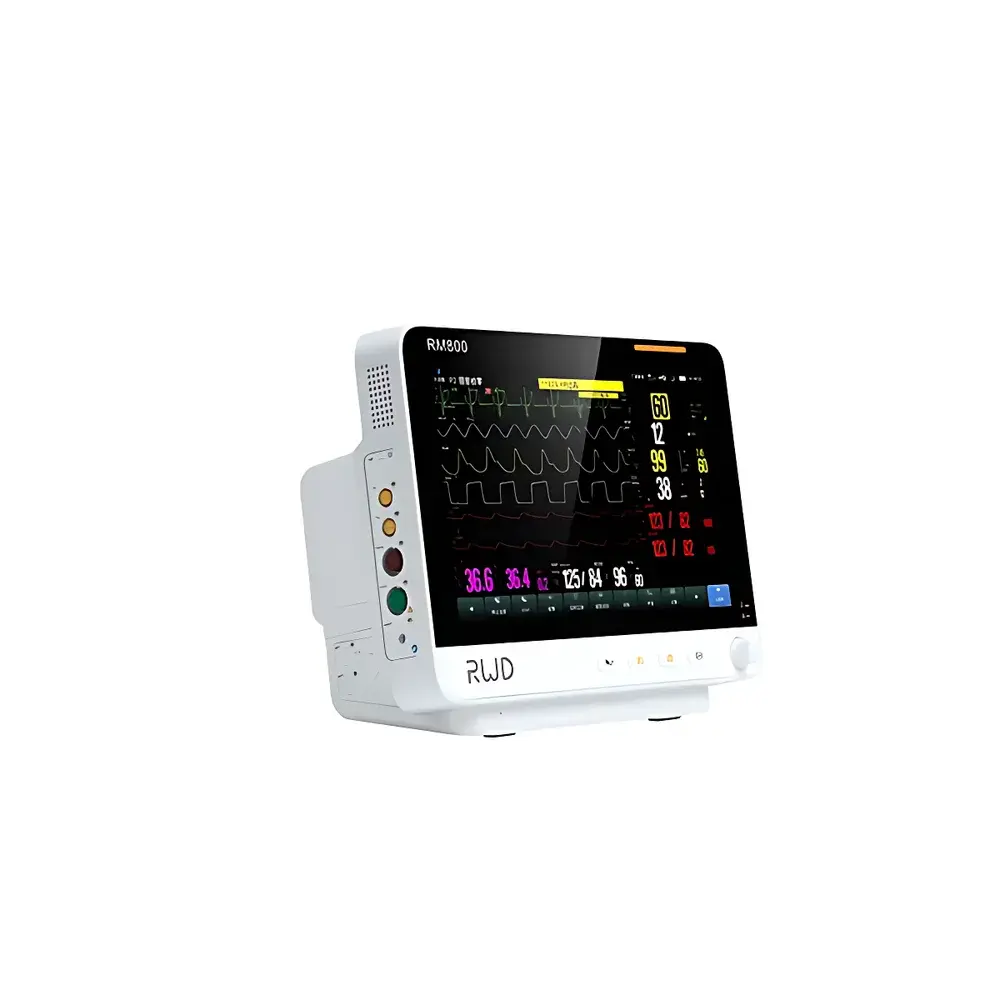

RWD RM700/RM800/RM800T Multi-Parameter Veterinary Patient Monitor

Overview

The RWD RM700, RM800, and RM800T are CE-marked, Class IIa medical-grade multi-parameter veterinary patient monitors engineered for precision, reliability, and clinical adaptability in small-animal practice settings. Designed specifically for canine and feline patients—though configurable for broader companion animal use—these devices implement validated physiological signal acquisition principles including differential amplification for ECG, photoplethysmography (PPG) for pulse oximetry, oscillometric pressure waveform analysis for non-invasive blood pressure (NIBP), thermistor-based temperature sensing, impedance pneumography for respiratory rate, and infrared microstream capnometry for end-tidal CO₂ (EtCO₂) quantification. Each parameter is processed using species-optimized algorithms developed through extensive validation against gold-standard reference methods in accordance with ISO 14155 (clinical investigation of medical devices) and aligned with AVMA and AAHA guidelines for perioperative monitoring. The modular architecture supports seamless integration into existing hospital workflows, whether deployed in surgical suites, ICU recovery bays, or outpatient exam rooms.

Key Features

• High-resolution 10.1″ or 12.1″ TFT LCD display with optional capacitive touchscreen interface—enabling intuitive navigation, real-time waveform review, and customizable parameter layout.
• Species-adaptive NIBP algorithm calibrated for canine and feline hemodynamic profiles, delivering rapid (<30 s), reproducible systolic/diastolic/mean arterial pressure (SAP/DAP/MAP) readings across weight ranges from 2 kg to 50 kg.
• Microstream EtCO₂ module utilizing low-flow (50–100 mL/min), sidestream sampling with integrated water trap and CO₂-specific infrared detection—meeting ISO 80601-2-55 requirements for veterinary capnographs.
• 5-lead ECG acquisition system with adaptive noise filtering, automatic lead-off detection, and arrhythmia annotation capability per AHA/ACC standards; supports manual rhythm strip printing and beat-by-beat HR derivation.
• Multi-sensor fusion architecture enabling synchronized temporal alignment of ECG, SpO₂ plethysmogram, NIBP waveforms, and EtCO₂ capnogram—critical for assessing cardiorespiratory coupling during anesthesia.
• Integrated accessory management system featuring dedicated storage compartments for reusable SpO₂ probes, NIBP cuffs (pediatric to adult), ECG electrodes, EtCO₂ sampling lines, and calibration gases—reducing setup time and minimizing equipment loss.

Sample Compatibility & Compliance

The RM700/RM800/RM800T series is validated for use on dogs (including brachycephalic breeds) and cats across all life stages—from neonatal to geriatric—with sensor configurations optimized for anatomical variability (e.g., paw-clip SpO₂ probes, tail-wrapped NIBP cuffs, sublingual temperature sensors). Device firmware complies with IEC 60601-1 (general safety), IEC 60601-2-49 (particular requirements for patient monitors), and IEC 60601-2-55 (capnographs). All clinical parameter algorithms have undergone third-party verification per ISO 13485 quality management system requirements. Data export functionality supports DICOM SR and HL7 v2.5.1 for interoperability with veterinary practice management systems (PMS) and electronic medical records (EMR), facilitating GLP-compliant documentation in research facilities.

Software & Data Management

Embedded firmware supports continuous waveform storage (up to 72 hours at default sampling rates), trend review (1–24 hour rolling windows), and event-triggered alarm logging with timestamped annotations. Data export is available via USB 2.0 port in CSV and PDF formats, preserving audit trail integrity—including operator ID, parameter configuration changes, and alarm acknowledgment history. Optional RWD VetLink™ software enables remote monitoring via local network, centralized data aggregation across multiple units, and automated report generation compliant with AAHA Anesthesia Monitoring Guidelines. All stored data maintains traceability under FDA 21 CFR Part 11 equivalent controls (user authentication, electronic signatures, immutable logs).

Applications

• Perioperative monitoring during general anesthesia—particularly for high-risk procedures requiring continuous EtCO₂ and ECG assessment.
• Emergency triage and critical care stabilization, where rapid NIBP and SpO₂ evaluation informs fluid resuscitation and oxygen therapy decisions.
• Cardiac screening in geriatric or breed-predisposed patients (e.g., Doberman pinschers, Maine Coons) using extended rhythm analysis and HRV metrics.
• Teaching laboratories supporting veterinary student competency in interpreting multimodal physiological trends.
• Preclinical research studies requiring GLP-aligned vital sign acquisition across longitudinal animal cohorts.

FAQ

What animal species are supported by the RM700/RM800/RM800T?
The monitor is clinically validated for dogs and cats; sensor accessories and algorithm presets are optimized for these species. Use in rabbits, ferrets, or birds requires off-label configuration and should be performed under veterinary supervision.
Is the device compatible with third-party ECG electrodes or SpO₂ probes?
Yes—standardized analog input interfaces support ISO 13485-certified third-party disposable and reusable sensors, though RWD-branded accessories are recommended for full algorithm compatibility and warranty coverage.
Does the RM800T include built-in Wi-Fi or Ethernet connectivity?
The RM800T model features dual-band Wi-Fi (802.11ac) and Gigabit Ethernet as standard; RM700 and RM800 require optional communication modules for network integration.
How often does the microstream EtCO₂ module require calibration?
Zero calibration is performed automatically at power-on; span calibration with certified 5% CO₂ gas is recommended every 30 days or after 100 hours of cumulative use, per ISO 80601-2-55 maintenance guidance.
Can alarm thresholds be customized per patient weight or species?
Yes—clinicians can define dynamic upper/lower limits for each parameter based on species, weight band, and procedural phase (induction/maintenance/recovery), with configurable visual and audible alert priorities.
