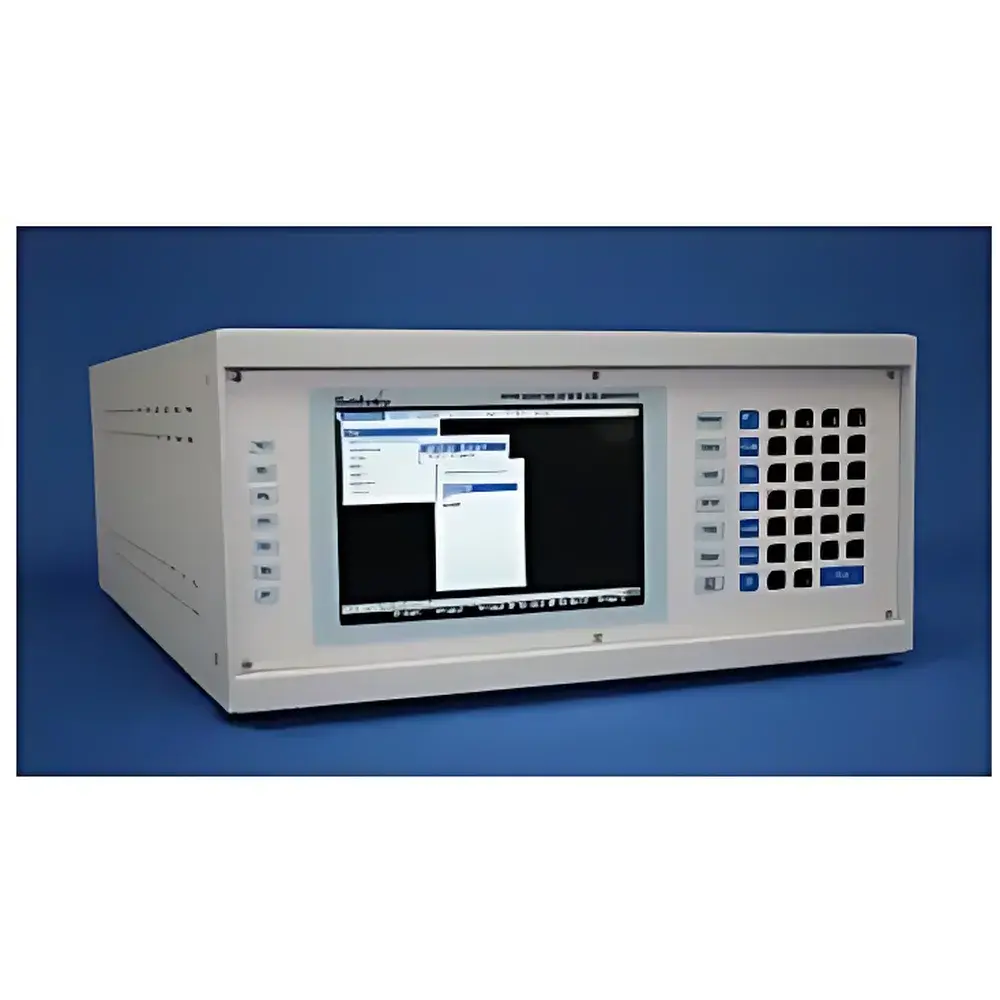

Sabio Sabio2010 Intelligent Portable Gas Dilution Calibrator

Overview

The Sabio Sabio2010 Intelligent Portable Gas Dilution Calibrator is an engineered solution for traceable, high-fidelity gas standard generation in field and laboratory environments. It operates on the principle of dynamic mass flow-controlled dilution—precisely metering a known concentration of source gas into a larger, accurately regulated stream of inert diluent gas (e.g., zero air or nitrogen) to produce stable, certified calibration standards across multiple concentration decades. Designed for compliance-critical applications in ambient air monitoring, stack emission verification, and instrument performance validation, the Sabio2010 delivers reproducible dilution ratios from parts-per-trillion (ppt) to percent-level concentrations without reliance on permeation tubes or cylinder-based standards alone. Its compact footprint, robust thermal management, and wide operating temperature range (5–40°C) support deployment in mobile labs, regulatory inspection vehicles, and fixed-site QA/QC facilities.

Key Features

• Two independent high-accuracy mass flow controllers: diluent channel (0–10 SLM, extendable to 20 SLM) and source gas channel (0–100 SCCM, extendable to 2 SLM), both with <1% full-scale accuracy and ±0.15% FS repeatability
• Dual inlet architecture: one standardized diluent inlet, two source gas inlets (one primary, one purge)—enabling sequential or parallel calibration of multiple analyzers
• Three independently configurable output ports plus dedicated exhaust and optional permeation port, supporting simultaneous multi-instrument calibration
• 20 factory-configured calibration paths, each programmable with up to 20 linear concentration points; supports automated ramp, step, and dwell protocols
• 8-bit digital I/O interface compatible with TTL logic or dry-contact triggering for integration into automated test sequences or PLC-controlled monitoring systems
• Full local operation via 42-key membrane keypad or remote control via RS-232 serial or optional Ethernet (TCP/IP) interface with secure command set
• Color LCD display with intuitive menu navigation, real-time flow visualization, and on-screen diagnostic status indicators

Sample Compatibility & Compliance

The Sabio2010 accommodates a broad spectrum of reactive and inert gases—including ozone (O₃), nitrogen oxides (NOₓ), sulfur dioxide (SO₂), carbon monoxide (CO), volatile organic compounds (VOCs), and halogenated species—when paired with chemically compatible tubing and fittings (e.g., electropolished stainless steel, PFA, or SilcoNert®). All flow paths are pressure-regulated between 12–35 PSIG to ensure laminar flow conditions and minimize adsorption losses. The system meets mechanical and electrical safety requirements per IEC 61010-1 and is suitable for use in Class I, Division 2 hazardous locations when installed with appropriate barriers. While not intrinsically safe by default, its architecture supports integration into EPA Method 205-compliant calibration workflows and aligns with ISO 6145-7 (gas mixtures by dynamic dilution) and ASTM D6196 (calibration of ambient air analyzers).

Software & Data Management

Firmware supports audit-ready data logging with timestamped records of all flow setpoints, actual readings, valve states, and system diagnostics. Optional PC software provides graphical calibration report generation, CSV export, and version-controlled method storage. All calibration sequences can be exported/imported as XML files for cross-platform compatibility. When configured with Ethernet, the device supports secure remote access via HTTPS and integrates with LIMS platforms through standard RESTful API endpoints. Full traceability is maintained via user authentication, electronic signatures, and immutable audit trails compliant with FDA 21 CFR Part 11 requirements for regulated laboratories.

Applications

• Field calibration of continuous emission monitoring systems (CEMS) and ambient air quality analyzers (e.g., UV photometric O₃ monitors, chemiluminescent NOₓ analyzers)
• Verification of analyzer linearity, zero/span drift, and response time per EPA Performance Specification 2 (PS-2) and EN 14181
• Generation of dynamic calibration standards for GC-FID, GC-MS, and PTR-TOF instruments requiring low-concentration reference gases
• Support of regulatory audits under EU Industrial Emissions Directive (IED) and U.S. Clean Air Act Title V permitting programs
• Mobile calibration services for environmental consultancies and third-party QA/QC providers operating under ISO/IEC 17025-accredited scopes

FAQ

What gas species can be calibrated using the Sabio2010?
The system is compatible with any gas that remains stable under dynamic dilution conditions and does not react with stainless steel, PFA, or fused silica wetted materials—including O₃, CO, SO₂, NO, NO₂, H₂S, NH₃, and many VOCs.
Is the Sabio2010 suitable for ISO/IEC 17025 accredited laboratories?
Yes—when operated within documented procedures and validated against NIST-traceable reference standards, its metrological performance supports compliance with ISO/IEC 17025:2017 Clause 6.4 (equipment) and Clause 7.7 (uncertainty evaluation).
Can the device perform unattended overnight calibration sequences?
Yes—its internal scheduler supports up to 20 timed calibration routines, each with user-defined start time, duration, and concentration profile, with automatic shutdown and log retention.
Does the Sabio2010 require annual recalibration?
Mass flow controllers should be verified annually against a NIST-traceable reference standard; full system calibration is recommended prior to critical audits or after hardware maintenance.
What is the maximum number of source gases supported simultaneously?
The system defines up to 20 source gases in memory; however, only one source gas is delivered at a time unless external manifold switching is integrated via the 8-bit digital I/O interface.
