Sable SSI Multi-Channel Terrestrial Animal Respirometry System

Overview

The Sable SSI Multi-Channel Terrestrial Animal Respirometry System is a modular, research-grade platform engineered for precise, continuous measurement of oxygen consumption (VO₂), carbon dioxide production (VCO₂), respiratory exchange ratio (RER), and optional water vapor (H₂O) or methane (CH₄) flux in freely behaving or restrained terrestrial animals. Based on open- or closed-circuit respirometry principles, the system employs high-fidelity electrochemical (fuel cell) O₂ sensors and dual-wavelength non-dispersive infrared (NDIR) CO₂ analyzers—both rigorously temperature- and pressure-compensated—to ensure trace-level accuracy under dynamic flow conditions. Designed for physiological ecologists, comparative physiologists, and preclinical researchers, it supports quantitative metabolic phenotyping across taxa—from Drosophila and ticks to rodents, birds, and reptiles—enabling robust inference of substrate utilization, metabolic rate scaling, thermoregulatory efficiency, and energetic costs of behavior.

Key Features

• Modular architecture supporting 1–8 parallel measurement channels (up to 7 simultaneous animal measurements + baseline reference)
• Fuel-cell O₂ analyzers with 0.0001% O₂ resolution, <0.01% O₂/hr drift (at stable temperature), and PID-controlled thermal stabilization (optional dual-channel unit)
• NDIR CO₂ analyzers with 1 ppm resolution (0–5% range), <0.001% CO₂/hr drift, and sub-0.5 s response time
• Optional ultra-sensitive CO₂/H₂O analyzer (0–3000 ppm CO₂, 0.01 ppm resolution; 0–60 mmol/mol H₂O, 1% accuracy) for micro-invertebrate studies
• Integrated MFS-series mass flow controllers (75–4000 mL/min standard; up to 1650 L/min with FlowKit series) featuring PID-regulated brushless diaphragm or rotary pumps
• 8-port automated gas switching manifold with <50 ms actuation time, configurable for push/pull flow and stop-flow/flow-through modes
• Dedicated data acquisition module with 12 analog/digital I/O channels, 16-bit A/D conversion, 100 Hz sampling, and built-in temperature sensing (–5 to 60 °C)

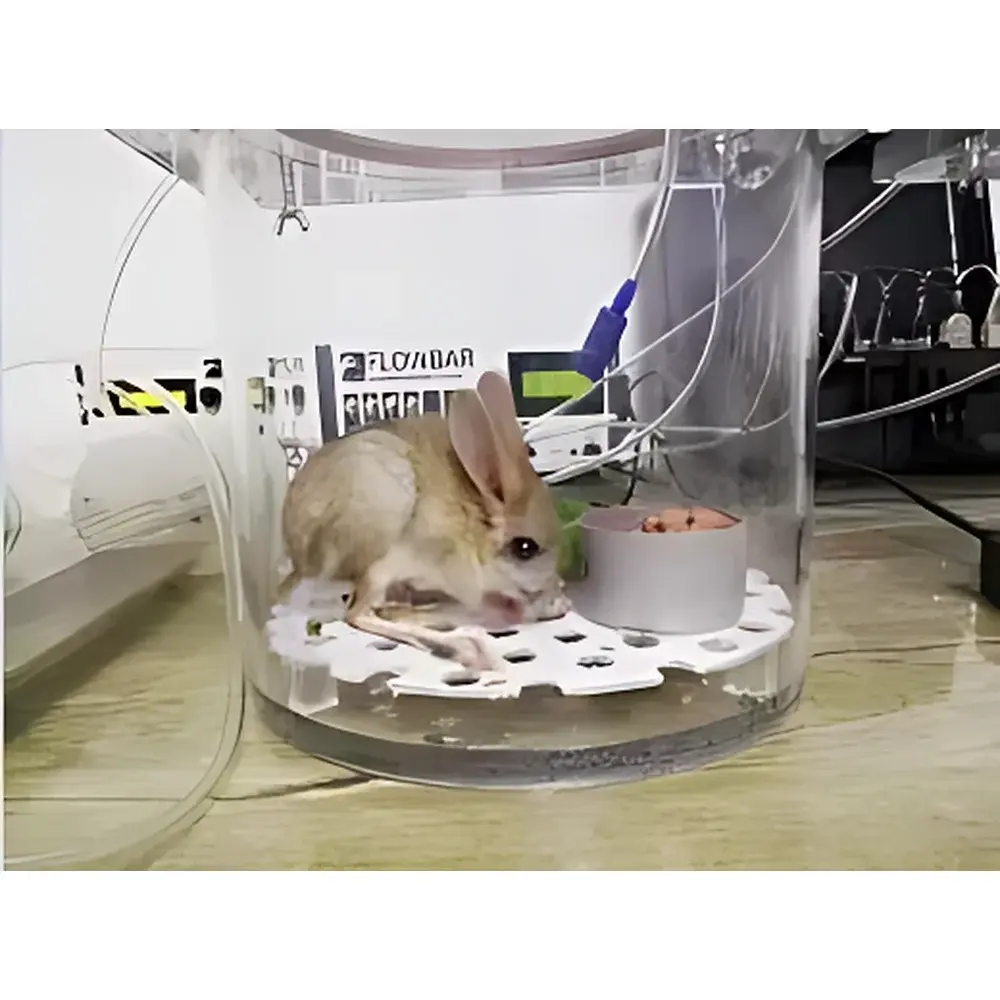

• High-integrity respirometry chambers fabricated from borosilicate glass with Viton® low-permeability gaskets to minimize CO₂ and H₂O adsorption/diffusion artifacts

Sample Compatibility & Compliance

The SSI system accommodates a broad phylogenetic and size range of terrestrial vertebrates and invertebrates. Standard chamber configurations include RC (30 mL, insects), RC-2 (350 mL, large insects/small rodents), and RC-3 (700 mL, adult rats or pigeons); custom geometries are available upon request. All gas analyzers comply with ISO 8573-1 (compressed air purity) and ASTM D6245 (standard practice for measuring CO₂ in ambient air) for sensor validation protocols. The system architecture supports GLP-compliant experimental workflows: analog and digital signal outputs (RS-232, 0–5 V BNC) enable integration with third-party data loggers meeting FDA 21 CFR Part 11 requirements for audit trails and electronic signatures when paired with validated software environments. Pressure and temperature compensation algorithms adhere to NIST-traceable standards for gas density correction in metabolic rate calculations.

Software & Data Management

Acquisition and analysis are managed via ExpeData™ software (v5.0+), a Windows-based application developed by Sable Systems International. The software provides real-time visualization of VO₂, VCO₂, RER, and flow rates across all active channels; supports user-defined calculation scripts for derived metrics (e.g., factorial metabolic scope, evaporative water loss, CH₄ yield); and exports time-synchronized data in CSV, HDF5, or MATLAB-compatible formats. Raw analog signals are timestamped with microsecond precision using onboard hardware clocks. Data integrity safeguards include automatic sensor calibration logging, flow stability monitoring, and outlier detection based on user-specified statistical thresholds (e.g., ±3 SD from moving mean). For regulated environments, optional ExpeData™ Audit Mode enables full traceability of parameter changes, operator IDs, and instrument configuration history—fully aligned with GMP/GLP documentation expectations.

Applications

• Comparative physiology: Scaling of metabolic rate with body mass across insect, reptile, avian, and mammalian lineages
• Energetics of locomotion and thermoregulation in ectotherms and endotherms
• Toxicology and pharmacokinetics: Quantifying shifts in substrate oxidation (RER) following drug administration or environmental stressors
• Ecological energetics: Field-deployable respirometry for studying energy budgets in response to climate variables or habitat fragmentation
• Genetic and transgenic models: High-throughput metabolic phenotyping in rodent colonies (e.g., obesity, diabetes, mitochondrial disease models)
• Pest management research: Respiratory responses of arthropod vectors (mosquitoes, ticks) to repellents or insecticides
• Preventive medicine: Baseline metabolic characterization in aging or diet-intervention studies

FAQ

What is the maximum number of animals that can be measured simultaneously?
Up to seven animals can be measured concurrently using an 8-channel configuration (seven sample lines + one baseline reference channel). Multiple 8-channel units may be synchronized for larger-scale studies.
Can the system measure both CO₂ and O₂ in the same breath-by-breath sequence?
Yes—the modular design allows simultaneous, time-aligned acquisition of CO₂ and O₂ signals from the same airstream when configured with co-located analyzers and matched flow paths.
Is the system suitable for measuring metabolic rates in very small organisms like fruit flies?
Absolutely. The optional ultra-sensitive CO₂/H₂O analyzer (0–3000 ppm CO₂, 0.01 ppm resolution) combined with micro-flow controllers (down to 0–10 mL/min) enables reliable measurements in Drosophila, mosquitoes, and acarines.
Does the system support compliance with FDA 21 CFR Part 11 for regulated pharmaceutical research?
While the hardware itself is not certified, its RS-232 and analog output interfaces, coupled with ExpeData™ Audit Mode, provide the foundational data integrity, access control, and electronic record features required to build a compliant workflow when deployed within a validated laboratory information management system (LIMS).
Are calibration gases and maintenance kits included?
Calibration gases (e.g., certified 20.95% O₂/N₂, 0.5% CO₂/N₂) and sensor replacement kits are available as optional accessories; routine zero/span calibration procedures are fully documented in the user manual and supported by embedded diagnostics.
