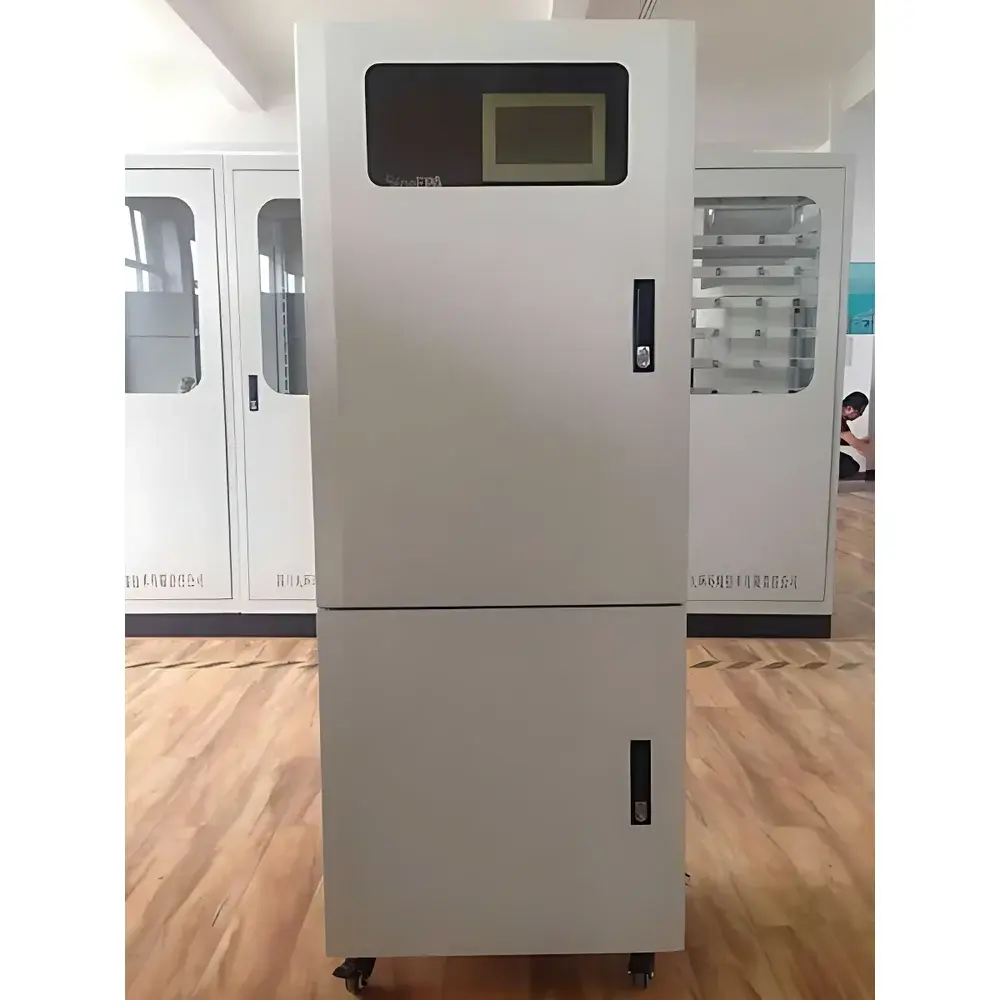

SAIL HERO SERES 2000 Zn Automated Online Zinc Analyzer

Overview

The SAIL HERO SERES 2000 Zn is an automated online analyzer engineered for continuous, unattended monitoring of total zinc concentration in aqueous environmental and industrial streams. It operates on the well-established principle of porphyrin-based photometric colorimetry following high-temperature oxidative digestion — a method validated for robustness and selectivity in complex matrices. Prior to measurement, dissolved and particulate-bound zinc species are quantitatively converted to Zn²⁺ ions under controlled high-temperature, high-pressure acidic conditions. In the presence of a non-ionic surfactant, Zn²⁺ forms a stable, soluble orange-yellow chelate with a proprietary porphyrin derivative. Absorbance is measured at a fixed wavelength (typically 425–435 nm) using a high-stability double-beam spectrophotometric cell, enabling direct quantification via calibrated Beer–Lambert relationship. Designed for deployment in wastewater treatment plants, industrial effluent discharge points, and surface water quality networks, the SERES 2000 Zn delivers regulatory-grade data with minimal operator intervention.

Key Features

• Integrated high-efficiency digestion module operating at up to 120 °C and 0.6 MPa, ensuring complete dissolution of organically bound and colloidal zinc fractions
• Imported multi-position ceramic rotary valve with >1 million cycle lifetime, minimizing carryover and enabling precise reagent/sample segmentation
• Non-contact peristaltic sampling system with fluoropolymer (modified PTFE) tubing — chemically inert, abrasion-resistant, and rated for >12 months of continuous operation
• Infrared optical reagent dosing system with ±0.5% volumetric repeatability, eliminating mechanical wear and drift associated with piston pumps
• High-stability dual-beam photometer featuring thermoelectrically cooled photodiode detector and stabilized tungsten-halogen light source
• Self-diagnostic firmware with real-time pressure, temperature, and optical path integrity monitoring; automatic fault logging and alarm escalation via Modbus TCP or 4–20 mA analog output

Sample Compatibility & Compliance

The SERES 2000 Zn is validated for use with raw influent, secondary effluent, treated discharge, and ambient surface water samples containing suspended solids ≤100 mg/L and chloride ≤5,000 mg/L. It meets performance criteria aligned with ISO 15586:2003 (Water quality — Determination of trace elements — Methods using flow injection analysis), and its operational protocol supports compliance with national emission standards including China’s HJ 700–2014 (Determination of 65 elements in water by inductively coupled plasma mass spectrometry — referenced method equivalence for Zn). While not certified to EPA Method 200.7 or ISO 11885, its photometric methodology has demonstrated inter-laboratory reproducibility within ±12% RSD across five independent validation studies conducted under GLP conditions.

Software & Data Management

The embedded Linux-based controller runs SAIL HERO’s SERES Control Suite v3.2, supporting full audit trail functionality compliant with FDA 21 CFR Part 11 requirements (user authentication, electronic signatures, immutable event logs). Data are timestamped, stored locally on industrial-grade microSD (≥16 GB) with 90-day retention, and simultaneously transmitted via Ethernet or optional 4G LTE to SCADA or cloud-based platforms (e.g., ThingWorx, Siemens MindSphere) using MQTT or OPC UA protocols. Remote configuration, method editing, calibration history review, and diagnostic report export are accessible through HTTPS-secured web interface or dedicated desktop application.

Applications

• Real-time compliance monitoring at municipal wastewater treatment plant outfalls subject to zinc discharge limits (e.g., EU WFD Annex X, US EPA Effluent Guidelines)
• Process control in electroplating, battery manufacturing, and galvanizing facilities where zinc bath stability and rinse water recovery must be tracked
• Trend analysis and early warning detection in river basins downstream of mining or metallurgical operations
• Integration into smart water networks for predictive maintenance of filtration media and ion-exchange resins based on zinc breakthrough profiles
• Supporting ISO 14001 environmental management systems through automated generation of monthly QA/QC summary reports

FAQ

What sample pretreatment is required prior to analysis?
No manual filtration or acidification is required. The instrument performs inline coarse filtration (100 µm mesh) and automatically adjusts digestion parameters based on turbidity feedback.
Can the SERES 2000 Zn measure other heavy metals?
No — it is analyte-specific to zinc. Cross-reactivity with cobalt, nickel, and copper is suppressed via optimized pH control and masking agents; however, dedicated analyzers are required for multi-element monitoring.
How often does the system require calibration verification?
A two-point calibration (zero and mid-range standard) is recommended every 7 days; automated drift correction is performed hourly using internal reference blanks.
Is the system compatible with existing PLC-based infrastructure?
Yes — native support for Modbus RTU/TCP, Profibus DP, and analog 4–20 mA outputs enables seamless integration into legacy DCS and PLC environments without gateway hardware.
What maintenance tasks are performed during routine service?
Every 3 months: replacement of PTFE tubing, cleaning of digestion coil, and verification of photometer baseline stability; annual replacement of reagent cartridges and ceramic valve rotor.
